Hanwha - SPE-420 - 4 Channel Multi-Format Video Encoder

Product Overview

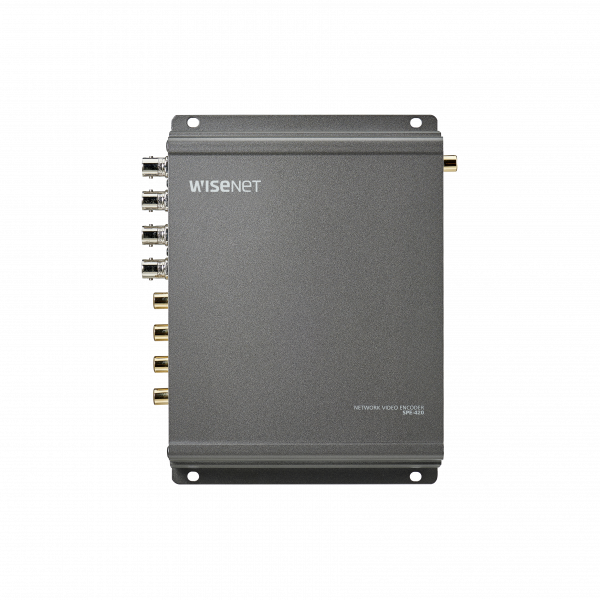

The SPE-420 is a 4-channel multi-format video encoder that converts analog camera signals, including AHD, CVI, TVI, and legacy CVBS, into IP streams. Utilizing H.265, H.264, and MJPEG compression codecs, it supports high-resolution video encoding up to 5MP at 12 fps, 4MP at 15 fps, and full 1080p performance at 30 fps per channel.

Key Configuration

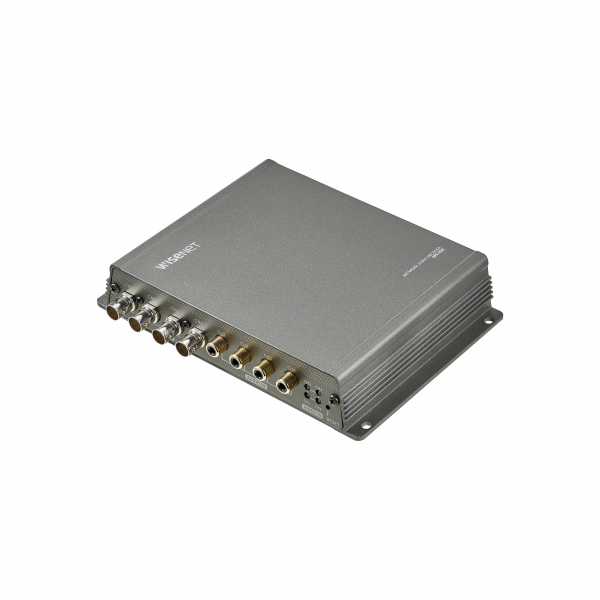

• • Input channels: 4 × BNC (1.0 Vp-p / 75Ω composite); auto-detection of CVBS, AHD, CVI, TVI (1,2,4,5MP)
• • Video output: 1 × HDMI (1920×1080, 4 multi-image display)
• • Audio: 4 line inputs, 1 line output; compression: G.711 u-law
• • Alarm: 4 inputs, 2 outputs
• • Dimensions: 178.0 × 34.0 × 127.8 mm (148.7 mm with connector); weight: 520g (1.15 lb)

Key Features

The mainstream performance up to 5MP at 12 fps, 4MP at 15 fps, and 1080p at 30 fps per channel. This 4-channel encoder delivers dual-streaming with a sub-stream up to WD1/4CIF. Onboard intelligence covers motion detection and 4 privacy masks, while legacy PTZ integration is supported via RS-485/422 (SAMSUNG-T, PELCO-P/D) or coaxial control (Pelco-C, AHD, TVI, CVI). Built on a 10/100 Base-T RJ-45 interface supporting SUNAPI and ONVIF Profile S, it accommodates 16 unicast users (4 per channel) and multicast streams under a security suite featuring HTTPS, IP filtering, and 802.1X authentication.

Technical Context

Supported on Windows 10+ and Mac OS X 10.13+, the web viewer allows plugin-free access via Google Chrome 80+, MS Edge 83+, Mozilla Firefox 72+, and Apple Safari 11.0.1+. For centralized management, the hardware seamlessly integrates with SmartViewer software and Hanwha Techwin P, X, Q, and L series NVRs.

Installation Notes

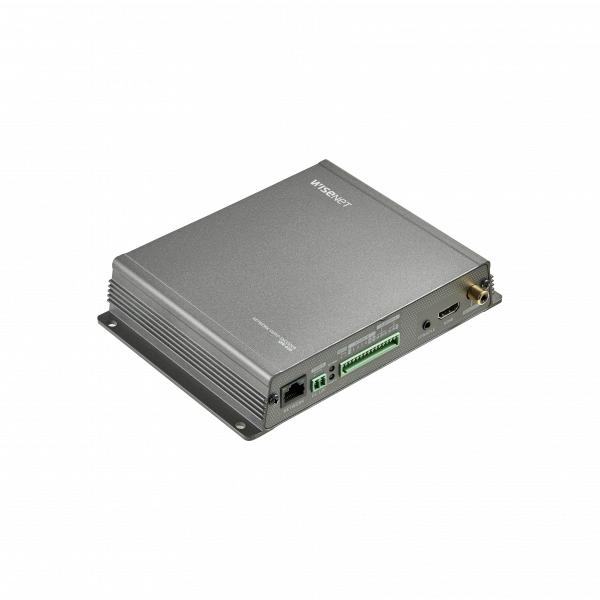

Measuring 178.0 × 34.0 × 127.8 mm and weighing 520g, this dark gray metal encoder operates from -10°C to 50°C (20–80% RH). It is powered via 12VDC or PoE (Class 2, max 5W) and features an HDMI output for local monitoring, alongside RS-485 and coaxial interfaces for legacy PTZ control.
