Hanwha - SBV-180WW - Waterproof Backbox for Vandal X-Core and X-Plus cameras; Compatible models: XNV-6080R/L6080R/6085/6120R/8080R; XNV-6081R/8081R/6083R/8083R/8093R/9083R; XNV-C6083R/C7083R/C8083R/C9083R
Part number:
SBV-180WW
Price:

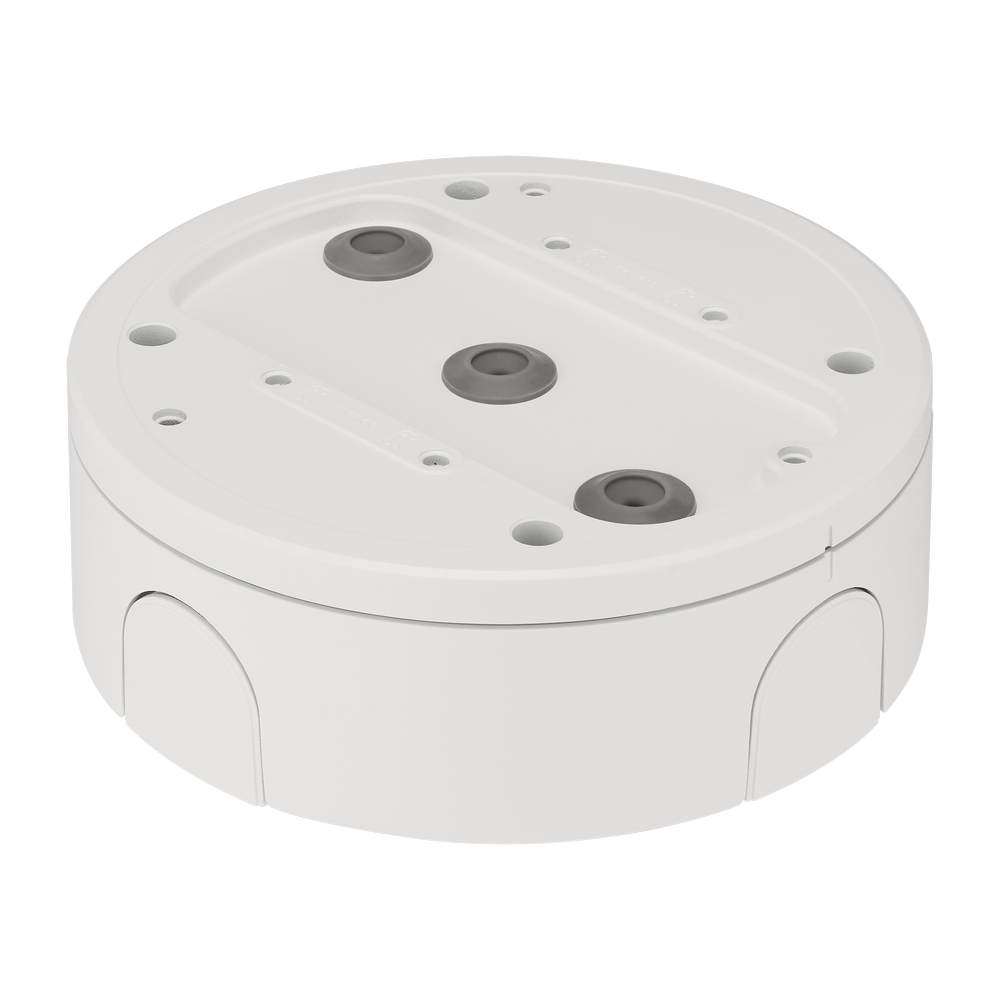

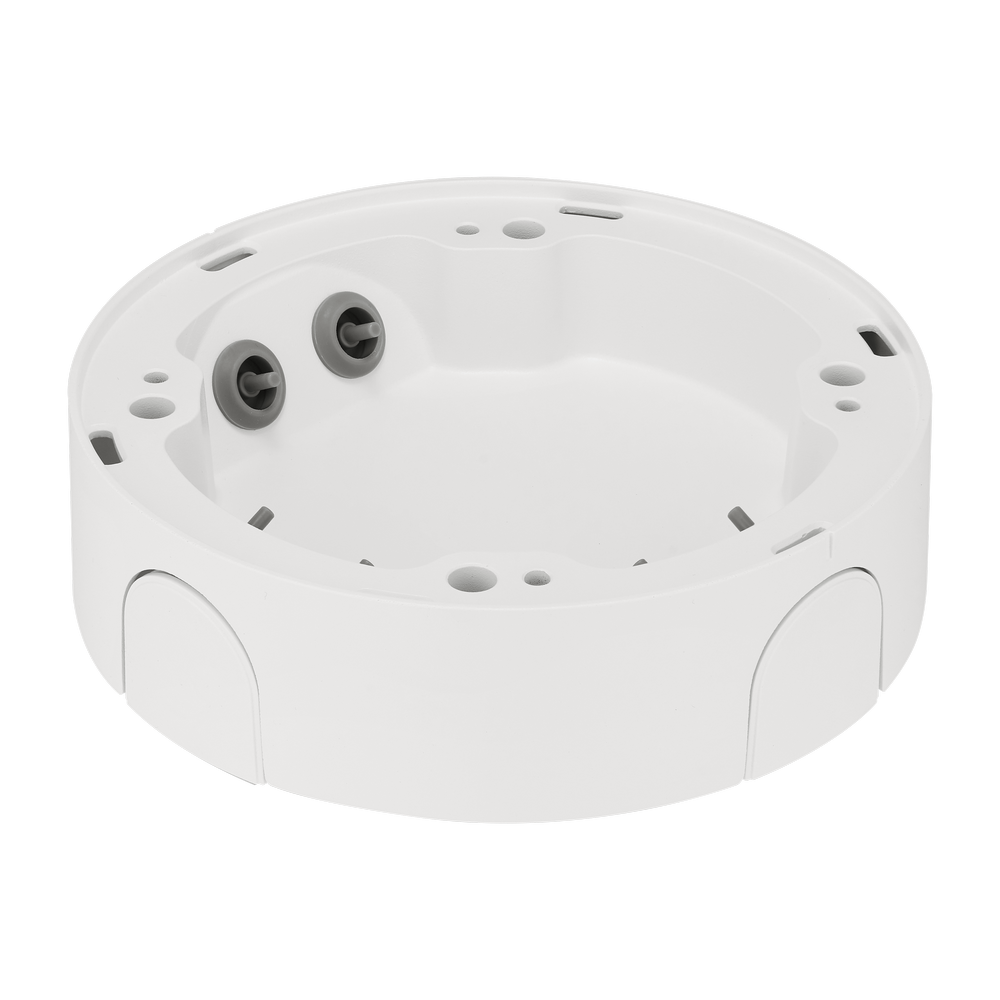

The Hanwha SBV-180WW is an industrial, heavy-duty waterproof junction back box engineered to provide a sealed cable management cavity for Hanwha's premium outdoor vandal-resistant dome cameras.
Key Features:
• Color: White
• Material: Aluminum
• Weight: 1,183g (2.61lb)
• Operation Temperature: -50°C ~ +60°C(-58°F ~ +140°F)
• Operation Humidity: Less than 100% RH
• Certification: IP66, IK10, NEMA4X
• Compatible models include: XNV-6081R / XNV-8081R / XNV-6083R / XNV-8083R / XNV-8093R / XNV-9083R XNV-C6083R / XNV-C7083R / XNV-C8083R / XNV-C9083R
| Environmental | |
| Certification | IP66, IK10, NEMA4X |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | Φ184.2x61.0mm (Φ7.25x2.40") / 1,183g (2.61lb) |
| Mount Screw size | TR20 |
| Conduit hole | 19.1mm(3/4") (M25) |
| Supported products | XNV-6080R/L6080R/6085/6120R/8080R XNV-6081R/8081R/6083R/8083R/8093R/9083R XNV-C6083R/C7083R/C8083R/C9083R |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
Compliant Product List
0.8mb
