Cyber Power - PR1500RTXL2UN - Smart App Sinewave Rack
Product Overview
The CyberPower PR1500RTXL2UN is a high-performance 2U rack/tower convertible UPS delivering 1500 VA / 1500 W of power with a pure sine wave output, ideal for mission-critical equipment. It features sophisticated Double Boost and Single Buck AVR to maintain stable voltage and comes with the RMCARD205 network card pre-installed for immediate remote management. The unit provides eight battery-backed outlets, a 2430-joule surge rating, and advanced Fast Charge Technology. For ease of use, it includes a rotatable multifunction LCD and specialized battery equalization to extend the life of the internal power cells.
Configuration
- • UPS topology: Line-Interactive; capacity: 1500 VA / 1500 W; rated power factor: 1

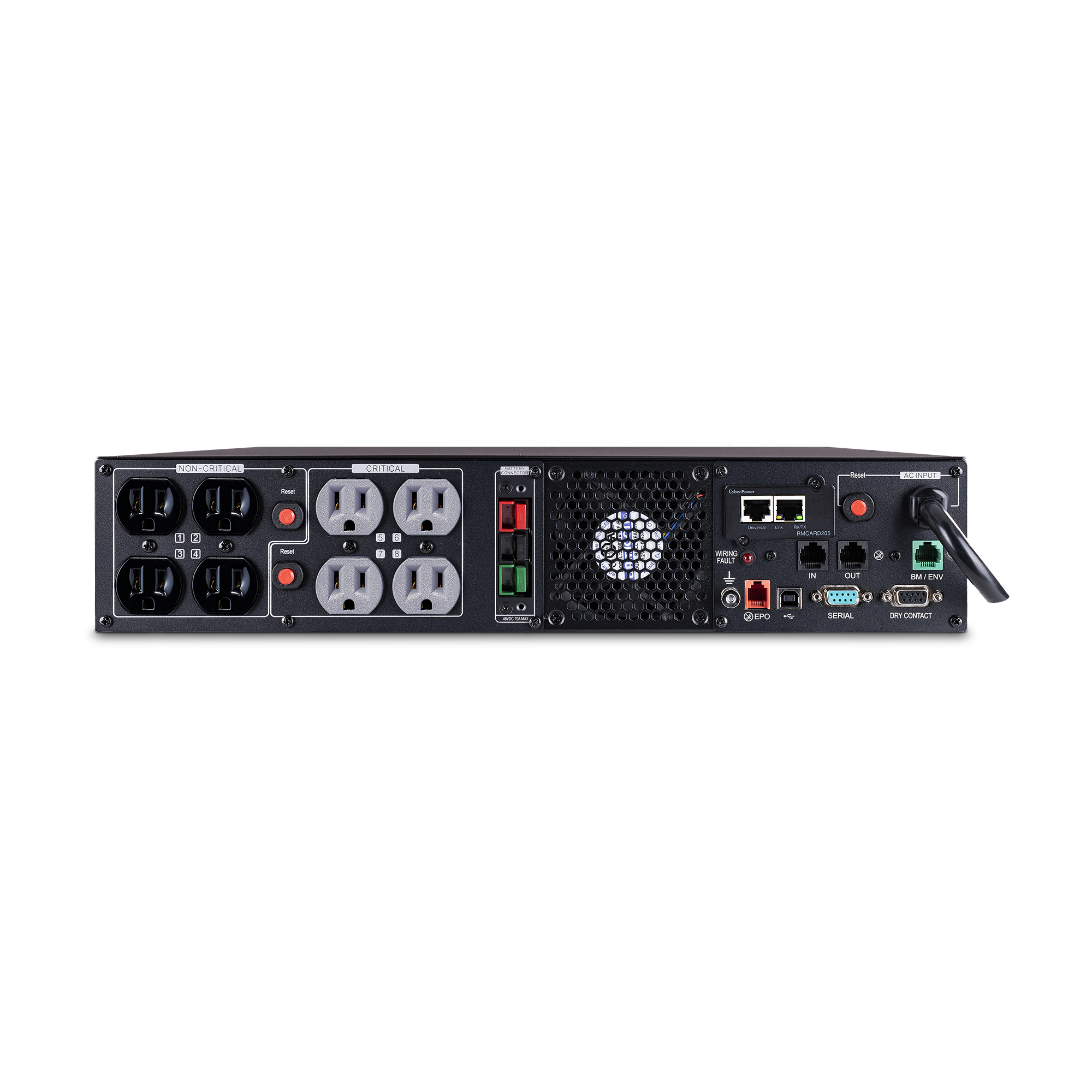

- • Outlets: 8 × NEMA 5-15R (all battery & surge protected); 4 critical load outlets
- • Input: NEMA 5-15P right-angle plug (45° offset right), 10ft cord; voltage: 100-125 Vac; frequency: 47-63 Hz; input voltage range: 75-149 VAC
- • Battery: 4 × 12V/9Ah sealed lead-acid (user replaceable, hot swappable); runtime: 17.9 min (half load), 6.5 min (full load); recharge time: 3 hours

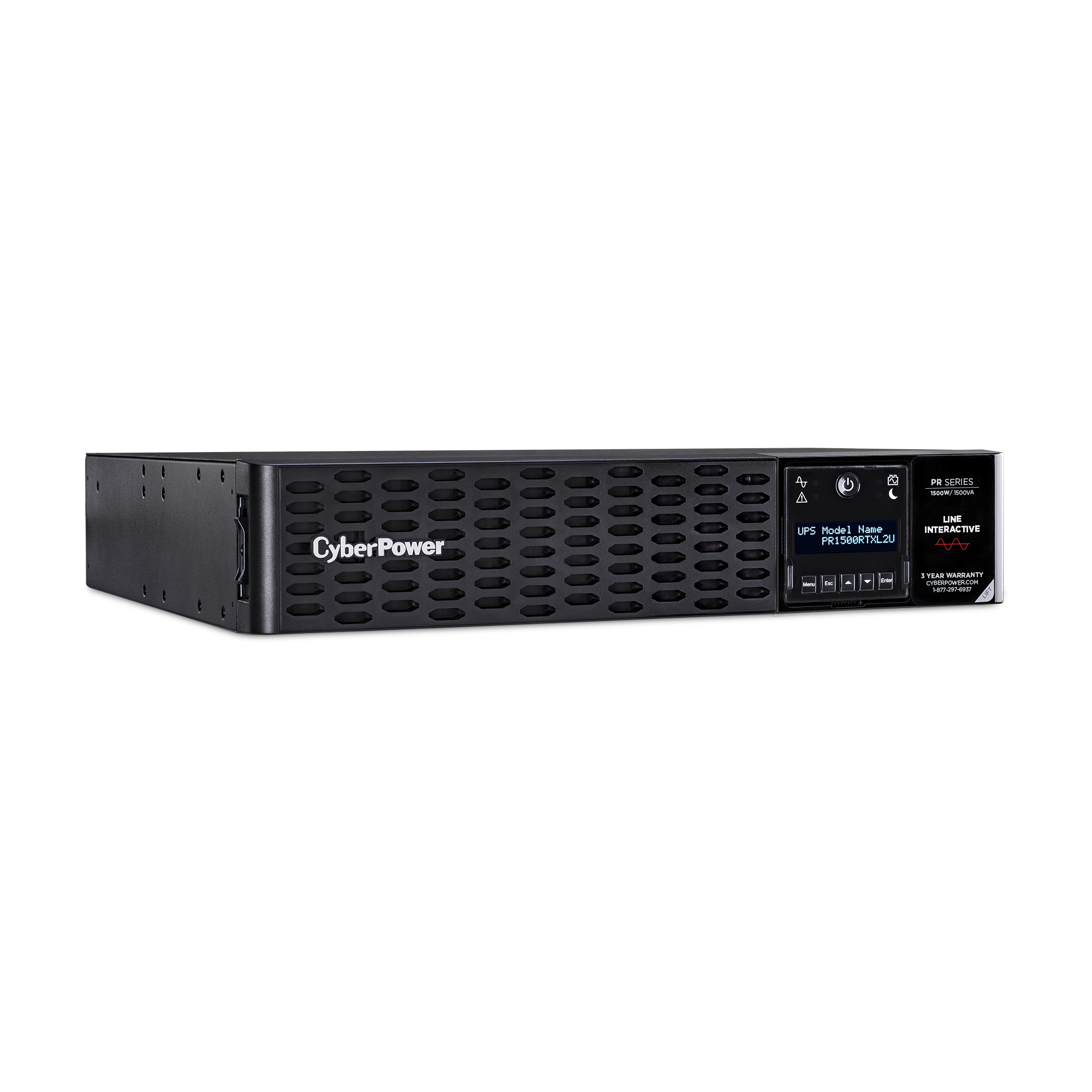

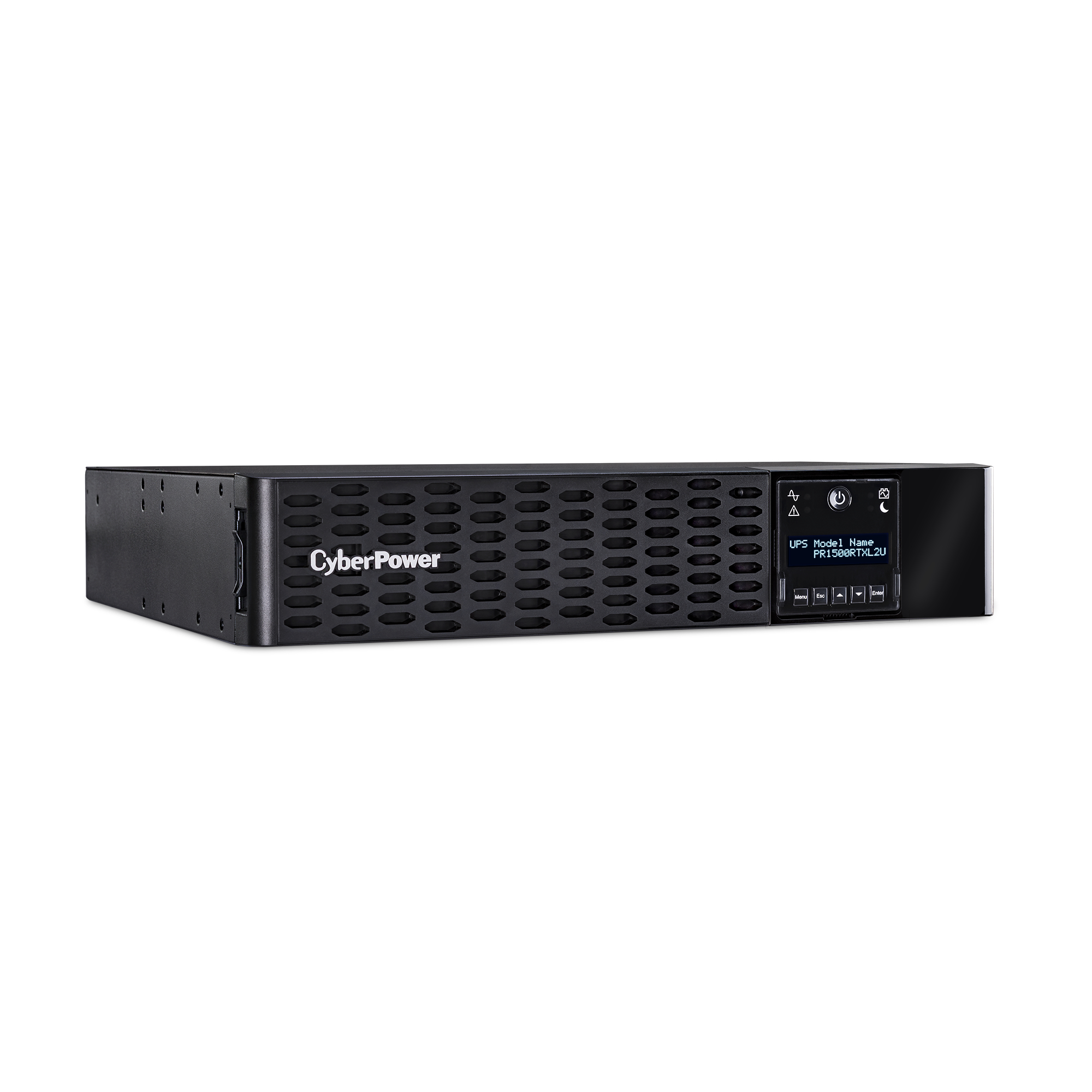

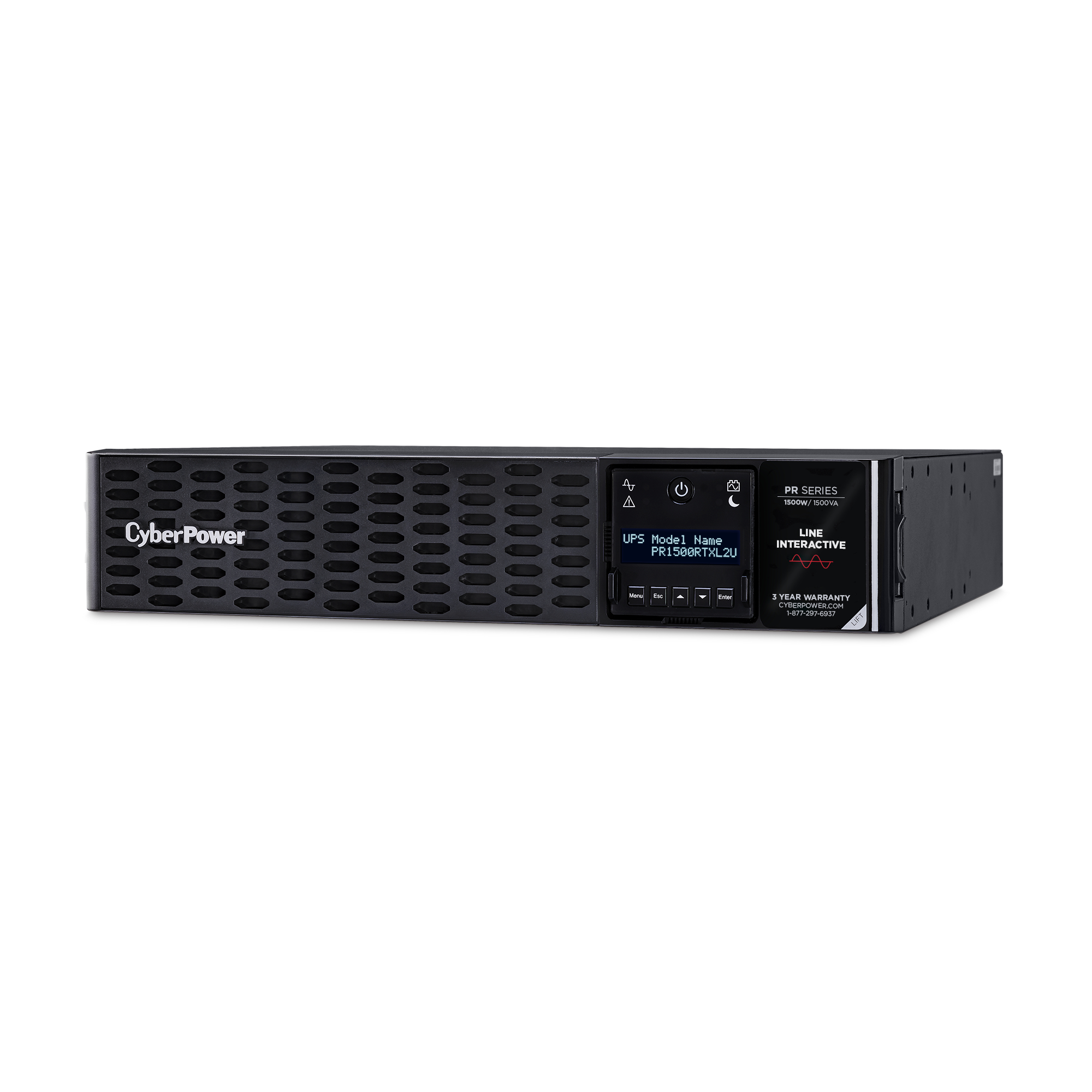

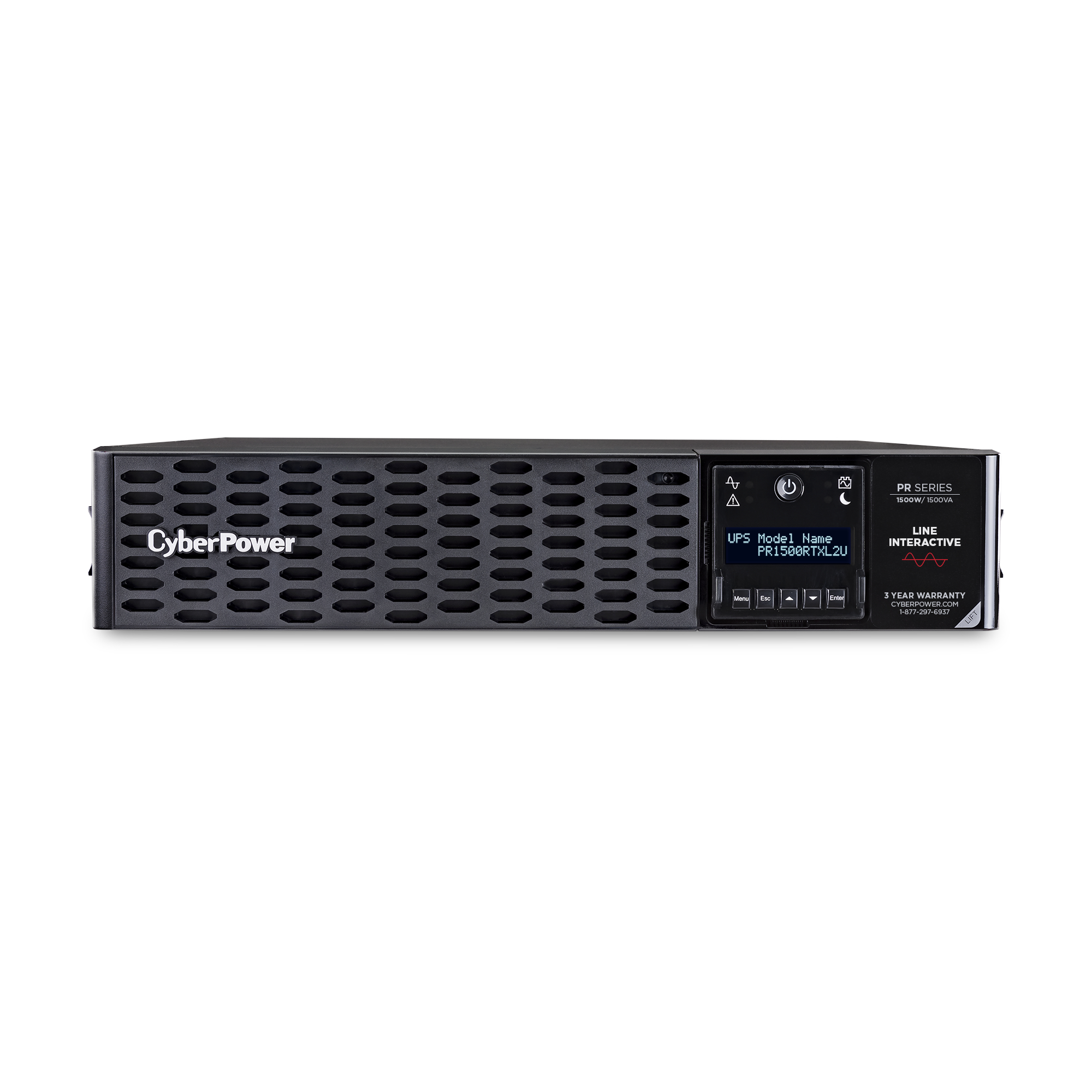

- • Physical: 2U rack/tower convertible; dimensions: 17.1" × 3.4" × 19.7" (W×H×D); weight: 67.7 lbs
Features
The PR1500RTXL2UN delivers high-fidelity pure sine wave power with a rapid 4ms transfer time, making it perfectly suited for Active PFC equipment. It utilizes sophisticated double boost/single buck AVR and battery equalization to maximize cell longevity and voltage stability. With its rotatable LCD providing 47 distinct settings and a pre-installed RMCARD205, this unit is ready for complex remote monitoring and localized control right out of the box.
Technical Context
Designed for high-demand environments, this UPS supports 1500W of true power and is Energy Star certified for efficiency. It features an EPO port for emergency shutdowns and is fully compatible with PowerPanel Business software for automated system management. Backed by a $400,000 Connected Equipment Guarantee, the unit operates safely at altitudes up to 10,000 feet and offers built-in protection against overheating and overcharging.
Installation Notes
This 2U convertible unit adapts to either rack or tower configurations and supports extended runtime via the BP48VP2U02 battery module. Maintenance is streamlined through toolless battery panel access and hot-swappable RB1290X4J batteries, allowing for service without interrupting connected loads. Despite its robust 67.7 lb build, the 19.7" depth ensures it fits securely in standard server racks while providing a high-density power footprint.
| GENERAL | |
| UPS Topology | Line-Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Certified | Yes |
| Active PFC Compatible | Yes |
| INPUT | |
| Voltage | 100 - 125 Vac |
| Frequency | 47 - 63 Hz |
| Input Voltage Range | 75 - 149 VAC |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 10 ft. |
| OUPUT | |
| VA | 1500 |
| Watts | 1500 |
| Automatic Voltage Regulation | Double boost, single buck |
| On Battery Voltage | 100/110/120/125 Vac ± 5% |
| On Battery Frequency | 50/60 Hz +/- 1% |
| On Battery Waveform | Sine Wave |
| Outlets - Total | 8 |
| Outlet Type | NEMA 5-15R |
| Outlets - Critical Load | 4 |
| Outlets - Battery & Surge Protected | 8 |
| OUTPUT CONT. | |
| Rated Power Factor | 1 |
| Overload Protection | Internal Circuitry Limiting/ Circuit Breaker |
| Transfer Time | 4ms typical |
| BATTERY | |
| Extended Battery Module | BP48VP2U02 |
| Runtime at Half Load (min) | 17.9 |
| Runtime at Full Load (min) | 6.5 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V / 9AH |
| Hot-Swappable | Yes |
| Replacement Battery | RB1290X4J |
| Battery Quantity | 4 |
| User Replaceable | Yes |
| Typical Recharge Time | 3 hrs |
| External Battery Pack Option | Yes |
| SURGE PROTECTION & FILTERING | |
| Network Protection RJ45 | 1-in, 1-out |
| Surge Suppression | 2430 |
| EMI/RFI Filtration | Yes |
| MANAGEMENT & COMMUNICATION | |

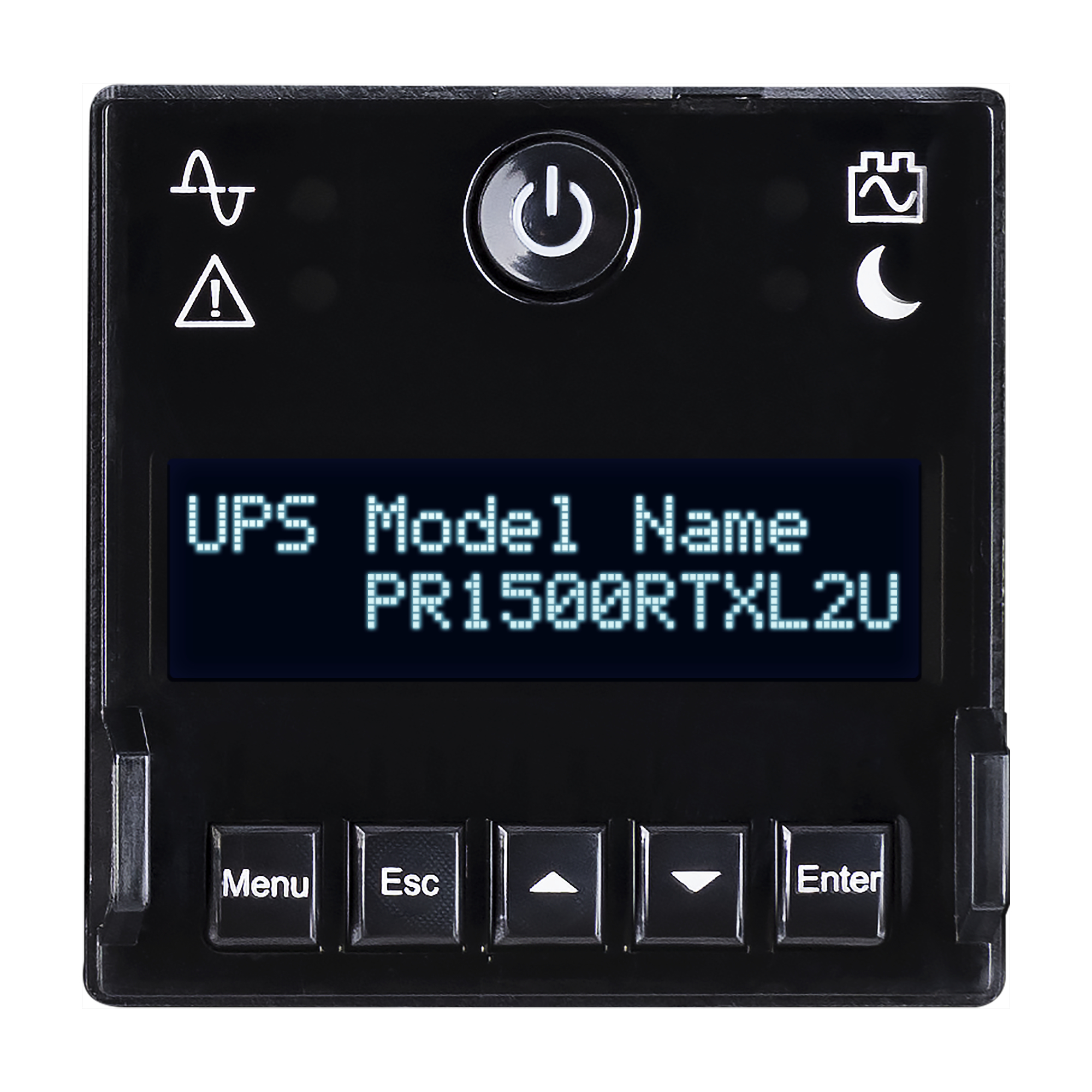

| Multifunction LCD Panel | 47 Settings (27 setup and control items + 20 status updates and log menus) |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Contact Closure | Yes |
| Management Cable | USB Cable, EPO Cable |
| MANAGEMENT & COMMUNICATION CONT. | |
| LED Indicators | Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Software | PowerPanel® Business Edition |
| SNMP/HTTP Remote Monitoring | Yes - pre-installed RMCARD205 |
| PHYSICAL | |
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Dimensions (WxHxD) (in.) | 17.1 x 3.4 x 19.7 |
| Weight (lbs.) | 67.7 |
| Shipping Dimensions (WxHxD) (in.) | 22.1 x 10.8 x 24.4 |
| Shipping Weight (lbs.) | 81.1 |
| ENVIRONMENTAL | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| AC Mode Thermal Dissipation | 71.7 |
| CERTIFICATIONS | |
| Safety | UL1778, cUL107.1, FCC Class B |
| Environmental | RoHS Compliant |
| WARRANTY | |
| Product Warranty | Three-Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $400,000 |
