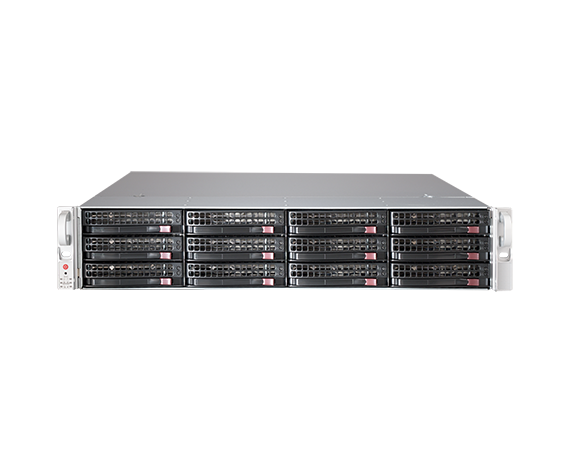

Digital Watchdog - DW-BJER2U48T - NVR 30FPS @ 1080p 48TB

Part number:
DW-BJER2U48T
Price:

The Blackjack E-RACK™ NVR powered by DW Spectrum™ IPVMS can record and manage up to 128 2.1mp 1080P Cameras at 30fps, with 600 Mbps throughput. The NVR’s hardware offers RAID 5, Intel® i7® Processor, 8GB Memory, 1Gbps X2, VGA / HDMI X 2 / DP X 4, with Windows® 7 OS on an SSD card and scheduled auto reboot for hardware performance. The Blackjack™ NVR supports cross platform connectivity for Windows® and Mac® client software, allowing you to monitor and connect to your system from anywhere. The NVR is powered by DW Spectrum™ IPVMS, offering you great features such as Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping and Advanced Motion Masking and Sensitivity Settings. The Blackjack™ NVR is ONVIF Profile S conformant and is available with 16–144TB HDD for true Enterprise Scalability and come with an unbeatable 5 Year Limited Warranty



Features:
  • Supports all ONVIF conformant IP cameras
  • Storage options 30-310TB RAID 5 internal storage (Option RAID 6)
  • Hot spare HDDs
  • Data redundancy
  • Redundant power supply
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 128 2.1MP cameras at 30fps and a maximum of 600Mbps throughput
  • Local monitoring outputs ports
  • Dual network ports
  • Windows 10® IoT or Linux® Ubuntu® 18.04 LTS OS on separate SSD
  • Hosting DW Spectrum® for Setup, Configuration, Monitoring and Recording
  • One-time Recording License Charge, Fully Transferable Between Cameras and Encoders
  • Two (2) DW Spectrum IPVMS 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual-stream recording
  • USB output for OS recovery
Operating SystemWindows® 7 64 Bit on Separate SSD
SystemIP CamerasMax 128 IP Cameras*
Communication ProtocolONVIF®
Max Throughput600 Mbps
Recording Speed1080p: 2840fps
Screen ModeUnlimited Layouts
Max. HDD Bay

U2: 8–12 x SATA HDD U3: 16 x SATA HDD

U4: 24–36 x SATA HDD

Video-InIP Megapixel Cameras
Video-OutMonitor4x Mini Display Ports
ResolutionHD 1080p
Recording ResolutionDual Stream
Recording ModesContinuous, Motion, Motion + Low Res Always Recording
Pre and Post Alarm Recording, Quick Backup
Playback & SearchSpeedx1, x2, x4, x8, x16
FunctionIntelli-Search Time Bar, Smart Motion Search, Calendar Search, Thumbnail Search, Panoramic Search
CPUIntel® i7® 3rd Generation Processor
Memory16GB (8x2 Dual Channel)
LAN2x Gigabit Ethernet (RJ45)
Remote SoftwareDW Spectrum™ IPVMS Suite
Backup DeviceLocal Backup by USB, File Upload to NAS
Other FunctionFirmware UpgradeUSB, CMS
Back UpUSB, CMS
Special FeaturesRAID 5/50, Redundant Power Supply, Hot-Swap HDD Bays, OS on SSD for Quick Power Up
Health CheckServer and Camera Health Check with Camera Diagnosis Tool
PowerDual Power, 2U + 3U: 1000W, 4U: 1280W
Operating Temperature and Humidity (Recommended for installation environment)10°C – 35°C (50°F – 95°F)
Dimensions

2U: 648mm L x 437mm W x 89mm H (25.5" L x 17.2" W x 3.5" H)

3U: 648mm L x 437mm W x 132mm H (25.5" L x 17.2" W x 5.2" H)

4U: 698mm L x 437mm W x 178mm H (27.5" L x 17.2" W x 7.0" H)

CertificationCE & FCC, RoHS
