Digital Watchdog - DW-VA1P162T - VMAX A1 Plus Universal HD over Coax 16-Channel Digital Video Recorder with 2TB Storage

Product Overview

The Digital Watchdog DW-VA1P162T is a high-capacity VMAX A1 Plus™ 16-channel DVR featuring 2TB of pre-installed storage and support for Universal HD over Coax® technology. This embedded Linux system records HD-Analog and HD-TVI signals up to 5MP at a total rate of 480fps, while providing a stunning 4K True HD output. With user-friendly features like PathFinder™ P2P remote access and the C3™ CMS, this DVR offers a seamless, professional-grade solution for managing large-scale surveillance setups, all backed by a 5-year limited warranty.

Key Configuration

• • Channels: 16; signals supported: analog up to 960H, HD-Analog and HD-TVI up to 5MP
• • Recording resolutions: up to 2560×1944 (5MP); recording rates: 5MP @ 160fps, 4MP @ 240fps, 1080P @ 480fps
• • HDD interface: 2 × SATA bays, up to 32TB total storage; 2TB pre-installed

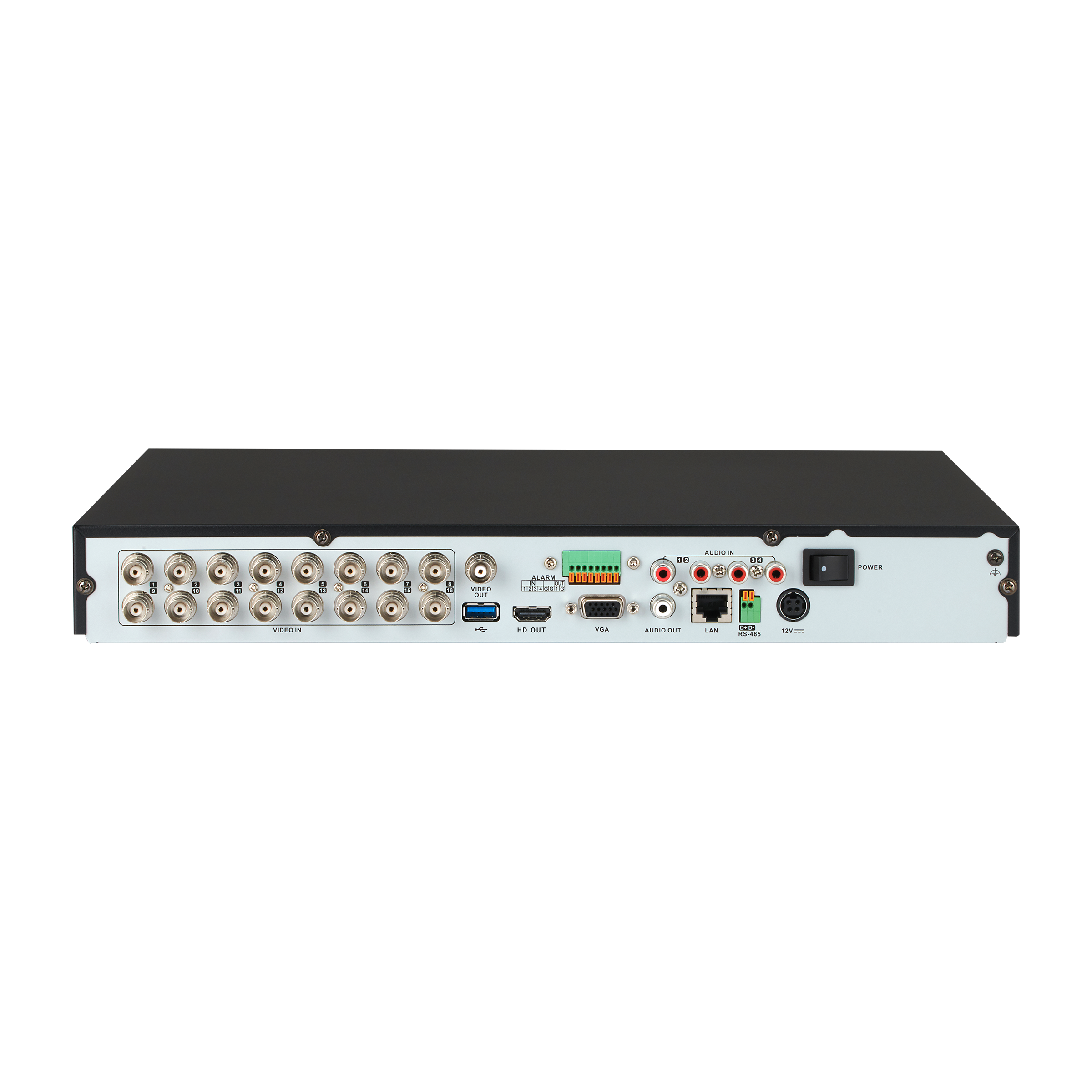

• • Video outputs: True HD (4K/3840×2160), VGA, Spot (D1); screen modes: 1,4,6,9,10,13,16
• • Audio: 4 inputs / 1 output (ADPCM codec); alarm: 4 inputs / 1 output

Key Features

Managing high-channel counts is simplified with the C3™ CMS, which supports up to 288 channels, and the PathFinder™ P2P service for secure remote access without complex port forwarding. Advanced forensic tools include Thumbnail Search with minute-by-minute previews and Snapshot Notify for scheduled visual alerts. The system also features Event Camera Group Recording, allowing multiple cameras to trigger simultaneously based on a single alarm.

Technical Context

This DVR ensures maximum uptime through a journaling file system that protects data after power failures and a real-time HDD health check via S.M.A.R.T. monitoring. It offers granular recording control, including pre- and post-alarm buffering, and supports UTC (Up-the-Coax) for remote OSD and PTZ management. Built and inspected in the U.S.A., it features network bandwidth control up to 1000 Mbps and supports up to 10 simultaneous web connections.

Installation Notes

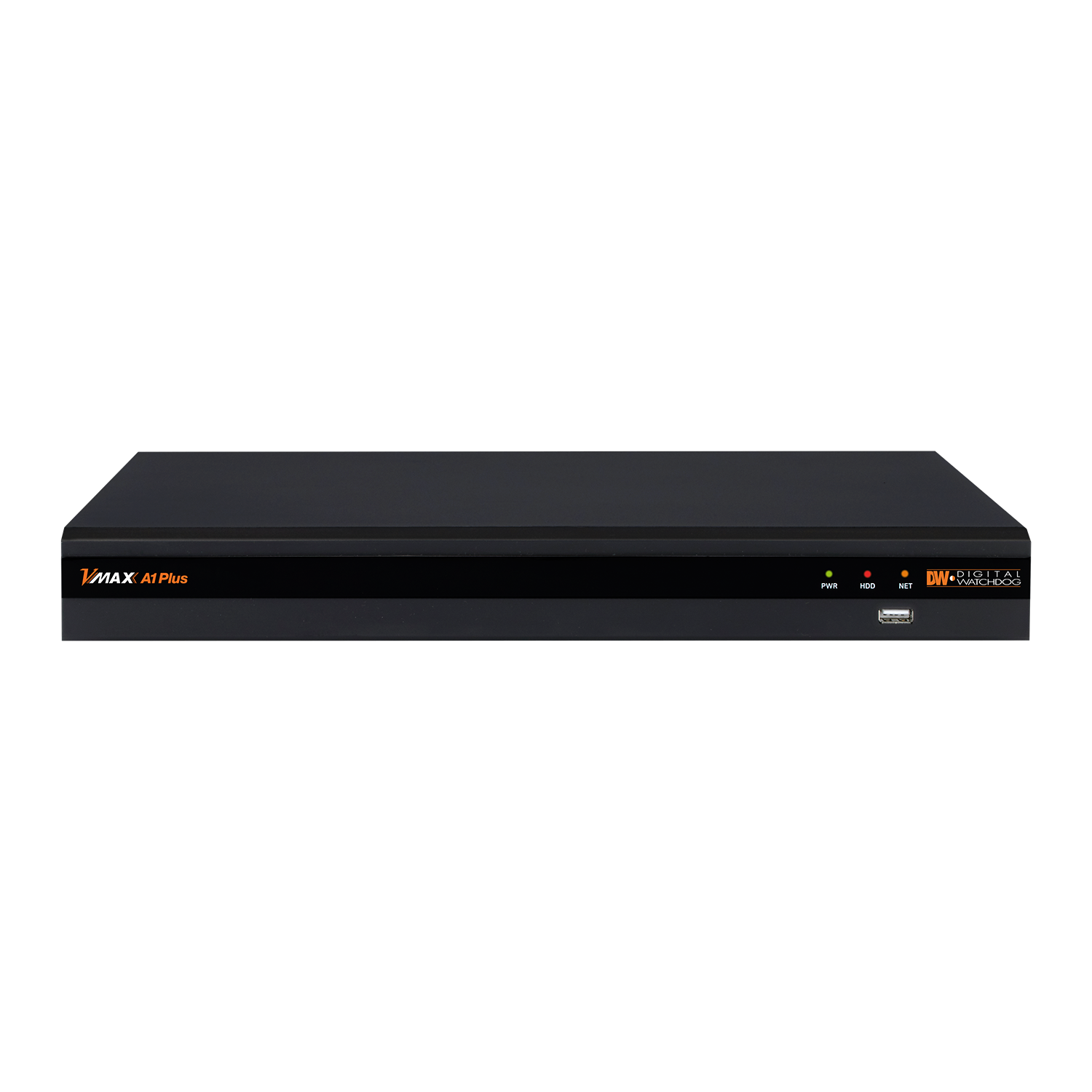

The unit is housed in a compact 1U form factor, measuring 15.15" × 12.4" × 1.88", and includes both an IR remote and USB mouse for immediate setup. Maintenance is streamlined via auto/manual firmware upgrades through USB or FTP and comprehensive system analysis tools that provide live network status. Backed by a 5-year limited warranty, this 2TB DVR is a reliable, long-term foundation for hybrid coaxial surveillance systems.
