Digital Watchdog - DWC-MB72Wi4TWDMP - 2.1 MP MEGApix Weather Resistant Bullet, 4mm Lens

Product Overview

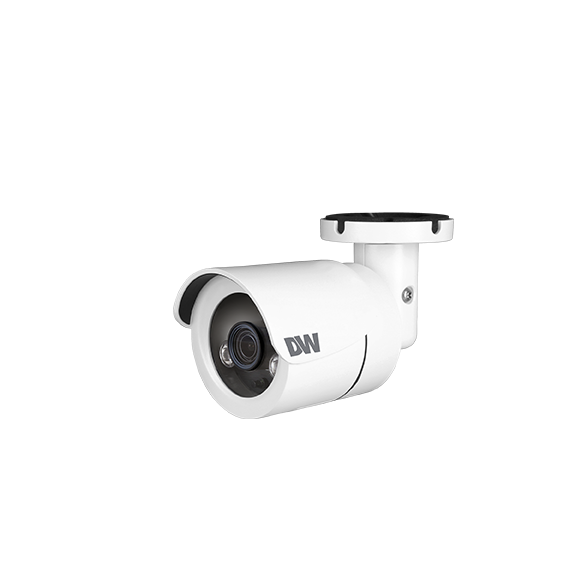

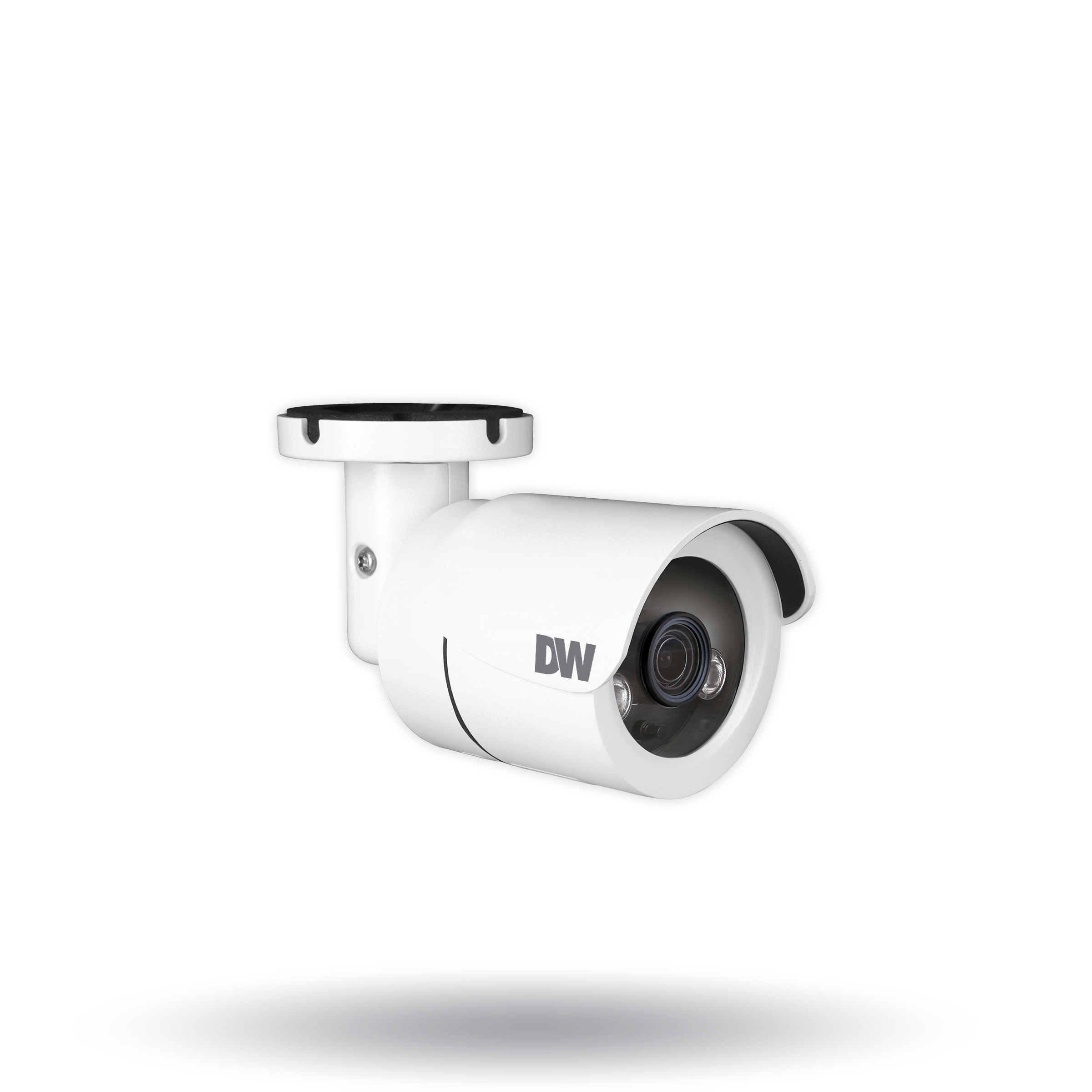

The Digital Watchdog DWC-MB72Wi4TWDMP is a 2.1MP/1080p MEGApix weather-resistant bullet camera equipped with a 1/2.8" CMOS sensor and a 4.0mm fixed lens that delivers an 86° horizontal field of view.

Key Configuration

• • Image sensor: 2.1MP/1080p 1/2.8" CMOS; maximum resolution: 1920×1080 (1080p)
• • Lens: 4.0mm fixed lens; horizontal FOV: 86°, vertical FOV: 46°
• • IR distance: Smart IR up to 100 ft (30.5 m); minimum illumination: 0.09 lux color, 0.0 lux B/W
• • Video compression: H.264, H.265, MJPEG
• • Power: PoE (Class 2) or DC12V (adapter not included)

Key Features

Integrating Star-Light Plus™ color technology for ultra-low light, this camera features a mechanical IR cut filter and Smart IR™ LEDs reaching up to 100 feet with automatic overexposure prevention. Image quality is maintained via Smart DNR™ 3D noise reduction, Auto Gain Control (AGC), and Auto White Balance (AWB).

Technical Context

This camera is ONVIF compliant and integrates directly with DMP video management software. Built for harsh environments, the housing features an IP67 weatherproof rating, offering complete dust protection and water resistance up to 3 feet of immersion. Installation wiring requires a minimum recommendation of #18 AWG cable. The hardware is fully NDAA and TAA compliant.

Installation Notes

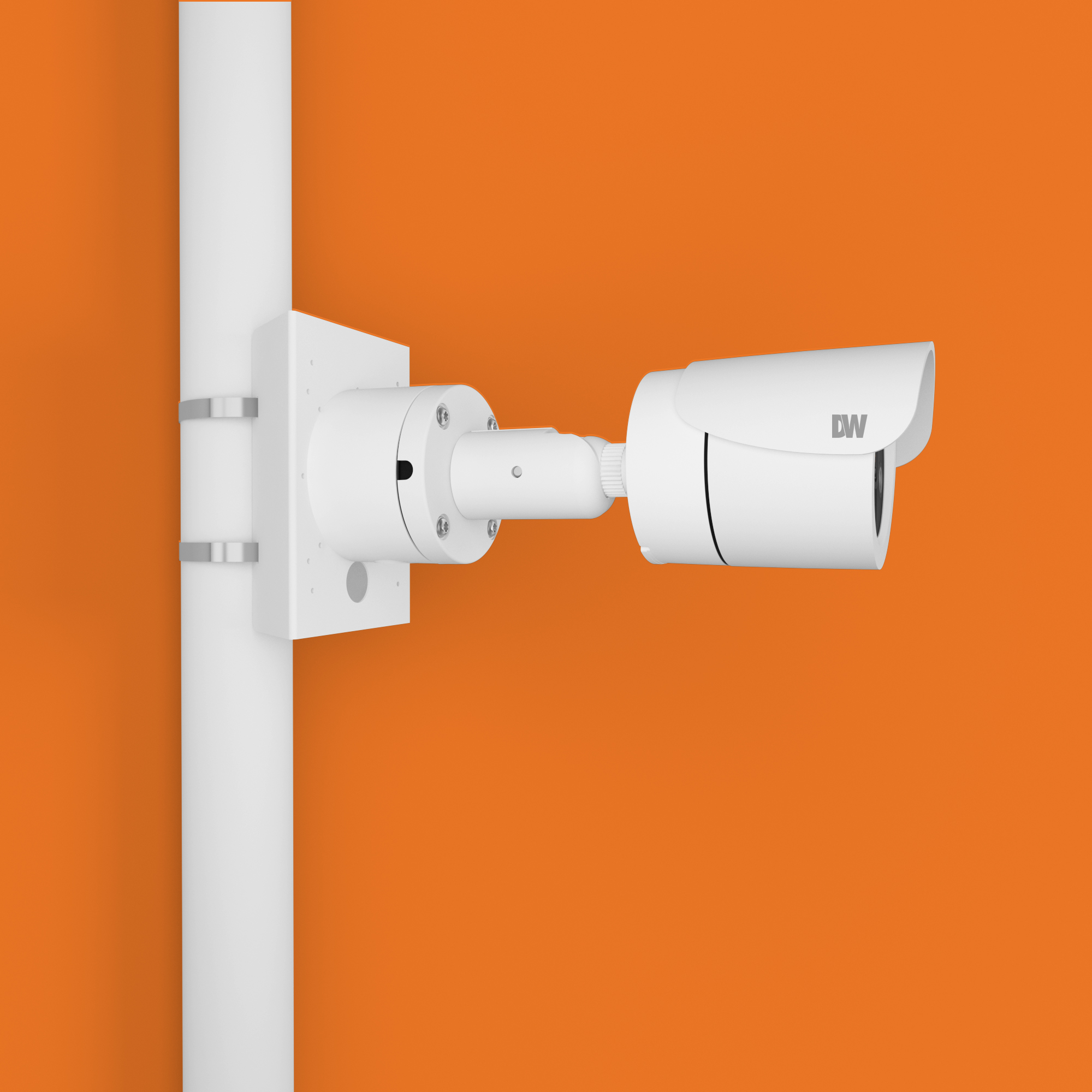

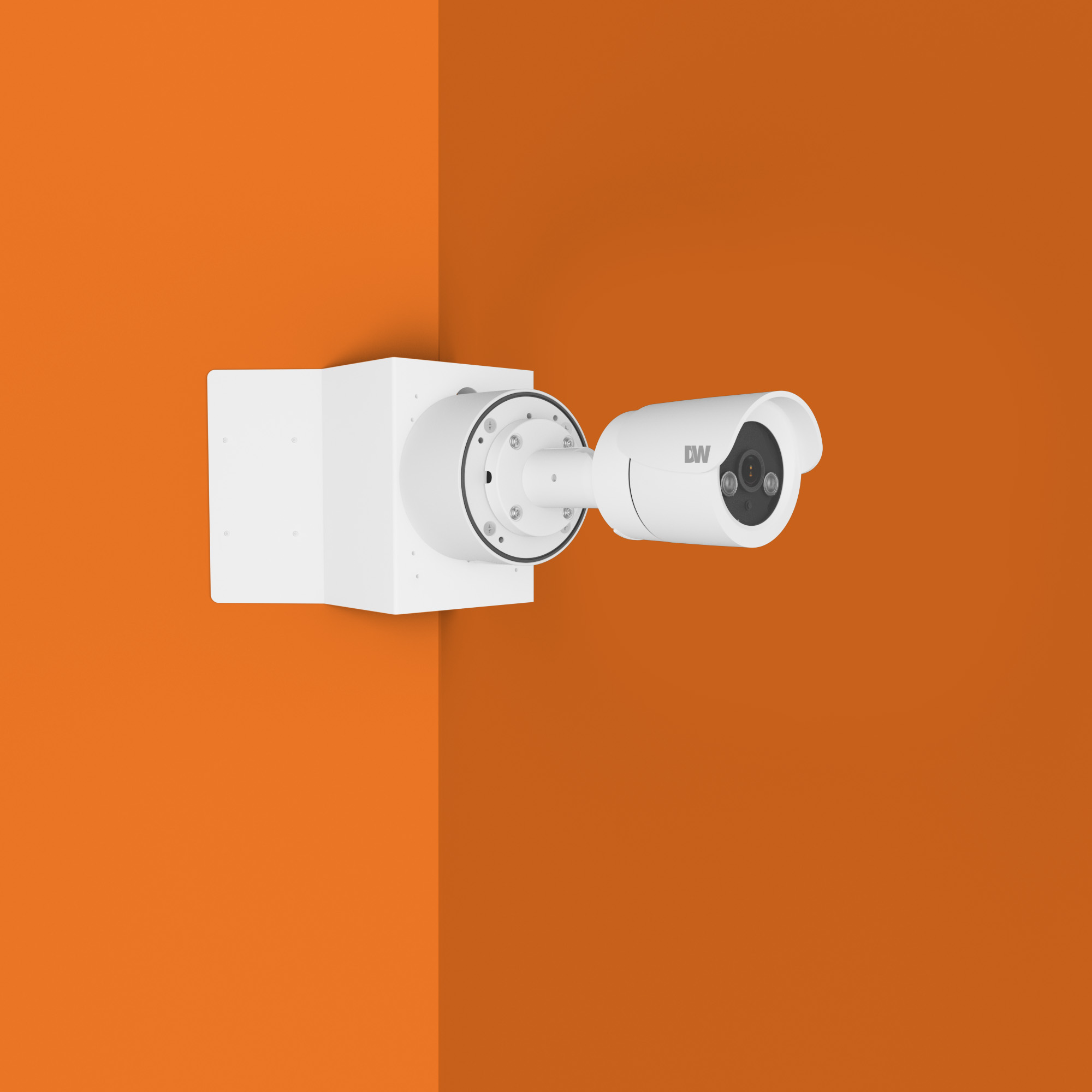

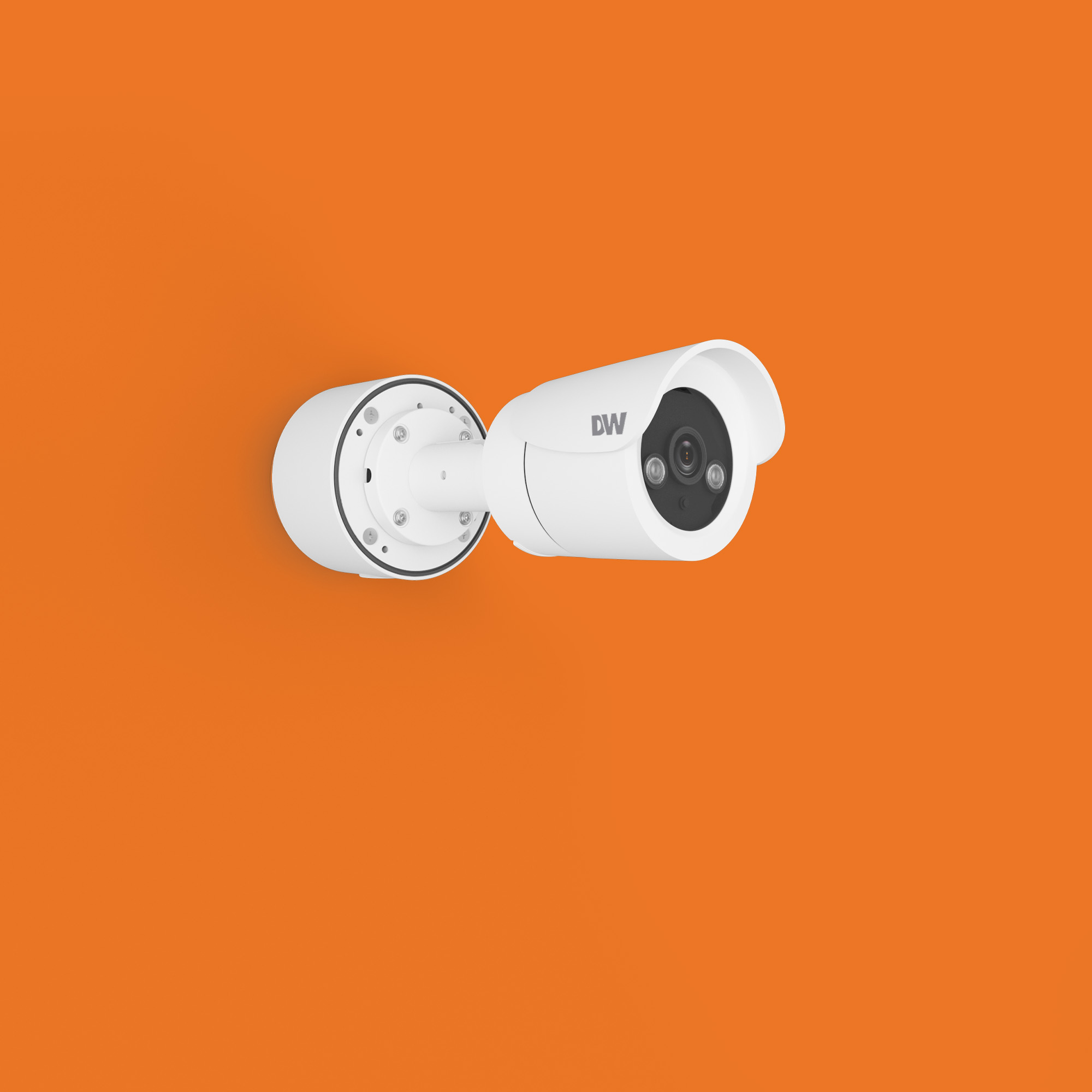

Measuring 2.65” (67.5 mm) in diameter by 6.41” (163 mm) in length and weighing approximately 1.10 lbs (0.50 kg), this camera is built with a white, die-cast aluminum housing. It operates within a temperature range of -22°F to 122°F (-30°C to 50°C). Power options include PoE Class 2 or 12V DC. Power adapter and external mounting accessories are sold separately.
