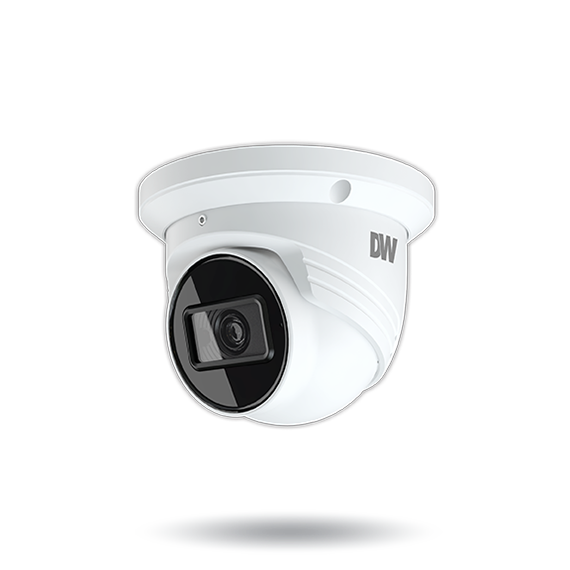

Digital Watchdog - DWC-MT95Wi28TW - 5MP Turret IP Camera with Fixed Lens Options and IR

Product Overview

The DWC-MT95Wi28TW is a high-resolution 5MP MEGApix® turret camera delivering smooth 30fps video with efficient H.265 compression. It features a 2.8mm or 3.6mm fixed lens and a 360° gimbal for precise positioning in any environment. Equipped with AI-powered object classification and 120dB True WDR, it provides intelligent security and clear imaging in tough lighting. The rugged, IP67 and IK10-rated housing includes Smart IR up to 100 feet and a built-in microphone, making it a durable all-in-one solution for indoor or outdoor monitoring.

Key Configuration

• • Image sensor: 5MP 1/2.7" CMOS; total pixels: 2592 × 1944 (5MP)
• • Lens options: 2.8mm (81.4° HFOV) or 3.6mm (98.5° HFOV); fixed lens
• • IR distance: Smart IR up to 100 ft (30.5 m); minimum illumination: 0.02 lux color, 0.0 lux B/W
• • Power: DC12V or PoE (IEEE 802.3af Class 3); max power consumption: 7.0W (adapter not included)
• • Dimensions: 4.66" × 3.58" (118.6 × 91 mm); weight: 1.01 lbs (0.46 kg)

Key Features

This NDAA-compliant camera delivers high-performance imaging using 120dB True WDR and Smart IR to maintain clarity in challenging lighting and total darkness. Integrated AI video analytics provide intelligent protection by differentiating humans from objects and triggering alerts for line crossing, intrusion, or tampering. The unit supports High Frame Rate (HFR) mode for capturing fast motion at up to 60fps and features a built-in microphone with professional-grade audio compression. For flexible data management, it offers 1TB edge storage via microSD and is ONVIF Profile S conformant for seamless integration with major video management platforms.

Technical Context

The camera features a versatile electronic shutter with speeds up to 1/100,000s and supports multiple network resolutions up to 5MP at 30fps. It is compatible with a comprehensive suite of secure protocols, including HTTPS and 802.1x, and offers robust protection via IP and MAC filtering. Housed in white aluminum die-casting, the unit operates reliably in extreme environments from -22°F to 140°F.

Installation Notes

The unit features an IP67-rated waterproof and IK10-rated impact-resistant housing, built to withstand harsh environments and physical tampering. A 360° camera gimbal allows for precise, total view adjustment during installation. While mounting accessories and power adapters are sold separately, the hardware is backed by a comprehensive 5-year warranty.
