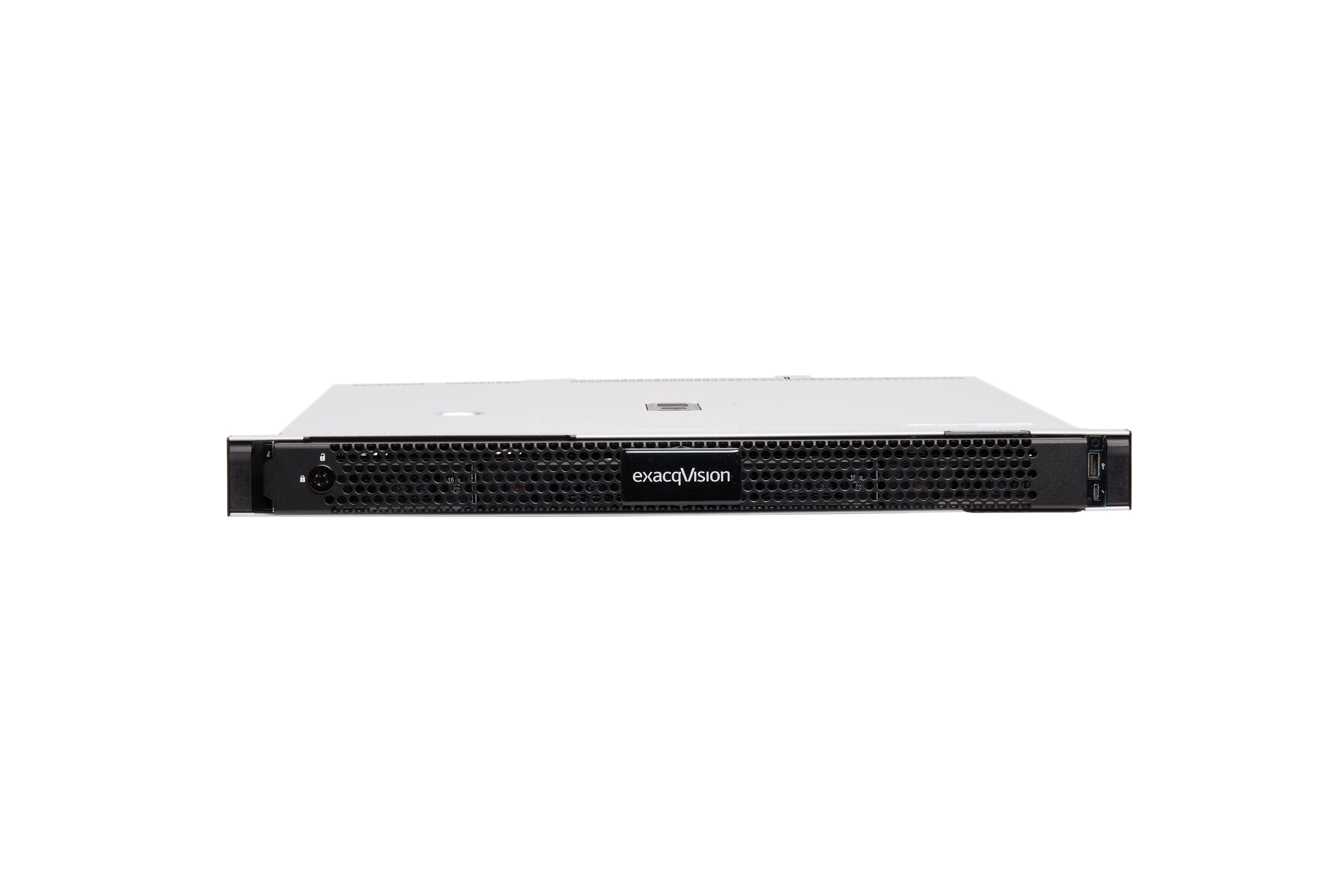

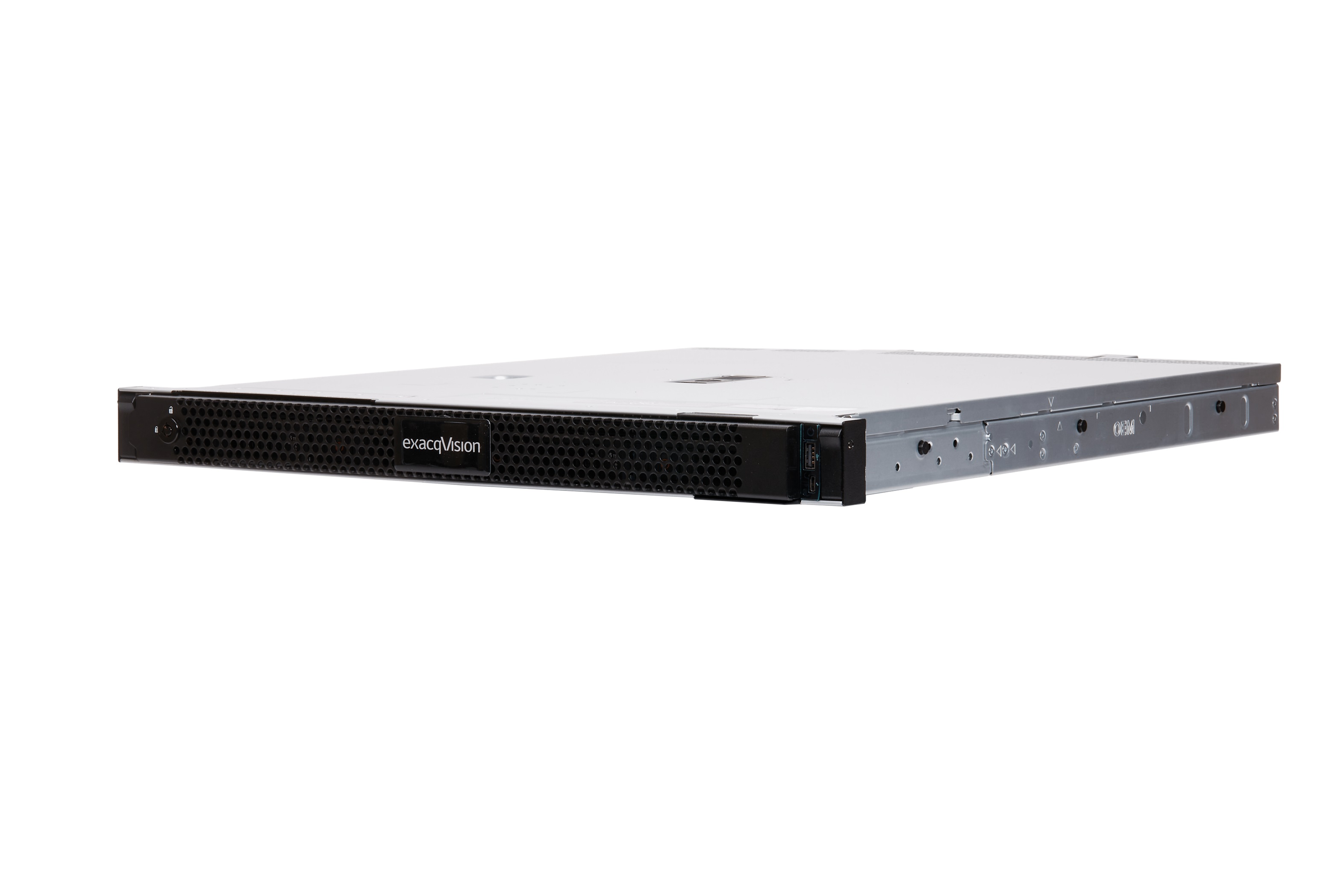

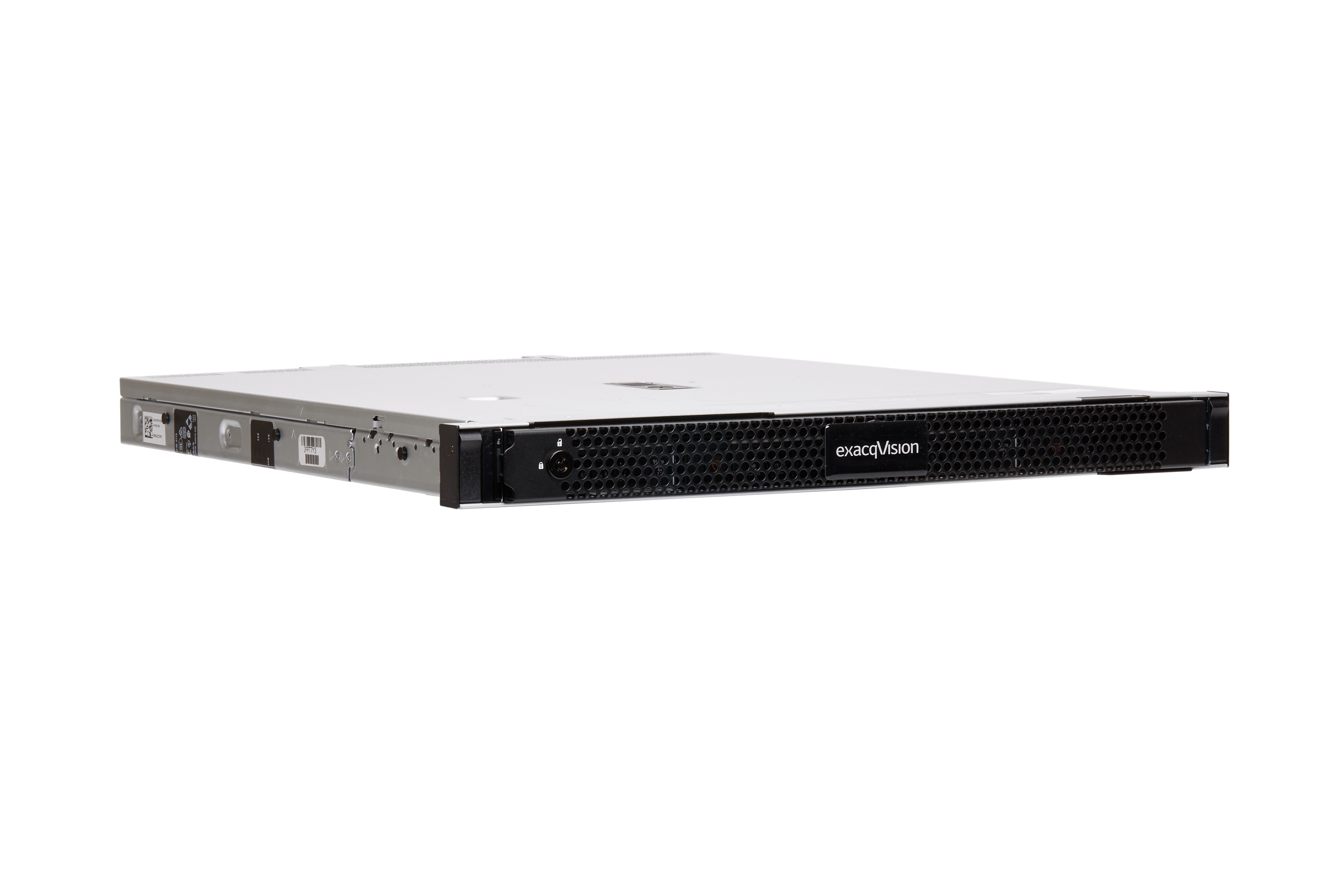

ExacqVision - IP08-16T-R1XW - 1U IP Rackmount Redundant X-Series NVR with 8 IP Professional Licenses, 16TB
Product Overview
The Exacq X-Series 1U Redundant NVR is a high-availability surveillance solution featuring 16TB RAID 5 storage (12TB usable) and 8 pre-installed IP Professional licenses, scalable to 150. It runs Windows Server 2022 on dual RAID 1 SSDs, supported by redundant power supplies and an extensive networking array of six 1GbE NICs. This enterprise-grade server includes iDRAC9 Enterprise for remote management and is backed by a 5-year on-site hardware warranty (next business day) and 5-year software updates.
Key Configuration
- • Storage: 16TB RAID5 configured (12TB usable); 4 hot-swappable bays (max 64TB)
- • Operating system: Windows Server 2022 on dual 240GB SSD RAID1; CPU: Xeon E-2334G (6 cores/12 threads); RAM: 2×8GB (16GB)
- • Video throughput: 600 Mbps (Linux); maximum IP streams: up to 150
- • Network interfaces: 2× 1GbE onboard + 4× 1GbE NIC
- • Dimensions: 18.98"W × 1.69"H × 23.04"D (482 × 42.8 × 585.3 mm); weight: 53.6 lbs (24.33 kg)
Key Features
NVR delivers high-performance recording up to 950 Mbps, supporting 175 camera streams and 500 remote clients. It is engineered for maximum uptime with RAID 5 video storage, dual RAID 1 SSDs for the OS, and redundant power supplies to prevent data loss. This enterprise-ready system includes ESM Failover, EasyConnect automated setup, and the ability to host Certified Software Applications (CSA) for advanced analytics, all manageable via cross-platform clients and mobile devices.
Technical Context
It features a redundant cooling system with four fans and 600W Platinum hot-swap power supplies for high-availability performance. It includes iDRAC9 Enterprise for comprehensive remote management via RESTful API and dedicated ports. Supporting MJPEG, H.264, and H.265 compression, this unit meets rigorous regulatory standards, including UL 62368-1 and FCC Class A, ensuring secure and compliant enterprise-grade surveillance.
Installation Notes
Dimensions: 18.98" × 1.69" × 23.04" (482 × 42.8 × 585.3 mm). Weight: 53.6 lbs (24.33 kg). Rackmount sliding rail kit included. Mouse and keyboard not included. Operational temperature not specified. 5-year warranty with next business day on-site service (Keep Your HDDs). 5-year SSA included.
| IP Settings | X-Series 1U |
| Compression | MJPEG, H.264, H.265 |
| Video Throughput | 550Mbps (Windows)600Mbps (Linux) |
| Maximum IP Streams | Up to 150 |
| Included Camera Licenses | 8 (Professional or Enterprise) 5 year SSA included |
| Alarm Inputs/Outputs | USB I/O Module (sold separately) |
| Server | X-Series 1U |
| Form Factor | 1U |
| Embedded Management | iDRAC9iDRAC DirectiDRAC RESTful API with RedfishiDRAC Service Module |
| Maximum Hard Drives | 4 Hot Swapable |
| Maximum Storage | 64TB |
| RAID | RAID 5 |
| Ports | Front: 1 x Micro-AB USB, 1 x USB 2.0Rear: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC |
| Operating System | Windows Server 2022Ubuntu Linux 22.04 |
| Operating System Location | 240GB, SSD, RAID 1 |
| CPU | Xeon E-2334G 6 Cores/12 Threads |
| 6 Cores/12 Threads | |
| RAM | 2 x 8GB (16GB) |
| NIC | 2 x 1GbE & 4 x 1GbE |
| General | X-Series 1U |
| Dimensions (D x W x H) | D: 585.3 mm (23.04 in) |
| 598.94 mm (23.58 in) with bezel | |
| W: 482 mm (18.98 in) | |
| H: 42.8 mm (1.69 in) | |
| Power | 600W Platinum Power Supply Mix Mode 100-240 VAC or 240 VDC hot swap redundant |
| Cooling | 4 fans with full redundancy |
| Weight | 24.33KG (53.636 lbs) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1)EMC: Class A emissions (FCC part 15; ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3)Security immunity (EN55035)Environmental: RoHS (EN50581) |
| Warranty | 5 Years (Keep your HDDs) |
