ExacqVision - IPS04-C10-OIA4 - 4MP Indoor/Outdoor Illustra Pro Gen4 Dome Camera
Product Overview

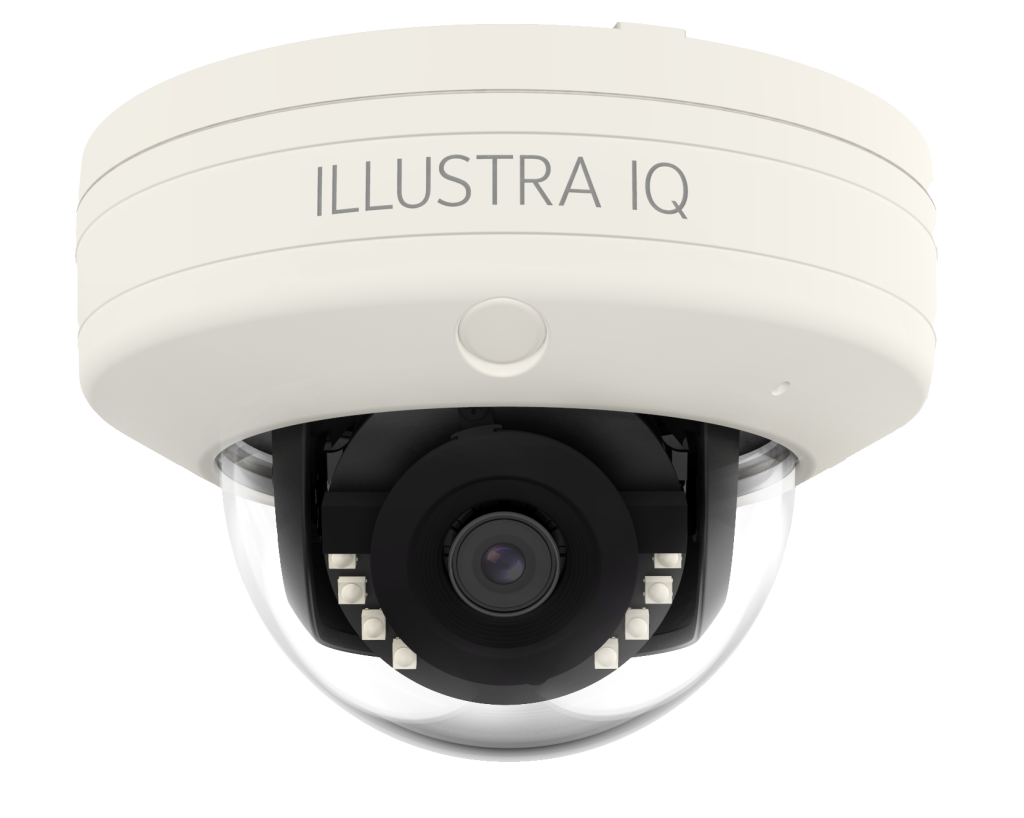

The Exacq IPS04-C10-OIA4 is an Illustra Pro Gen4 5MP compact dome featuring a 3.0mm fixed lens and a Sony ultra-low-light sensor. It captures 5MP at 30 fps or 1080p at 60 fps, supported by 120dB True WDR, 30m Smart IR, and AI-powered analytics. Built for durability with IP67, NEMA 4X, and IK10 ratings, the unit also includes a built-in microphone and electronic image stabilization (EIS).
Key Configuration
- • Imager: Sony 1/1.8" progressive scan ultra-low-light CMOS; resolution: up to 5MP (2560×1920) at 30/25 fps, 1080p up to 60/50 fps
- • Lens: 3.0mm fixed, F2.0, fixed iris; FOV: 101° horizontal, 75° vertical
- • IR illumination: 850 nm, Smart IR, effective up to 30m (100 ft); minimum illumination: color 0.2 lux, B/W 0.07 lux, 0 lux with IR
- • Video compression: H.264 HP/MP, H.265 HP, Motion JPEG; quad streaming with IntelliZip smart compression
- • Power: PoE (IEEE 802.3af Type 1 Class 3); max power consumption: 12.95W
Key Features
It offers 120dB True WDR with Smart Defog and EIS for clear, stabilized video. Its advanced AI engine provides object classification (people, vehicles, retail carts, suspicious items), sub-class color attributes, and comprehensive analytics, including perimeter, crowd, and queue detection. Key hardware features include a built-in microphone, a Micro HDMI preview port, and an encrypted 2TB microSDXC slot with TrickleStor offline recording. The unit is ISASecure certified for cybersecurity and includes a 5-year warranty.
Technical Context
The features include a high-speed electronic shutter up to 1/32,000 sec, a >56 dB SNR. It is ONVIF Profiles S, G, M, and T conformant for broad system interoperability. For flexible installation, the lens is 3-axis manually repositionable (360° pan, 70° tilt, ±175° azimuth). The hardware is built for durability, featuring a die-cast aluminum body, encapsulated electronics, and a built-in network cable with an IP66-rated waterproof cap.
Installation Notes
This unit measures Ø121 × 82.9 mm and weighs 550 g. It is engineered for extreme environments with IP67, NEMA 4X, and IK10 ratings, supporting a wide operating range of -40°C to 60°C with cold-start capability. Installation is streamlined via versatile surface mounting, an integrated IP66-rated waterproof cable cap, and optional Wi-Fi configuration via a USB dongle. The camera is fully NDAA and TAA compliant, ensuring suitability for regulated and government projects.
| 2MP | 4MP (5MP) | 8MP | |
|---|---|---|---|
| Camera | |||
| Image sensor | Sony 1/2.8" progressive scan ultra-lowlight CMOS sensor | Sony 1/1.8" progressive scan ultra-lowlight CMOS sensor | |
| Lens | 3.0mm, F1.6, fixed iris FOV (H): 105° FOV (V): 59° | 3.0mm, F2.0, fixed iris FOV (H): 101° FOV (V): 75° | 4.5mm, F1.6, fixed iris FOV (H): 110° FOV (V): 57° |
| Day and night | True D/N by mechanically removable IR-cut filter, thresholds adjustable | ||
| Minimum illumination – Color | 0.02 lux | 0.2 lux | 0.15 lux |
| Minimum illumination – B/W | 0.01 lux | 0.07 lux | 0.07 lux |
| Minimum illumination – IR on | 0 lux | ||
| Shutter speed | 1/32,000 sec ~ 1/4 sec | ||
| SNR | > 56 dB | ||
| IR illumination | 850 nm IR, power-efficient and durable, Smart IR, effective up to 30 m (100 ft) | ||
| Video | |||
| Video compression | H.264 HP/MP, H.265 HP, Motion JPEG | ||
| Resolution and frame rate | Up to 1920x1080 (16:9) at 60/50 fps | Up to 5MP 2560x1920 (4:3) or 4MP 2560x1440 (16:9) at 30/25 fps, 1080p up to 60/50 fps | Up to 3840x2160 (16:9) at 30/25 fps, 1080p up to 60/50 fps |
| Video streaming | IntelliZip smart compression in H.264 and H.265, Quad streaming, CBR/VBR/CVBR configurable bitrate control, Higher compression ROI | ||
| Wide dynamic range | True WDR 120dB, Smart WDR, TWDR 2x, TWDR 3x, Smart Defog | ||
| Smart image processing | AI Auto exposure: Object, person, face Smart auto exposure profiles: Gaming, LPR, outdoor, indoor, shutter priority, iris priority, manual, demo, auto | ||
| Image settings | Configurable color contour, auto exposure, AE compensation, auto white balance, auto gain control, auto electronic shutter, flickerless, image orientation, text overlay | ||
| Digital noise reduction | 2D/3D | ||
| Privacy mask | ✓ | ||
| Corridor mode | ✓ | ||
| Image stabilization | Electronic image stabilization (EIS) | ||
| Video output | 1x Micro HDMI port for preview | ||
| Audio | |||
| Audio compression | G.711 μ-law | ||
| Audio streaming | Omni-directional, simplex | ||
| Audio input/output | Built-in Microphone | ||
| Video Content Analysis | |||
| AI Object classifications | Person Vehicle: Bicycle, bus, car, motorbike, train, truck Retail Cart | ||
| Suspicious objects | Backpack, handbag, suitcase | ||
| Sub-classes | Person clothing colors (upper, lower), vehicle colors | ||
| Rules | Object detected, abandoned/removed objects, direction, linger, dwell, enter, exit, crowd, queue, perimeter | ||
| AI Face detection | Yes | ||
| AI Tamper detection | White out, black out, scene change | ||
| AI Blur detection | Yes | ||
| AI Metadata | Yes | ||
| AI Smart Search | AI Person Re-ID (via VideoEdge v6.1.1 or after) | ||
| Video motion detection | Yes | ||
| Network | |||
| Ethernet | IEEE 802.3, 10/100 Base-T, 1x RJ45, auto sensing | ||
| Cyber security | ISASecure ISA/IEC 62443-4-1 certified secure development, Secure boot, Signed and encrypted firmware | ||
| Network security | Multi-level password protections, brute force delay protection, IP address filtering, HTTPS encryption, IEEE 802.1x (PEAP, EAP-TLS, EAPoL), digest authentication, HTTPS over TLS, WS-Security, certificate management, enhanced security (one-click security hardening, user access log, validate complex credentials, disabling unused protocols) | ||
| Supported protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, QoS | ||
| Network management | SNMP v2c/v3 | ||
| Simultaneous users | 10 | ||
| System Integrations | |||
| Application program interface | ONVIF Profile S, Profile G, Profile M, Profile T, test tool 23.06 or later conformant Illustra iAPI via Connected Partner program | ||
| Event triggers | Video analytics, network loss, temperature | ||
| Event handling | Record to SD, snapshot, SMTP email out, FTP upload, CIFS | ||
| Peripherals | |||
| Wireless configuration | 1x Micro USB port for Illustra Tools app via optional USB Wi-Fi Dongle IA-KIT-WD-UUA | ||
| Onboard storage | 1x microSDXC slot, Class 10 or higher, up to 2TB capacity, card not included 1~10 sec pre/post-event buffering Encrypted storage and streaming TrickleStor offline recording and backfilling via VideoEdge and ExacqVision NVR | ||
| Mechanical | |||
| Casing | Die casting aluminum body, Polycarbonate bubble, Encapsulated electronics, Built-in network cable, IP66-rated waterproof cap | ||
| Lens direction | 3-Axis manually repositionable, pan 360°, tilt 70°, azimuth ±175° | ||
| Mounting | Surface mount, Versatile mounting options available, see Optional Accessories | ||
| Vandal resistance | IK10 impact-resistant rated | ||
| Weathering resistance | IP67/66 rated, NEMA 250 Type 4X certified | ||
| Color | RAL 9003 signal white | ||
| Reset buttons | 1x Reboot, 1x factory reset | ||
| Dimension (DxH) | Ø121 x 82.9 mm (Ø4.76 x 3.26 in) | ||
| Weight | Net 550 g (1.21 lbs), gross 850 g (1.87 lbs) | ||
| Electrical | |||
| Power source | PoE IEEE 802.3af Type 1 Class 3 | ||
| Power consumption (max) | 12.95 W | ||
| Environmental | |||
| Operating conditions | -40 °C ~ 60 °C (-40 °F ~ 140 °F) Maximum temperature (intermittence): 65 °C (165 °F) Up to 0 ~ 95% RH non-condensing | ||
| Cold start temperature | -40 °C (-40 °F) | ||
| Storage conditions | -40 °C ~ 65 °C (-40 °F ~ 165 °F) Up to 0 ~ 95% RH non-condensing | ||
| Regulatory | |||
| EMC | BS/EN 55032 Class A, IEC/BS/EN 61000-3-2, BS/EN 61000-3-3, BS/EN 50130-4, IEC/EN 61000-4-2/3/4/5/6/8/11, FCC Part 15 Subpart B Class A, ICES-003/NMB-003 Class A, RCM AS/NZS CISPR 32 Class A, IEC/BS/EN 61000-6-4, BS/EN 50121-1, BS/EN 50121-4 | ||
| Safety | IEC/CB 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/CB 60950-1, IS 13252 (Part 1) | ||
| Environment | NEMA 250 Type 4X, IEC/EN 62262 (IK10), IEC/EN 60529 (IP67/66), RoHS, WEEE, REACH | ||
| Ordering Information | |||
| Camera 2MP | IPS02-C10-OIA4 - Pro4 2MP Compact, 3mm, TDN, w/IR, IP66/67, IK10, Indoor/Outdoor | ||
| Camera 4MP (5MP) | IPS04-C10-OIA4 - Pro4 4MP (5MP) Compact, 3mm, TDN, w/IR, IP66/67, IK10, Indoor/Outdoor | ||
| Camera 8MP | IPS08-C10-OIA4 - Pro4 8MP Compact, 4.5mm, TDN, w/IR, IP66/67, IK10, Indoor/Outdoor | ||
| General | |||
| Web browser support | Edge, Firefox, Safari, Chrome | ||
| Device configuration | ONVIF, Web browser, Illustra Connect (Windows), Illustra Tools (iOS, Android) | ||
| Language | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, English (default), French, German, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Russian, Spanish, Swedish, Turkish | ||
| NDAA compliant | Yes | ||
| TAA compliant | Yes | ||
| Warranty | 5 years | ||
