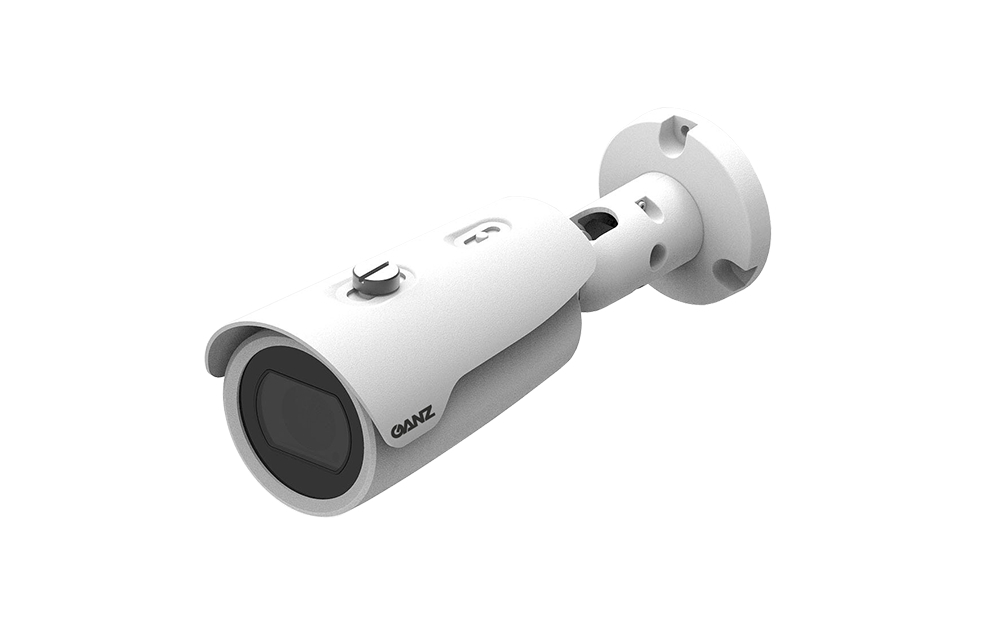

Ganz - ZN-B5M212DP - 5MP Outdoor IP Bullet Camera with AI, 2.8-12mm

Product Overview

The Ganz ZN-B5M212DP is an NDAA-compliant 5MP outdoor bullet camera with a 2.8–12mm motorized varifocal lens and 4.3x optical zoom. It delivers 2592×1520 resolution at 30 fps and features AI-based motion detection, 120dB True WDR, and 90-foot Smart IR. Housed in an IP67/IK10 casing, it supports triple power (12VDC, 24VAC, PoE) for flexible installation.

Key Configuration

• • Image sensor: 1/2.8" progressive scan CMOS; max resolution: 2592×1520 (5MP) at 30 fps
• • Lens: 2.8-12mm MFZ, F1.4, P-iris, 4.3x optical zoom; FOV: 95.9°(W) to 29.8°(T) horizontal
• • IR distance: 4 IR LEDs, Smart IR up to 90 ft (30 m); minimum illumination: 0.02 Lux @ F1.4 color
• • Video compression: H.264, H.265, MJPEG; triple streaming (2× H.264/H.265 + 1× JPEG); VBR+ support
• • Power: 12VDC, 24VAC, or PoE (Class 3); power consumption: 13.3W

Key Features

Featuring AI-based object detection and tracking, this camera utilizes 120dB True WDR and 3D DNR for superior image clarity. It includes RCA audio I/O, alarm integration, and microSD edge storage. Supporting ONVIF Profile S, it utilizes VBR+ compression and software-selectable day/night thresholds for optimized performance.

Technical Context

This NDAA-compliant camera is constructed from die-cast aluminum and features IP67/IK10 ratings for weather and vandal resistance. It operates between -22°F and 140°F and includes a 90ft Smart IR for clear night imaging.

Installation Notes

Measuring 12.2" × 4.1" and weighing 2.2 lbs, the unit supports ONVIF Profile S and offers triple power flexibility (12VDC, 24VAC, or PoE). It is designed for digital systems and does not include an analog video output.
