GeoVision - 84-AS4111K-001U - Kit, Up To 8 Output Devices, 12V, 0.5A Per
Product Overview

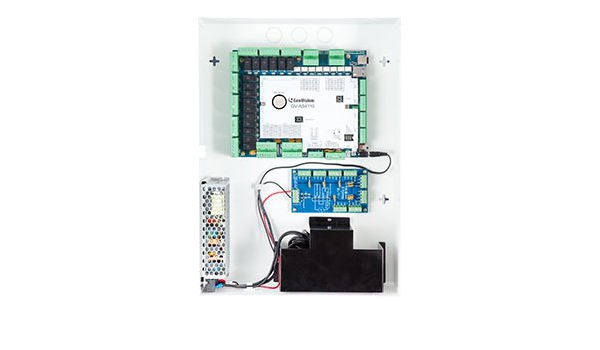

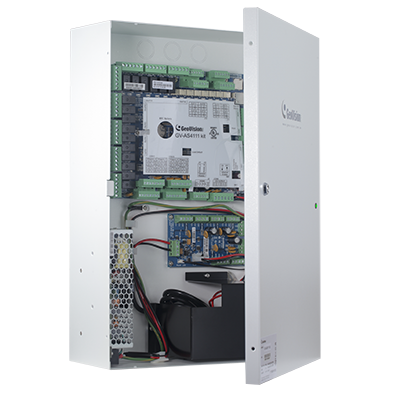

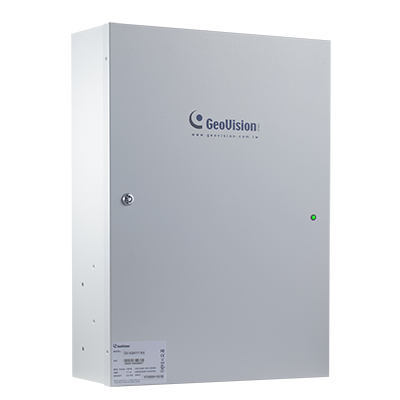

The GeoVision GV-AS4111 Kit is a comprehensive access control solution featuring a UL 294-compliant cabinet equipped with a controller, power supply, and backup battery housing. It manages up to 4 doors with one-way or two-way control using Wiegand, RS-485, and network interfaces. With 16 built-in inputs and 24 relay outputs, this kit is designed to oversee diverse security applications, including doors, parking gates, and elevator call systems.
Key Configuration
- • Doors: one-way control (4 doors) or two-way control (4 doors)
- • Reader interfaces: 8 Wiegand card readers (26–64 bits), 8 GV-Readers/GV-GF Fingerprint Readers via RS-485 and network
- • I/O: 16 inputs (dry contact, NO/NC); 24 relay outputs (1–16: 30V DC, 3A; 17–24: 30V DC, 1A)
- • Capacity: 100,000 user cards; 1,000,000 event buffer
- • Dimensions: 420 × 300 × 110 mm (16.5" × 11.8" × 4.33"); weight: 4.4 kg (9.68 lb)
Key Features
Powered by a 32-bit ARM7TDMI CPU and features TCP/IP connectivity for seamless network integration. It supports extensive reader configurations, including one RS-485 interface for up to 8 GeoVision readers and 8 Wiegand interfaces for third-party devices. This UL 294-compliant controller includes a tampering alarm, a dedicated power adapter board with eight 12V DC outputs, and a high-capacity 150W power supply compatible with global AC standards.
Technical Context
The system requires GV-ASManager V4.2.3 or later for operation and is fully certified for safety and compliance via UL 294, CE, FCC, and RoHS standards. It is built to perform in environments ranging from 0°C to 65°C, maintaining reliability within a 10–90% non-condensing humidity range.
| System Requirements | |
| GV‐ASManager Version | GV‐ASManager V4.2.3 or later |
| Software | |
| One‐Way Control | 4 doors |
| Two‐Way Control | 4 doors |
| Hardware | |
| CPU | 32‐bit ARM7TDMI |
| Number of User Cards | 100,000 cards |
| Event Buffer | 1,000,000 events and log data |
| Power | 100 ~ 120V AC, 50 ~ 60 Hz, 1.7A |
| RS‐485 Interface | 1 RS‐485 interface only for GV‐Readers and GV‐GF Fingerprint Readers (max. 8 Readers) Distance 600 m (1968.50 ft), 24 AWG, 13V DC min., 85 °C min. |
| Wiegand Interface | 8 Wiegand interfaces, 26 ~ 64 bit format, distance 100 m (328.1ft), 24 AWG, 13V DC min., 85 °C min. |
| TCP/IP Interface | 1 TCP/IP interface for GeoVision network readers |
| Communication | TCP/IP |
| Battery | Built‐in battery, replaceable button cell (CR2032) |
| Input | 16 inputs, dry contact, NO/NC |
| Output | 1~16 relay output / 30V DC, 3A 17~24 relay output / 30V DC, 1A |
| Operating Temperature | 0 ~ 65 °C / 32 ~ 149 °F |
| Operating Humidity | 10% ~ 90% RH (non‐condensing) |
| Dimension (W x H x D) | 420 x 300 x 110 mm / 16.5 x 11.8 x 4.33 in |
| Weight | 4.4 kg / 9.68 lb |
| Certification | UL 294, CE, FCC, RoHS |
| Power Adaptor Board | |
| DC Voltage Range Output | 12V |
| Rated Current Output | 0.5A |
| Rated Power Output | 6W |
| Input | 2 |
| Output | 8 |
| Wire Size (AWG) | 12 ‐ 22 |
| Power Supply | |
| DC Voltage Range | 11V ~ 13V (Nominal 12V) |
| Rated Current | 13A |
| Rated Power | 150 W |
| US Standard (UL) | 110 ~ 120V, 50 Hz / 60 Hz, 1.7 A |
| EU Standard | 200 ~ 240V, 50 Hz / 60 Hz |
