GeoVision - 84-CR13200-0010 - GV-CR1320 2MP Camera Reader, H.264

Product Overview

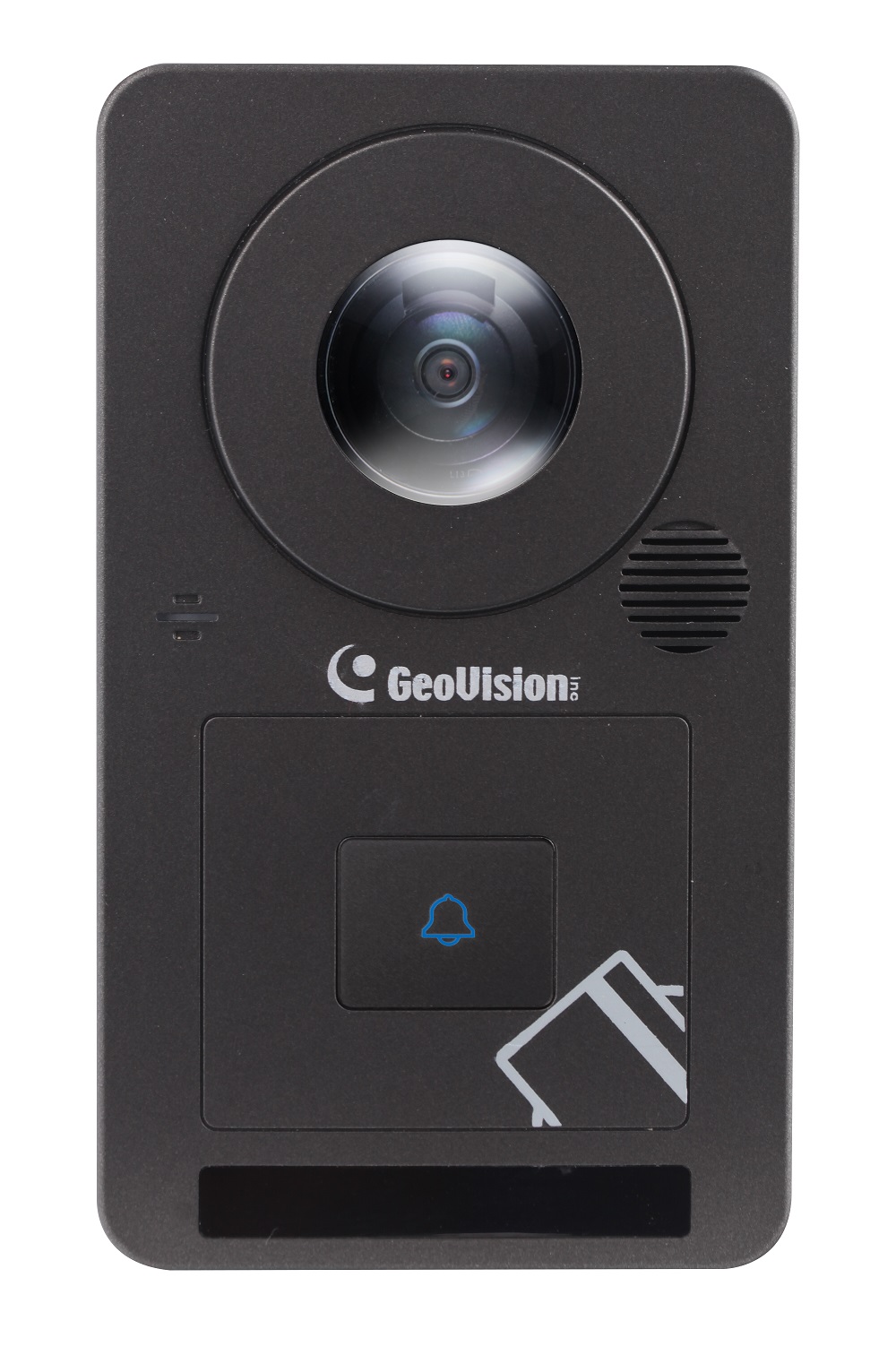

The GV-CR1320 (84-CR13200-0010) is an IP66-rated access controller featuring a built-in 13.56 MHz reader (Mifare DESFire/Plus/Classic) that supports up to 100,000 users. It integrates a 2 MP super low lux CMOS sensor with a 1.7mm lens providing a wide 180° horizontal FOV at 1080p (15 fps), backed by WDR and a 3m (10 ft) IR range. For secure entry communications, the unit is equipped with a touchpad, a built-in microphone and speaker, and supports SIP/VoIP calling for two-way audio.

Key Configuration

• • User capacity: 100,000 cards; event buffer: not specified
• • Card reader: built-in 13.56 MHz (ISO14443A – Mifare DESFire, MIFARE Plus, MIFARE Classic); supported ID formats: GID and UID
• • Camera: 1/2.8" progressive scan super low lux CMOS; 1.7mm fixed lens (F2.5); 180° horizontal FOV; 1920×1080 at 15 fps
• • I/O: 2 inputs (dry contact, door sensor/exit button), 1 relay output (electric lock, 30V DC, 0.5A); up to 2 RS-485/OSDP readers
• • Dimensions: 137 × 80 × 34.5 mm (5.4" × 3.15" × 1.36"); weight: 315 g (0.69 lb)

Key Features

This unit features an integrated 2MP camera with a 3m (10 ft) IR range and two-way audio, capturing snapshots when a card is presented or a touchpad is used, without a separate camera. It supports ONVIF Profile S, microSD storage, anti-passback, and enhanced security via GeoVision GID cards. Operators can schedule authentication modes (Card-only or Card + Face verification) and receive visitor alerts via SIP/VoIP, PC software, or mobile app. Additionally, it integrates with the GV-I/O Box (4 Ports) to manage door, fire, tamper, and doorbell peripherals.

Technical Context

Supporting H.264/MJPEG dual-streaming and versatile network protocols (including HTTPS, RTSP, and SIP), this IP66-rated device features an RS-485 interface for GV-WTR and a TCP/IP interface for GV-AS controllers. It requires GV-ASManager software for management, operates via DC12V (2.5A) or PoE+ (IEEE 802.3at) with a maximum power consumption of 25.5W, and carries CE, FCC, RCM, and RoHS certifications.

Installation Notes

Measuring 137 × 80 × 34.5 mm and weighing 315 g, this compact, IP66-rated controller delivers a 180° panoramic view and manages 1 door with one-way or two-way control. It operates reliably from -10°C to 50°C (10–90% humidity) via DC12V or PoE+, using a built-in touchpad to initiate two-way audio and triggering instant visitor push notifications through the GV-Access app.
