GeoVision - 84-CS13200-0010 - 2MP Camera Access Controller with a Built-In Reader
Product Overview

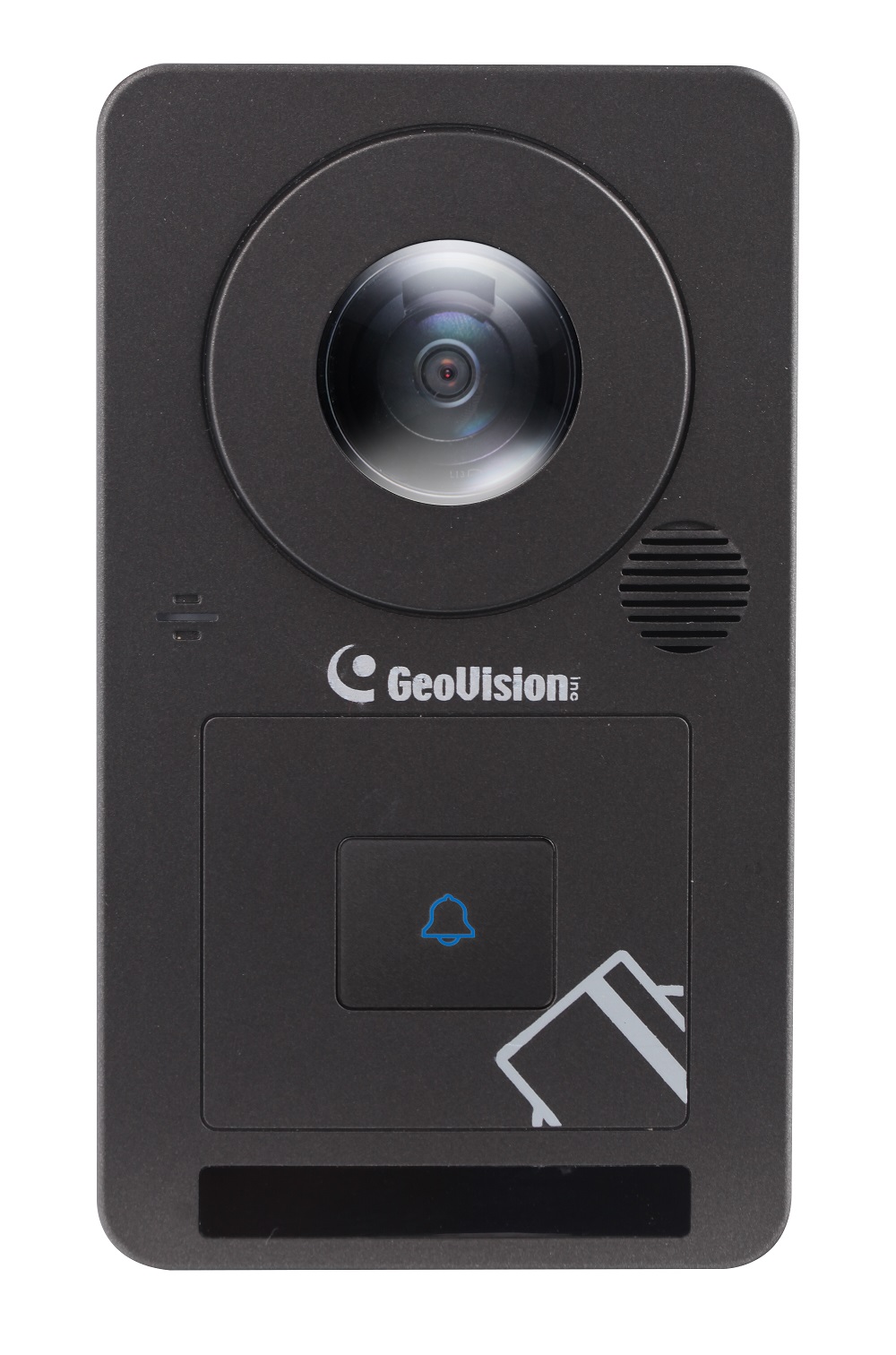

The GeoVision GV-CS1320 is an all-in-one access controller featuring an integrated 2MP camera and a 13.56 MHz reader compatible with Mifare DESFire, Plus, and Classic credentials. Its 180° ultra-wide lens and super-low-lux sensor deliver 1080p video with WDR and 3m (10 ft) IR for reliable day/night monitoring. Designed for high-capacity security, it supports up to 100,000 users and includes SIP/VoIP calling, an integrated touchpad for two-way communication, and an IP66-rated housing for outdoor durability.
Key Configuration
- • User capacity: 100,000 cards (networked mode); event buffer: 50,000 events
- • Card reader: built-in 13.56 MHz (ISO14443A – Mifare DESFire, MIFARE Plus, MIFARE Classic); supported ID formats: GID and UID
- • Camera: 1/2.8" progressive scan super low lux CMOS; 1.7mm fixed lens (F2.5); 180° horizontal FOV; 1920×1080 at 15 fps
- • I/O: 2 inputs (dry contact, door sensor/exit button), 1 relay output (electric lock, 30V DC, 0.5A); up to 2 RS-485/OSDP readers
- • Dimensions: 137 × 80 × 34.5 mm (5.4" × 3.15" × 1.36"); weight: 315 g (0.69 lb)
Key Features
The GV-CS1320 integrates a 2MP camera for live entrance monitoring and visitor communication via SIP/VoIP, GV-ASNotify, and mobile apps. It enhances security with Card and Face verification, automatic snapshots, and Anti-passback (APB) support. This ONVIF Profile S device includes 3m (10 ft) IR, two-way audio, and a microSD slot, with easy sensor expansion via the GV-I/O Box.
Technical Context
Supports H.264/MJPEG dual streaming and a wide range of protocols, including HTTPS, SIP, and ONVIF Profile S. It features RS-485 and TCP/IP interfaces for connecting up to four readers and requires GV-ASManager V4.2.3 or later. Built for durability, the unit is IP66-rated and carries CE, FCC, RCM, and RoHS certifications.
Installation Notes
Measuring 137 × 80 × 34.5 mm and delivering a 180° panoramic view. It manages one door with flexible power options via DC12V (2.5A) or PoE+, supporting a maximum consumption of 25.5W. The unit includes a built-in touchpad for two-way communication and sends push notifications through the GV-Access app, maintaining reliable operation in temperatures from -10°C to 50°C.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan super low lux CMOS |
| Picture Elements | 1920 (H) x 1080 (V) |
| Minimum Illumination | B/W 0.02 Lux |
| Shutter Speed | Automatic, Manual (1/5 ~ 1/8000 sec) |
| White Balance | Automatic, Manual (2800K ~ 8500K) |
| S/N Ratio | 52 db |
| Lens | |
| Megapixel | Yes |
| Day / Night Function | Yes (with removable IR‐cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.7 mm |
| Maximum Aperture | F/2.5 |
| Mount | M12 |
| Image Format | 1/2.8" |
| Horizontal FOV | 180° |
| IR LED Quantity | 2 |
| Max. IR Distance | 3 m (10 ft) |
| Operation | |
| Video Compression | H.264, MJPEG |
| Video Streaming | Dual streams from H.264 and MJPEG |
| Video Resolution | Stream 1: 1920 x 1080 (16:9) | Stream 2: 640 x 360 (16:9) |
| Frame Rate | 15 fps at 1920 x 1080 (Performance may vary by connection/bitrate) |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Orientation, Shutter Speed |
| Audio Compression | G.711 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SIP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA |
| Mechanical & Connectors | |
| Local Storage | Micro SD card slot |
| Power Connectors | 2‐pin terminal block |
| Ethernet | RJ‐45 Connector (10/100 Base‐T) |
| Audio | Built-in microphone and speaker |
| RS-485 | RS-485 +, RS-485 ‐ |
| General | |
| Operating Temperature | ‐10 ~ 50 °C (14 ~ 122 °F) |
| Humidity | 10 ~ 90% (no condensation) |
| Power Source | 12V DC, 2.5A / PoE+ (IEEE 802.3at) |
| Max Power Consumption | 25.5 W |
| Regulatory | CE, FCC, RCM, RoHS compliant |
| Dimensions | 137 x 80 x 34.5 mm (5.4 x 3.15 x 1.36 in) |
| Weight | 315 g (0.69 lb) |
| Ingress Protection | IP66 |
| Web Interface & Applications | |
| Management | Web-based configuration; Firmware upgrade via Browser/Utility |
| Access Capabilities | Live view, Video quality adjustment, Bandwidth control, Snapshot, Audio, PIP/PAP |
| Languages | English, French, Portuguese, Russian, Spanish, Traditional Chinese |
| Supported Software | GV‐DVR / NVR / VMS; GV‐ASManager |
| Access Controller Specifications | |
| User Card Capacity | 100,000 cards (networked mode) |
| Frequency | 13.56 MHz (ISO14443A: Mifare DESFire, Plus, Classic) |
| Event Buffer | 50,000 events and log data |
| RS‐485 Interface | 1 interface for max. 2 RS‐485 / OSDP readers |
| TCP/IP Interface | 1 interface for max. 2 readers (GV‐CR420, GV‐GF1921/22, GV‐FR2020, GV‐FWC) |
| Digital I/O | 2 inputs (dry contact NO/NC); 1 relay output (30V DC, 0.5A) |
| Supported ID Formats | Built‐in GID and UID reader |
