GeoVision - 84-IA13300-0010 - Doorbell Intercom Access

Product Overview

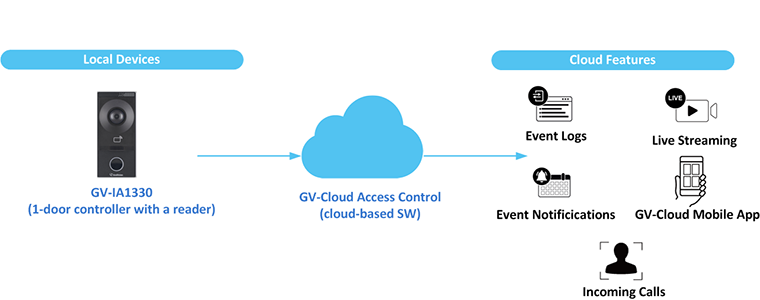

The GV-IA1330 is a doorbell intercom and IP access controller featuring a built-in 2MP camera and a 13.56 MHz reader. Purpose-built for the GV-Cloud Access Control platform, it manages up to 100,000 cards and stores 65,535 event logs. The unit controls a single door with support for two additional RS-485 or OSDP readers and includes 4 inputs and 2 outputs for comprehensive sensor and lock integration. It delivers 1080p video at 30 fps with H.265 compression, featuring IP65 weather resistance, 3m (10 ft) IR night vision, and two-way audio.

Key Configuration

• • User capacity: 100,000 cards; event buffer: 65,535 events and log data
• • Reader: built-in 13.56 MHz ISO14443A (UID); 1 RS-485 interface for max 2 RS-485/OSDP readers
• • Camera: 1/2.9" progressive scan CMOS; 2.58mm fixed lens (F2.0); 124.3° horizontal FOV; 1920×1080 at up to 30 fps
• • I/O: 4 inputs (door sensor, door button, fire sensor, tamper sensor), dry contact NO/NC; 2 relay outputs (door lock, alarm), 30V DC, 2A

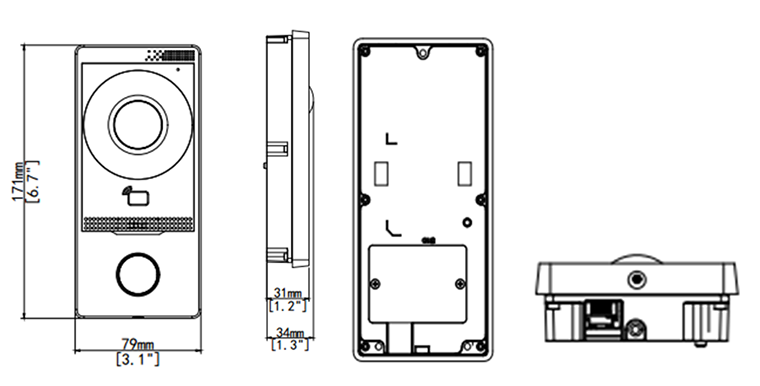

• • Dimensions: 79 × 171 × 34 mm (3.1" × 6.7" × 1.3"); weight: 0.267 kg (0.59 lb)

Key Features

Features an integrated 2MP camera that provides live video and snapshots to the GV-Cloud Access Control platform. Pressing the call button triggers an interface for real-time video, two-way audio, and remote door control. Equipped with WDR, 3D noise reduction, and a removable IR-cut filter, it ensures clear image quality day or night with a 3m (10 ft) IR range. This IP65-rated device supports edge storage via a microSD slot and offers a comprehensive web interface for configuration and live monitoring.

Technical Context

Offers efficient H.265/H.264 dual streaming at 1080p with customizable image settings, including 3D noise reduction and corridor mode. It supports a robust suite of network protocols such as HTTPS, IPv4, and 802.1x for secure data transmission. Designed for extreme environments, the unit operates from -30°C to 60°C and is powered via DC12V or PoE (802.3af) with a 10W maximum draw. Managed through the GV-Cloud platform and mobile app, it carries major certifications including UL, CE, and FCC.

Installation Notes

Measuring 79 × 171 × 34 mm and weighing 0.267 kg. It is IP65-rated for outdoor durability and features a built-in microphone and speaker for two-way audio. Flexible power is provided via DC12V or PoE, with local recording supported through an onboard microSD slot. System management is accessible via an English-language web interface.
