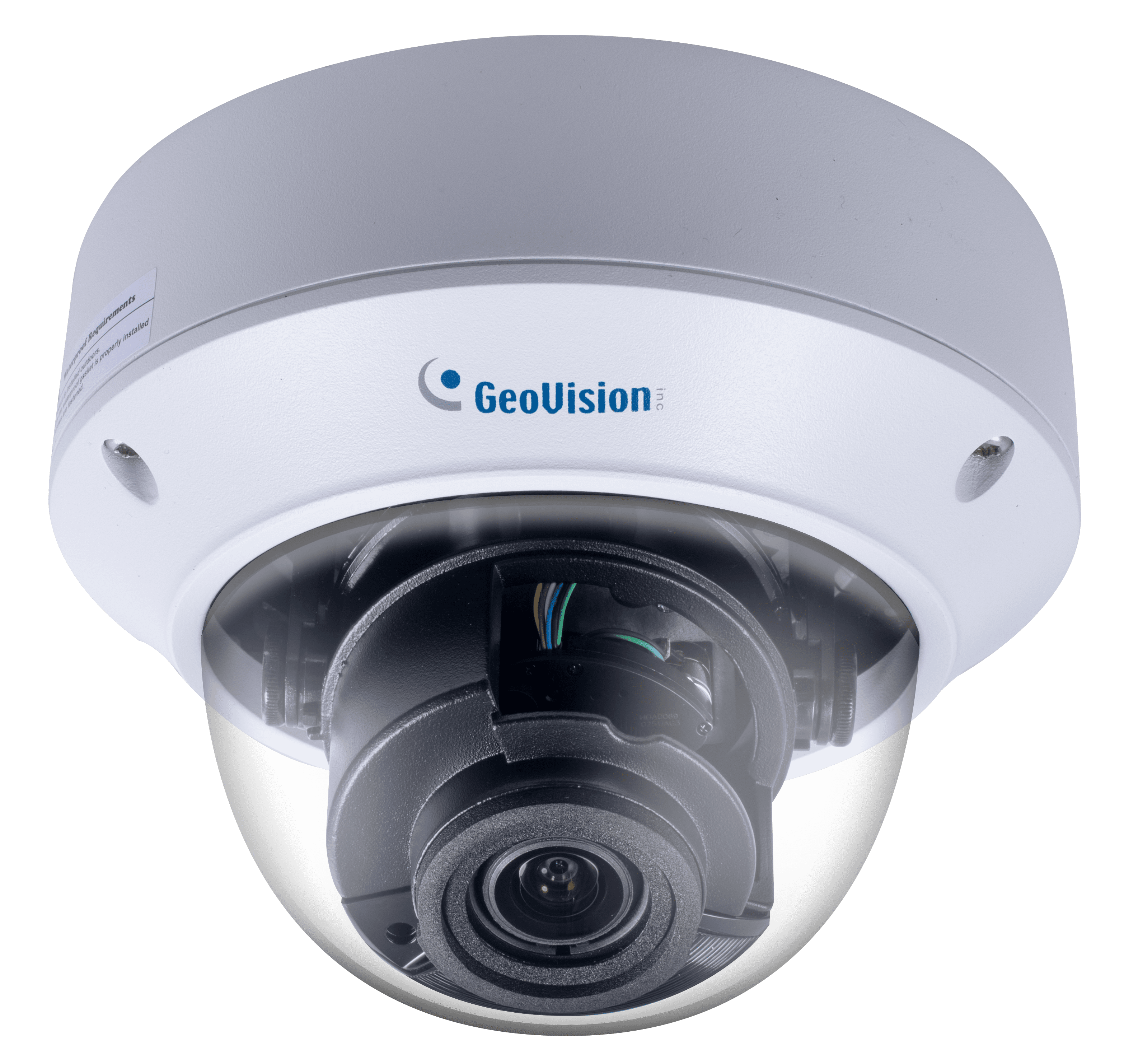

GeoVision - GV-TVD8810 - 8MP Outdoor Dome IP Camera with 2.8-12mm Lens

Product Overview

The GeoVision GV-TVD8810 is an 8MP outdoor vandal-resistant dome featuring a 1/2" super low lux sensor and a 2.8–12mm motorized varifocal lens with 4.3x optical zoom. It delivers ultra-high-definition 4K video at 20 fps, protected by a rugged IP67/IK10-rated metal casing and 40m (130 ft) Intelligent IR. This advanced camera includes AI deep learning for human and vehicle classification, WDR Pro (120dB) for high-contrast lighting, and supports two-way audio for comprehensive perimeter protection.

Key Configuration

• • Image sensor: 1/2" progressive scan super low lux CMOS; resolution: 3840×2160 (8MP) at 20 fps; 2944×1656 at 30 fps; 2592×1944 at 30 fps; 2560×1440 at 30 fps
• • Lens: 2.8–12mm motorized varifocal, F1.5, 4.3x optical zoom; horizontal FOV: 106° (wide) to 34° (tele)
• • IR distance: 2 IR LEDs, Intelligent IR up to 40m (130 ft); minimum illumination: color 0.003 lux, 0 lux with IR
• • Video compression: H.265, H.264, MJPEG; triple streams
• • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 5.5W

Key Features

Features advanced AI deep learning for perimeter protection, including human/vehicle classification, face detection, and people counting. It ensures image clarity with WDR Pro (120dB) and Defog support, while offering two-way audio and integrated alarm I/O for reactive security. This ONVIF-conformant camera supports corridor mode, versatile image adjustments, and local edge storage via a microSD slot (up to UHS-I).

Technical Context

Operates reliably in extreme environments from -40°C to 60°C and is backed by FCC, CE, and RoHS certifications. It features a versatile shutter speed range up to 1/100,000 sec and a high 52 dB S/N ratio for clear signal quality. The camera supports a wide array of network protocols, including HTTPS, SNMP, and RTSP, for secure and seamless integration.

Installation Notes

It offers flexible installation with a 3-axis mechanical adjustment and dual power options via DC12V or PoE. Additionally, the camera supports two-way audio through an external speaker connection and includes a microSD slot (Class 10) for reliable local edge storage.
