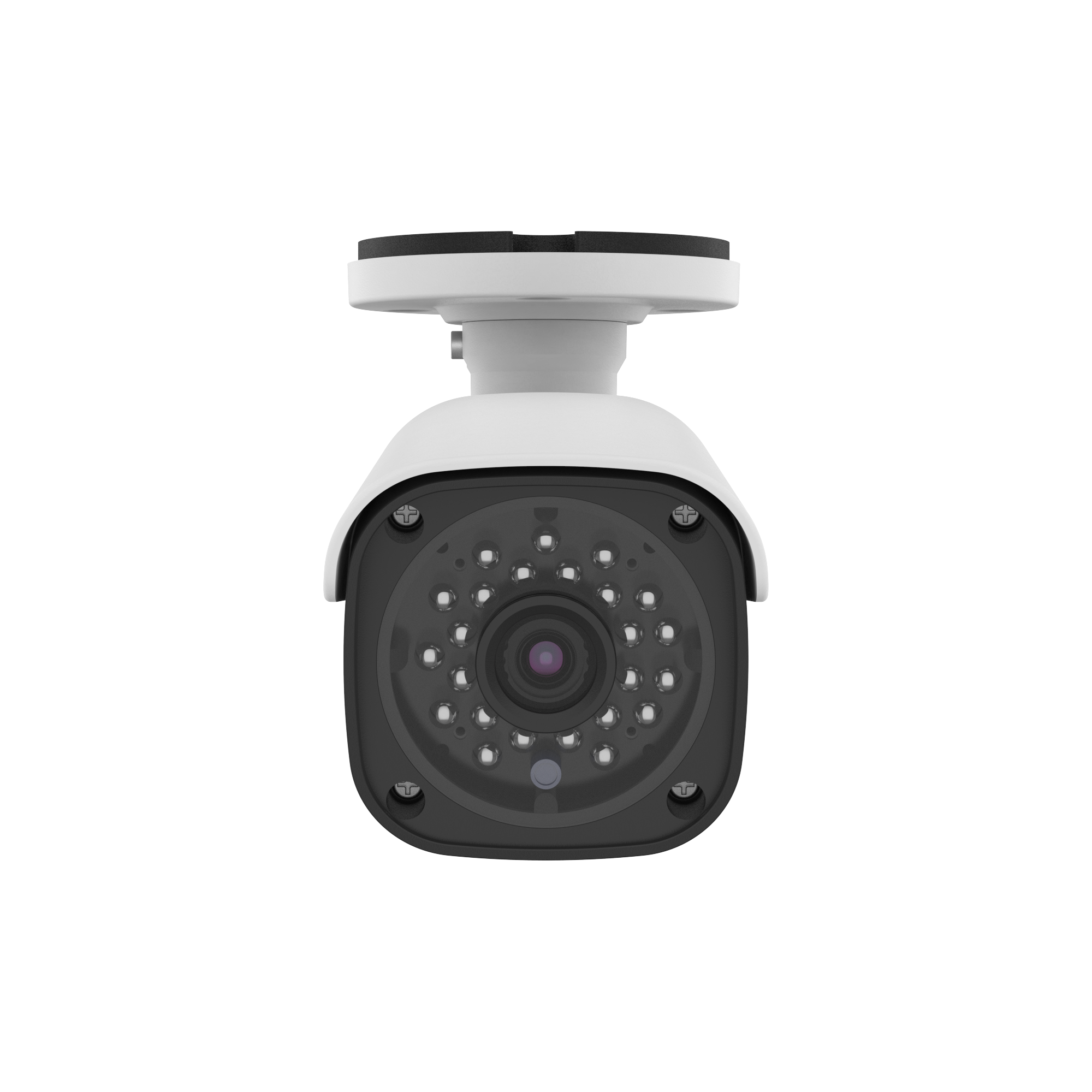

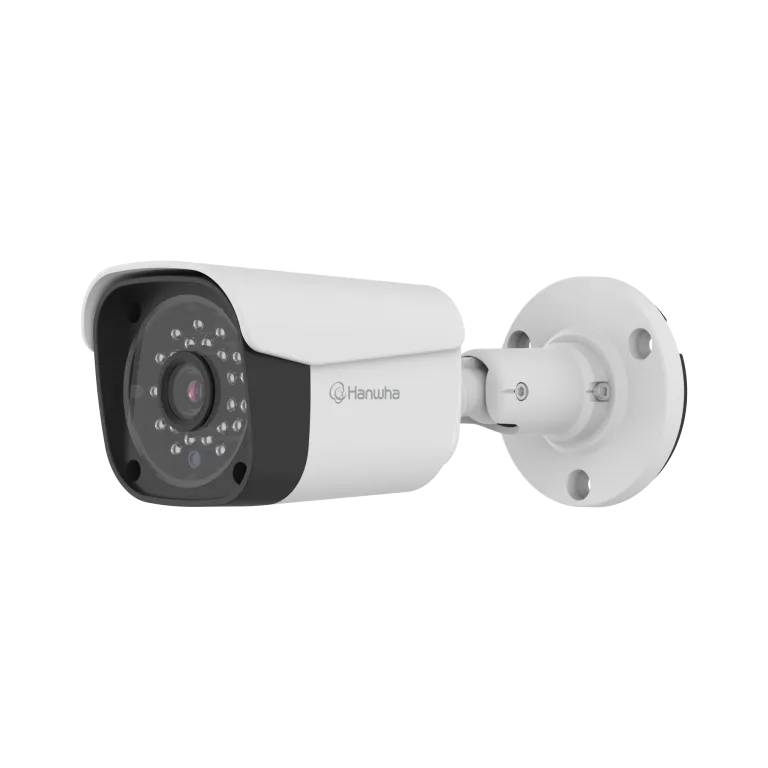

Hanwha - ACO-8020R - Wisenet A Series 5MP IR Bullet Camera

This 5MP analog HD bullet camera features a 1/2.5" CMOS sensor delivering 2592x1944 resolution at up to 20fps (30fps at lower resolutions, CVI supports up to 4MP). It includes a 3.6mm fixed lens with F1.6 aperture, providing an 83.9° horizontal field of view. The camera supports selectable AHD/TVI/CVI/CVBS video output with transmission distances up to 300 meters over 5C2V coaxial cable. IR illumination provides 20 meters of night vision with 0Lux minimum illumination.
Video enhancements include DWDR, 2D + 3DNR, BLC, auto ICR day/night, and adjustable gain control (OFF/LOW/MIDDLE/HIGH). The camera supports coaxial protocols including ACP, TCP, CCP, and CVBS (Pelco-C Coaxitron). It is rated IP67 for weather resistance and IK10 for vandal protection, operating from -30°C to +55°C. The camera is powered by 12VDC with typical power consumption of 4.3W (max 5.4W) and features a white aluminum/plastic housing weighing 420g with dimensions of 70(W)x69(H)x186(D)mm.
