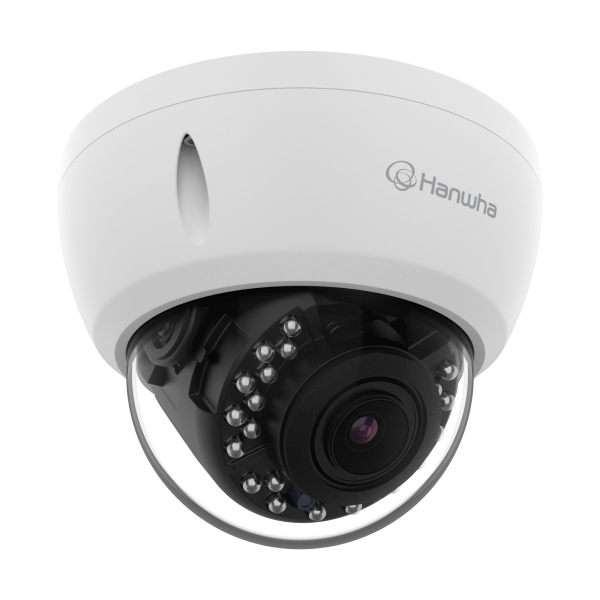

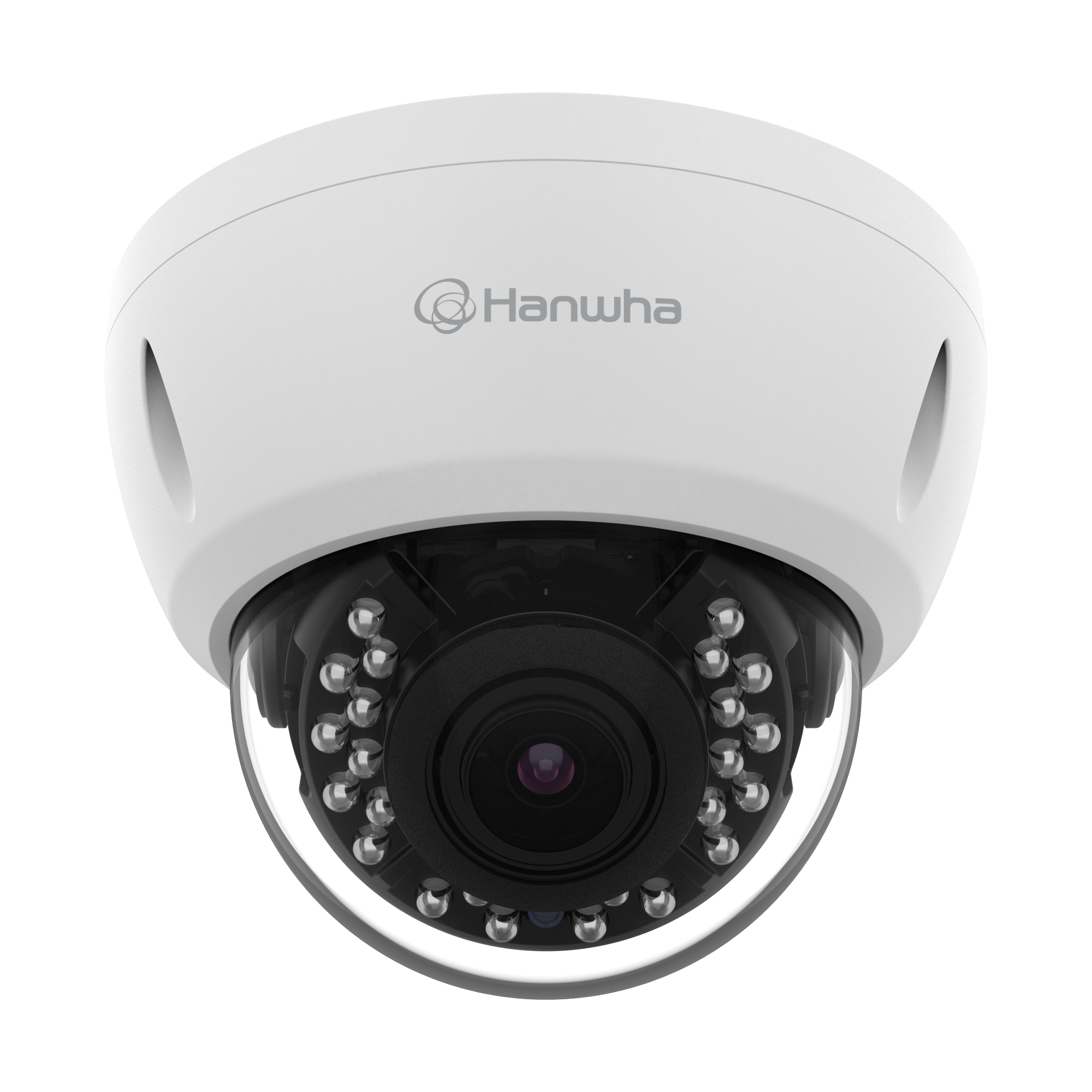

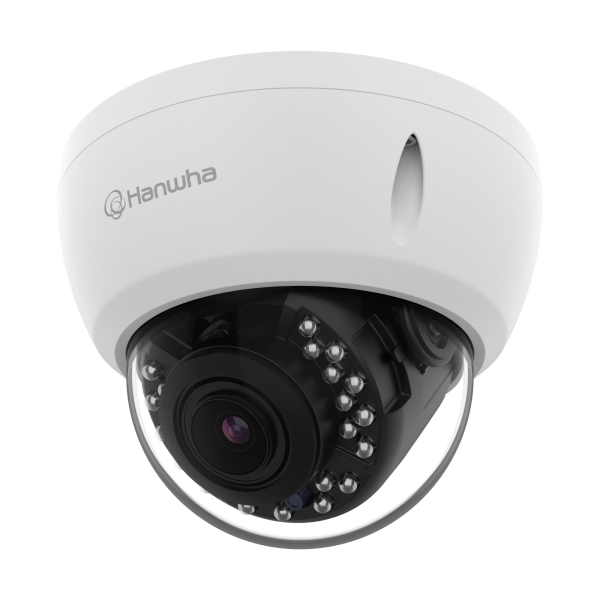

Hanwha - ACV-8081R - Wisenet A Series 5MP IR Vandal Dome Camera
- • 5MP resolution @ 30FPS, 4MP @ CVI
- • 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- • 3.5mm~10.5mm (3x) motorized varifocal
- • Day & Night (ICR), WDR
- • IR distance 20m(65.6 ft)
- • IP67, IK10
- • 12v DC power
- • Transmission distance Max.500m
- • Easy installation (Plug & play), Coaxial control
- • Multi-protocol compatible with AHD, TVI, CVI, CVBS
This 5MP analog HD vandal dome camera features a 1/2.8" CMOS sensor delivering 2592x1944 resolution at up to 20fps (30fps at lower resolutions). It includes a 3.5mm to 10.5mm (3x) motorized varifocal lens with F1.6 aperture, providing a horizontal field of view from 82° (wide) to 27° (telephoto). The camera supports selectable AHD/TVI/CVI/CVBS video output with transmission distances up to 300 meters over 5C2V coaxial cable. IR illumination provides 25 meters of night vision with 0Lux minimum illumination. Low light sensitivity reaches 0.06 Lux in color mode.
Video enhancements include WDR (95dB), 2D + 3DNR, BLC, auto ICR day/night, and adjustable gain control (LOW/MIDDLE/HIGH). The camera supports coaxial protocols including ACP, TCP, CCP, and CVBS (Pelco-C Coaxitron). It is rated IP66 for weather resistance and IK10 for vandal protection, operating from -30°C to +55°C. The camera is powered by 12VDC with typical power consumption of 5.8W (max 7.2W) and features a white aluminum/plastic housing weighing 550g with dimensions of ø132x103mm.
