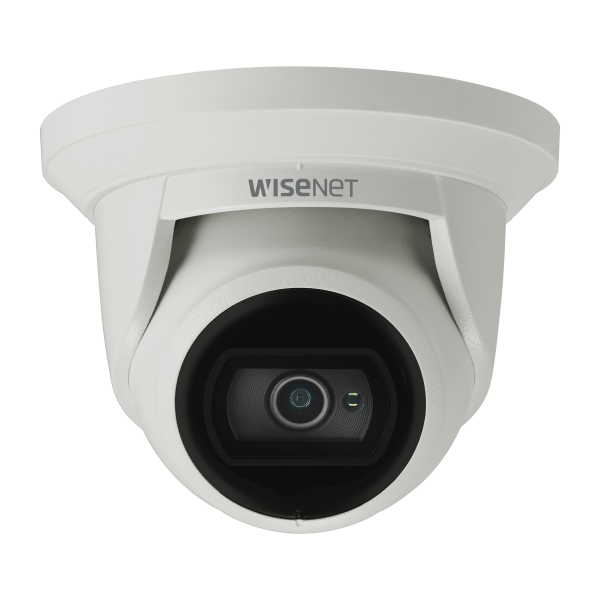

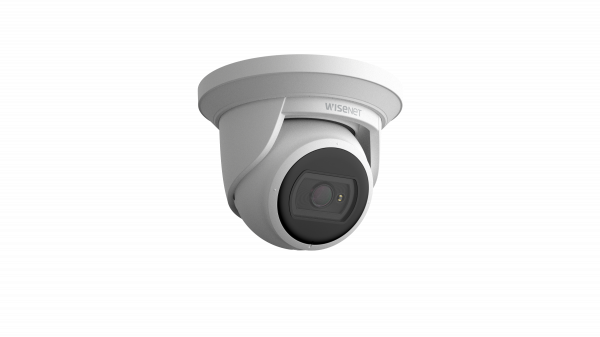

Hanwha - ANE-L6012R - 2MP Super-Compact IR Flateye Camera with 3mm Fixed Focal Lens

Product Overview

The Hanwha ANE-L6012R is a super-compact 2MP flat-eye turret camera that delivers Full HD 1920×1080 resolution at up to 30 fps. It uses a 3mm fixed lens with a wide 107.7° horizontal field of view, making it suitable for broad indoor or close-range coverage. It features 120dB WDR for challenging lighting conditions and 20m infrared illumination for night monitoring. Video compression supports H.265/H.264/MJPEG with WiseStream II for bandwidth optimization and efficient storage usage.

Key Configuration

• 2MP (1920x1080) resolution at 30fps maximum frame rate
• 3mm fixed focal lens, F1.6 max aperture, H: 107.7° / V: 59.0° FOV
• PoE (IEEE802.3af, Class3) input, max 6.6W power consumption
• Micro SD/SDHC slot supporting up to 32GB edge storage

Key Features

2MP network IR camera with 1/2.8" CMOS sensor and 1920×1080 resolution at up to 30 fps. It supports low-light performance down to 0.03 lux in color and 0 lux with IR, plus auto day/night (ICR). It includes 120dB WDR with BLC/SSDR, SSNR noise reduction, motion detection (4 zones), privacy masking (6 zones), and video rotation features, including hallway mode (90°/270°). Analytics cover motion, tampering, intrusion, and virtual line detection, with event actions like FTP/e-mail upload and SD recording. Networking supports 10/100 Ethernet with up to 6 unicast users, multicast streaming, and 3 profiles using WiseStream II compression. It also includes IP67/IK10 protection, 512MB RAM, and 256MB flash memory.

Technical Context

WiseStream II smart codec dynamically adjusts compression based on scene activity, reducing bandwidth usage while maintaining image quality with H.265/H.264 encoding. The camera supports up to 3 simultaneous streaming profiles with unicast (up to 6 users) and multicast streaming. Event-driven analytics can trigger FTP uploads, email notifications, or SD card recording. DORI performance provides 28.1 m detection, 11.2 m observation, 5.6 m recognition, and 2.8 m identification ranges.

Installation Notes

Compact turret camera with a white plastic/aluminum housing, measuring Ø125.0 × 87.4 mm and weighing 630 g. It supports wide adjustment with pan 0°–350°, tilt 0°–67°, and rotation 0°–355° for flexible installation. Designed for outdoor use, it operates from -30°C to +55°C (startup above -20°C) with up to 95% humidity tolerance. Power is supplied via PoE (IEEE 802.3af Class 3), with low consumption (max 6.6W, typical 4.8W). It is compatible with SBV-A14B backbox and standard single/double/4" octagon gang boxes.
