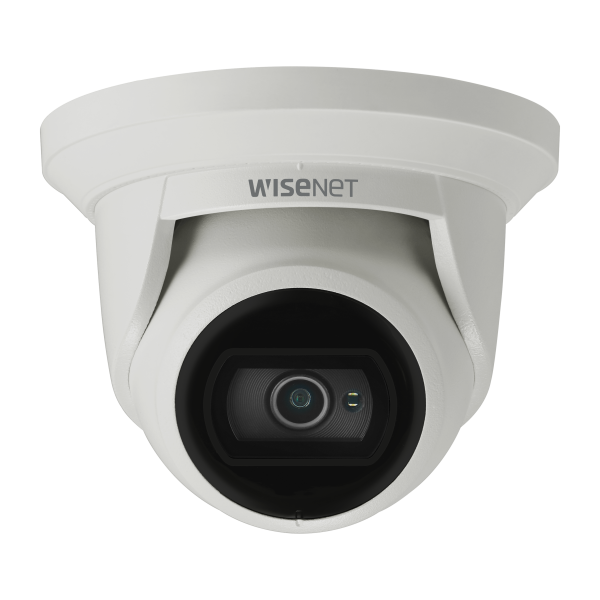

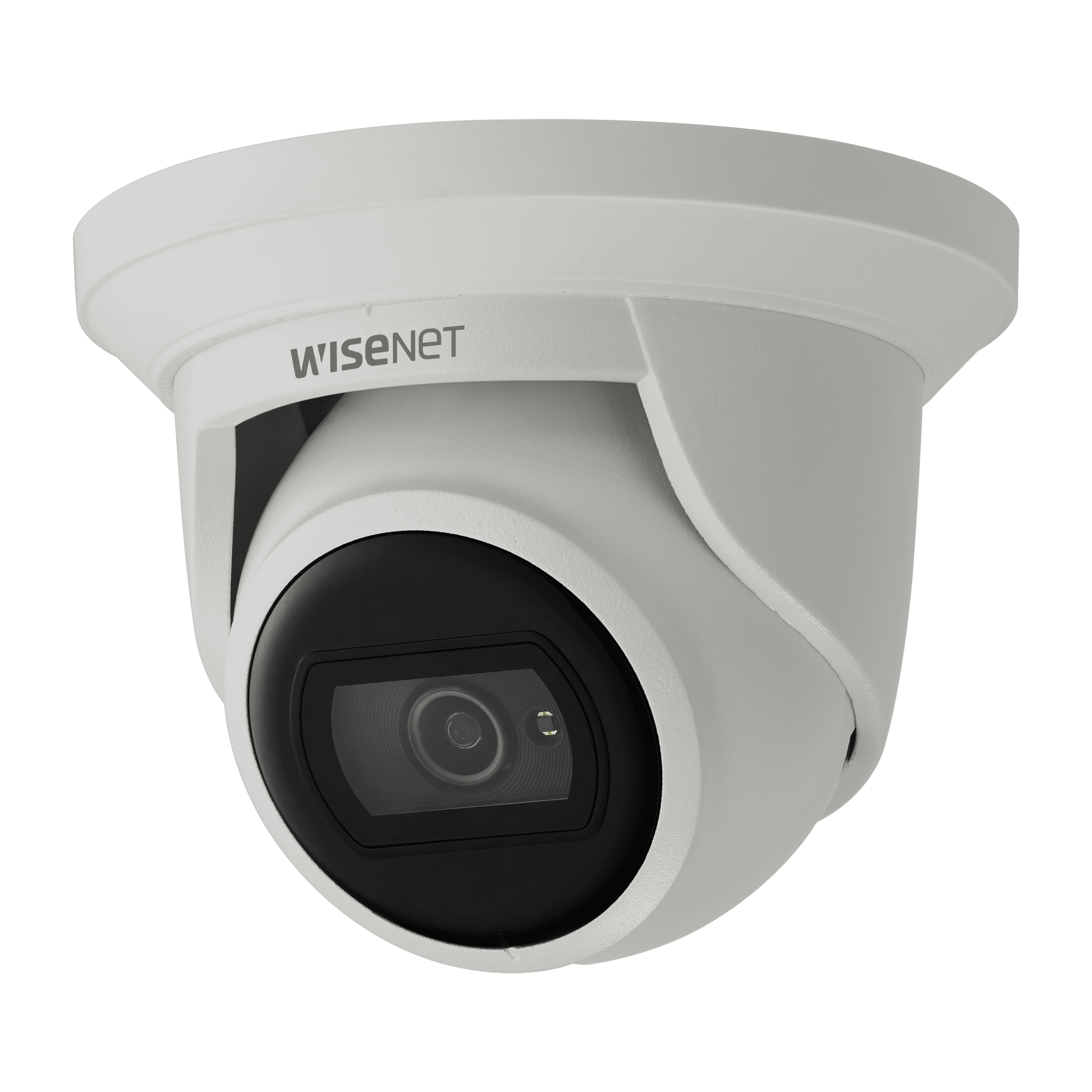

Hanwha - ANE-L7012R - 4MP Wisenet A Series Turret Camera

Product Overview

The ANE-L7012R is an outdoor-rated, vandal-resistant 4MP turret camera from the Wisenet A Series, featuring a 1/2.8" CMOS sensor and a 3mm fixed lens F1.6, 99° horizontal FOV. It delivers crisp 2560×1440 video at up to 30 fps, utilizing H.265/H.264/MJPEG compression and WiseStream II bandwidth optimization.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 2560×1440 (4MP) at up to 30 fps (H.265/H.264)
• • Lens: 3mm fixed focal, F1.6; horizontal FOV: 99°, vertical: 55°, diagonal: 115°
• • IR viewable length: 20m (65.6 ft); minimum illumination: color 0.13 lux, B/W 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
• • Power: PoE (IEEE 802.3af, Class 3); max 7.5W, typical 5.7W

Key Features

The camera features a 3-axis mechanism, 0–350° pan, 0–75° tilt, 0–360° rotation, and supports 90°/270° Hallway View for vertical spaces. Clear imaging is maintained via 120dB WDR and SSNR noise reduction, while 6 rectangular privacy masks protect sensitive scenes. Onboard intelligence provides edge analytics for tampering, defocus, virtual line crossing, and virtual areas, with 4 polygonal motion detection zones. The system supports local edge backup via a 128GB microSD slot and ensures broad integration with ONVIF Profiles S, G, and T conformance.

Technical Context

Featuring a 1.1m minimum object distance and fixed focus, the camera utilizes an electronic shutter with anti-flicker and Lens Distortion Correction (LDC). Backed by 512MB RAM and 256MB Flash, it supports up to 3 streaming profiles for 6 unicast and unlimited multicast users. Network and data protections are driven by a robust security suite, including HTTPS/SRTP/WSS encryption, 802.1X authentication, digest logins, IP filtering, and user logs. Device safeguards include firmware encryption, device certificates, encrypted credentials, and specialized SD card partition and ZIP compression encryption.

Installation Notes

Measuring Ø125.0 × 87.4 mm and weighing 630g, this RAL9003 white aluminum and plastic camera is IP67 weatherproof and IK10 vandal-rated. It operates reliably from -30°C to 55°C under 0–95% RH. Power is delivered via standard PoE Class 3.
