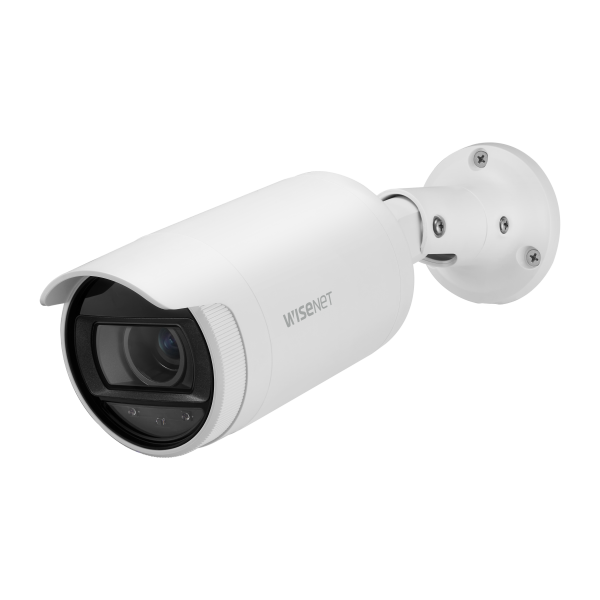

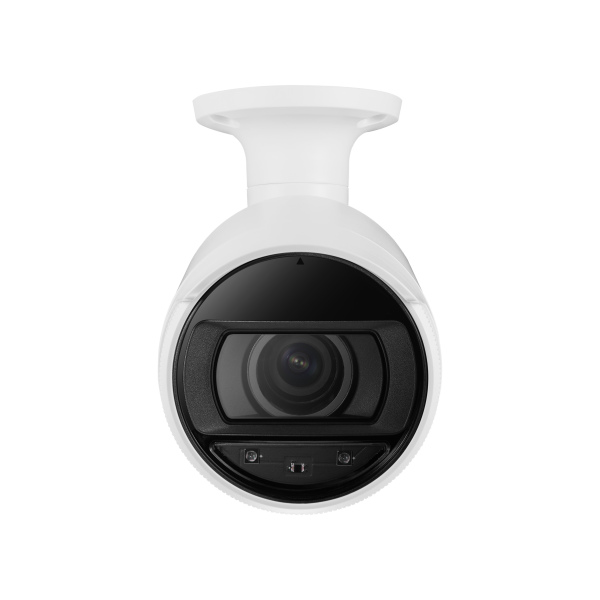

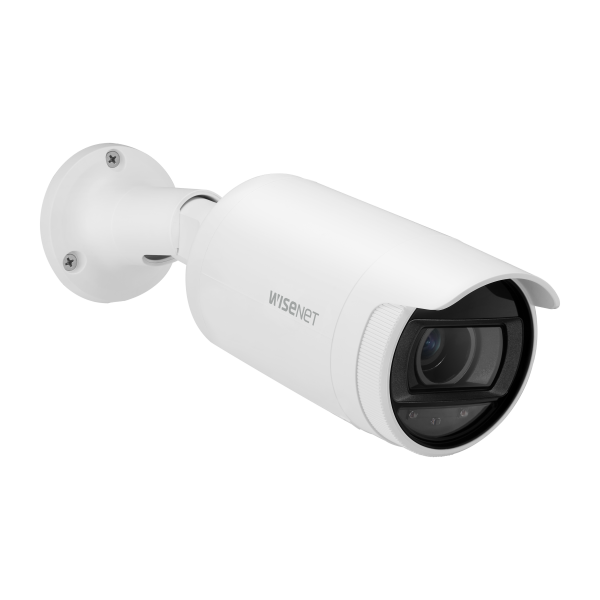

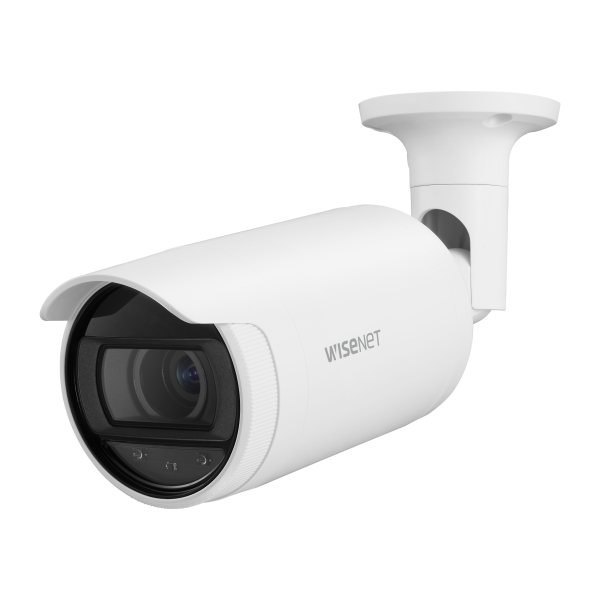

Hanwha - ANO-L6082R - 2MP Bullet Wisenet A Series Camera, 3.3~10.3mm Motorized Varifocal Lens

Product Overview

The Hanwha ANO-L6082R is a Wisenet A Series 2MP bullet camera equipped with a 1/2.8" CMOS sensor that delivers full 1080p resolution (1920×1080) at up to 30 frames per second. It features a 3.3~10.3mm (3.1x) motorized varifocal lens with Simple Focus, offering a flexible horizontal field of view ranging from a wide 105.2° down to a narrow 30.6°.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 1920×1080 (2MP) at up to 30 fps (H.265/H.264)
• • Lens: 3.3~10.3mm motorized varifocal (3.1x), F1.6(W)–F3.3(T), DC auto iris; horizontal FOV: 105.2°(W)–30.6°(T)
• • IR viewable length: 30m (98 ft); minimum illumination: color 0.03 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
• • Power: PoE (IEEE 802.3af, Class 3); max 7.0W, typical 5.0W

Key Features

Equipped with 120dB WDR, SSNR noise reduction, 512MB RAM, and 256MB Flash, this camera supports Lens Distortion Correction (LDC) and Hallway View (90°/270° rotation). Onboard analytics include tampering, motion detection (4 rectangular zones), virtual line crossing/direction, and virtual area tracking (intrusion/enter/exit), alongside 6 rectangular privacy masks. Local edge recording is handled via a single microSD/SDHC slot (up to 32GB). While ONVIF profiles and 3-axis bracket details are not specified for this A Series model, it features a standard bullet form factor for easy installation and alignment.

Technical Context

This camera features a simple focus mechanism with a minimum object distance of 0.5m (1.64 ft) and an electronic shutter speed ranging from 2 to 1/12,000 sec. It streams up to 3 profiles simultaneously to 6 concurrent unicast or multicast users. Built with an IP66 weatherproof rating, its security suite includes HTTPS/SSL and digest login authentication, 802.1X network access control, IP address filtering, and user access logging.

Installation Notes

Measuring Ø78.0 × 262.0 mm (Ø3.07" × 10.31") and weighing 390g (0.86 lb), this outdoor bullet camera features a white plastic housing rated at IP66 for weather resistance (no IK impact rating). It operates between -30°C to +55°C (-22°F to 131°F) with a start-up threshold above -20°C (-4°F) under 95% RH. The unit is powered strictly via PoE (Class 3), includes a single microSD edge storage slot (32GB max), and is compatible with the optional SBV-A14B backbox.
