Hanwha - ANO-L7082R - 4MP Wisenet A Series Bullet Camera with 3.3~10.3mm Lens
Product Overview
The Hanwha ANO-L7082R is a 4MP IR bullet camera with a 1/2.8" CMOS sensor and a 3.3–10.3mm motorized varifocal lens (3.1x zoom), featuring DC auto iris and simple focus control. It supports up to 4MP resolution (2560×1440) at 30 fps with H.265/H.264/MJPEG compression and WiseStreamⅡ for bandwidth optimization. The lens provides a 94.8°–28.1° horizontal field of view with F1.6–F3.3 aperture performance.
Key Configuration
• Imaging: 1/2.8" CMOS, 4MP (2560×1440) at up to 30 fps.
• Lens: 3.3–10.3mm motorized varifocal (3.1x), DC auto iris, F1.6–F3.3, 94.8°–28.1° FOV.
• IR: up to 30 m, 0.1 lux color, 0 lux with IR.
• Compression: H.265/H.264 (Main/High), MJPEG, WiseStreamⅡ.
• Power: PoE (IEEE 802.3af Class 3), max 8W (typical 6W).
Key Features
Features 120 dB WDR with SSNR noise reduction for improved low-light clarity, along with lens distortion correction and hallway view support (90°/270° rotation). It includes video analytics such as defocus detection, motion detection (4 zones), tampering, virtual line crossing, and virtual area events (intrusion, enter/exit). The camera supports privacy masking with up to 6 zones, edge storage via microSD up to 128GB, and ONVIF Profile S/G/T compatibility, with 512MB RAM and 256MB flash memory.
Technical Context
Supports a minimum object distance of 0.5 m with simple focus control and electronic shutter speeds from 1/5 to 1/12,000 sec with anti-flicker mode. It includes broad network protocol support (IPv4/IPv6, RTSP, HTTPS, SSL/TLS, SNMPv1/v2c/v3, FTP, SMTP, DNS/DDNS, QoS, UPnP, Bonjour, LLDP, and more) with secure authentication via HTTPS, digest login, IP filtering, and 802.1X (EAP-TLS/EAP-LEAP). The camera supports up to 6 unicast users, multicast streaming, and up to 3 video profiles, and is certified with IP66 protection.
Installation Notes

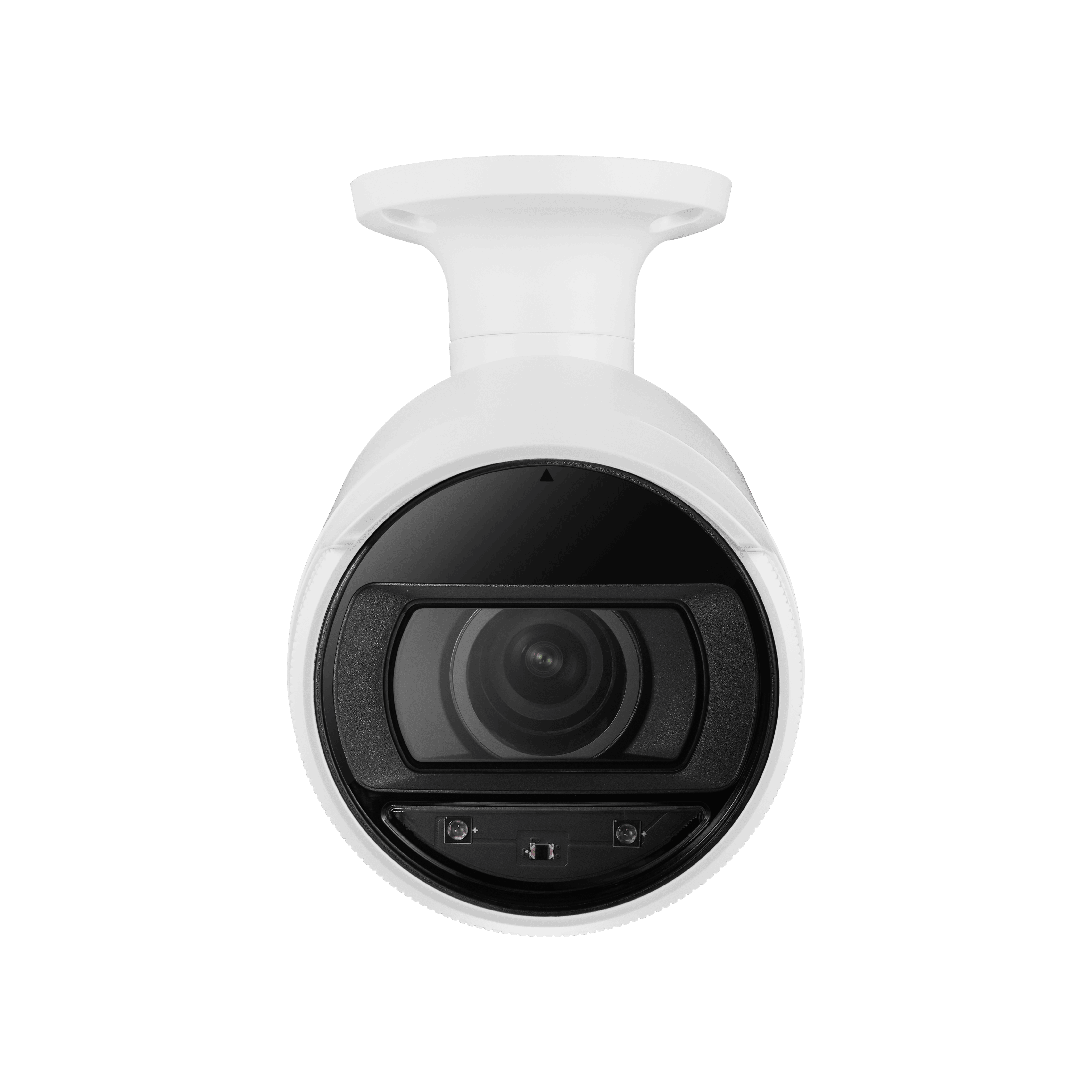

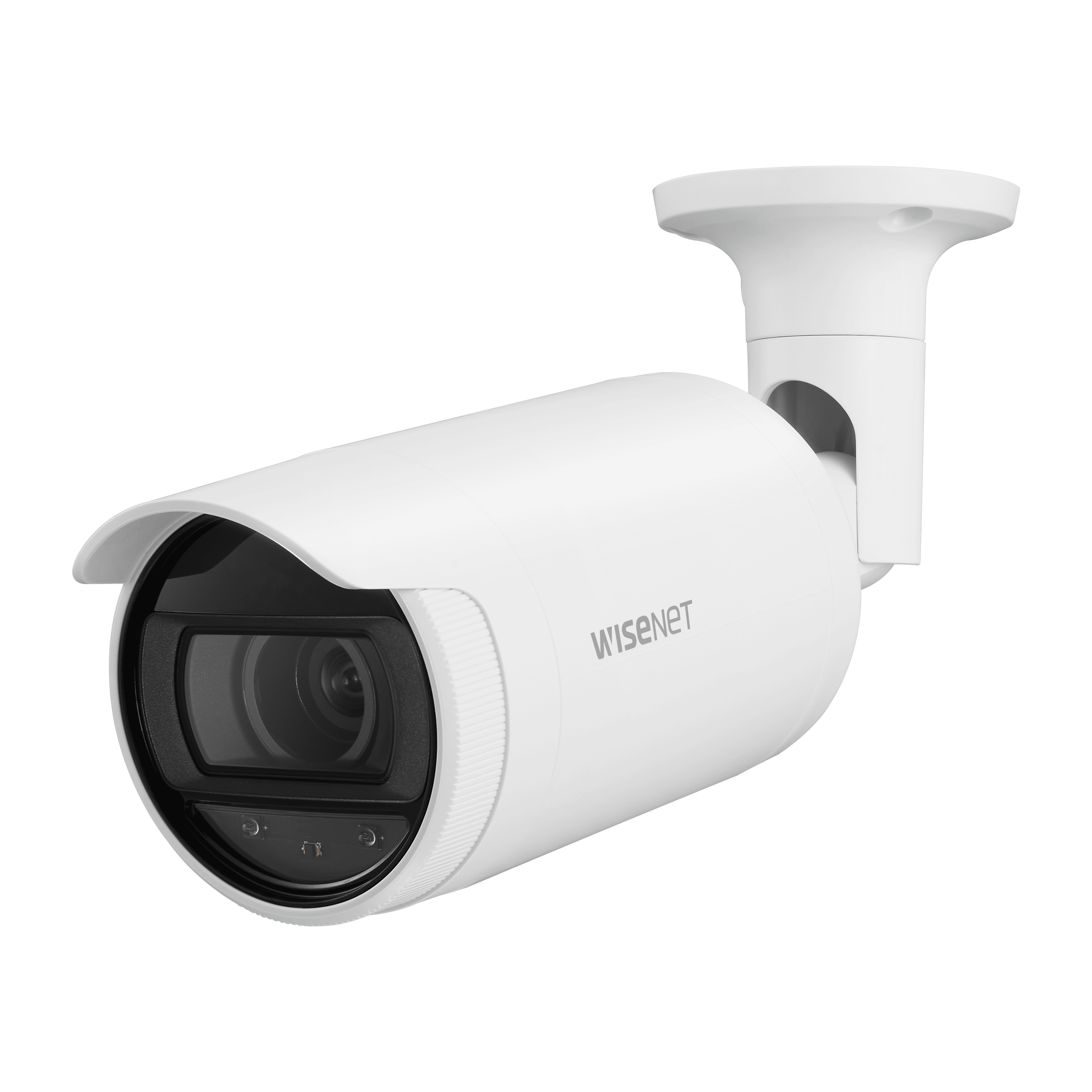

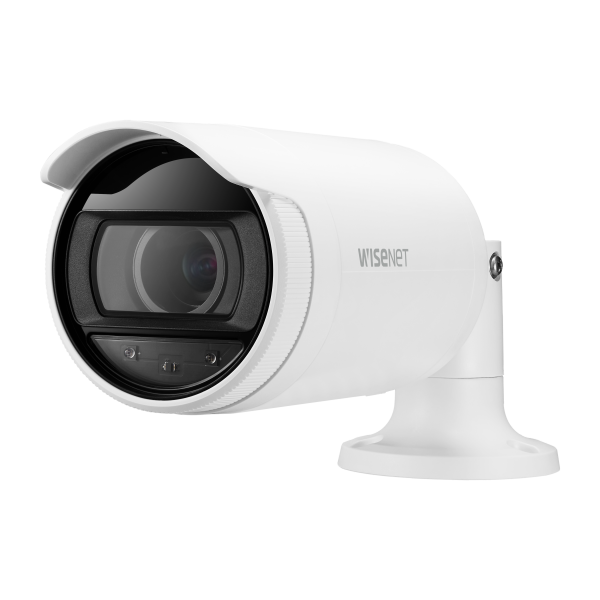

White plastic bullet-style camera measuring Ø78.0 × 262.0 mm and weighing 390 g, designed for outdoor use. It operates from -30°C to 55°C (start-up above -20°C) with humidity below 95% RH, and supports PoE (IEEE 802.3af Class 3) power. The camera includes edge storage via a microSD slot up to 128GB and features a motorized varifocal lens with a simple focus button for easy setup and installation.
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.3~10.3mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 (Wide) ~ F3.3 (Tele) |
| Angular Field of View | H: 94.8° (Wide) ~ 28.1° (Tele), V: 50.2° (Wide) ~ 15.8° (Tele), D: 112.9° (Wide) ~ 32.2° (Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 30m (98.43ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control | H.264/H.265 : CBR or VBR, MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C (-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 8.0W, typical 6.0W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31"), 390g (0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | Wide: 47.1m (154.46ft) / Tele: 204.6m (671.23ft) |
| Observe (63PPM/19PPF) | Wide: 18.8m (61.79ft) / Tele: 81.8m (92.24ft) |
| Recognize (125PPM/38PPF) | Wide: 9.4m (30.89ft) / Tele: 40.9m (134.25ft) |
| Identify (250PPM/76PPF) | Wide: 4.7m (15.45ft) / Tele: 20.5m (67.12ft) |
