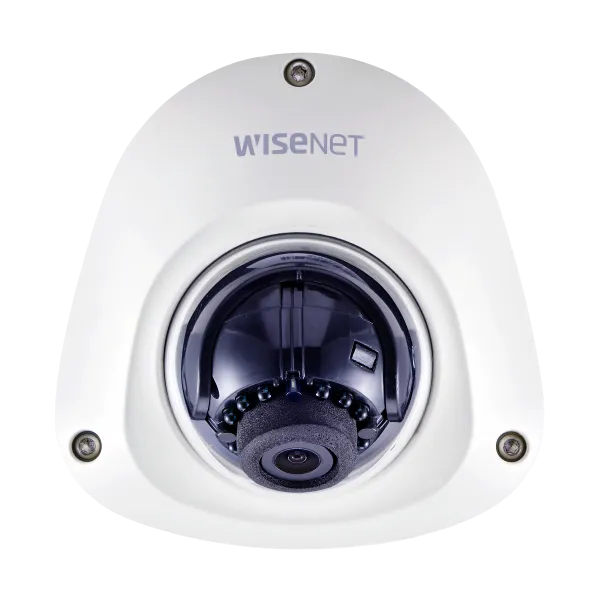

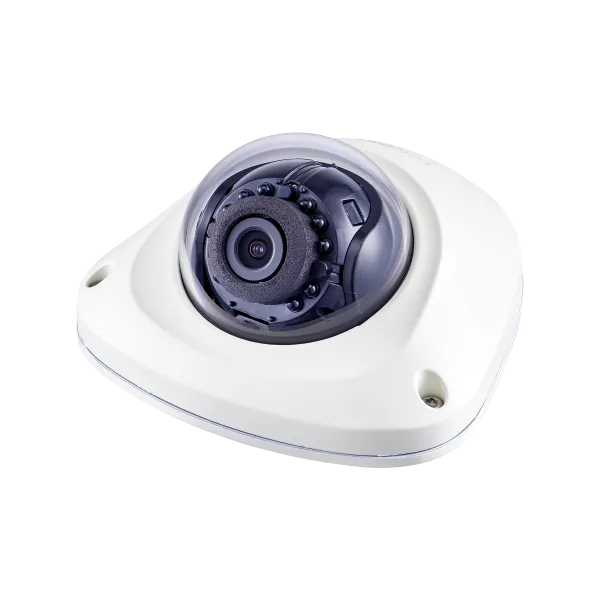

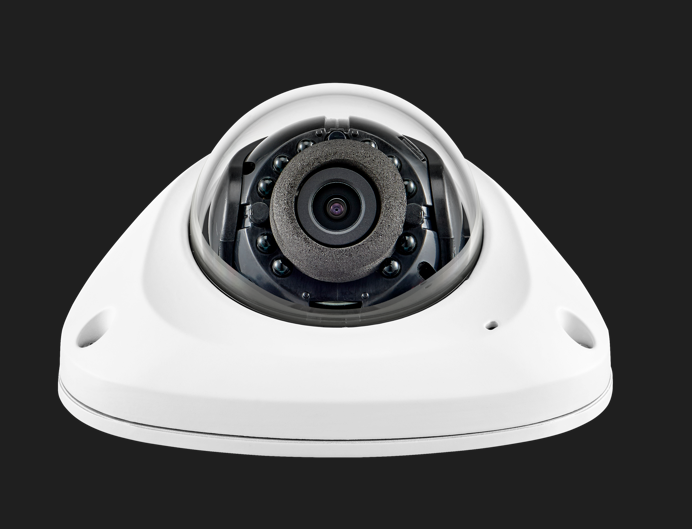

Hanwha - ANV-L6023R - 2MP Vandal-Resistant Network IR Flateye Dome Wisenet A Series Camera, 3.6mm Fixed Focal Lens
Product Overview
The ANV-L6023R is an outdoor, vandal-resistant mini dome camera featuring a 1/2.8" CMOS sensor and a 3.6mm fixed lens. It delivers 2MP resolution at up to 30 fps, utilizing H.265/H.264/MJPEG compression alongside WiseStream II bandwidth optimization.
Key Configuration
- • Imaging device: 1/2.8" CMOS; resolution: 1920×1080 (2MP) at up to 30 fps (H.265/H.264)
- • Lens: 3.6mm fixed focal, F2.0; horizontal FOV: 95°, vertical: 50°, diagonal: 115°
- • IR viewable length: 15m (49 ft); wavelength: 850nm; minimum illumination: color 0.03 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/Baseline/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3); max 6.7W, typical 5.0W
Key Features
Equipped with 120dB WDR and SSNR noise reduction, this camera features 90°/270° Hallway View support and a 3-axis gimbal mechanism. Its edge analytics engine covers motion detection, tampering, defocus, virtual area intrusion, and virtual line crossing, while supporting 6 privacy masks. Operating on a 512MB RAM/256MB Flash architecture, hardware connectivity includes a line-in audio input and a metal-shielded RJ-45 port. Cyber protection is heavily hardened with firmware encryption, HTTPS, 802.1X, and SD card partition encryption, with local storage supporting up to 128GB, and a CVBS output simplifying installation alignment.
Technical Context
Featuring a 0.5m minimum object distance with fixed focus, an electronic shutter 1/5 to 1/12,000 sec, and Lens Distortion Correction (LDC), this mini dome supports 3 streaming profiles for up to 6 unicast and unlimited multicast users. Its networking foundation features a standard IT protocol suite running on a secure architecture. The unit is completely enclosed in an IP66/IK10/NEMA4X certified casing for robust physical and environmental protection.
Installation Notes
Measuring 98.9 × 52.0 × 100.0 mm and weighing 295g, this white aluminum mini dome is designed for discreet outdoor installation. Its IP66/IK10/NEMA4X-rated housing ensures weather, vandal, and corrosion resistance across an operating range of -30°C to 55°C (0–95% RH). Powered via PoE Class 3, the hardware includes a single microSD slot for edge storage, a line-in audio input, and a CVBS video output to streamline local installation alignment.
