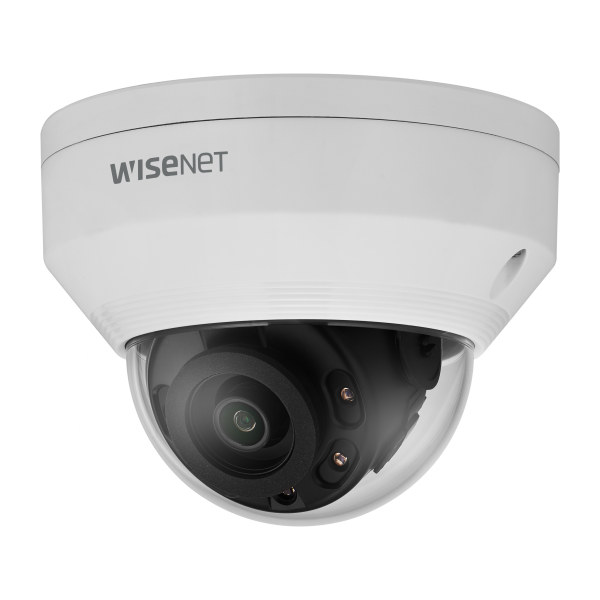

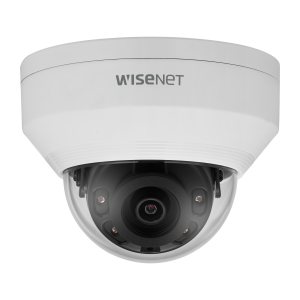

Hanwha - ANV-L7012R - 4MP IR Outdoor Vandal Dome Camera with 3mm Fixed Lens

Product Overview

The Hanwha ANV-L7012R is a 4MP outdoor vandal dome camera delivering up to 2560×1440 resolution at 30 fps. It uses a 3mm fixed lens with a wide 98.3° horizontal field of view, making it suitable for general surveillance coverage. It includes 120dB WDR for challenging lighting conditions and up to 20 m infrared illumination for night monitoring. Video encoding supports H.265/H.264/MJPEG with WiseStream II for efficient bandwidth and storage optimization.

Key Configuration

• 4MP (2560x1440) resolution at 30fps maximum frame rate (H.265/H.264); MJPEG limited to 15fps
• 3mm fixed lens, F1.6 aperture, H: 98.3° / V: 54.2° / D: 114.6° FOV
• PoE (IEEE802.3af, Class3) input, max 7.5W / typical 5.7W power consumption
• Micro SD/SDHC/SDXC slot supporting up to 128GB edge storage

Key Features

4MP IR vandal dome camera with a 1/3" CMOS sensor, delivering up to 2560×1440 resolution at 30 fps. It supports low-light operation down to 0.13 lux in color and 0 lux with IR, with auto day/night (ICR) switching and 20 m IR illumination. Image quality features include 120dB WDR with BLC/SSDR, SSNR noise reduction, and lens distortion correction (LDC), along with hallway view support (90°/270° rotation). Analytics include motion detection (4 zones), tampering, intrusion/entry/exit, and virtual line detection, with event actions such as FTP/email upload, SD/NAS recording, and system handover. Networking supports 10/100 Ethernet with up to 6 unicast users, multicast streaming, and 3 profiles using WiseStream II with ROI-based bandwidth control. It is ONVIF Profile S/G/T compliant, supports SUNAPI integration, and is certified IP66 and IK10 for outdoor vandal resistance.

Technical Context

The camera supports up to 3 simultaneous streaming profiles with unicast (up to 6 users) and multicast delivery for flexible viewing options. Lens Distortion Correction (LDC) improves image accuracy by correcting barrel distortion from the lens. DORI performance provides: 44.3 m detection, 17.7 m observation, 8.9 m recognition, and 4.4 m identification. Alarm input functionality requires a separate NW I/O box for external sensor integration.

Installation Notes

Compact white dome camera with a plastic/aluminum housing, measuring Ø120.3 × 91.7 mm and weighing 410 g. It supports full 3-axis adjustment with pan 0°–350°, tilt 0°–67°, and rotation 0°–355° for flexible installation. Designed for outdoor use, it operates from -30°C to +55°C with up to 95% humidity tolerance. Power is supplied via PoE (IEEE 802.3af Class 3). The camera is certified IP66 for weather resistance and IK10 for vandal protection.
