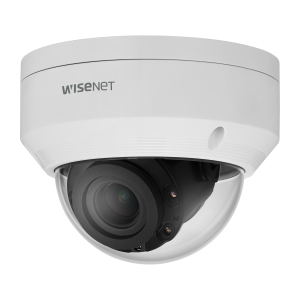

Hanwha - ANV-L7082R - 4MP Outdoor Vandal Wisenet A Series Dome Camera with 3.3~10.3mm Lens
Product Overview
The Hanwha ANV-L7082R is a 4MP outdoor vandal dome camera from the Wisenet A Series, delivering up to 2560×1440 resolution at 30 fps. It features a 3.1× motorized varifocal lens 3.3–10.3 mm with a horizontal field of view from 94.8° to 28.1° for flexible coverage adjustment. The camera includes 120dB WDR for challenging lighting conditions and up to 30 m IR illumination for night surveillance. Video compression supports H.265/H.264/MJPEG with WiseStream II for optimized bandwidth and storage efficiency.
Key Configuration
• 4MP (2560x1440) resolution at 30fps maximum frame rate (H.265/H.264); MJPEG limited to 15fps
• 3.3~10.3mm motorized varifocal lens, 3.1x zoom, F1.6~F3.3 aperture, H: 94.8°~28.1° FOV
• PoE (IEEE802.3af, Class3) input, max 8.0W / typical 6.0W power consumption
• Micro SD/SDHC/SDXC slot supporting up to 128GB edge storage
Key Features
The camera uses a 1/2.8" CMOS sensor with 120dB WDR, SSNR noise reduction, and up to 30 m IR illumination for low-light monitoring. It supports LDC, hallway view, motion/tampering/intrusion analytics, WiseStream II compression, and up to 3 streaming profiles for 6 users. Security features include HTTPS, 802.1X, IP filtering, and ONVIF Profile S/G/T with SUNAPI support.
Technical Context
Supports up to 3 streaming profiles with unicast 6 users and multicast delivery. Simple focus control enables easy lens adjustment on-site, while the DC auto iris adapts to changing lighting conditions automatically. DORI ranges from 26.5–70.3 m for detection and 2.7–7.0 m for identification. The camera is rated IP66 and IK10 for weather and vandal resistance.
Installation Notes

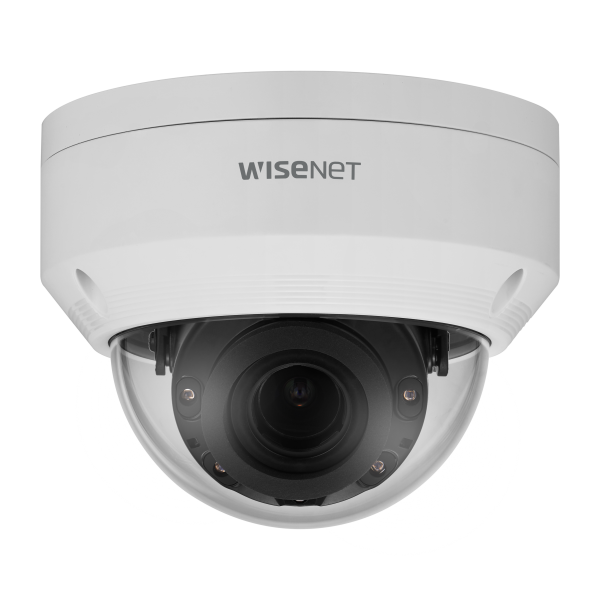

White dome camera with plastic/aluminum housing, measuring Ø137.8 × 107.1 mm and weighing 550 g. It features 3-axis adjustment with pan 0°–350°, tilt 0°–67°, and rotation 0°–355° for flexible installation. Designed for outdoor operation from −30°C to +55°C (startup above −20°C) with humidity tolerance below 95% RH. Compatible with single, double, and 4" octagon gangboxes, as well as the optional SBP-301HMW2 hanging mount.
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.3~10.3mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 (Wide) ~ F3.3 (Tele) |
| Angular Field of View | H: 94.8° (Wide) ~ 28.1° (Tele), V: 50.2° (Wide) ~ 15.8° (Tele), D: 112.9° (Wide) ~ 32.2° (Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 30m (98.43ft) |
| Network | |
|---|---|
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control | H.264/H.265 : CBR or VBR, MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C (-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 8.0W, typical 6.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø137.8 x 107.1mm (Ø5.43 x 4.22"), 550g |
| Compatible Conduit hole / Gangbox | None / Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-301HMW2 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | Wide: 26.5m (87.07ft) / Tele: 70.3m (230.59ft) |
| Observe (63PPM/19PPF) | Wide: 10.6m (34.83ft) / Tele: 28.1m (92.24ft) |
| Recognize (125PPM/38PPF) | Wide: 5.3m (17.41ft) / Tele: 14.1m (46.12ft) |
| Identify (250PPM/76PPF) | Wide: 2.7m (8.71ft) / Tele: 7.0m (23.06ft) |
