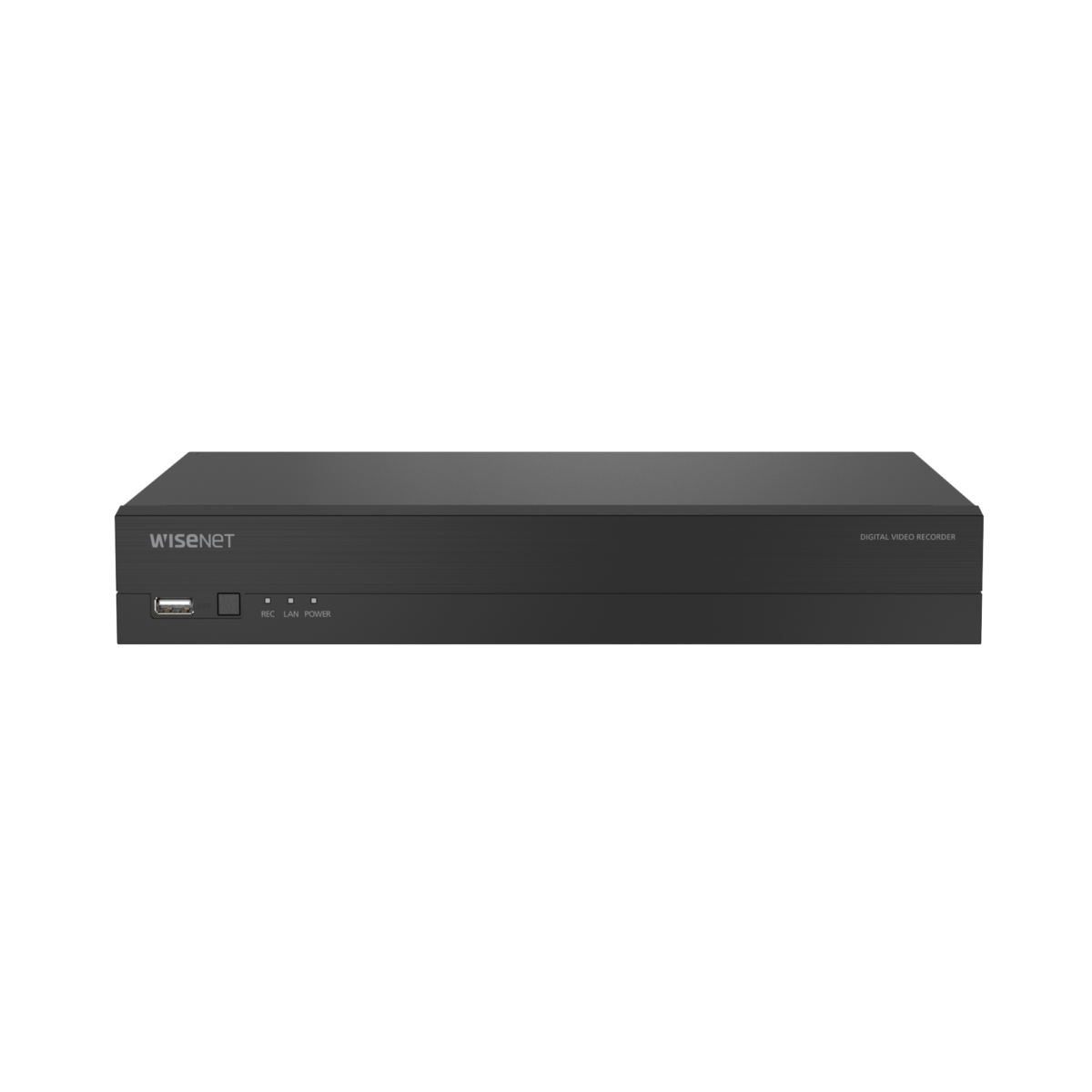

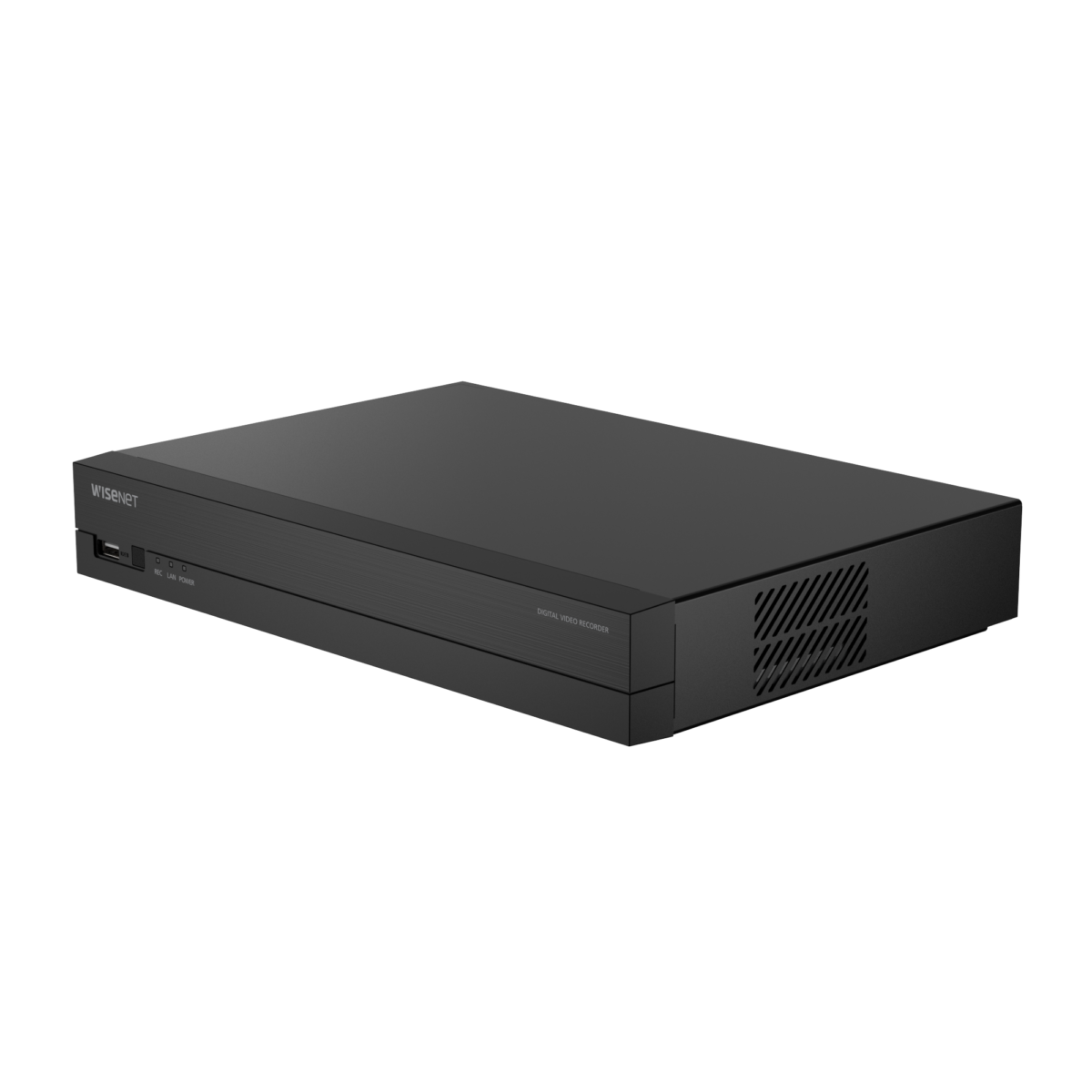

Hanwha - ARD-410-2TB - 4 Channel IP Recorder A-Series AHD, TVI, CVI, CVBS

Product Overview

The Hanwha ARD-410-2TB is a 4-channel hybrid recorder supporting up to 6 channels (4 analog + 2 IP) across AHD, TVI, CVI, CVBS, and IP formats. It includes 2TB of storage (expandable to 6TB) and records at 30 Mbps using H.265/H.264/MJPEG compression. Analog capture options include 5MP half-res (12 fps), 4MP half-res (15 fps), and 1080p (15 fps). The unit features 4K HDMI and VGA outputs, P2P QR-code mobile pairing, and ARB backup support.

Key Configuration

• • Analog inputs: 4 × BNC (1Vp-p 75Ω); signal types: AHD, HDTVI, HDCVI (5MP/4MP half resolution, 1080p), CVBS
• • Network camera inputs: up to 2 channels (max 6 total); resolution: 5MP to CIF; protocols: SUNAPI (Wisenet), ONVIF
• • HDD: 1 × SATA bay, up to 6TB; 2TB pre-installed
• • Recording bandwidth: 30 Mbps
• • Dimensions: 300 × 47 × 208.7 mm (11.85" × 1.89" × 8.22"); weight: approx. 1.1 kg (2.4 lb without HDD)

Key Features

Featuring simultaneous 4K HDMI and VGA outputs with a 6-division live display, this unit supports manual, scheduled, event, and dual-track recording. System events are triggered by I/O, video loss, tampering, motion, or network analytics, prompting automated actions like emails, push alerts, PTZ presets, and alarm outputs. Simultaneous playback accommodates 6 channels locally, 4 on mobile, and 1 via web, searchable via calendar, POS text, or direction-based smart search. It incorporates ARB search, web fisheye dewarping, coaxial control, two-way G.711 audio (1 in/1 out), 4 alarm inputs, 1 relay output, P2P QR pairing, and 300 PTZ presets via software or RS-485.

Technical Context

Supporting standard network protocols—including ONVIF Profile S and SUNAPI—this system manages up to 3 remote search users, 10 live unicast users, and 20 multicast users. Cyber security is maintained via IP filtering, access logs, 802.1x authentication, full data encryption (credentials, recording, transmission, backup), and device certificates from Hanwha Techwin Root CA. Certified by UL, CE, FCC, and KC, the unit supports web viewing on Windows 10 and Mac OS 11 (or later) via Chrome, Edge, and Safari browsers.

Installation Notes

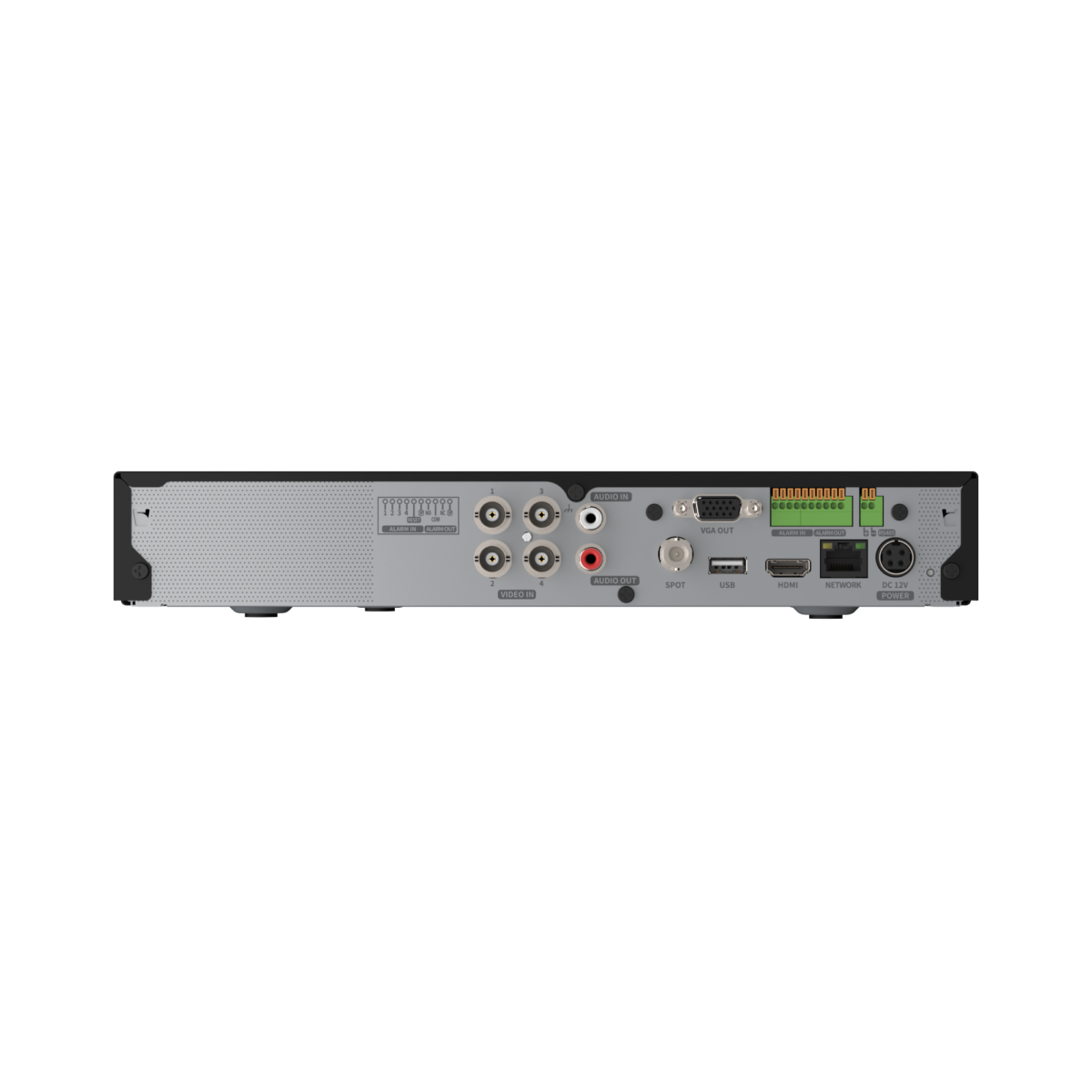

Measuring 300 × 47 × 208.7 mm and weighing approximately 1.1 kg (without HDD), this black metal unit features a single SATA HDD bay supporting up to 6TB. It provides dual HDMI/VGA display outputs, a BNC spot monitor output, two USB 2.0 ports, and RS-485 / coaxial interfaces for PTZ control. Powered by a DC12V input with a maximum consumption of 19.2W, the system operates between 0°C and 40°C (20–85% RH) and includes a QR code for quick P2P mobile app pairing.
