Hanwha - ARD-410 - 4 Channel IP Recorder A-Series AHD, TVI, CVI, CVBS
Product Overview
Hanwha ARD-410 is a 4-channel pentabrid hybrid recorder supporting AHD, TVI, CVI, CVBS, and IP cameras with up to 6 total channels (4 analog maximum + 2 additional network camera channels, depending on analog channel usage). This recorder delivers 5MP half-resolution recording for analog cameras at 12fps, with H.265/H.264/MJPEG compression and maximum recording bandwidth of 30Mbps. HDMI and VGA dual monitor outputs support up to 4K display resolution.
Key Configuration
• Channels: 4 analog (AHD/TVI/CVI/CVBS) + up to 2 IP (SUNAPI/ONVIF), for a maximum of 6 channels
• Recording bandwidth: up to 30 Mbps; analog recording supports 5MP half-resolution at 12 fps, 4MP half-resolution at 15 fps, and 2MP at 15 fps
• Storage: 1 fixed internal SATA HDD bay supporting up to 6TB (HDD not included)
• Video outputs: HDMI (up to 3840×2160), VGA (up to 1920×1080), and 1× BNC spot monitor output
• Network: 1× RJ-45 (10/100BASE-T) Ethernet port
Key Features
Hybrid recorder supporting AHD, TVI, CVI, CVBS, and IP cameras with flexible recording modes, event-based monitoring, and smart search functions. It supports alarm I/O, PTZ control, coaxial control, two-way audio, and up to 6-channel simultaneous playback. Additional features include ARB recovery backup, RS-485 PTZ integration, USB connectivity, P2P mobile access via QR code, and support for advanced analytics events from connected network cameras. NDAA and FCC compliant.
Technical Context
Supports standard networking protocols including RTSP, HTTPS, SNMP, ONVIF Profile S, and SUNAPI for integration with third-party systems. Security features include IP filtering, 802.1X authentication, encryption for login, recordings, transmission and backups, plus device certificates (Hanwha Root CA). Compatible with Windows 10 and macOS 11+ using Chrome, Edge, or Safari. Unused analog channels can be reassigned as IP channels, allowing a flexible mix of analog and network cameras.
Installation Notes

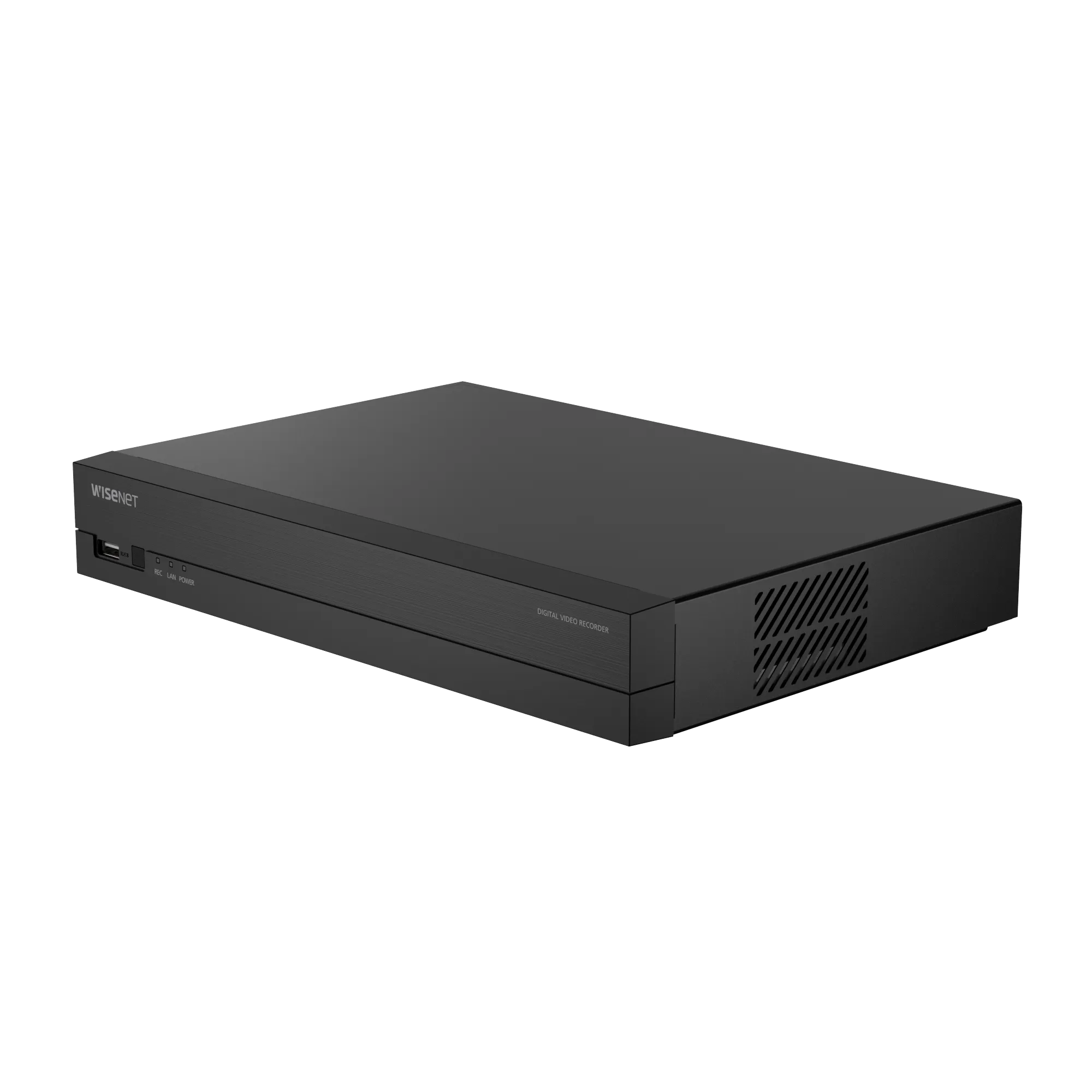

Black metal hybrid recorder (300 × 47 × 208.7 mm, approx. 1.1 kg without HDD) designed for compact installations. It operates from 0°C to 40°C with 20–85% humidity tolerance and is powered by 12V DC with a maximum power consumption of 19.2W. No built-in PoE ports are provided, so IP cameras require external PoE switches.
| Display | |
|---|---|
| Analog camera > Inputs | 4CH (1Vp-p 75ohm, BNC) |
| Analog camera > Signal Type | AHD (5MP Half, 4MP Half, 1080p), HD TVI (5MP Half, 4MP Half, 1080p), HD CVI (5MP Half, 4MP Half, 1080p), CVBS (NTSC/PAL) |
| Network camera > Inputs | Additional 2CH (Max. 6CH) |
| Network camera > Resolution | 5MP ~ CIF |
| Network camera > Protocols | SUNAPI (Wisenet), ONVIF |
| Decoding > Local Display | None |
| Decoding > Multi Screen Display | None |
| Decoding > Resolution | None |
| Live > Local Display | 1x HDMI, 1x VGA [Single Mode] - HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 [Dual Mode] Clone - HDMI: 1920x1080, 1280x1024, 1280x720 - VGA: 1920x1080, 1280x1024, 1280x720 |
| Live > Multi Screen Display | [Local monitor] - Dynamic layout, Virtual channel view - up to 6 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+7 / 9 |
| Live > Resolution | [Analog Camera (NTSC/PAL)] 5MP(Half), 4MP(Half), 2MP [Network Camera] - Typ. 2MP (120fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Record Rate (Analog) | [Analog Camera (NTSC/PAL)] 5MP (5M Half 12fps/12fps), 4MP (4M Half 15fps/12fps), 2MP (2M 15fps/12fps) * Half: Horizontal resolution 1/2 * Resolution higher than 2MP will only record half of the resolution, 4MP will only record 2MP, and 5MP will only record 2.5MP |
| Record > Recording Bandwidth | Max. 30Mbps |
| Record > Resolution | 5MP ~ CIF |
| Record > Mode | Manual, Schedule (Continuous/Event), Event (Pre/Post), Dual Track |
| Record > Event Trigger | Alarm Input, Analog Camera: Video Loss, Motion Detection, Tampering, Network Camera: Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter/Exit, Passing, Virtual line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event |
| Record > Event Action | E-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, SUNAPI Command, FTP, Shutdown |
| Search & Play > Playback Bandwidth | None |
| Search & Play > User | Max. 4 users (Set 1, Remote 3) |
| Search & Play > Simultaneous playback | 6CH (Local Monitor), 6Ch (CMS), 4Ch (Wisenet Mobile), 1Ch (Web) |
| Search & Play > Fisheye Dewarping | WEB / CMS |
| Search & Play > Mode | Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/ direction, Enter/Exit) * All Search Included Preview Function ARB search |
| Search & Play > Resolution | 5MP ~ CIF |
| Search & Play > Playback Control | Fast Forward/Backward (x2, x4, x8, x16, x32, x64, x128, x256) Slow Forward/Backward (x1/2, x1/4, x1/8) ※ Move one step up/down |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 1ea (Max 6TB) |
| Storage > External | None |
| Storage > RAID | None |
| Backup > File backup | BU, EXE (Include Player), AVI |
| Backup > Function | Max. 6 CH play, Date-time/title display |
| Network | |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Wisenet DDNS |
| Transmission speed | None |
| Transmission Bandwidth | Max. 30Mbps |
| Transmission Bandwidth Wired(LAN) | None |
| Wireless > WiFi | None |
| Wireless > 3G/LTE | None |
| Audio > Input/Output | 1 Line in / 1 Line out |
| Audio > Compression | G.711 (N/W Cam G.711, 726) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup), Device Certificate (Hanwha Techwin Root CA) |
| Web viewer > Supported OS | Windows 10, Mac OS 11 Big Sur and later |
| Web viewer > Supported browser | Chrome, Edge, Safari |
| Viewer Software | SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | None |
| PTZ > Control | Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile Viewer, System Controller |
| PTZ > Preset | 300 presets |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Smart phone > Control | Live (6ch): Multi-Profile Support, Playback (4Ch Multi Playback, Max 2MP), Event push |
| Smart phone > Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy > Failover | None |
| Redundancy > ARB | Support |
| Easy configuration | Install wizard support |
| Coaxial Control | CVBS (Pelco-C) / AHD / CVI / TVI |
| Interface | |
| Front > Indicator | LED (Status indicator): Power(1), Record(1), Network(1) |
| Storage | None |
| Reset | Switch (1EA) |
| HDD Key Lock | None |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 4CH In / 1CH Out (Spot Output) |
| DP | None |
| DVI | None |
| e-SATA | None |
| Audio | Out (1EA, RCA, Line) |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Alarm | In 4EA, Out 1EA - Relay Out1 (NO/NC/COM) |
| USB | 2EA (Front/Rear USB2.0) |
| GPS | None |
| WiFi | None |
| Serial (Protocols) | RS-485 (Samsung-T / Pelco-D / Pelco-P) * for PTZ |
| Power inlet | 1EA DC Input Jack |
| System | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Webviewer, System Controller (SPC-7000, SPC-6000, SPC-2000) |
| Power Management > Shutdown Delay | None |
| Power Management > Startup Delay | None |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Intelligent Video Analysis | |
| Search | None |
| Comparison | None |
| Environmental | |
| CPU | None |
| RAM | None |
| OS HDD | None |
| Operating Temperature | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Electrical | |
| Power Input | DC12V |
| Power Consumption | Max. 19.2W (6T HDD 1ea) |
| PoE Budget | None |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 300 x 47 x 208.7mm (11.85" x 1.89" x 8.22") |
| Weight | Approx. 1.1Kg (2.4 lb, without HDD) |
| Control Box | |
| Interface > Indicator | None |
| Interface > Emergency Button | None |
| Interface > Audio/Power Switch | None |
| Interface > Main I/O | None |
| Mechanical > Color / Material | None |
| Mechanical > Dimension (WxHxD) | None |
| Mechanical > Weight | None |
| Dummy | |
| Dummy2 | None |
| Intelligent Analysis | |
| AI Search > Object Attribute | None |
| AI Search > Face Recognition | None |
| AI Search > LPR | None |
