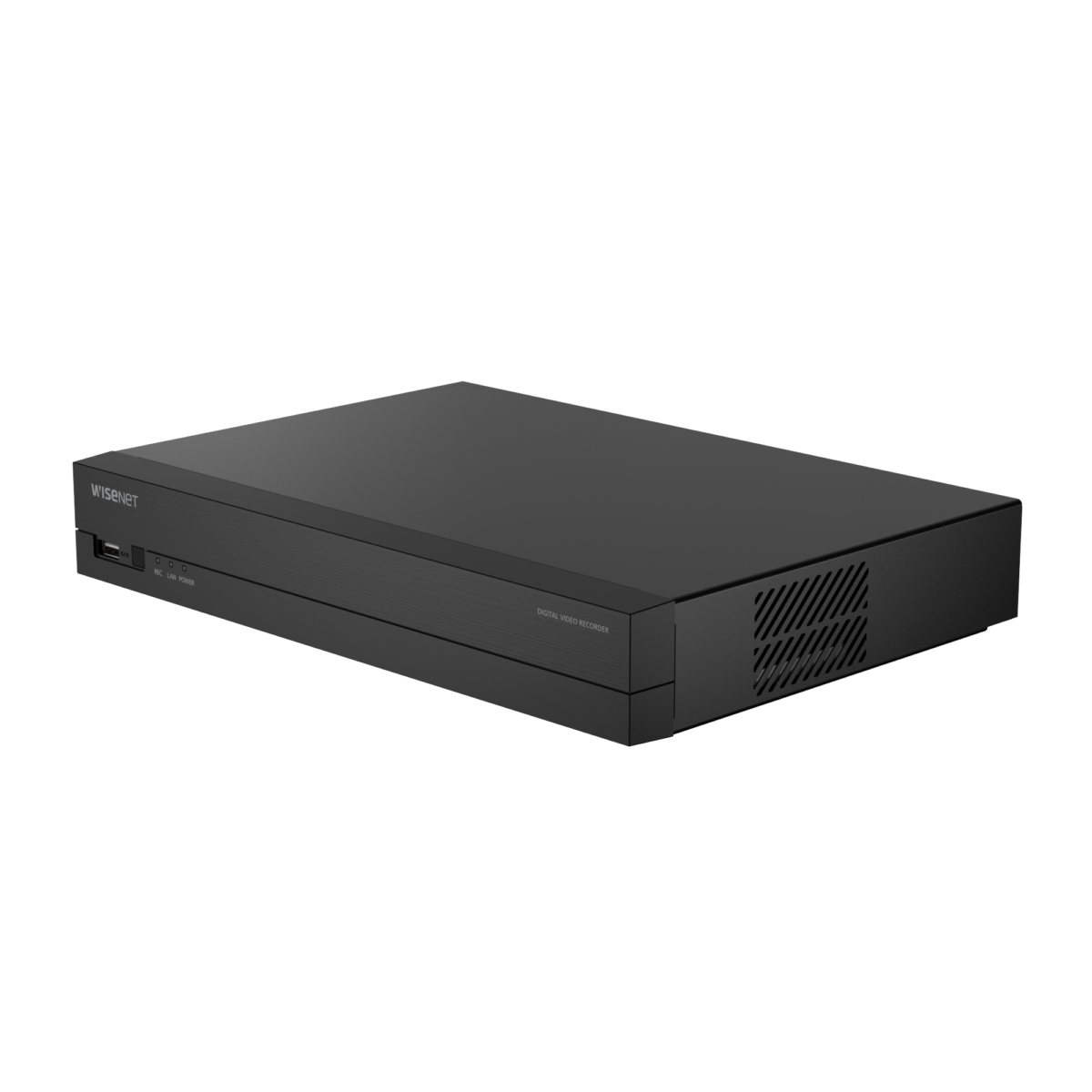

Hanwha - ARD-810-2TB - 8 Channel A-Series IP Recorder, 2TB AHD, TVI, CVI, CVBS
Product Overview
The Hanwha ARD-810 is an 8-channel hybrid recorder supporting AHD, TVI, CVI, CVBS, and IP cameras with up to 10 total channels (8 analog + 2 IP). It includes a pre-installed 2TB HDD (expandable up to 6TB) and supports up to 40 Mbps recording bandwidth with H.265/H.264/MJPEG compression. The system provides 4K HDMI and VGA outputs, spot monitor output, 1 audio input/output, 4 alarm inputs, and 1 relay output, along with coaxial control, P2P QR mobile access, and ARB backup. It is NDAA and FCC compliant.
Key Configuration
• Analog inputs: 8 × BNC (AHD/TVI/CVI/CVBS), supports up to 5MP (half resolution) and 1080p.
• Network inputs: up to 2 IP channels (total 10CH), 5MP–CIF, SUNAPI and ONVIF support.
• HDD: 1 × SATA bay, up to 6TB (2TB pre-installed).
• Recording bandwidth: 40 Mbps.
• Dimensions: 300 × 47 × 208.7 mm, weight 1.1 kg (without HDD).
Key Features
Supports analog cameras with reduced-resolution recording for higher MP sources (5MP, 2.5MP, 4MP, 2MP). Offers HDMI up to 4K with simultaneous VGA/BNC output and up to 12-screen live view. Recording modes include schedule, event, and manual, with event-based triggers like motion, tampering, and video loss. Playback supports up to 10 channels with smart search, event logs, and POS search. Includes PTZ control, RS-485 support, fisheye dewarping, and P2P mobile access.
Technical Context
Runs on embedded Linux with support for TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, NTP, DHCP (server/client), PPPoE, SMTP, DNS/DDNS, SNMP, ONVIF Profile-S, and SUNAPI. Security features include IP filtering, user access logs, 802.1x authentication, encrypted ID/password, recording and transmission, and device certificates. It supports up to 3 remote search users, 10 live unicast, and 20 multicast connections, with web access via Windows 10 and macOS (Big Sur+), using Chrome, Edge, or Safari. The system is certified to UL, CE, FCC, and KC standards.
Installation Notes
Black metal body with compact 300 × 47 × 208.7 mm dimensions and 1.1 kg weight (without HDD). It operates from 0°C to 40°C with 20–85% humidity tolerance and uses a DC12V power input. Storage is supported via a single SATA bay (up to 6TB, with 2TB pre-installed), along with HDMI/VGA dual display and a BNC spot monitor output. PTZ control is available via coaxial control and RS-485, and mobile access is enabled through QR code pairing. The unit also includes two USB 2.0 ports for front and rear connectivity.
| Display | |
|---|---|
| Analog camera > Inputs | 8CH (1Vp-p 75ohm, BNC) |
| Analog camera > Signal Type | AHD (5MP Half, 4MP Half, 1080p), HD TVI (5MP Half, 4MP Half, 1080p), HD CVI (5MP Half, 4MP Half, 1080p), CVBS (NTSC/PAL) |
| Network camera > Inputs | Additional 2CH (Max. 10CH) |
| Network camera > Resolution | 5MP ~ CIF |
| Network camera > Protocols | SUNAPI (Wisenet), ONVIF |
| Decoding > Local Display | None |
| Decoding > Multi Screen Display | None |
| Decoding > Resolution | None |
| Live > Local Display | 1x HDMI, 1x VGA [Single Mode] - HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 [Dual Mode] Clone - HDMI: 1920x1080, 1280x1024, 1280x720 - VGA: 1920x1080, 1280x1024, 1280x720 |
| Live > Multi Screen Display | [Local monitor] - Dynamic layout, Virtual channel view - up to 12 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+7 / 9 |
| Live > Resolution | [Analog Camera (NTSC/PAL)] 5MP(Half), 4MP(Half), 2MP [Network Camera] - Typ. 2MP (120fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Record Rate (Analog) | [Analog Camera (NTSC/PAL)] 5MP (5M Half 12fps/12fps), 4MP (4M Half 15fps/12fps), 2MP (2M 15fps/12fps) * Half: Horizontal resolution 1/2 * Resolution higher than 2MP will only record half of the resolution, 4MP will only record 2MP, and 5MP will only record 2.5MP |
| Record > Recording Bandwidth | Max. 40Mbps |
| Record > Resolution | 5MP ~ CIF |
| Record > Mode | Manual, Schedule (Continuous/Event), Event (Pre/Post), Dual Track |
| Record > Event Trigger | Alarm Input, Analog Camera: Video Loss, Motion Detection, Tampering, Network Camera: Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter/Exit, Passing, Virtual line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event |
| Record > Event Action | E-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, SUNAPI Command, FTP, Shutdown |
| Search & Play > Playback Bandwidth | None |
| Search & Play > User | Max. 4 users (Set 1, Remote 3) |
| Search & Play > Simultaneous playback | 10CH (Local Monitor), 10Ch (CMS), 4Ch (Wisenet Mobile), 1Ch (Web) |
| Search & Play > Fisheye Dewarping | WEB / CMS |
| Search & Play > Mode | Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/ direction, Enter/Exit) * All Search Included Preview Function ARB search |
| Search & Play > Resolution | 5MP ~ CIF |
| Search & Play > Playback Control | Fast Forward/Backward (x2, x4, x8, x16, x32, x64, x128, x256) Slow Forward/Backward (x1/2, x1/4, x1/8) ※ Move one step up/down |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 1ea (Max 6TB) |
| Storage > External | None |
| Storage > RAID | None |
| Backup > File backup | BU, EXE (Include Player), AVI |
| Backup > Function | Max. 10 CH play, Date-time/title display |
| Network | |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Wisenet DDNS |
| Transmission speed | None |
| Transmission Bandwidth | Max. 40Mbps |
| Transmission Bandwidth Wired(LAN) | None |
| Wireless > WiFi | None |
| Wireless > 3G/LTE | None |
| Audio > Input/Output | 1 Line in / 1 Line out |
| Audio > Compression | G.711 (N/W Cam G.711, 726) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup), Device Certificate (Hanwha Techwin Root CA) |
| Web viewer > Supported OS | Windows 10, Mac OS 11 Big Sur and later |
| Web viewer > Supported browser | Chrome, Edge, Safari |
| Viewer Software | SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | None |
| PTZ > Control | Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile Viewer, System Controller |
| PTZ > Preset | 300 presets |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Smart phone > Control | Live (10ch): Multi-Profile Support, Playback (4Ch Multi Playback, Max 2MP), Event push |
| Smart phone > Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy > Failover | None |
| Redundancy > ARB | Support |
| Easy configuration | Install wizard support |
| Coaxial Control | CVBS (Pelco-C) / AHD / CVI / TVI |

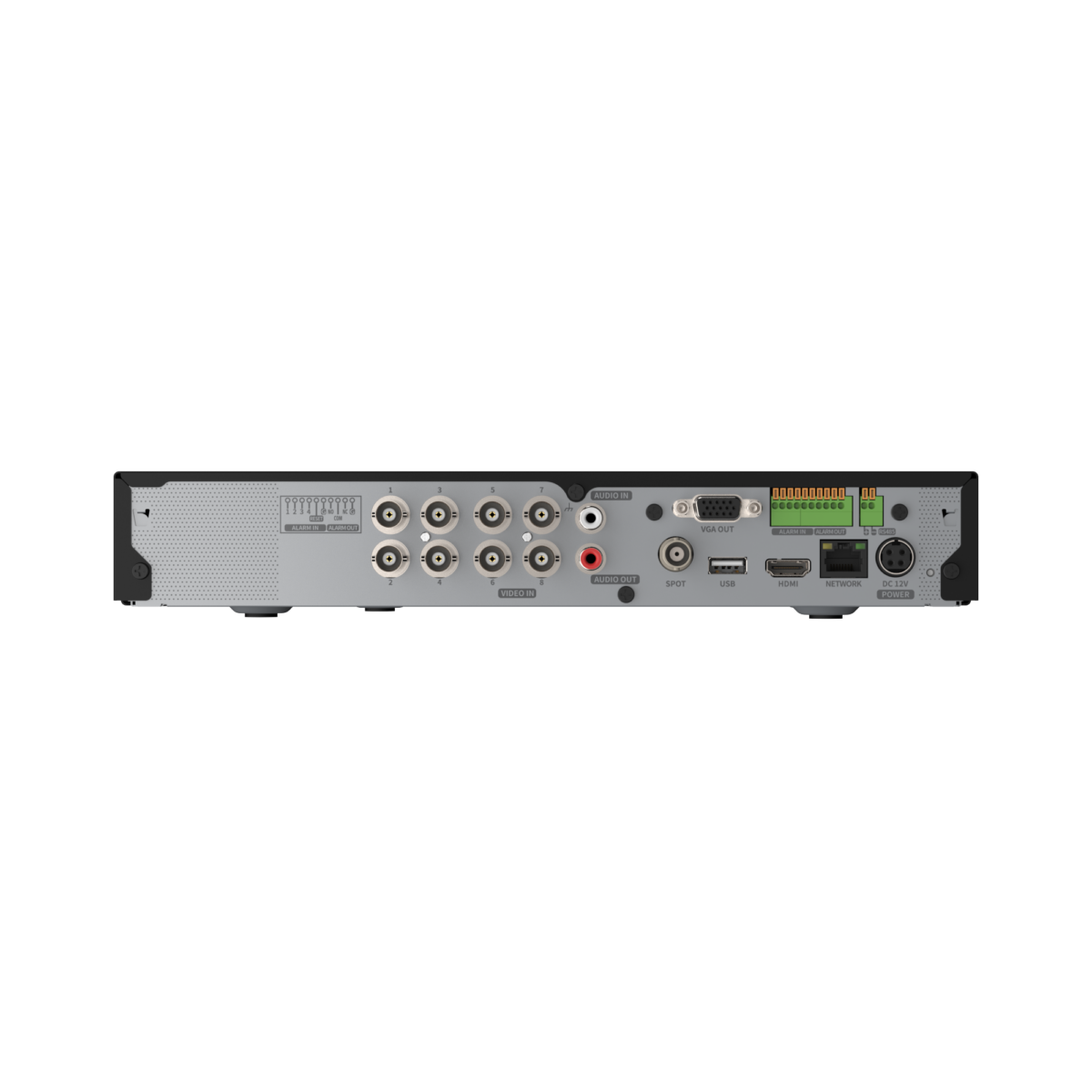

| Interface | |

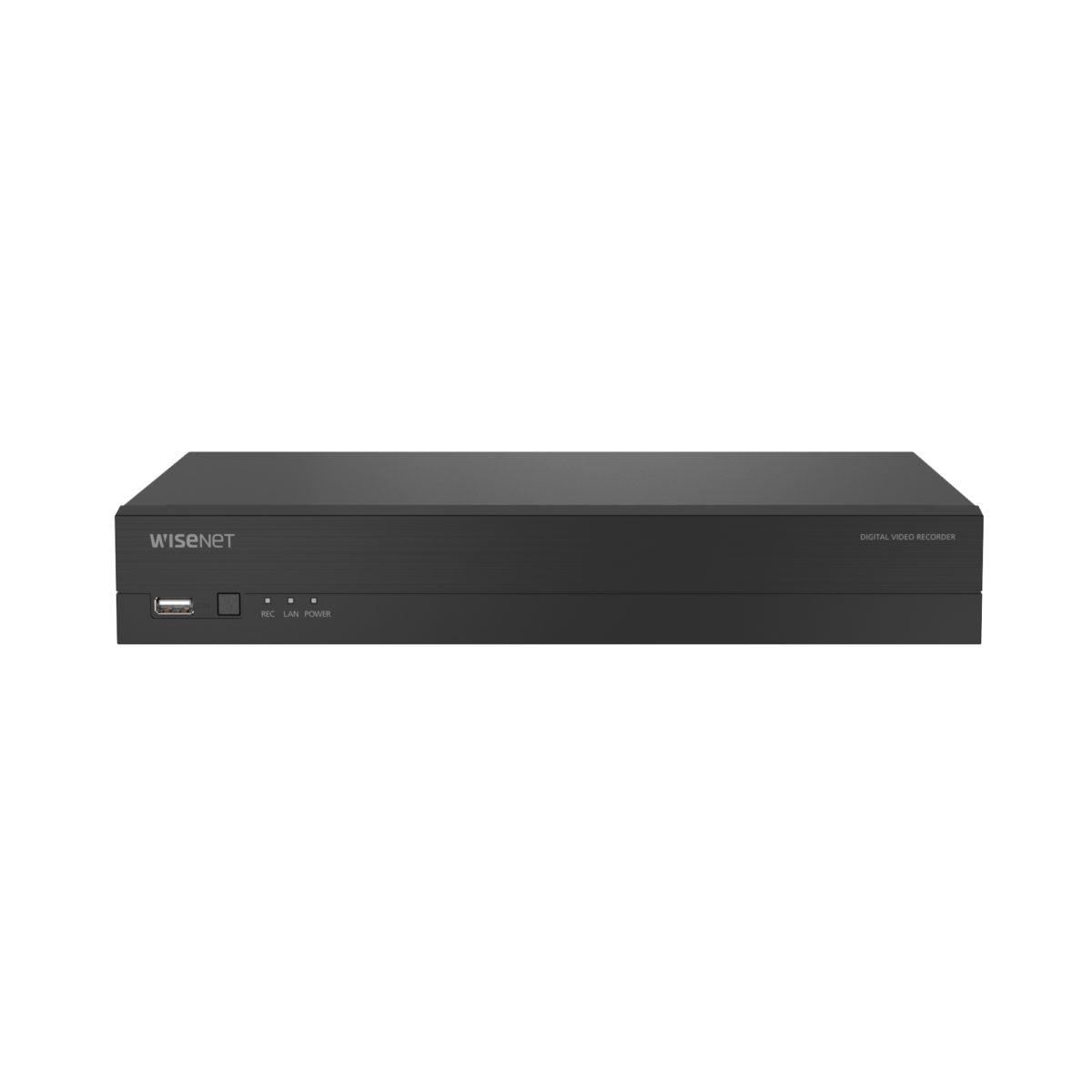

| Front > Indicator | LED (Status indicator): Power(1), Record(1), Network(1) |
| Storage | None |
| Reset | Switch (1EA) |
| HDD Key Lock | None |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 8CH In / 1CH Out (Spot Output) |
| DP | None |
| DVI | |
| e-SATA | None |
| Audio | Out (1EA, RCA, Line) |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Alarm | In 4EA, Out 1EA - Relay Out1 (NO/NC/COM) |
| USB | 2EA (Front/Rear USB2.0) |
| GPS | None |
| WiFi | None |
| Serial (Protocols) | RS-485 (Samsung-T / Pelco-D / Pelco-P) * for PTZ |
| Power inlet | 1EA DC Input Jack |
| System | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Webviewer, System Controller (SPC-7000, SPC-6000, SPC-2000) |
| Power Management > Shutdown Delay | None |
| Power Management > Startup Delay | None |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Intelligent Video Analysis | |
| Search | None |
| Comparison | None |
| Environmental | |
| CPU | None |
| RAM | None |
| OS HDD | None |
| Operating Temperature | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Electrical | |
| Power Input | DC12V |
| Power Consumption | Max. 20.4W (6T HDD 1ea) |
| PoE Budget | None |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 300 x 47 x 208.7mm (11.85" x 1.89" x 8.22") |
| Weight | Approx. 1.1Kg (2.4 lb, without HDD) |
| Control Box | |
| Interface > Indicator | None |
| Interface > Emergency Button | None |
| Interface > Audio/Power Switch | None |
| Interface > Main I/O | None |
| Mechanical > Color / Material | None |
| Mechanical > Dimension (WxHxD) | None |
| Mechanical > Weight | None |
| Dummy | |
| Dummy2 | None |
| Intelligent Analysis | |
| AI Search > Object Attribute | None |
| AI Search > Face Recognition | None |
| AI Search > LPR | None |
