Hanwha - ARD-810 - 8 Channel IP Recorder A-Series AHD, TVI, CVI, CVBS

Product Overview

The Hanwha ARD-810 is an 8-channel hybrid recorder supporting AHD, TVI, CVI, CVBS, and IP cameras, with a total capacity of up to 10 channels (8 analog + 2 IP). It supports up to 5MP analog recording (at reduced frame rates) with H.265/H.264/MJPEG compression and 40 Mbps recording bandwidth. It includes 4K HDMI, VGA, and spot monitor outputs, along with audio I/O, alarm I/O (4 in / 1 out), coaxial PTZ control, ARB backup recovery, P2P QR mobile access, and a single SATA HDD bay supporting up to 6TB storage.

Key Configuration

• • Analog inputs: 8 × BNC (1Vp-p 75Ω); signal types: AHD, HDTVI, HDCVI (5MP/4MP half resolution, 1080p), CVBS
• • Network camera inputs: up to 2 channels (total system up to 10CH); resolution: 5MP to CIF; protocols: SUNAPI (Wisenet), ONVIF
• • HDD: 1 × SATA bay, up to 6TB (HDD not included)
• • Recording bandwidth: 40 Mbps
• • Dimensions: 300 × 47 × 208.7 mm (11.85" × 1.89" × 8.22"); weight: approx. 1.1 kg (2.4 lb without HDD)

Key Features

Supports hybrid video recording with analog and IP inputs, including reduced-resolution recording for cameras above 2MP. It provides flexible output options (4K HDMI, VGA, and spot BNC) with up to 12-screen multi-view layouts. Recording supports manual, scheduled, and event-based modes with pre/post recording and dual-track functionality. Advanced event handling includes motion, tampering, video loss, analytics, and smart detection (virtual line, intrusion, face/audio detection), with actions like alerts, PTZ control, FTP, and system shutdown. It supports up to 10-channel playback, ARB search and recovery, fisheye dewarping, full PTZ control with 300 presets, RS-485 compatibility, alarm I/O, and P2P mobile access via QR code.

Technical Context

Runs on embedded Linux with support for TCP/IP, RTSP, HTTPS, ONVIF Profile-S, SUNAPI, SNMP, and standard network protocols, including PPPoE and DDNS. Security features include IP filtering, 802.1X authentication, encrypted communication for recordings and backups, access logs, and device certificates (Hanwha Techwin Root CA). Supports up to 3 remote search users, 10 live unicast users, and 20 multicast users. Web viewing is compatible with Windows 10 and macOS Big Sur or later via Chrome, Edge, and Safari. Powered by 12V DC with up to 20.4W consumption (with 6TB HDD), and certified under UL, CE, FCC, and KC standards.

Installation Notes

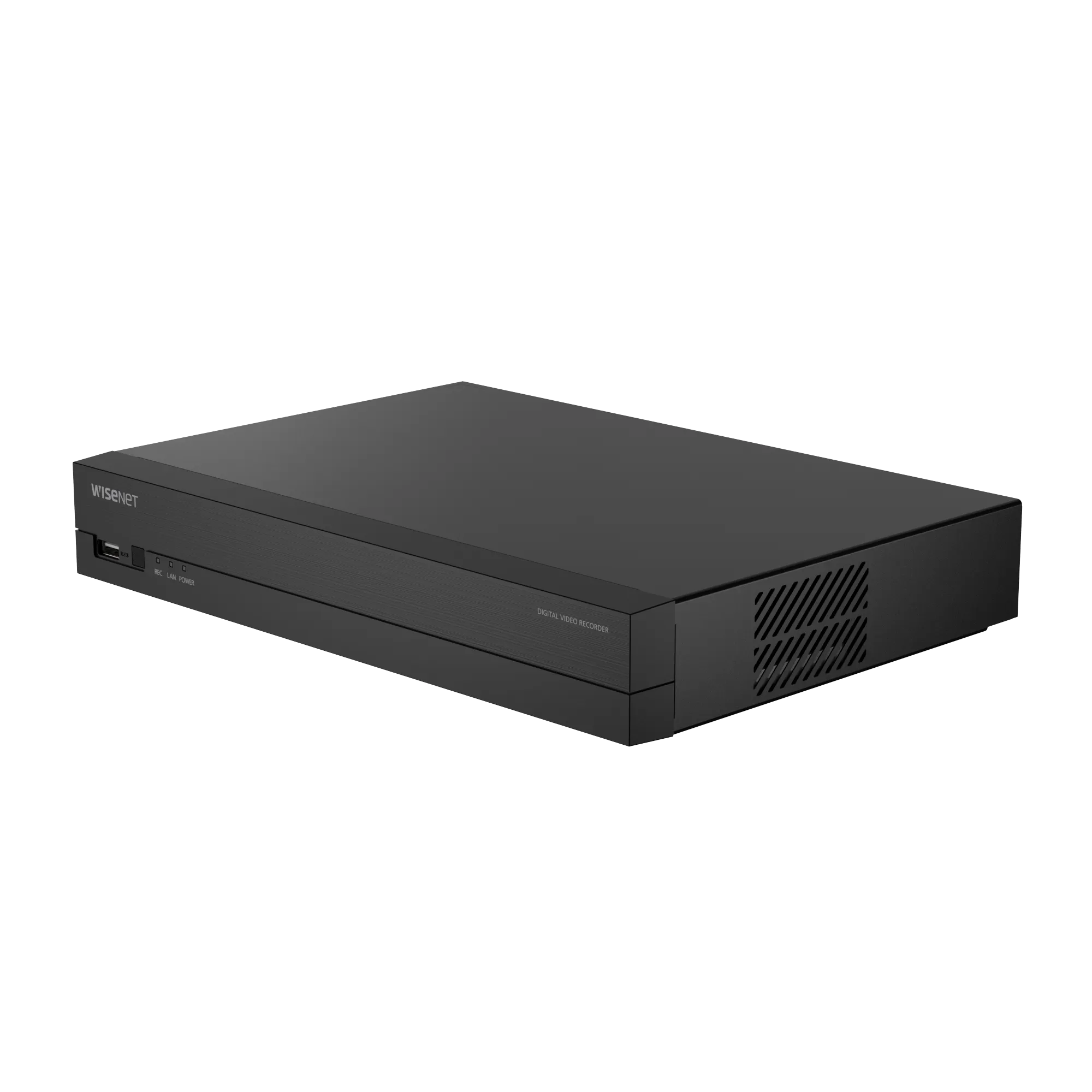

Compact black metal recorder measuring 300 × 47 × 208.7 mm and weighing about 1.1 kg (without HDD), designed for 0°C to 40°C operation with 20–85% humidity range. It includes 1 SATA HDD bay supporting up to 6TB, dual HDMI and VGA outputs, plus a dedicated BNC spot monitor output. Additional features include coaxial PTZ control, RS-485 support, P2P QR mobile access, and USB 2.0 ports for peripheral control, powered via DC12V input.
