Hanwha - ARN-1610S-2TB - 16 Channel PoE Network Video Record, 2TB
Product Overview
The Hanwha ARN-1610S is a 16-channel NVR with 16 built-in PoE ports, supporting IP cameras up to 8MP resolution. It offers H.265/H.264/MJPEG compression, up to 12TB of internal storage across two SATA drive bays, 80 Mbps recording throughput, 32 Mbps playback bandwidth, and WiseStream bandwidth optimization. HDMI and VGA outputs enable simultaneous local monitoring.
Key Configuration
• Channels: Up to 16 IP camera inputs, supporting resolutions up to 8MP
• Recording bandwidth: Up to 80 Mbps; playback bandwidth up to 32 Mbps
• Storage: 2 SATA HDD bays, supporting up to 6TB per drive (12TB max; HDDs not included)
• PoE: 16 × 10/100 Mbps PoE ports with 130W total power budget
• Network: 1 × 1GbE RJ-45 WAN port
• Video outputs: HDMI up to 4K (3840 × 2160 @30Hz) and VGA up to 1080p (1920 × 1080 @30Hz) in clone mode
Key Features
Supports decoding up to 8MP@30fps and simultaneous playback of up to 16 channels. Features continuous, scheduled, and event-based recording, alarm and camera event handling, two-way audio, ARB backup, and N+1 failover. Includes P2P mobile connectivity, ONVIF/SUNAPI support, advanced security features, and web access via Chrome, Edge, Safari, and Windows/macOS platforms.
Technical Context
The ARN-1610S features 16 integrated PoE ports with a 130W power budget for direct camera connectivity and simplified installation. It supports plug-and-play deployment with Hanwha cameras, simultaneous HDMI and VGA local display outputs, and flexible rackmount or desktop installation. Mobile access is supported with live multi-channel viewing and playback through standard network protocols and SUNAPI.
Installation Notes

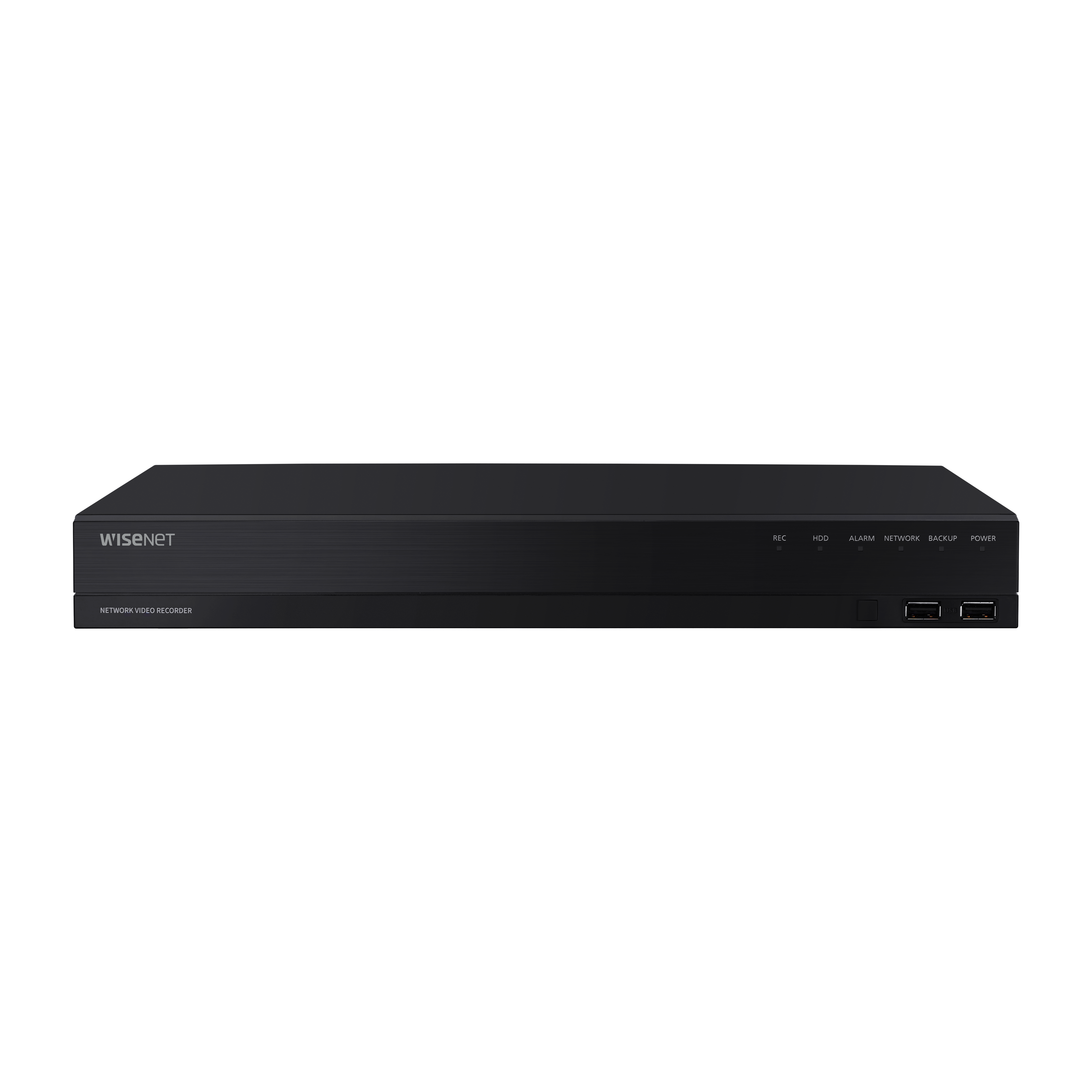

1U rackmount NVR with a black metal chassis measuring 370 × 44 × 320 mm (14.57 × 1.73 × 12.6 in.) and weighing 2.88 kg (6.35 lb). Operates from 0°C to 40°C with 20–85% RH. Powered by 100–240 VAC, with a maximum power draw of 188.2W and a 130W PoE budget. Features front-panel power, record, and network indicators, plus a reset function. Supports up to two SATA HDDs, with a maximum storage capacity of 12TB (drives not included).
| Display | |
| Network camera Inputs | Max. 16CH |
| Resolution | 8MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding | |
| Local Display | HDMI, VGA (Clone) |
| Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9 |
| Resolution [Local Monitor] | 8MP (30fps), 1080p (120fps), 720P (120fps), D1 (120fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 80Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 16CH (Local 4CH, Remote 4CH per user) |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 8MP |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea (Max. 12TB) |
| Backup | |
| File backup | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 4CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 80Mbps |
| Audio | |
| Input/Output | 16CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption, Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup - Register | Auto, Manual |
| Camera Setup - Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| Control | Via GUI, Webviewer |
| Preset | 300 Presets |
| Smart phone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live 4CH (Multi-Profile Support), Playback 4CH |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Failover | N+1 |
| ARB | Support |
| Easy configuration | P2P (QR code) |
| Interface | |
| Front Indicator | |
| Reset | Support |
| HDMI | 1EA 3840x2160 30Hz |
| VGA | 1920x1080 30Hz |

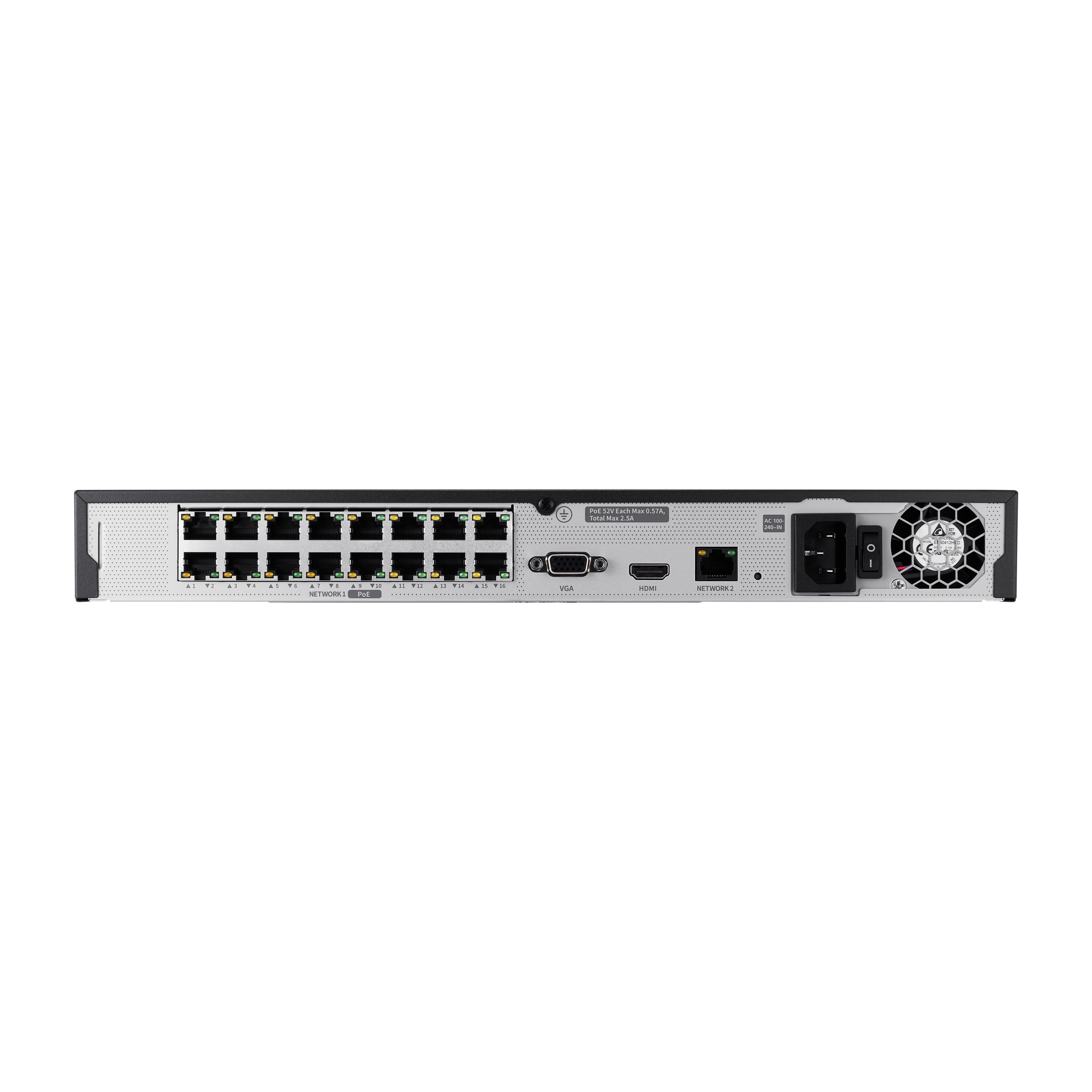

| Ethernet | PoE RJ-45 (LAN, 10/100) 16ea, RJ-45 1ea (WAN, 1Gbps) |
| USB | 2EA (Front 2 x USB 2.0) |
| Power inlet | SMPS |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max 188.2W (2HDD, PoE On) |
| PoE Budget | 130W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (W x H x D) | W370.0 x H44.0 x D320 mm (14.57" x 1.73" x 12.6") (1U) |
| Weight | 2.88kg |
