Hanwha - ARN-1610S-4TB - 16 Channel Network Video Record PoE Wisenet A-Series, 4TB

Product Overview

The Hanwha ARN-1610S-4TB is a 16-channel PoE NVR with 4TB pre-installed storage, supporting up to 8MP IP cameras with H.265/H.264/MJPEG compression and 80 Mbps recording bandwidth. It includes 16 built-in PoE ports with a 130W total power budget, one Gigabit WAN port, and dual SATA HDD bays supporting up to 12TB total (6TB per drive). The system provides HDMI output up to 4K (3840×2160 @30Hz) and VGA output, along with ARB (Automatic Recovery Backup), N+1 failover support, and P2P QR code access for the Wisenet Mobile app.


Key Configuration

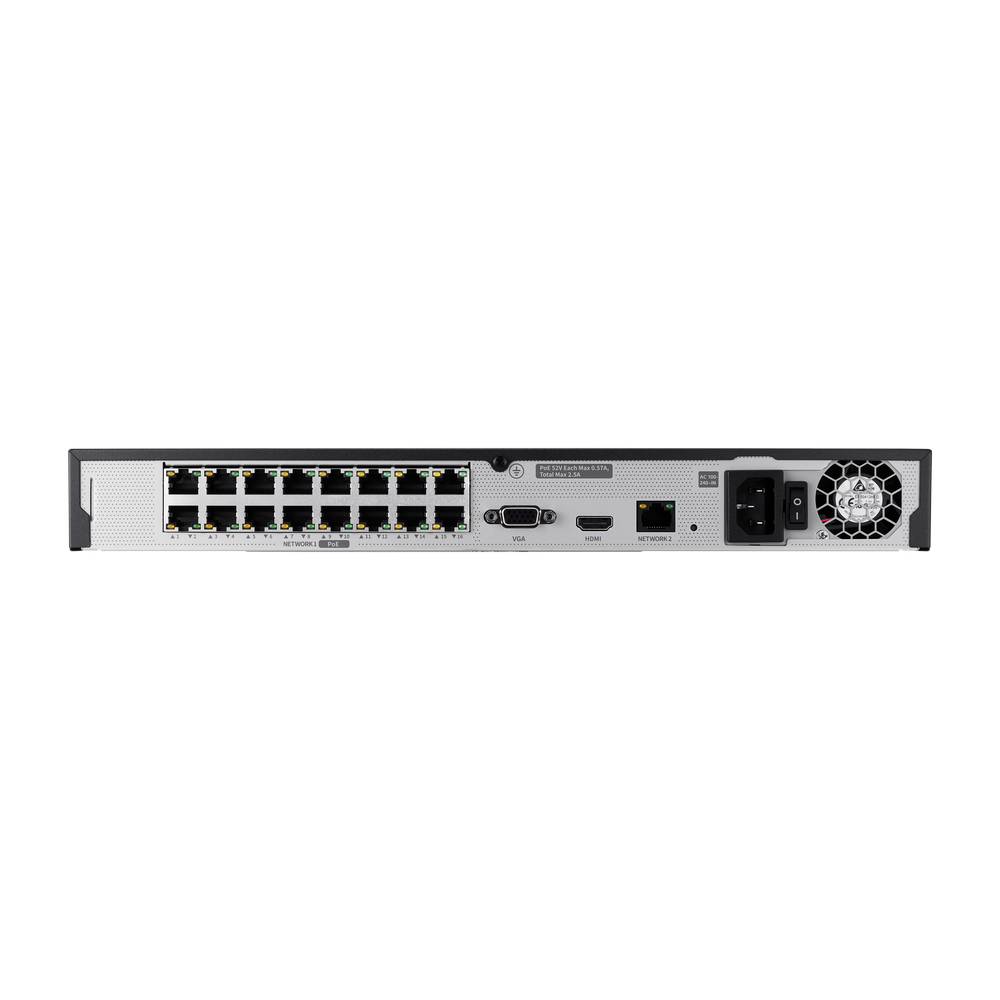

• Channels: up to 16 IP camera inputs. PoE ports: 16 × RJ45 (10/100 Mbps), 130W total PoE budget.
• HDD bays: 2 × SATA, up to 6TB per HDD (max 12TB total), 4TB pre-installed.
• Recording bandwidth: 80 Mbps; playback bandwidth: 32 Mbps.
• Video outputs: HDMI (4K/3840×2160 @30Hz) and VGA (clone mode).
• Dimensions: 370 × 44 × 320 mm, weight: 2.88 kg (6.35 lb).

Key Features

Supports decoding up to 8MP at 30 fps, with 1080p/720p/D1 up to 120 fps and flexible multi-screen layouts up to 16 views. Recording modes include schedule, event, dual stream, and bookmark, with playback supporting up to 16 channels. Event handling includes motion, video loss, and analytics triggers with actions like email alerts, PTZ presets, alarms, and buzzer notifications. It supports smart and calendar-based search, 16-channel network audio with two-way communication, and full PTZ control with 300 presets. Connectivity includes 16 PoE ports, Gigabit WAN, USB 2.0, ARB, N+1 failover, and P2P mobile access.

Technical Context

Runs on embedded Linux with support for IPv4/IPv6, TCP/IP, UDP, RTP/RTCP, RTSP, HTTP/HTTPS, DHCP (server/client), DNS/DDNS, NTP, SMTP, SNMP, IGMP, UPnP, ONVIF Profile-S, and SUNAPI. Security features include IP filtering, access logs, 802.1x authentication, encryption, signed firmware, and device certificates. Web access is supported on Windows 10 and macOS 10.13+ using Chrome, Edge, or Safari. The unit is built in a 1U rackmount form factor.

Installation Notes

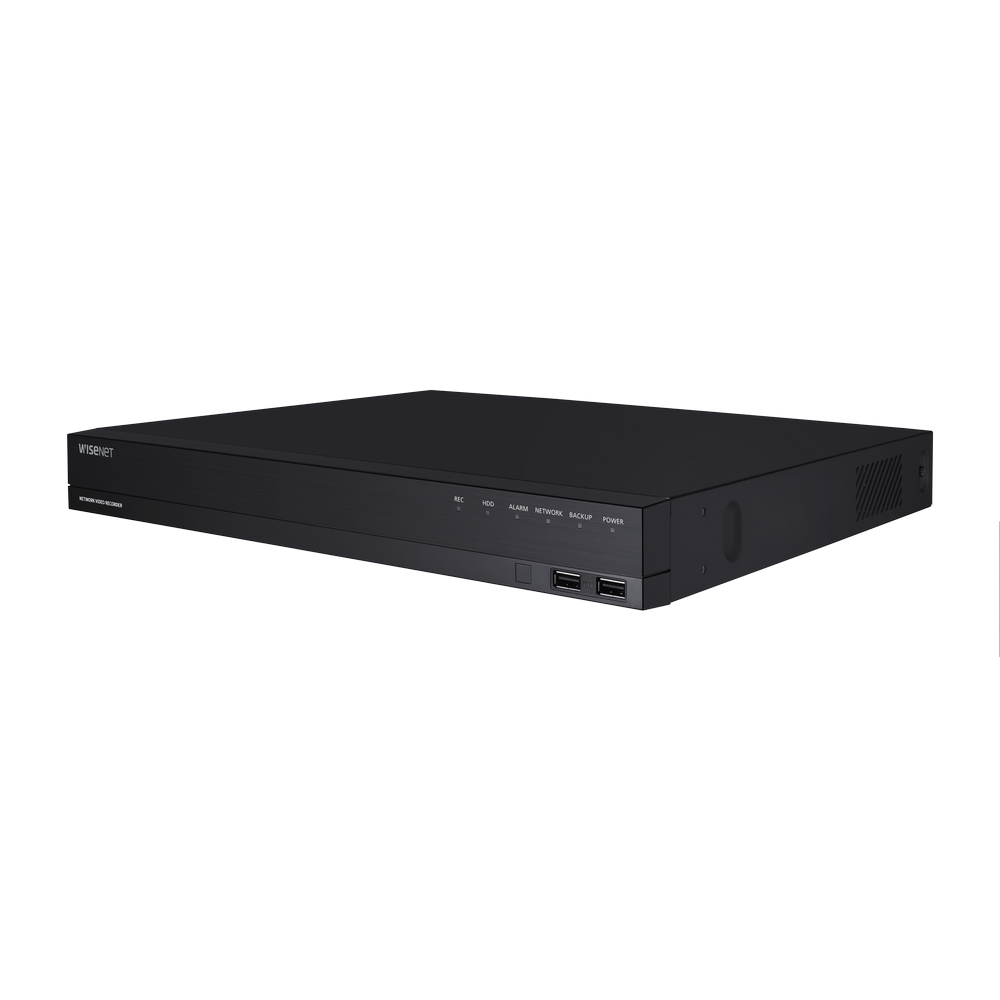

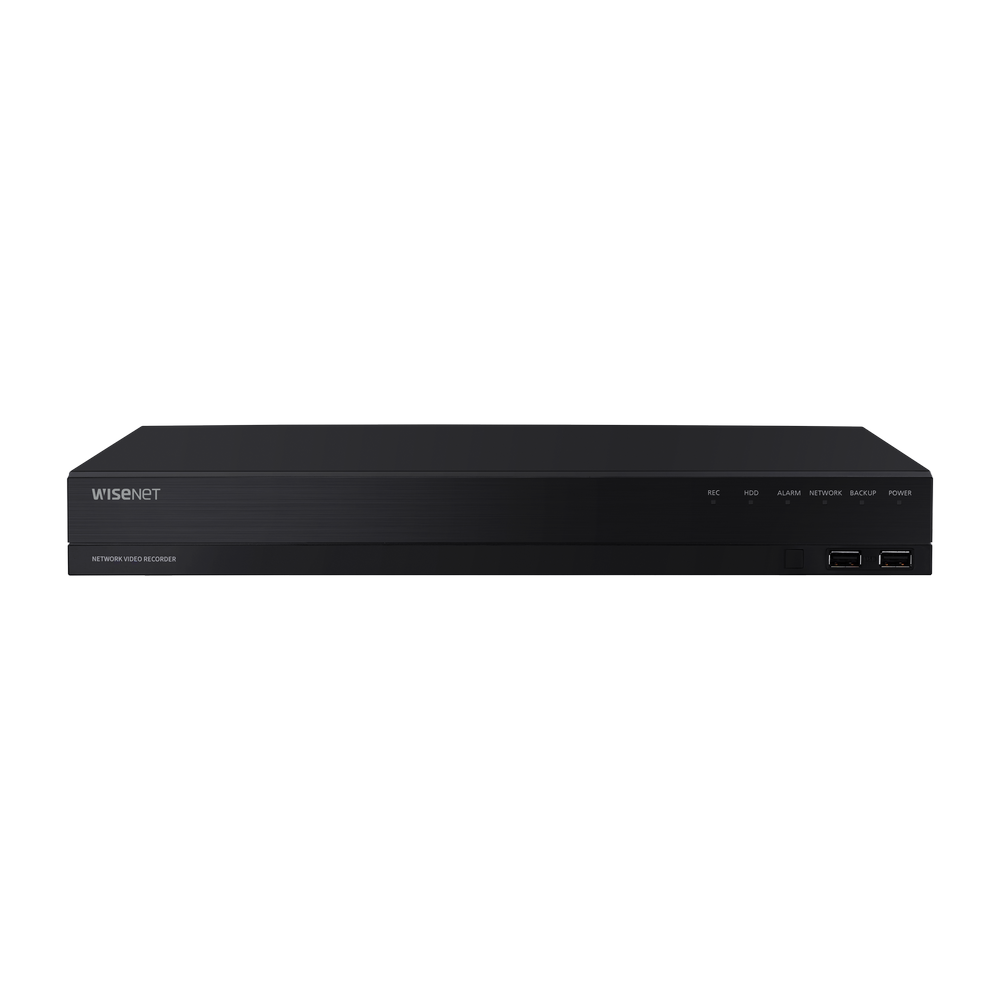

Black metal 1U rackmount unit measuring 370 × 44 × 320 mm and weighing 2.88 kg. It operates in 0°C to 40°C environments with 20–85% humidity and supports 100–240 VAC input, with max consumption of 188.2W (PoE enabled). The system provides 16 PoE ports with a 130W total budget and includes dual SATA bays with 4TB pre-installed (up to 6TB per drive). HDMI and VGA outputs support clone-mode local monitoring, while ARB and N+1 failover ensure reliability. It also supports P2P QR mobile access and USB mouse-based GUI control.
