The Hanwha ARN-1610S is a 16-channel PoE NVR supporting up to 8MP IP cameras with H.265/H.264/MJPEG compression and 80 Mbps recording bandwidth. It includes 16 built-in PoE ports with a 130W total power budget, one Gigabit WAN port, and dual SATA HDD bays supporting up to 12TB total storage. The system provides HDMI output up to 4K (3840×2160 @30Hz) and VGA output, along with ARB (Automatic Recovery Backup), N+1 failover support, and P2P QR code connection for Wisenet Mobile app access.
• Channels: up to 16 IP camera inputs. PoE ports: 16 × RJ45 (10/100 Mbps), 130W total PoE budget.
• HDD bays: 2 × SATA, up to 6TB per HDD (max 12TB total).
• Recording bandwidth: 80 Mbps; playback bandwidth: 32 Mbps.
• Video outputs: HDMI (4K/3840×2160 @30Hz) and VGA (clone mode).
• Dimensions: 370 × 44 × 320 mm, weight 2.88 kg (6.35 lb).
Supports decoding up to 8MP at 30 fps, 1080p/720p/D1 at 120 fps, with flexible live multi-screen layouts up to 16 views locally. Recording modes include normal, dual stream, schedule, event, and bookmark, while playback supports up to 16 channels with both local and remote access. Event handling includes motion, video loss, and analytics triggers with actions like email alerts, PTZ presets, alarm output, and buzzer. It supports smart and text-based search, 16-channel network audio with two-way communication, and full PTZ control with 300 presets. Connectivity includes 16 PoE ports, Gigabit WAN, USB 2.0 ports, ARB, N+1 failover, and P2P QR mobile access.
Runs on embedded Linux with support for IPv4/IPv6, TCP/UDP, RTP/RTCP, RTSP, HTTP/HTTPS, DHCP (server/client), DNS/DDNS, NTP, SMTP, SNMP, IGMP, UPnP, ONVIF Profile-S, and SUNAPI. Security features include IP filtering, user access logs, 802.1x authentication, encrypted communication, signed firmware, and device certificates. Web access is supported on Windows 10 and macOS (10.13+) using Chrome, Edge, or Safari. The system is built in a 1U rackmount form factor.

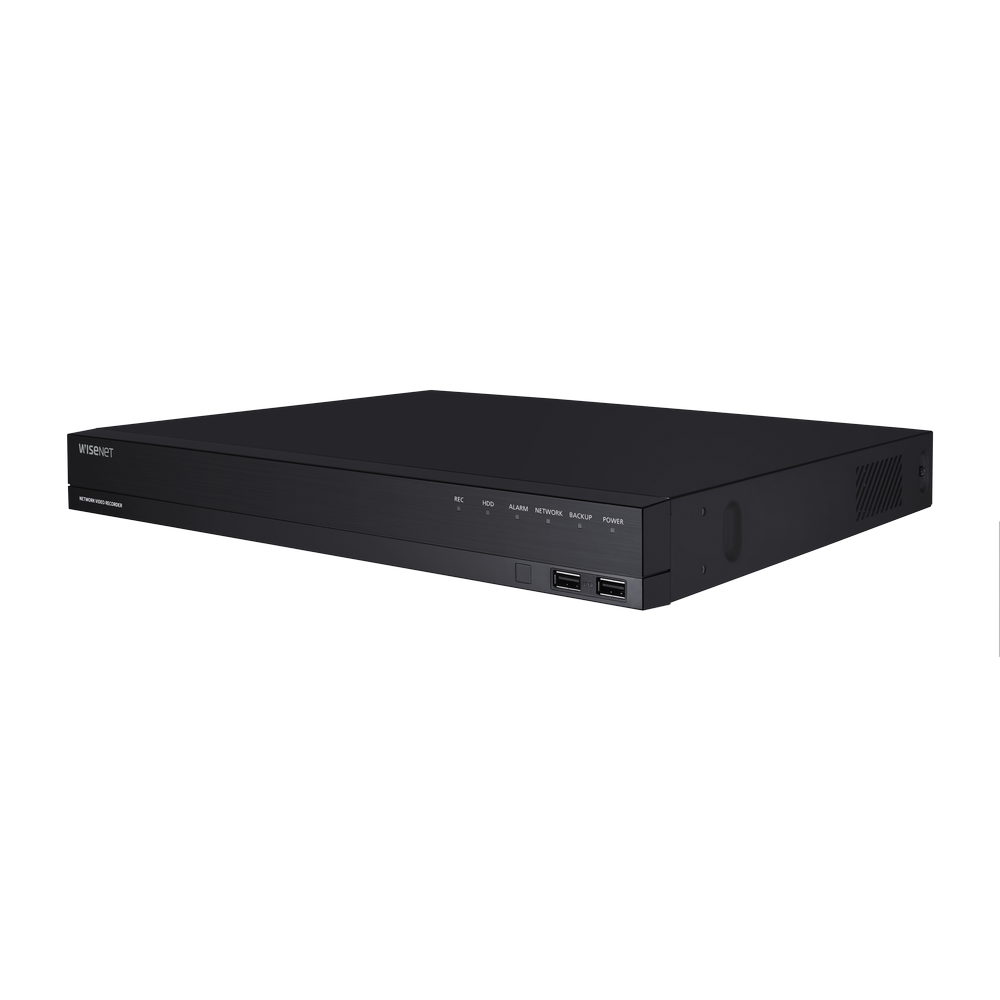

Black metal 1U rackmount design measuring 370 × 44 × 320 mm and weighing 2.88 kg. It operates in 0°C to 40°C environments with 20–85% humidity and uses 100–240 VAC power input, with a maximum consumption of 188.2W (PoE enabled). The system provides 16 PoE ports with a 130W total budget for IP cameras and includes dual SATA bays supporting up to 6TB per drive. HDMI and VGA outputs support cloned local monitoring, while ARB and N+1 failover ensure reliability. It also supports P2P QR code mobile access and USB mouse-based GUI control.
| Display | |
|---|---|
| Network camera > Inputs | Max. 16CH |
| Network camera > Resolution | 8MP ~ CIF |
| Network camera > Protocols | SUNAPI, ONVIF |
| Decoding | |
| Decoding > Local Display | HDMI, VGA (Clone) |
| Decoding > Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9 |
| Decoding > Resolution | [Local Monitor] 8M (30fps), 1080p (120fps), 720P (120fps), D1 (120fps) |
| Performance | |
| Operating System > Embedded | Linux |
| Record | |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Recording Bandwidth | Max. 80Mbps |
| Record > Resolution | 8MP ~ CIF |
| Record > Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Record > Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Record > Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Search & Play > Playback Bandwidth | Max. 32Mbps |
| Search & Play > User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play > Simultaneous playback | Max. 16CH (Local 4CH, Remote 4CH per user) |
| Search & Play > Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Search & Play > Resolution | CIF ~ 8MP |
| Search & Play > Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 2ea (Max. 12TB) |
| Backup | |
| Backup > File backup | BU/Exe (GUI), JPG/AVI (Network) |
| Backup > Function | Multi channel (Up to 4CH) Play, Date-Time/Title display |
| Network | |
|---|---|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 80Mbps |
| Audio | |
| Audio > Input/Output | 16 CH (network) |
| Audio > Compression | G.711, G.726, AAC (16/48KHz) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Web viewer > Supported OS | Windows 10, macOS 10.13 |
| Web viewer > Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| PTZ > Control | Via GUI, Webviewer |
| PTZ > Preset | 300 Presets |
| Smart phone | |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Smart phone > Control | Live 4CH (Multi-Profile Support), Playback 4CH |
| Smart phone > Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Redundancy > Failover | N+1 |
| Redundancy > ARB | Support |
| Easy configuration | P2P (QR code) |

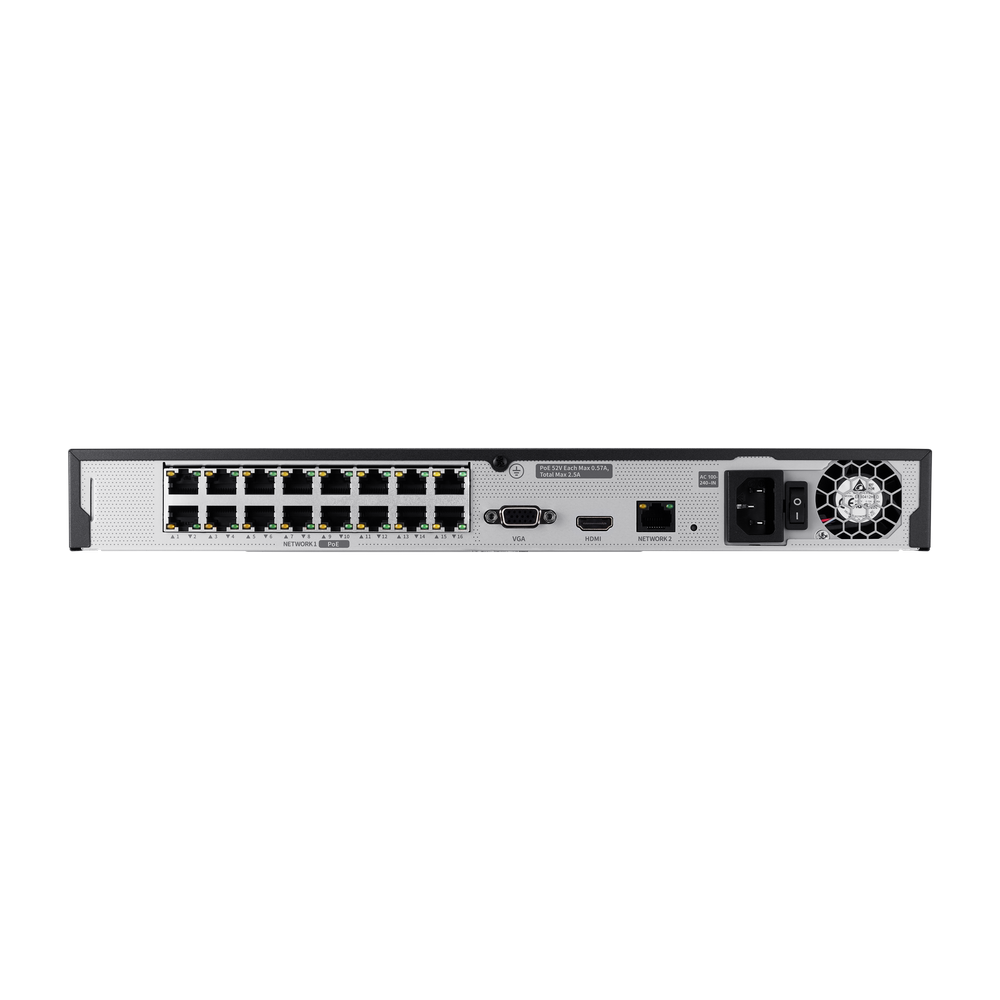

| Interface | |

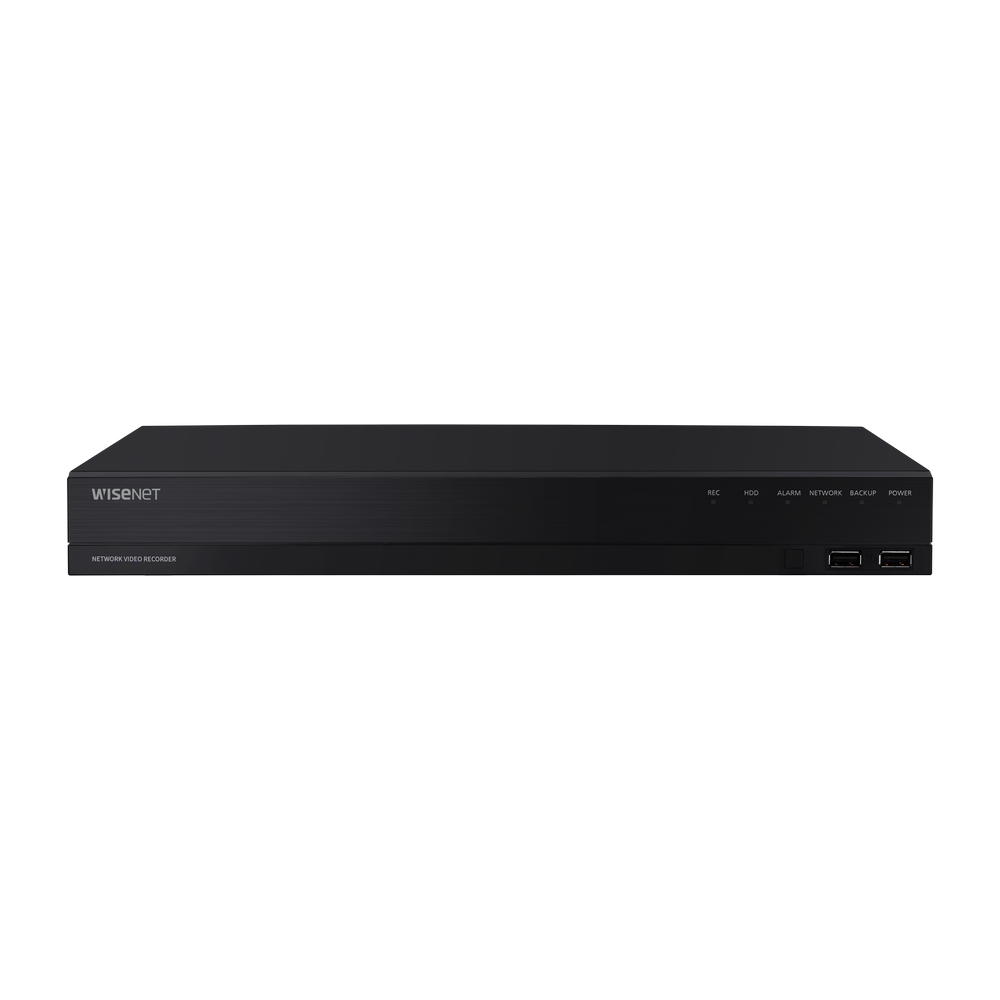

| Front > Indicator | Power, Record, Network |
| Reset | Support |
| HDMI | 1EA 3840x2160 30Hz |
| VGA | 1920x1080 30Hz |
| Ethernet | PoE RJ-45 (LAN, 10/100) 16 ea, RJ-45 1ea (WAN, 1Gbps) |
| USB | 2EA (Front 2 x USB 2.0) |
| Power inlet | SMPS |
| System | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max 188.2W (2HDD, PoE On) |
| PoE Budget | 130W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | W370.0 x H44.0 x D320 mm (14.57" x 1.73" x 12.6") (1U) |
| Weight | 2.88Kg |
