Hanwha - ARN-410S - 4 Channel Network Video Record PoE Wisenet A-Series

Product Overview

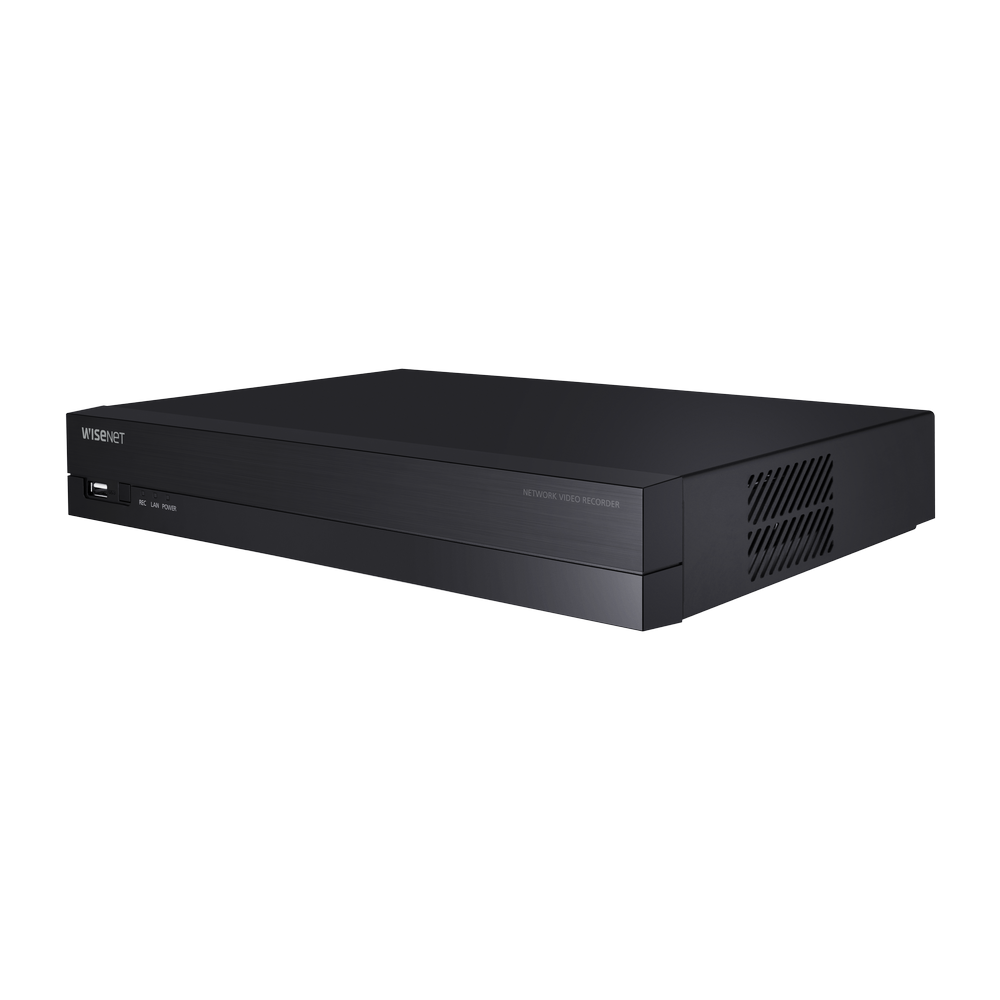

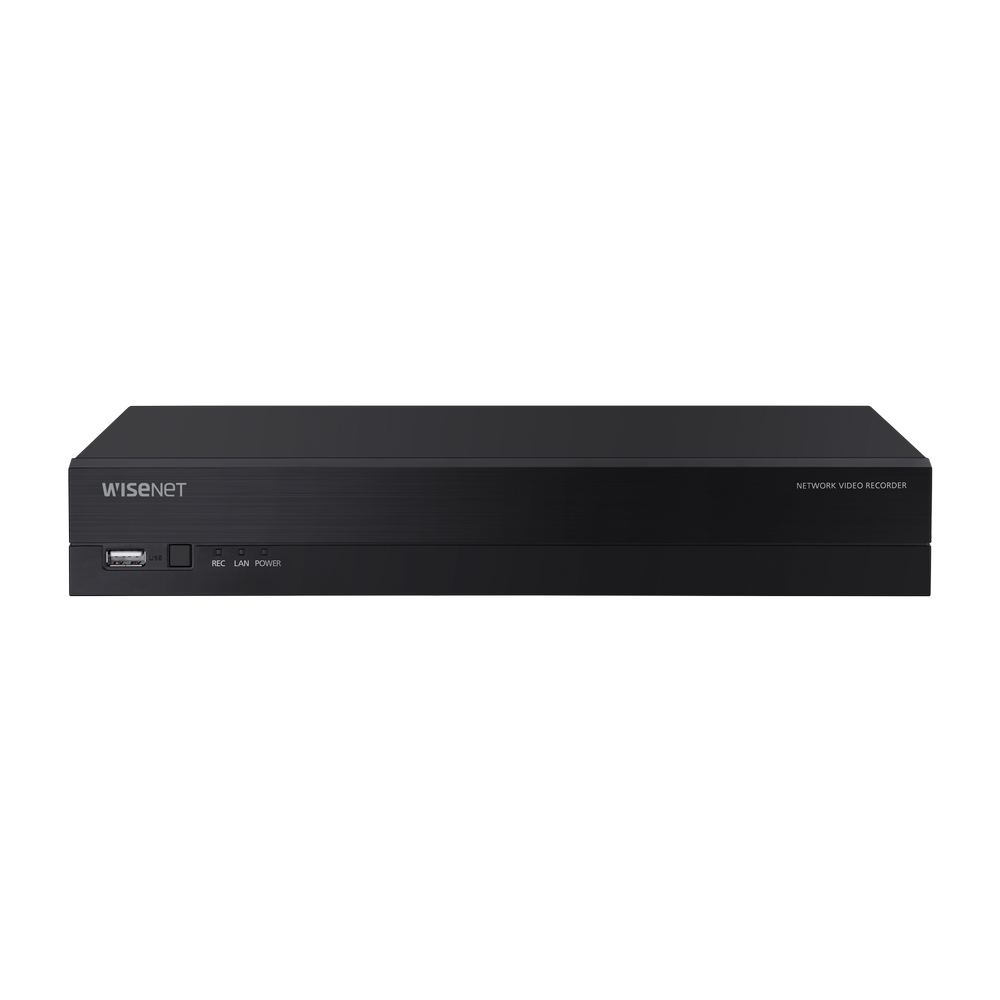

The Hanwha ARN-410S is a compact 4-channel PoE network video recorder supporting up to 8MP IP cameras with H.265/H.264/MJPEG compression and 40 Mbps recording bandwidth. It includes 4 built-in PoE ports (35W total budget), a separate WAN port, HDMI 4K output (3840×2160 @30Hz), and one SATA HDD bay supporting up to 6TB. It also supports ARB (Automatic Recovery Backup), Failover (N+1), and P2P QR code setup for Wisenet Mobile app connectivity.


Key Configuration

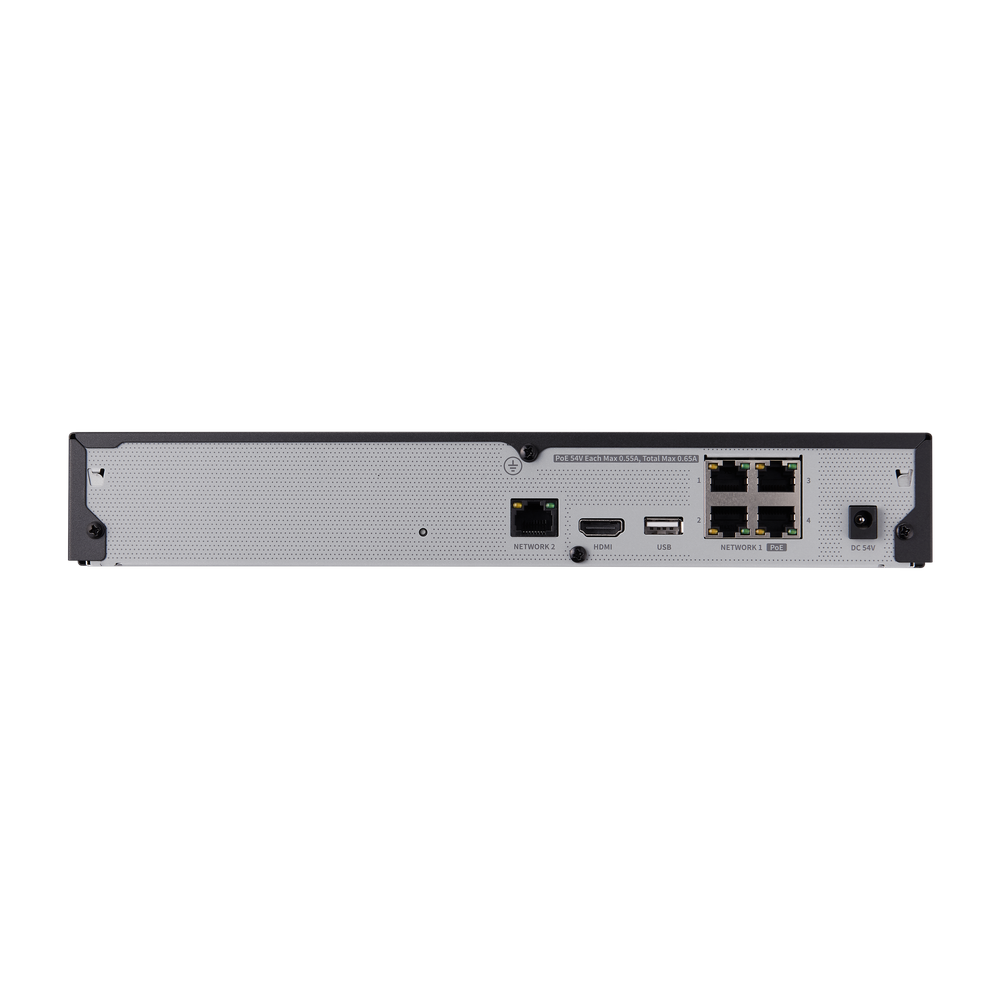

• • Channels: up to 4 IP camera inputs; PoE ports: 4 × RJ45 (10/100 Mbps), 35W total PoE budget
• • HDD: 1 × SATA bay, up to 6TB (HDD not included)
• • Recording bandwidth: 40 Mbps; playback bandwidth: 32 Mbps
• • Video output: HDMI (4K/3840×2160 @30Hz)
• • Dimensions: 300 × 47 × 208.7 mm (11.81" × 1.85" × 8.22"); weight: 1.03 kg (2.27 lb)

Key Features

Supports decoding up to 8MP at 30 fps with multi-resolution playback and flexible live view layouts up to 4-channel display. Recording includes normal, event, dual stream, and scheduled modes with pre/post event support, plus smart search, timeline, and event-based playback. It supports 4-channel audio input with two-way communication, PTZ control with up to 300 presets, alarm I/O, and event actions like email, push notifications, and buzzer output. Network features include 4 PoE ports, WAN connectivity, ARB and Failover support, and P2P QR setup for mobile access.


Technical Context

Runs on embedded Linux with support for IPv4/IPv6, RTSP, HTTPS, ONVIF Profile-S, SUNAPI, SNMP, and other standard network protocols. Security features include IP filtering, 802.1X authentication, encrypted communication, access logs, device certificates, and signed firmware. Web viewing is supported on Windows 10 and macOS 10.13 via Chrome, Edge, and Safari. The system uses 54V DC input with up to 52W power consumption (PoE on) and a 35W PoE budget, housed in a black metal 1U chassis.

Installation Notes

Compact 1U NVR measuring 300 × 47 × 208.7 mm and weighing 1.03 kg, designed for 0°C to 40°C operation with 20–85% humidity range. It includes 4 PoE ports (35W total budget) for direct IP camera connection, 1 SATA HDD bay supporting up to 6TB, and HDMI output for 4K local monitoring. Additional features include ARB and Failover (N+1) for reliability, P2P QR code setup for mobile access, and USB mouse support for GUI control.
