Hanwha - ARN-810S - 8 Channel Network Video Record PoE Wisenet A-Series

Product Overview

The Hanwha ARN-810S is an 8-channel PoE NVR supporting up to 8MP IP cameras with H.265/H.264/MJPEG compression and 60 Mbps recording bandwidth. It includes 8 built-in PoE ports with a 65W total power budget, one Gigabit WAN port, and a single SATA HDD bay supporting up to 6TB storage. The system provides HDMI output up to 4K (3840×2160 @30Hz) and includes ARB (Automatic Recovery Backup), N+1 failover support, and P2P QR code access for Wisenet Mobile app connectivity.

Key Configuration

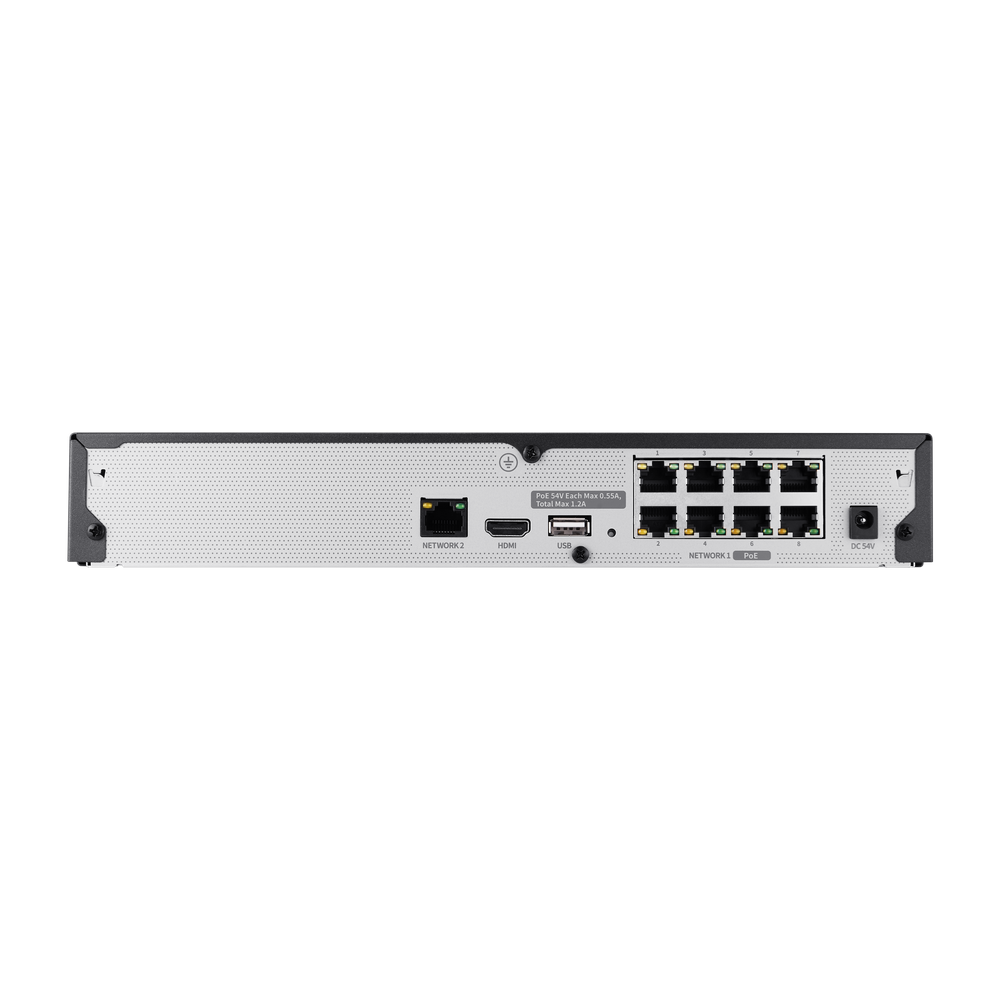

• Channels: up to 8 IP camera inputs. PoE ports: 8 × RJ45 (10/100 Mbps), 65W total PoE budget.
• HDD: 1 × SATA bay, up to 6TB (HDD not included).
• Recording bandwidth: 60 Mbps; playback bandwidth: 32 Mbps.
• Video output: HDMI (4K/3840×2160 @30Hz).
• Dimensions: 300 × 47 × 208.7 mm, weight: 1.05 kg (2.31 lb).

Key Features

Supports decoding up to 8MP at 30 fps, with 1080p/720p/D1 at 120 fps and flexible multi-screen layouts up to 9 views (plus sequence). Recording modes include normal, schedule, dual stream, and event with pre/post recording, while playback supports up to 16 channels. Event handling covers motion, video loss, analytics, and audio detection with actions like email alerts, PTZ presets, alarms, and buzzer output. It supports smart and calendar-based search, 8-channel network audio with two-way communication, and PTZ control with up to 300 presets. Connectivity includes 8 PoE ports, Gigabit WAN, USB ports, ARB, N+1 failover, and P2P QR mobile access.

Technical Context

Runs on embedded Linux with support for IPv4/IPv6, TCP/IP, UDP, RTP/RTCP, RTSP, HTTP/HTTPS, DHCP (server/client), DNS/DDNS, NTP, SMTP, SNMP, IGMP, UPnP, ONVIF Profile-S, and SUNAPI. Security features include IP filtering, access logs, 802.1X authentication, encryption, signed firmware, and device certificates. Web access is supported on Windows 10 and macOS 10.13+ using Chrome, Edge, or Safari. The unit is built in a 1U form factor and uses 54VDC power input with up to 84W consumption (PoE enabled).

Installation Notes

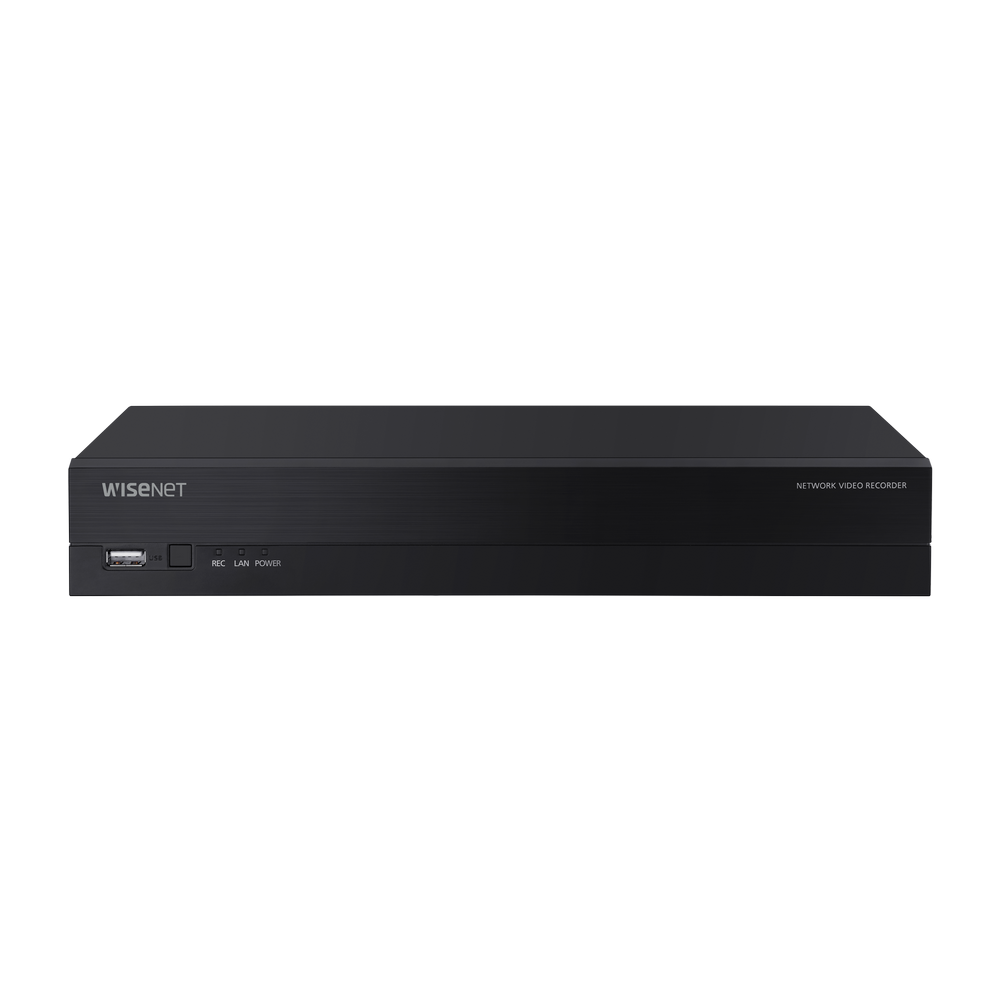

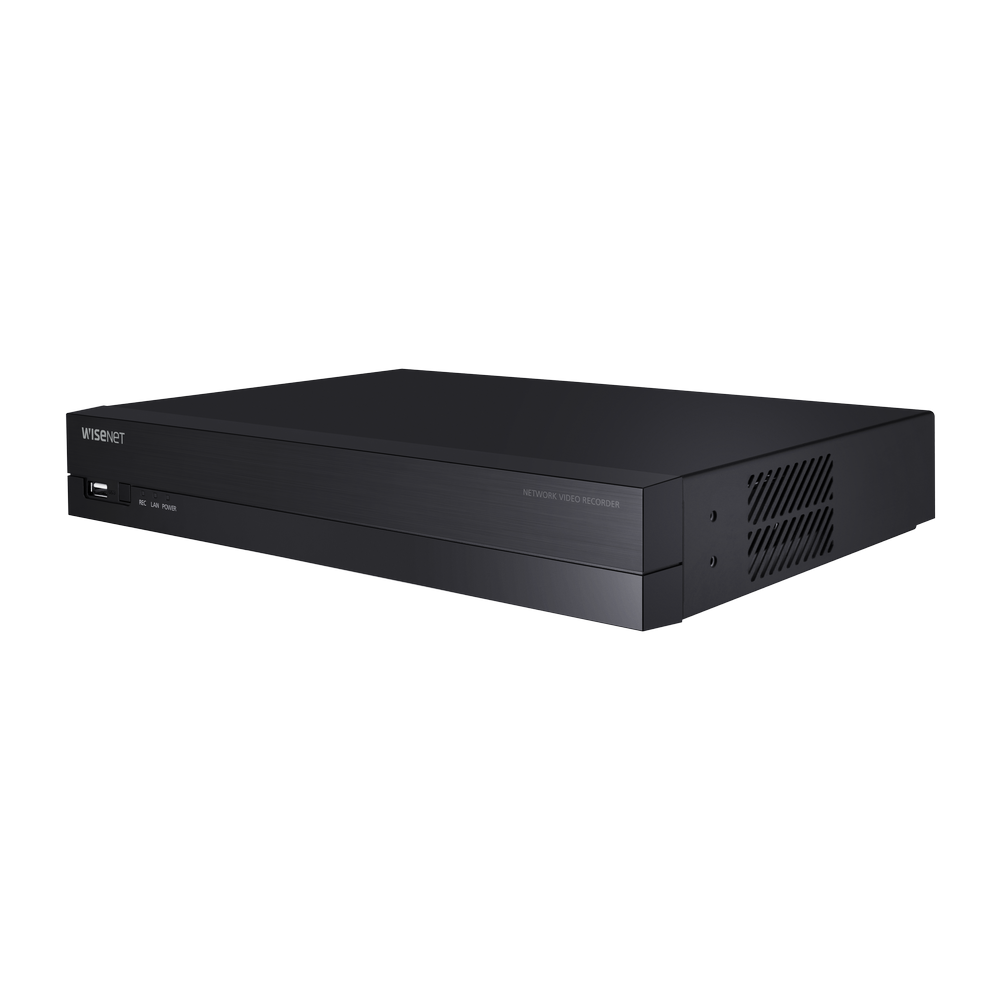

Black metal compact 1U device measuring 300 × 47 × 208.7 mm and weighing 1.05 kg. It operates in 0°C to 40°C environments with 20–85% humidity and includes 8 PoE ports with a 65W total power budget for IP cameras. The system supports a single SATA HDD bay up to 6TB and provides HDMI output for 4K local monitoring. It also includes ARB and N+1 failover for reliability, P2P QR mobile access, and USB mouse support for GUI control.
