Hanwha - HRX-1634-4TB - 16 Channel Pentabrid DVR, 4TB
Product Overview
Hanwha HRX-1634 is a 16-channel pentabrid hybrid recorder supporting AHD, HDTVI, HDCVI, CVBS, and IP inputs with up to 18 total channels (16 analog maximum + up to 18 network maximum, depending on analog channel usage). This recorder delivers up to 8MP resolution with H.265/H.264/MJPEG compression and a maximum recording bandwidth of 128Mbps. HDMI and VGA dual monitor outputs support up to 4K display resolution in expand mode.
Key Configuration
• Channels: 16 analog (AHD/HDTVI/HDCVI/CVBS) plus up to 2 IP channels (SUNAPI/ONVIF), supporting a maximum of 18 cameras
• Recording bandwidth: up to 128 Mbps; playback bandwidth: up to 32 Mbps with 18-channel simultaneous playback
• Analog recording rates: 8MP at 8 fps, 5MP at 12 fps, 4MP at 15 fps (NTSC) / 12 fps (PAL), and 2MP at 30/25 fps
• Storage: 2 fixed internal SATA HDD bays supporting up to 6TB per drive (12TB total maximum); HDDs not included
• Video outputs: HDMI (up to 3840 × 2160), VGA (up to 1920 × 1080), and 1× BNC spot monitor output
• Network: 1× RJ-45 Gigabit Ethernet port (10/100/1000BASE-T)
Key Features
Embedded Linux DVR supporting AHD, TVI, CVI, CVBS, and network cameras with recording up to 8MP resolution. It offers flexible recording modes, alarm I/O, event-driven actions, smart search, fisheye dewarping for network cameras, and up to 18-channel simultaneous playback. Additional features include two-way audio, USB 2.0/3.0 connectivity, ARB recovery backup, PTZ and RS-485 control, coaxial control, P2P mobile access via QR code, and a setup wizard for simplified configuration. Certified to UL, CE, FCC, KC, and UKCA standards.
Technical Context
Supports standard networking protocols including RTSP, HTTPS, SNMP, ONVIF Profile S, and SUNAPI for broad system integration. Security features include IP filtering, user access logging, 802.1X authentication, encryption for login credentials, recordings, transmission, and backups, plus device certificate support from Hanwha Vision Root CA. Web access is supported on Windows 10 using Chrome, Edge, or Safari. The recorder also supports sub-stream recording to reduce storage and bandwidth requirements while maintaining full frame rates.
Installation Notes

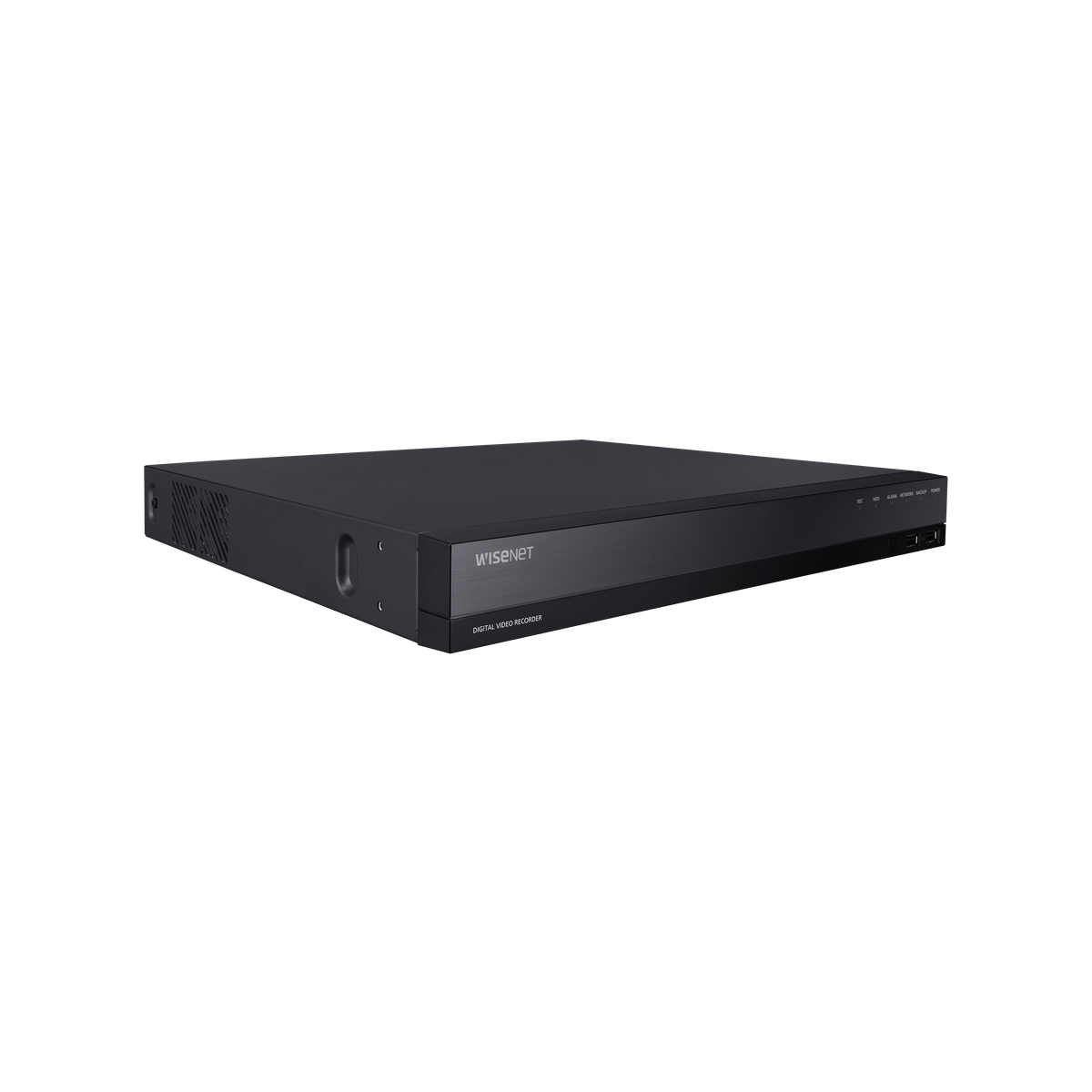

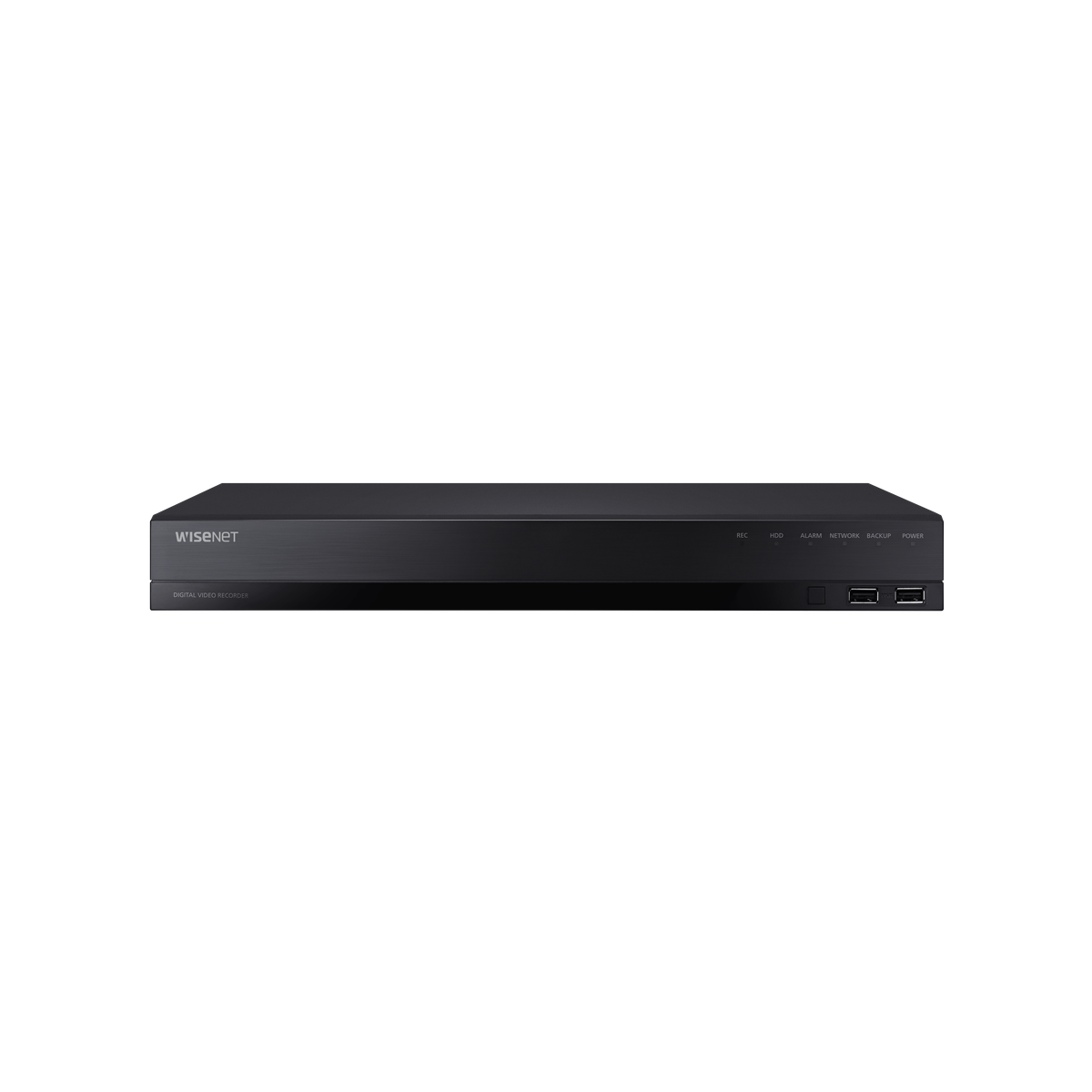

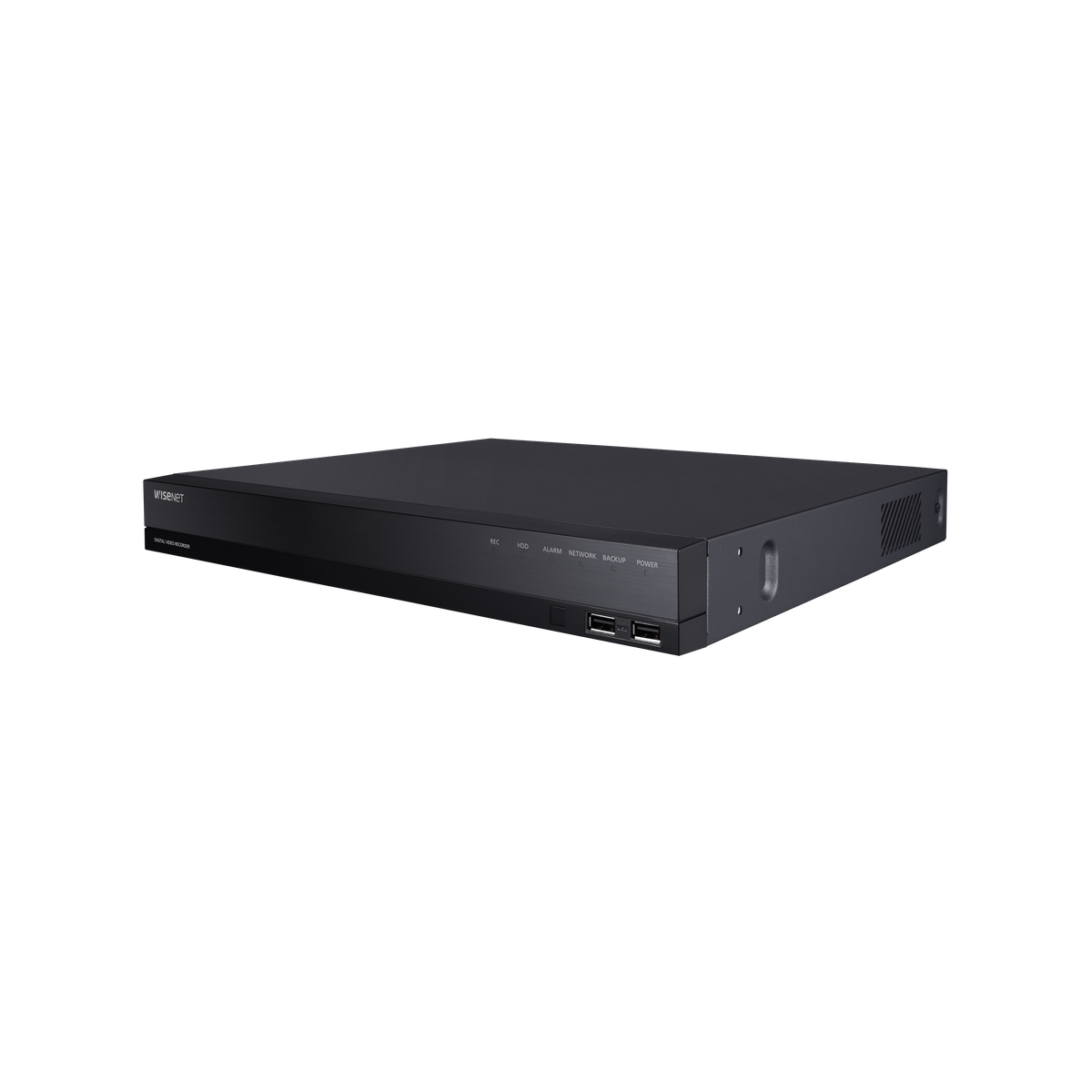

Black metal DVR (370.0 × 44.0 × 320.0 mm, approx. 2.9 kg with a 4TB HDD) designed for desktop or rack-mounted surveillance installations. It operates from 0°C to 40°C with 20–85% humidity tolerance and is powered by 12V DC with a maximum power consumption of 40W. The recorder does not include built-in PoE, so IP cameras require external PoE switches for power and connectivity.
| Display | |
|---|---|
| Analog Camera Inputs | 16CH (1Vp-p 75ohm, BNC) |
| Signal Type | AHD (8MP, 5MP, 4MP, 1080p, 720p) HDTVI (8MP, 5MP, 4MP, 1080p, 720p) HDCVI (8MP, 5MP, 4MP, 1080p, 720p) CVBS (NTSC/PAL) |
| Network Camera Inputs | Additional 2CH (Up to 18CH) |
| Network Camera Resolution | 8MP ~ CIF |
| Network Camera Protocols | SUNAPI (Wisenet), ONVIF |
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Resolution (Analog Camera) | [Analog Camera (NTSC/PAL)] 8MP (15/12fps), 5MP (20/12fps), 4MP (30/25fps), 2MP (30/25fps), 1MP (30/25fps), 960H (or 720H) (30/25fps) * per CH |
| Resolution (Network Camera) | [Network Camera] - 2MP (up to 30fps/CH) |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Record Rate (Analog Main Stream) | 8MP 8/8fps, 5MP 12/12fps, 4MP 15/12fps, 2MP 30/25fps, 720p 30/25fps, Under 960H 30/25fps (per CH) * The maximum recording frame rate depends on the frame rate of the input camera. |
| Record Rate (Analog Sub Stream) | 720p/CH or Higher: 640x368 Full fps, SD: up to SD Full fps |
| Recording Bandwidth | Max. 128Mbps |
| Recording Resolution | 8MP ~ CIF |
| Recording Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss Analog Camera: Video Loss, Motion Detection, Tampering Network Camera: Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps (18CH simultaneously) |
| Max. Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | 18CH (Local Monitor), 18CH (CMS), 4CH (Wisenet Mobile), 1CH (Web) |
| Fisheye Dewarping | CMS (only Network Camera) |
| Storage | |
| Supported HDD Capacity | Up to 6TB per HDD |
| HDD Slots | SATA 2ea (Max. 12TB) |
| Backup | |
| File Backup Format | Set: Recorder, SEC, AVI Webviewer: AVI |
| Backup Function | Max. 16CH play, Date-time/title display |
| PTZ & Smartphone | |
| PTZ Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smartphone Support Model | iOS, Android |
| Smartphone Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Smartphone Control | Live (16ch): Multi-Profile Support, Playback (4CH Multi Playback, Max 2MP), Event push |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy & Configuration | |
| ARB | Support |
| Easy Configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
| Coaxial Control | CVBS (Pelco-C) / AHD / CVI / TVI |
| Interface | |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 16CH In / 1CH Out (Spot Output) |
| Audio | Out (1EA, RCA, Line) |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Alarm | In 16EA, Out 4EA - Relay Out1 (NO/NC/COM) - Relay Out2~4 (NO/COM) |
| USB | 3EA (Front USB 2.0 2ea, Rear USB 3.0 1ea) |
| Serial (Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-P) * for PTZ |
| Power Inlet | 1EA AC |
| System | |
| System Control | Mouse, Webviewer, System Controller (SPC-7000, SPC-6000, SPC-2000, SPC-2001) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| Environmental | |
| Operating Temperature | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC, UKCA |
| Electrical | |
| Power Input | DC12V |
| Power Consumption | Max. 40W (6TB HDD 2ea) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimensions (W x H x D) | 370.0 x 44.0 x 320.0 mm (14.57 x 1.73 x 12.6 inch) |
| Weight | Approx. 2.9kg (6.4 lb, 4TB HDD 1ea) |
| Network | |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Speed | * The maximum recording frame rate depends on the frame rate of the input camera. |
| Transmission Bandwidth | Max. 100Mbps |
| Audio | |
| Input / Output | 4 Line in / 1 Line out |
| Compression | G.711 (Network Camera G.711, G.726) |
| Audio Communication | 2-Way |
| Max. Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup), Device Certificate (Hanwha Vision Root CA) |
| Viewer Software | |
| Supported Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer |
