Product Overview

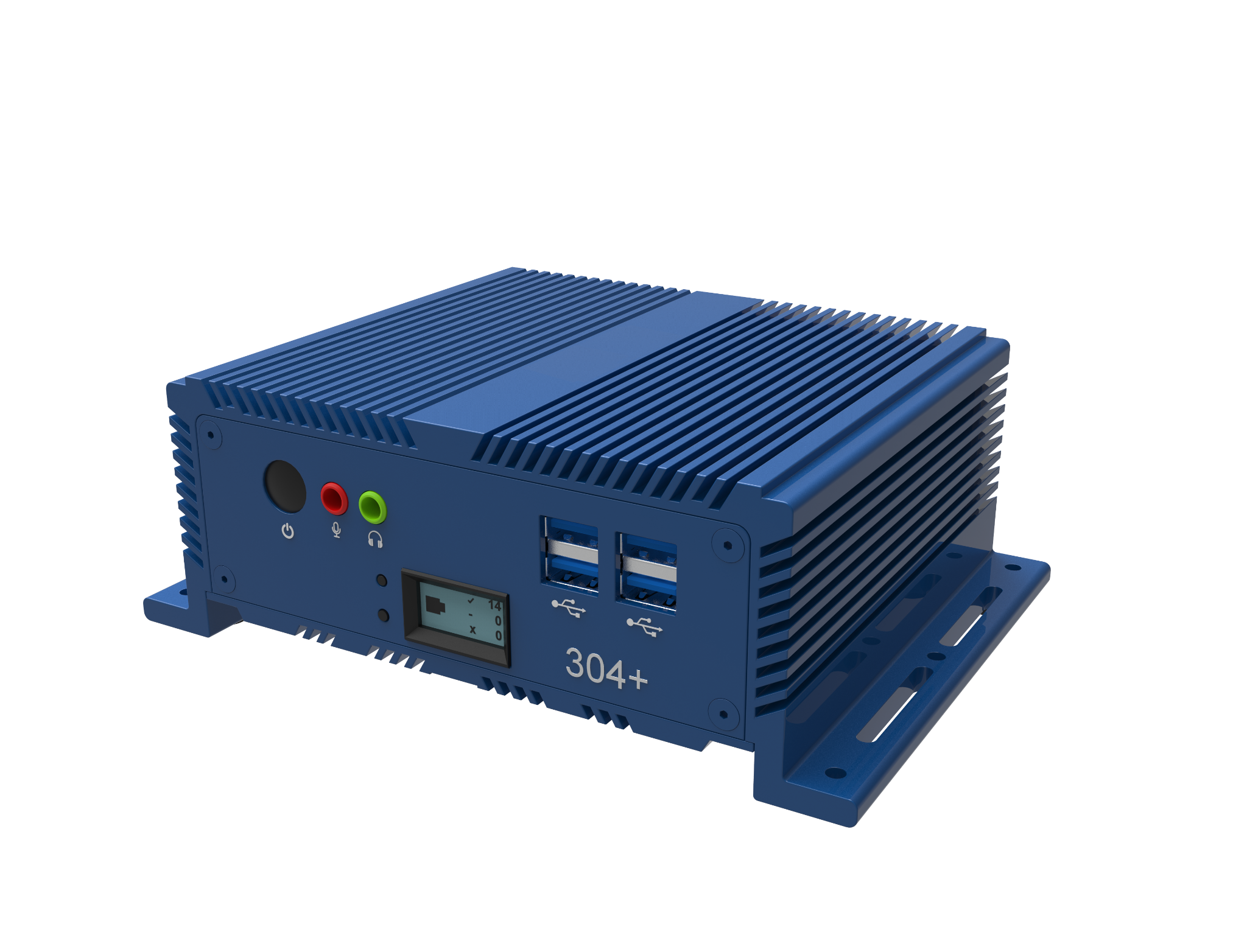

The Hanwha Wisenet SKY Bridge is a gateway device that securely links on-premises cameras to the Wisenet SKY Cloud VMS. It provides video buffering, bandwidth control, and camera health monitoring while supporting up to 20 IP cameras at 4MP resolution. It includes dual Gigabit ports for network separation, up to 2 days of local buffering, and operates without requiring inbound connections.
Key Configuration
• Cameras: Up to 20 IP cameras at 4MP resolution
• Analytics: Up to 5 supported analytics functions
• Storage: 2-day local video buffering
• Network: Dual Gigabit Ethernet ports for secure network separation
• Video outputs: 1 × HDMI, 1 × DisplayPort
• Power: External 100–240 VAC, max 20W consumption
Key Features
Supports automatic network setup with dual-port camera segregation, secure connectivity without inbound access, and packet loss and disconnection alerts. Includes remote management, auto camera discovery and configuration, cloud-synced settings, motion detection, local buffering, and system health notifications. No LPR support or built-in PoE ports. Subscription includes a lifetime warranty and 24/7 email/web support with phone support during business hours. Rapid replacement options available monthly or yearly.
Technical Context
The Wisenet SKY Bridge is an on-premises gateway that securely links IP cameras to the Wisenet SKY Cloud VMS without inbound access or port forwarding. It uses dual network ports for camera-to-cloud isolation and provides up to 2 days of local buffering for uninterrupted recording during outages, with automatic cloud sync once restored.
Installation Notes
Compact unit measuring 180 × 127 × 64 mm and weighing 1.2 kg. Operates from -10°C to 50°C with up to 70% humidity, powered by an external 100–240 VAC supply with 20W max consumption. Features dual Gigabit ports for separate camera and cloud networks, plus HDMI and DisplayPort for local viewing. External PoE switches are required, with multiple global certifications including FCC, UL, CE, and RoHS.
| Max Cameras | Up to 20 IP Cameras @4MP |
| Max Analytic Count | 5 |
| LPR Support | No |
| Video Buffer | 2 days on premises |
| POE Camera Ports | None |
| Network Ports | Dual Gigabit |
| Video Output | HDMI (1), DP (1) |
| Dimension | 180 x 127 x 64mm (7.08 x 5.00 x 2.50in) |
| Weight | 1.20kg (2.65lbs) |
| Maximum Power Consumption | External 100-240 VAC, 20 W |
| Operating Temperature Range | -10-50° C (14-122°F) |
| Operating Humidity Range | 0-70% |
| Certifications | FCC, UL, CE, UKCA, NOM, ACM, RoHS, CTick |
| Rapid Replacement Part Numbers | EN-RR000-1 (Monthly) EN-RR000-12 (Yearly) |
