Hanwha - BRR-P6410A4E-20TB - 3U BLAZE Network Video Recorder Up To 64 Channels, 20TB Raw

Product Overview

The Hanwha BRR-P6410A4E-20TB is a 3U rackmount BLAZE Recording Appliance with hardened OS and AI-powered Semantic Search, supporting up to 64 channels with 64 included BLAZE Premium Licenses. It features 20TB of raw storage across 16 SATA data drive bays, a 520 Mbps recording rate, a 12th Gen Intel Core-S i5 processor, 16GB DDR4 RAM, and an AI card for accelerated analytics.

Key Configuration

• • Channels: up to 64 IP channels with 64 included BLAZE Premium licenses
• • Recording rate: 520 Mbps
• • Data storage: 16 SATA drive bays with 20TB raw storage included; supports up to 160TB total
• • Software RAID levels: 0, 1, 5, 6 supported
• • Network: 3 × RJ-45 (1 Gbps) NIC ports
• • Video outputs: 1 × HDMI (FHD), 1 × HDMI (4K UHD)

Key Features

Supports semantic and similarity search with AI metadata analytics. Features a hardened OS with preloaded BLAZE licenses, AI acceleration card, FIPS 140-3 Level 3 security, 128GB SSD, secure remote access, and Hanwha Vision Cloud Federation support. Compatible with BLAZE Desktop, Mobile, and Web clients.

Technical Context

Includes dedicated AI hardware for Semantic Search using natural language queries and accelerated video analytics. It supports software RAID 0/1/5/6 for data protection and features a 3U chassis with 16 SATA drive bays for scalable storage. Designed for fast deployment, it integrates into multi-site BLAZE federated environments with cloud-based management.

Installation Notes

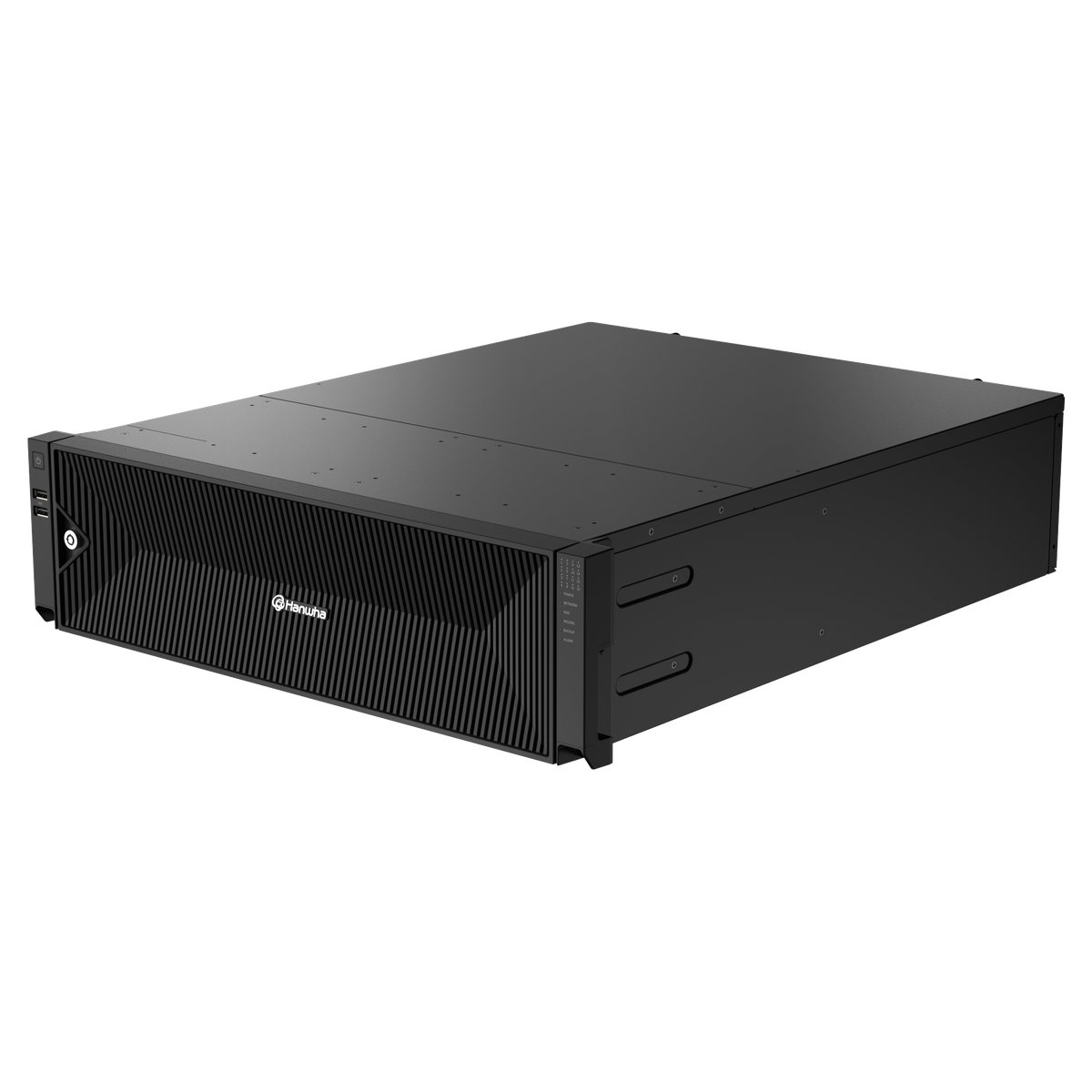

3U rackmount appliance with black metal chassis, measuring 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in.) and weighing 14.2 kg (31.3 lb). Operates from 0°C to 40°C with 20–85% RH non-condensing. Powered by 100–240 VAC, consuming up to 283W. Includes a 128GB SSD OS drive and 16 SATA drive bays, with optional software RAID 0/1/5/6 support.
