Hanwha - BRR-P6410A4E-64TB - 3U BLAZE Network Video Recorder Up To 64 Channels, 64TB Raw

Product Overview

The Hanwha BRR-P6410A4E-64TB is a 3U rackmount BLAZE Recording Appliance with hardened OS and AI-powered Semantic Search, supporting up to 64 channels with 64 included BLAZE Premium Licenses. It features 64TB of raw storage across 16 SATA data drive bays, a 520 Mbps recording rate, a 12th Gen Intel Core-S i5 processor, 16GB DDR4 RAM, and an AI card for accelerated analytics.

Key Configuration

• • Channels: up to 64 IP channels with 64 included BLAZE Premium licenses
• • Recording rate: 520 Mbps
• • Data storage: 16 SATA drive bays with 64TB raw storage included; supports up to 160TB total
• • Software RAID levels: 0, 1, 5, 6 supported
• • Network: 3 × RJ-45 (1 Gbps) NIC ports
• • Video outputs: 1 × HDMI (FHD), 1 × HDMI (4K UHD)

Key Features

Supports semantic and similarity search with AI metadata analytics. Features a hardened OS with preloaded BLAZE licenses, AI acceleration card, FIPS 140-3 Level 3 security, 128GB SSD, secure remote access, and Hanwha Vision Cloud Federation support. Compatible with BLAZE Desktop, Mobile, and Web clients.

Technical Context

The BRR-P6410A4E includes dedicated AI hardware for Semantic Search using natural language queries and accelerated video analytics. It supports software RAID 0/1/5/6 for data protection and features a 3U chassis with 16 SATA drive bays for scalable storage. Designed for fast deployment, it integrates into multi-site BLAZE federated environments with cloud-based management.

Installation Notes

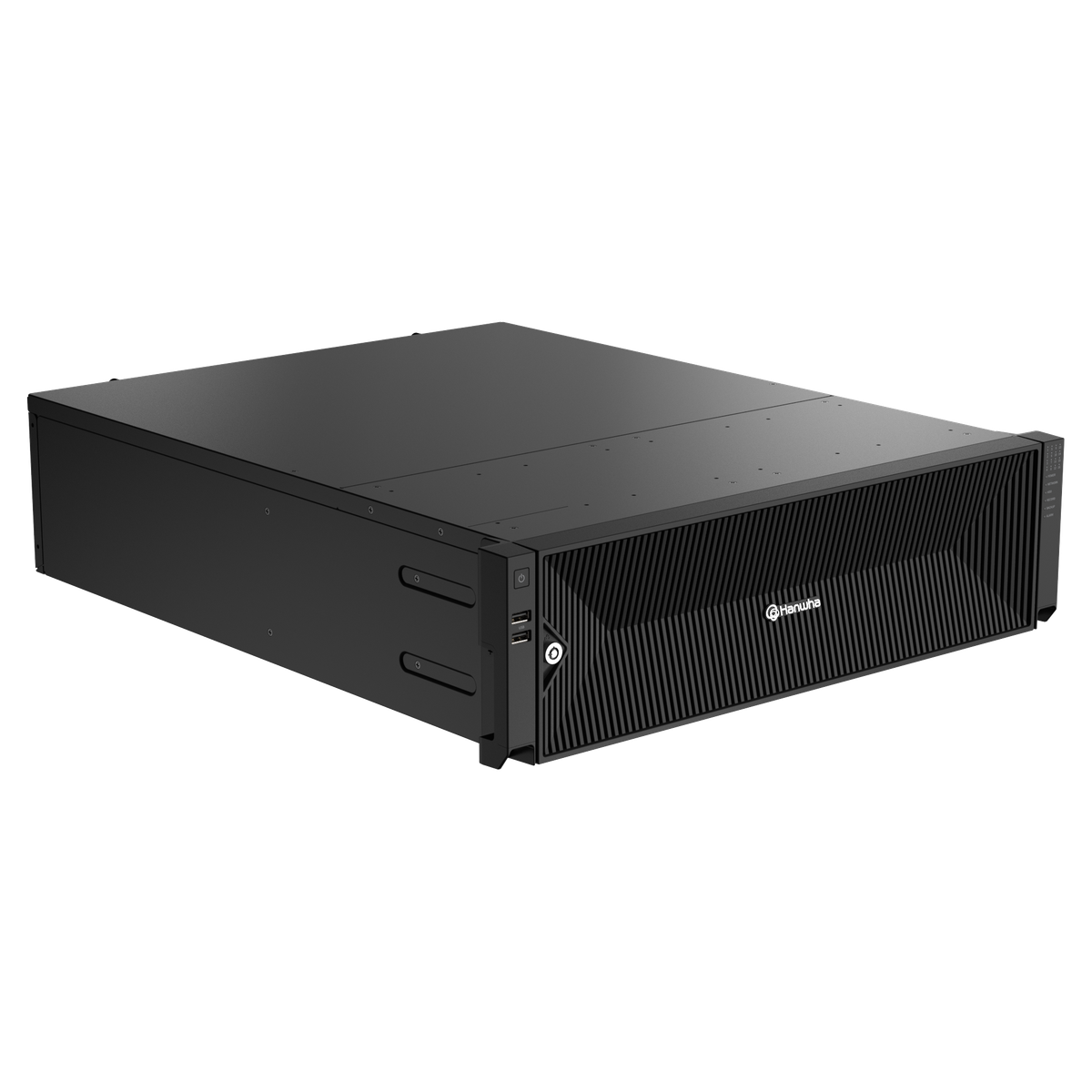

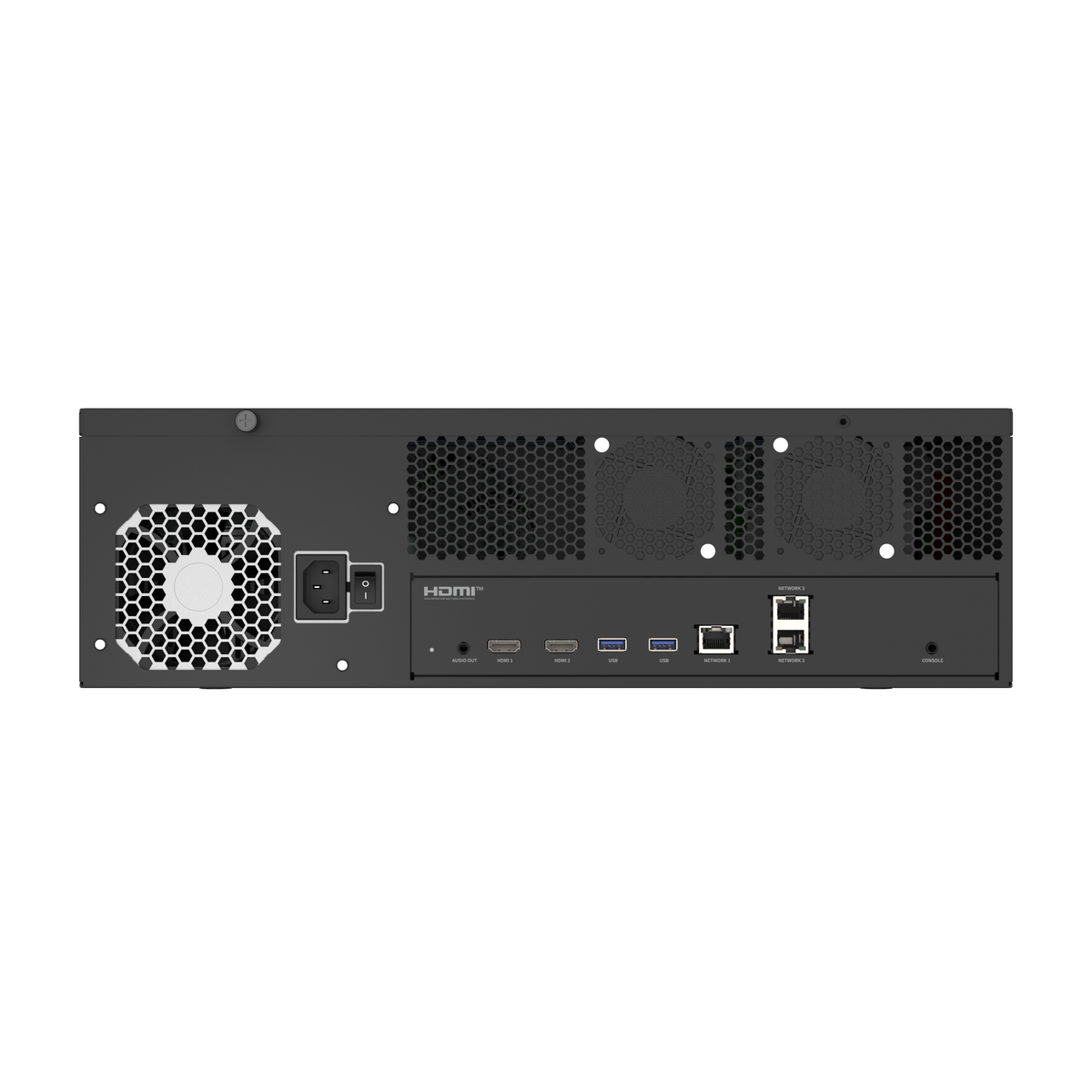

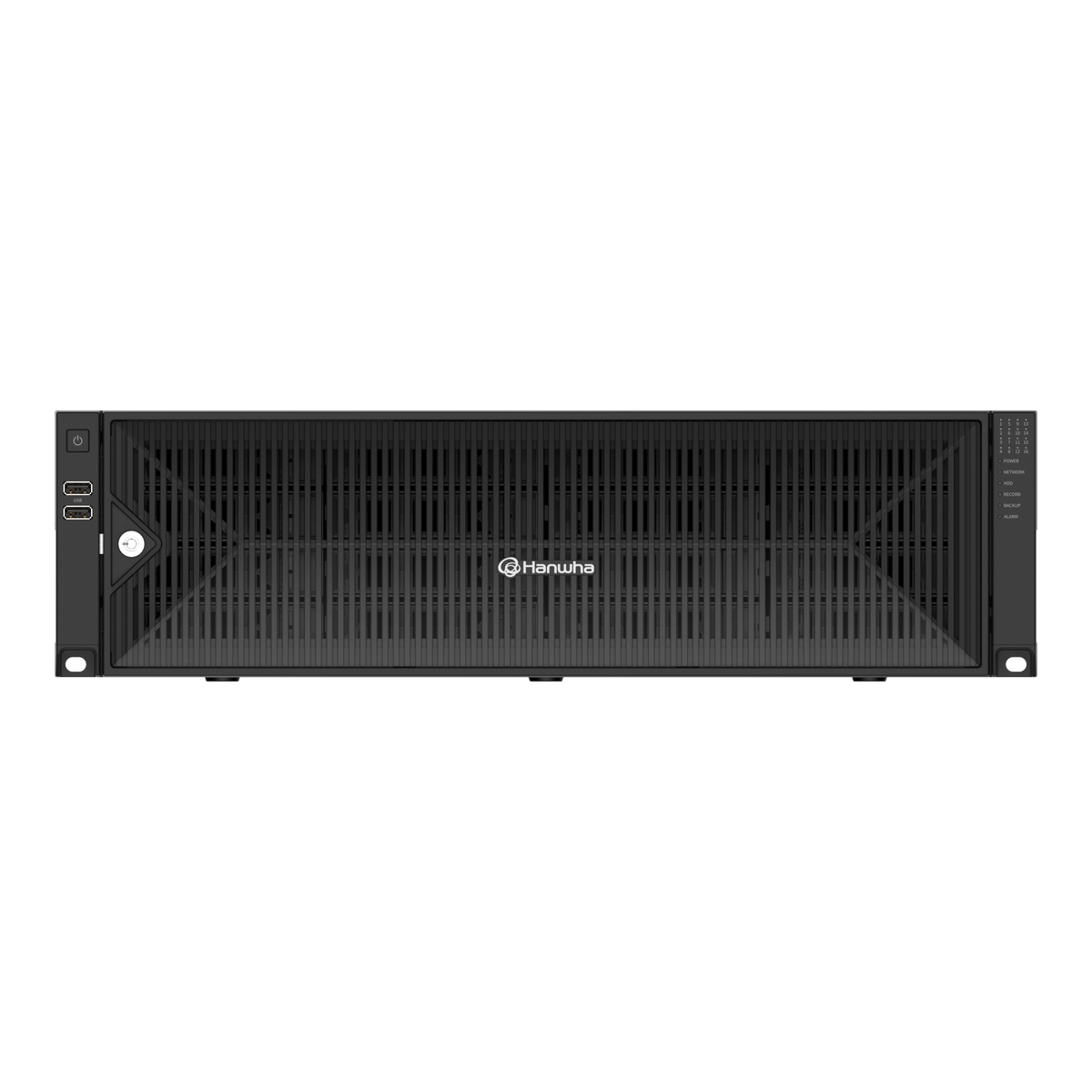

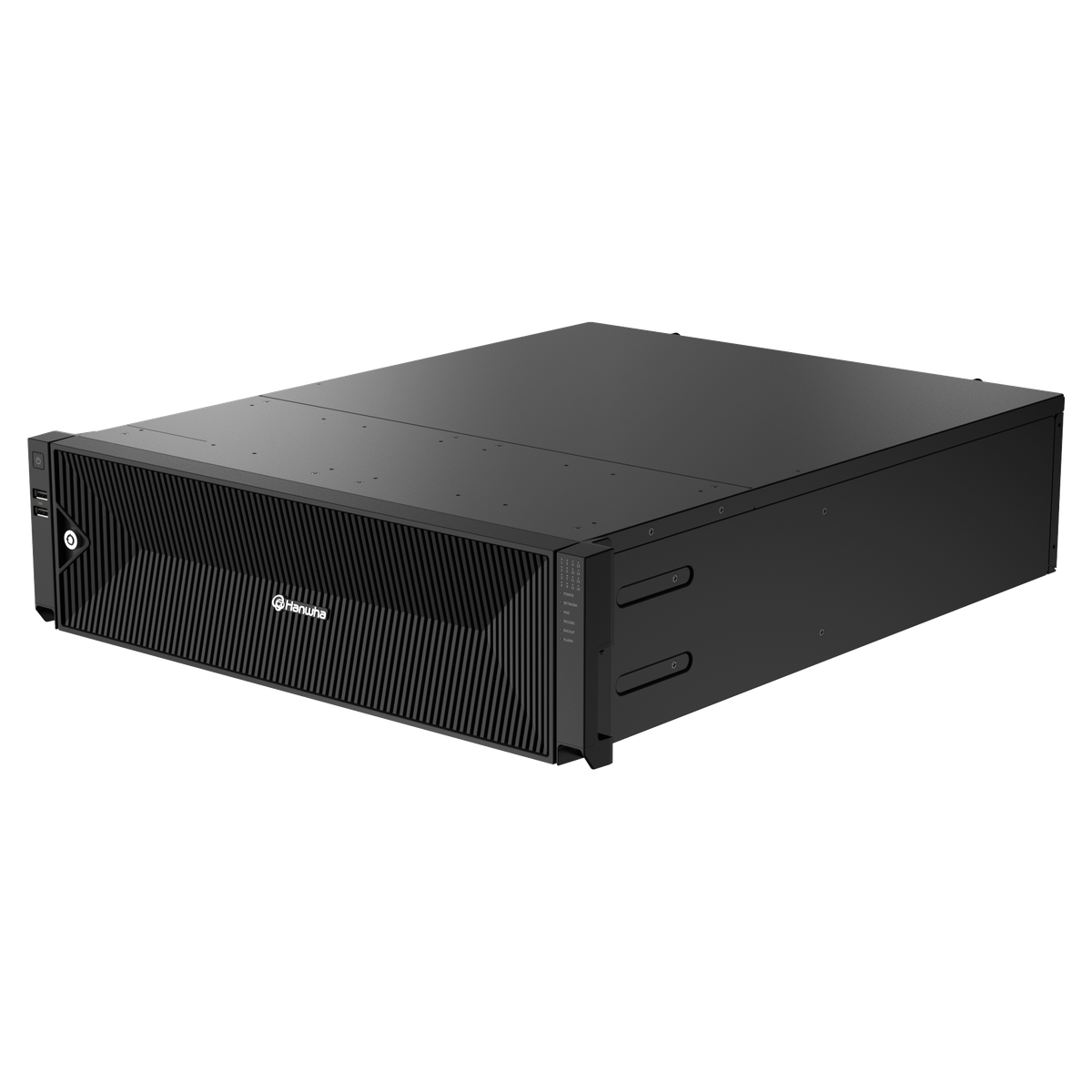

3U rackmount appliance with black metal chassis, measuring 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in.) and weighing 14.2 kg (31.3 lb). Operates from 0°C to 40°C with 20–85% RH non-condensing. Powered by 100–240 VAC, consuming up to 283W. Includes a 128GB SSD OS drive and 16 SATA drive bays, with optional software RAID 0/1/5/6 support.
