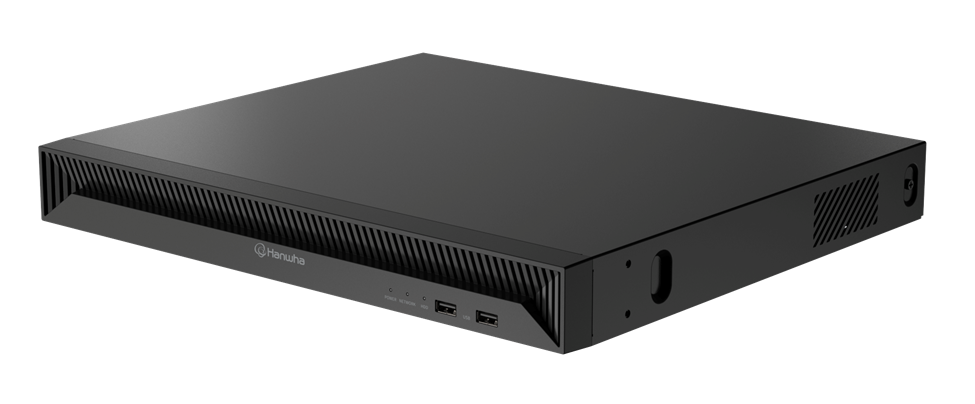

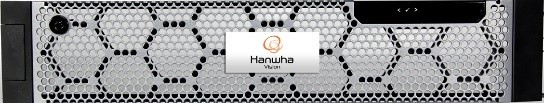

Hanwha - BRR-X3210A2E-16TB - 2U BLAZE Network Video Recorder Up To 32 Channels, 16TB Raw
Product Overview
The Hanwha BRR-X3210A2E-16TB is a 2U rackmount network video recorder with BLAZE VMS pre-installed, supporting up to 32 channels with 32 x BLAZE Premium Licenses included. This NVR features 16TB raw storage, 520 Mbps recording bandwidth, a 12th Gen Intel Core-S Pentium processor, 16GB DDR4 RAM, and a hardened operating system on a 256GB SSD.
Key Configuration
• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 8 SATA HDD bays with 16TB raw storage included
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)
Technical Context
This purpose-built NVR features pre-licensed BLAZE VMS 32 channels on a secure, hardened OS. It provides three 1GbE NICs for network segregation, dual HDMI outputs 4K + FHD for flexible monitoring, and 16TB of raw storage across 8 SATA bays expandable via JBOD or external solutions. The system comes complete with an included keyboard and mouse, RAID and IPMI are not supported.
| Model | BRR-X3210A2E-16TB |
| Form Factor | 2U Rackmount |
| Video Management Software | BLAZE VMS pre-installed |
| Included Licenses | 32 x BLAZE Premium Licenses |
| Maximum Channels | Up to 32 channels |
| Raw Storage | 16TB raw |
| RAID | Not supported |
| Recording Bandwidth | 520 Mbps |
| HDD Bays | 8 x SATA HDD Bays |
| Processor | 12th Gen Intel Core-S Pentium |
| Memory | 16GB DDR4 RAM |
| OS Drive | 256GB SSD |
| Operating System Hardening | Hardened OS |
| Video Outputs | 1 x HDMI (FHD), 1 x HDMI (4K) |
| Network Interfaces | 3 x 1GbE NICs |
| IPMI | Not supported |
| Accessories Included | Keyboard and mouse |
