Hanwha - BRR-X3210A2E-20TB - 2U BLAZE Network Video Recorder Up To 32 Channels, 20TB Raw
Product Overview

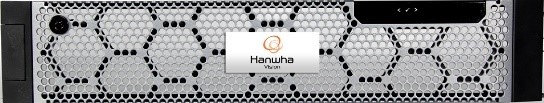

The Hanwha BRR-X3210A2E-20TB is a 2U rackmount NVR pre-installed with BLAZE VMS and 32 Premium Licenses to support up to 32 channels. It features 20TB of raw storage across 8 SATA bays and provides a 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor with 16GB DDR4 RAM, the appliance runs a secure, hardened operating system on a 256GB SSD.
Key Configuration
• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 8 SATA HDD bays with 20TB raw storage included (~18TB usable)
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)
Technical Context
This configuration utilizes three 1GbE NICs to enable dedicated network segregation for traffic, management, and clients. It also features dual HDMI outputs (one 4K and one FHD) for flexible multi-monitor viewing, and permits storage expansion via external systems or JBOD configuration.
| Model | BRR-X3210A2E-20TB |
| Form Factor | 2U Rackmount |
| Video Management Software | BLAZE VMS pre-installed |
| Included Licenses | 32 x BLAZE Premium Licenses |
| Maximum Channels | Up to 32 channels |
| Raw Storage | 20TB raw (~18TB usable after disk formatting) |
| RAID | Not supported |
| Recording Bandwidth | 520 Mbps |
| HDD Bays | 8 x SATA HDD Bays |
| Processor | 12th Gen Intel Core-S Pentium |
| Memory | 16GB DDR4 RAM |
| OS Drive | 256GB SSD |
| Operating System Hardening | Hardened OS |
| Video Outputs | 1 x HDMI (FHD), 1 x HDMI (4K) |
| Network Interfaces | 3 x 1GbE NICs |
| IPMI | Not supported |
| Accessories Included | Keyboard and mouse |
