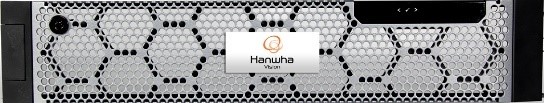

The Hanwha BRR-X3210A2E-32TB is a 2U rackmount NVR pre-installed with BLAZE VMS and 32 Premium Licenses to support up to 32 channels. It offers 32TB of raw storage across 8 SATA bays and a robust 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor with 16GB DDR4 RAM, the appliance features a secure, hardened operating system running on a 256GB SSD.
• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 8 SATA HDD bays with 32TB raw storage included
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)
This appliance features a secure, hardened OS and three 1GbE NICs for network segregation. It includes 32TB of raw storage across 8 SATA bays expandable via JBOD or external options, along with dual HDMI outputs 4K + FHD for flexible monitoring. Accessories included a keyboard and a mouse, RAID was not supported.
| Model | BRR-X3210A2E-32TB |
| Form Factor | 2U Rackmount |
| Video Management Software | BLAZE VMS pre-installed |
| Included Licenses | 32 x BLAZE Premium Licenses |
| Maximum Channels | Up to 32 channels |
| Raw Storage | 32TB raw |
| RAID | Not supported |
| Recording Bandwidth | 520 Mbps |
| HDD Bays | 8 x SATA HDD Bays |
| Processor | 12th Gen Intel Core-S Pentium |
| Memory | 16GB DDR4 RAM |
| OS Drive | 256GB SSD |
| Operating System Hardening | Hardened OS |
| Video Outputs | 1 x HDMI (FHD), 1 x HDMI (4K) |
| Network Interfaces | 3 x 1GbE NICs |
| IPMI | Not supported |
| Accessories Included | Keyboard and mouse |
