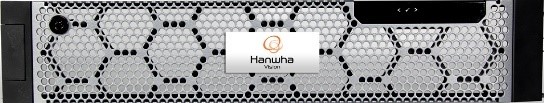

Hanwha - BRR-X3210A2E-40TB - 2U BLAZE Network Video Recorder Up To 32 Channels, 40TB Raw
Product Overview
The Hanwha BRR-X3210A2E-40TB is a 2U rackmount NVR pre-installed with BLAZE VMS and 32 Premium Licenses. It delivers 40TB of raw storage and a 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor and 16GB DDR4 RAM, the appliance runs a secure, hardened operating system on a 256GB SSD.
Key Configuration
• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 8 SATA HDD bays with 40TB raw storage included
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)
Technical Context
The system features three 1GbE NICs for dedicated network segregation and dual HDMI outputs 4K and FHD for multi-monitor viewing. Storage is expandable via JBOD configuration or external solutions. The unit includes approximately 40TB of usable storage and comes complete with an included keyboard and mouse, IPMI is not supported.
| Model | BRR-X3210A2E-40TB |
| Form Factor | 2U Rackmount |
| Video Management Software | BLAZE VMS pre-installed |
| Included Licenses | 32 x BLAZE Premium Licenses |
| Maximum Channels | Up to 32 channels |
| Raw Storage | 40TB raw |
| RAID | Not supported |
| Recording Bandwidth | 520 Mbps |
| HDD Bays | 8 x SATA HDD Bays |
| Processor | 12th Gen Intel Core-S Pentium |
| Memory | 16GB DDR4 RAM |
| OS Drive | 256GB SSD |
| Operating System Hardening | Hardened OS |
| Video Outputs | 1 x HDMI (FHD), 1 x HDMI (4K) |
| Network Interfaces | 3 x 1GbE NICs |
| IPMI | Not supported |
| Accessories Included | Keyboard and mouse |
