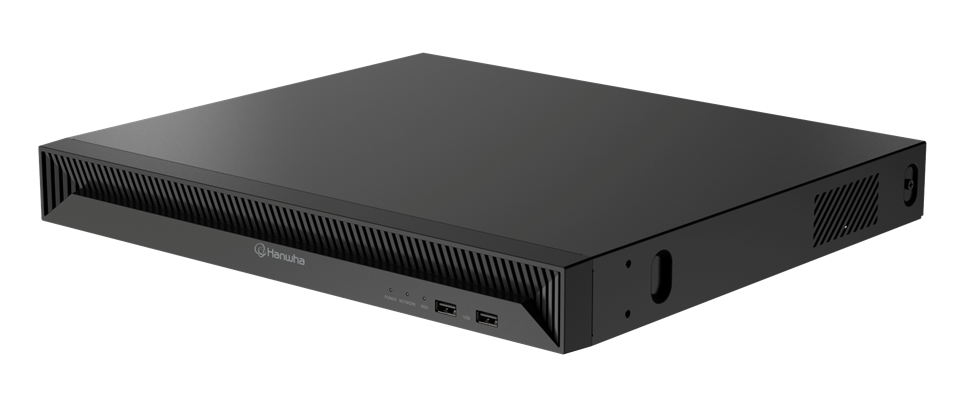

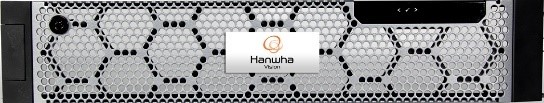

Hanwha - BRR-X3210A2E-80TB - 2U BLAZE Network Video Recorder Up To 32 Channels, 80TB Raw
Product Overview
The Hanwha BRR-X3210A2E-80TB is a 2U rackmount NVR pre-installed with BLAZE VMS and 32 Premium Licenses. It delivers 80TB of raw storage across 8 SATA bays and a 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor with 16GB DDR4 RAM, the appliance runs a secure, hardened operating system on a 256GB SSD.
Key Configuration
• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 8 SATA HDD bays with 80TB raw storage included
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)
Technical Context
The system features three 1GbE NICs for dedicated network segregation and dual HDMI outputs 4K and FHD, for multi-monitor setups. It also permits storage expansion via JBOD configuration or external solutions. This unit includes a dedicated keyboard and mouse, IPMI is not supported.
| Model | BRR-X3210A2E-80TB |
| Form Factor | 2U Rackmount |
| Video Management Software | BLAZE VMS pre-installed |
| Included Licenses | 32 x BLAZE Premium Licenses |
| Maximum Channels | Up to 32 channels |
| Raw Storage | 80TB raw |
| RAID | Not supported |
| Recording Bandwidth | 520 Mbps |
| HDD Bays | 8 x SATA HDD Bays |
| Processor | 12th Gen Intel Core-S Pentium |
| Memory | 16GB DDR4 RAM |
| OS Drive | 256GB SSD |
| Operating System Hardening | Hardened OS |
| Video Outputs | 1 x HDMI (FHD), 1 x HDMI (4K) |
| Network Interfaces | 3 x 1GbE NICs |
| IPMI | Not supported |
| Accessories Included | Keyboard and mouse |
