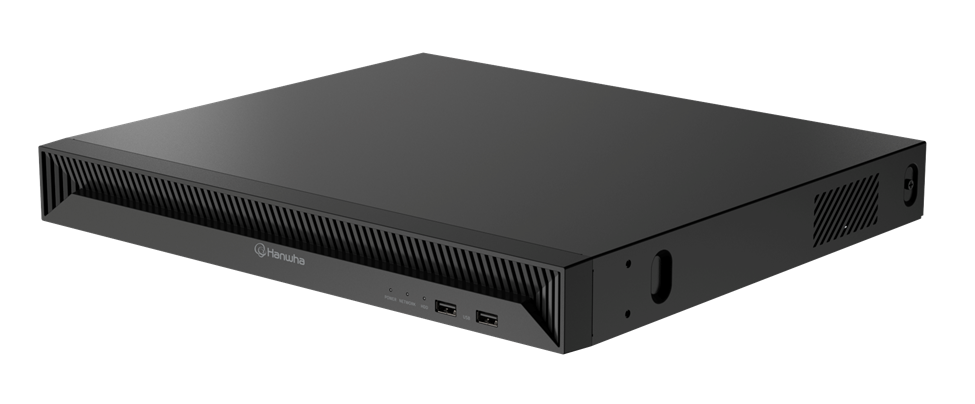

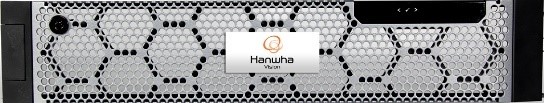

Hanwha - BRR-X3210A2E-8TB - 2U BLAZE Network Video Recorder Up To 32 Channels, 8TB Raw

Product Overview

The Hanwha BRR-X3210A2E-8TB is a 2U rackmount network video recorder pre-installed with BLAZE VMS and includes 32 BLAZE Premium Licenses to support up to 32 channels. It features 8TB of raw storage across 8 SATA HDD bays and delivers a high 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor with 16GB DDR4 RAM, the system ensures reliable operation via a hardened OS running on a dedicated 256GB SSD.

Key Configuration

• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 8 SATA HDD bays with 8TB raw storage included
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)

Technical Context

Featuring three 1GbE NICs, this appliance enables network segregation for camera traffic, client access, and management functions. It also provides flexible monitoring options via dual HDMI outputs (one 4K and one FHD) and allows for storage expansion using JBOD configuration or external solutions. Note that RAID and IPMI are not supported, and the unit comes complete with an included keyboard and mouse.
