Hanwha - BRR-X3210A4E-16TB - 3U BLAZE Network Video Recorder Up To 32 Channels, 16TB Raw
Product Overview

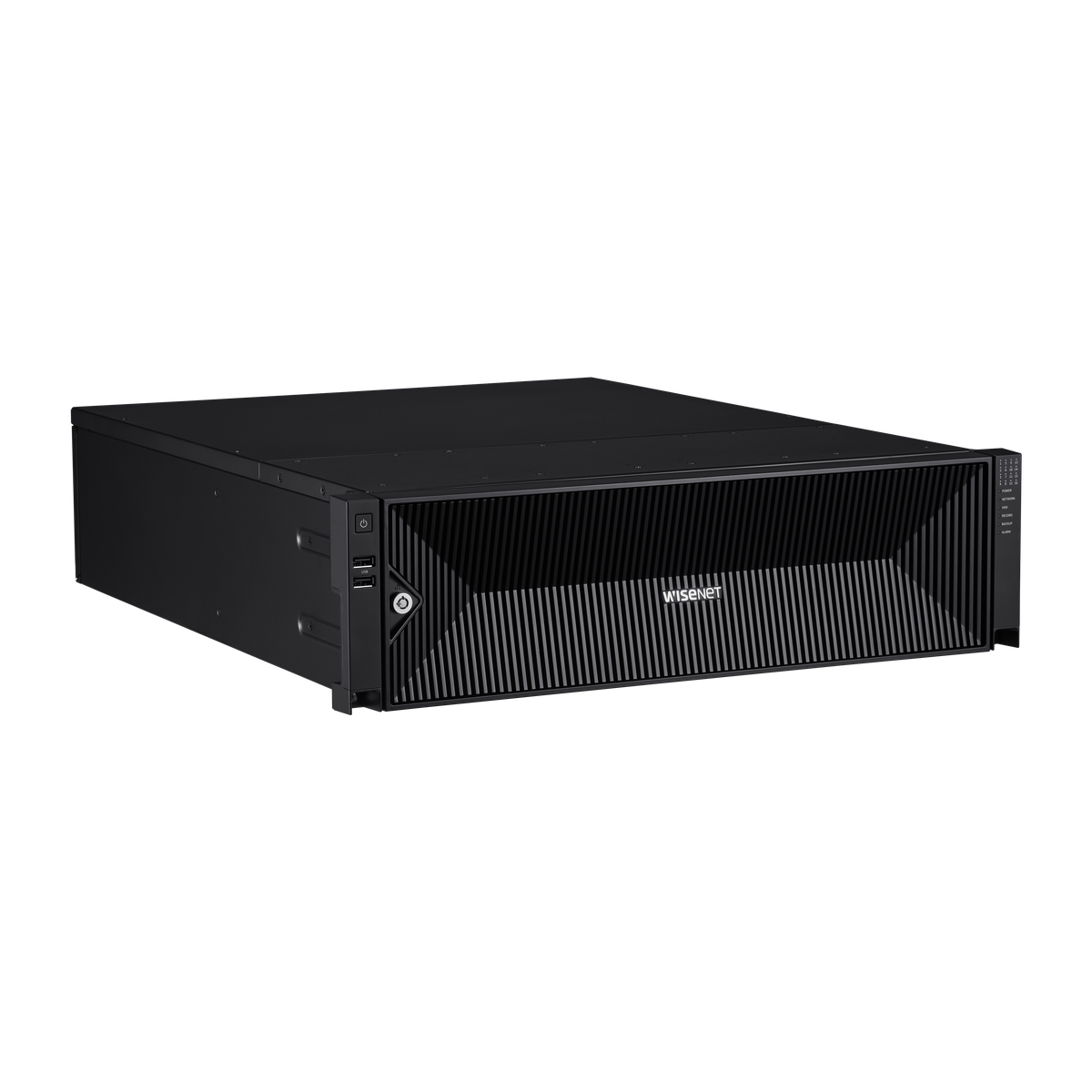

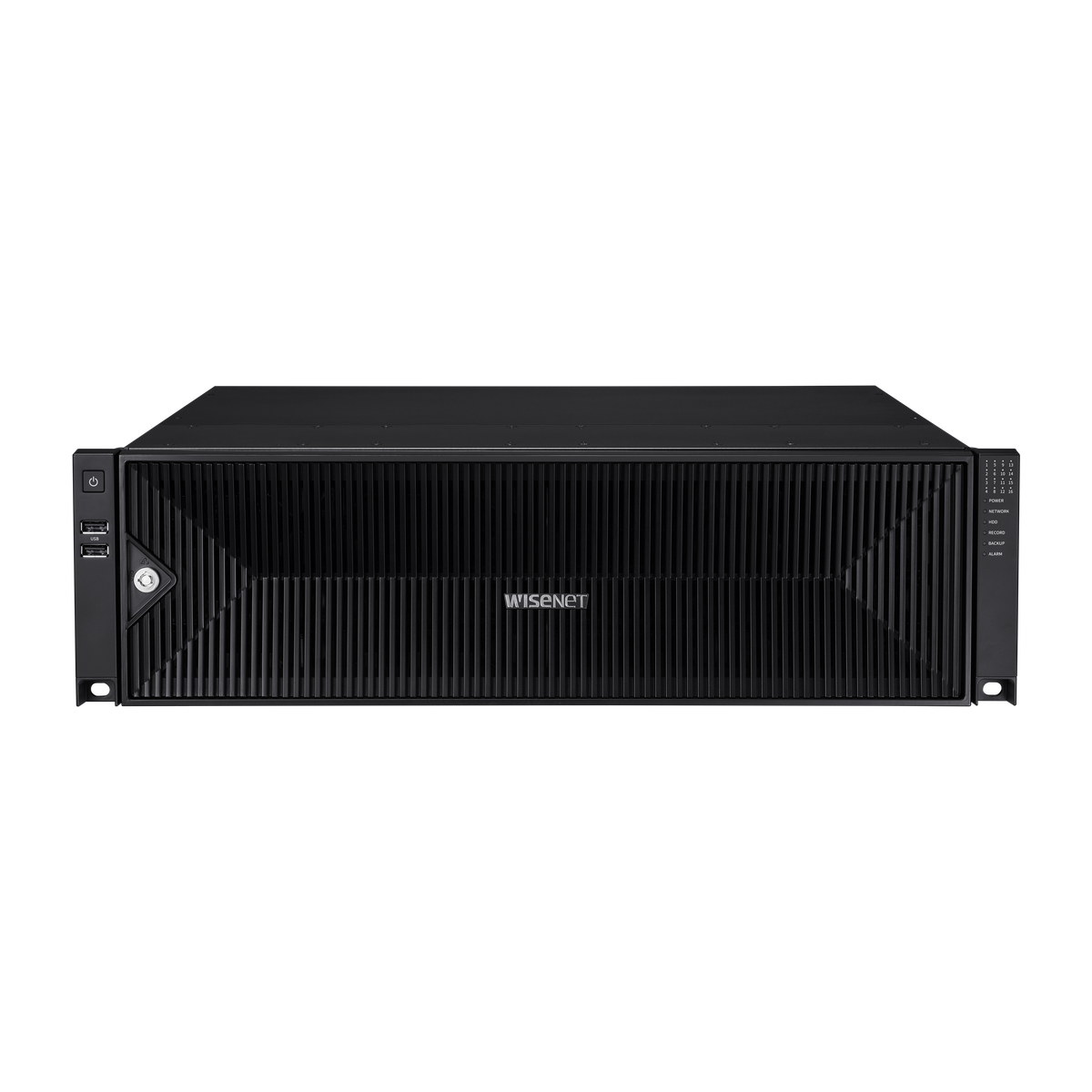

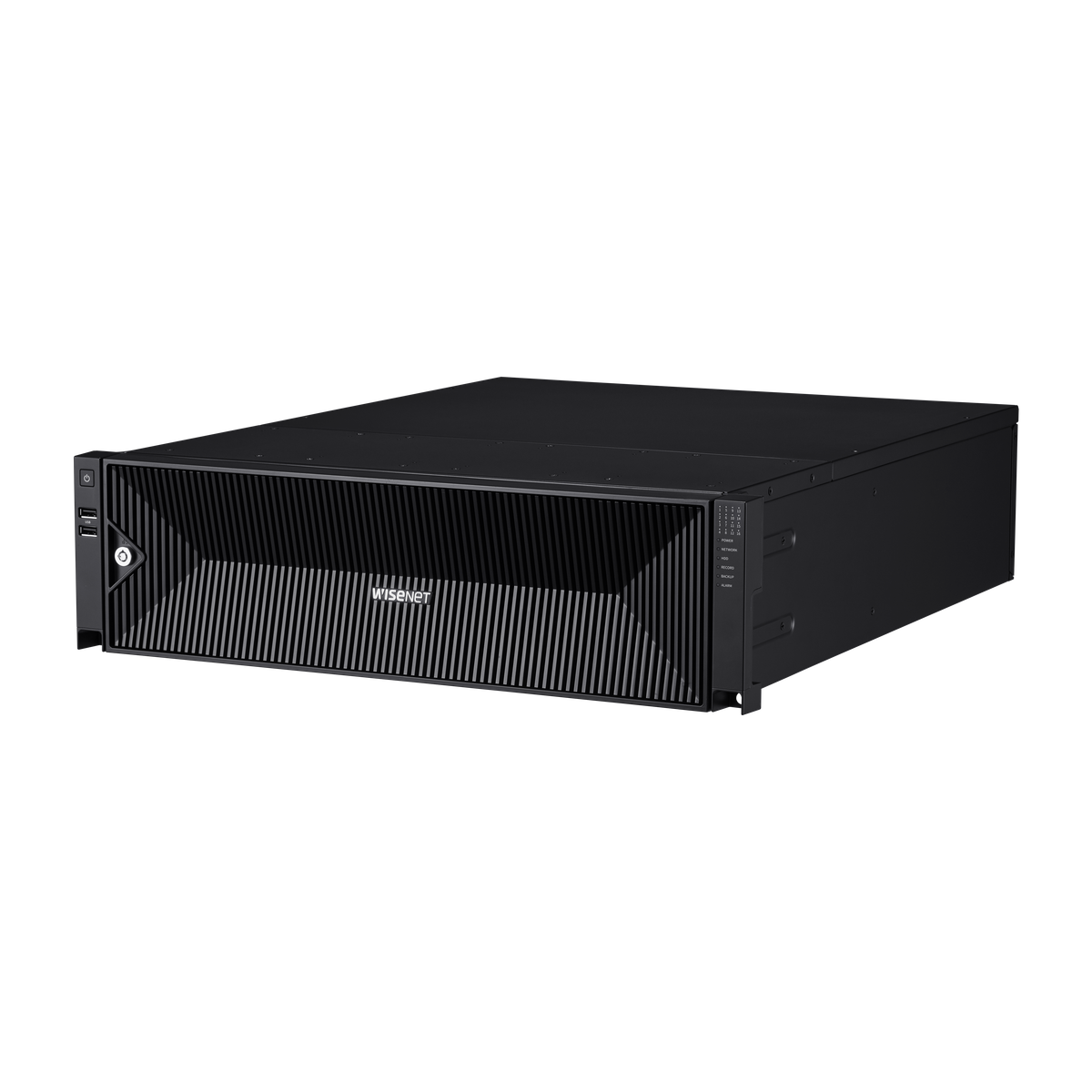

The Hanwha BRR-X3210A4E-16TB is a 3U rackmount NVR pre-installed with BLAZE VMS and 32 Premium Licenses to support up to 32 channels. It features 16TB of raw storage across 16 SATA HDD bays and delivers a 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor with 16GB DDR4 RAM, the appliance runs a secure, hardened operating system on a 256GB SSD.
Key Configuration
• Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• Recording bandwidth: 520 Mbps
• Storage: 16 SATA HDD bays with 16TB raw storage included
• Network: 3 × 1GbE NIC ports
• Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)
Technical Context
This appliance features three 1GbE NICs for network segregation and provides approximately 16TB of usable storage without IPMI and RAID support. For monitoring and management, it includes dual HDMI outputs 4K and FHD, a keyboard and a mouse.
| Model | BRR-X3210A4E-16TB |
| Form Factor | 3U Rackmount |
| Video Management Software | BLAZE VMS pre-installed |
| Included Licenses | 32 x BLAZE Premium Licenses |
| Maximum Channels | Up to 32 channels |
| Raw Storage | 16TB raw |
| RAID | Not supported |
| Recording Bandwidth | 520 Mbps |
| HDD Bays | 16 x SATA HDD Bays |
| Processor | 12th Gen Intel Core-S Pentium |
| Memory | 16GB DDR4 RAM |
| OS Drive | 256GB SSD |
| Operating System Hardening | Hardened OS |
| Video Outputs | 1 x HDMI (FHD), 1 x HDMI (4K) |
| Network Interfaces | 3 x 1GbE NICs |
| IPMI | Not supported |
| Accessories Included | Keyboard and mouse |
