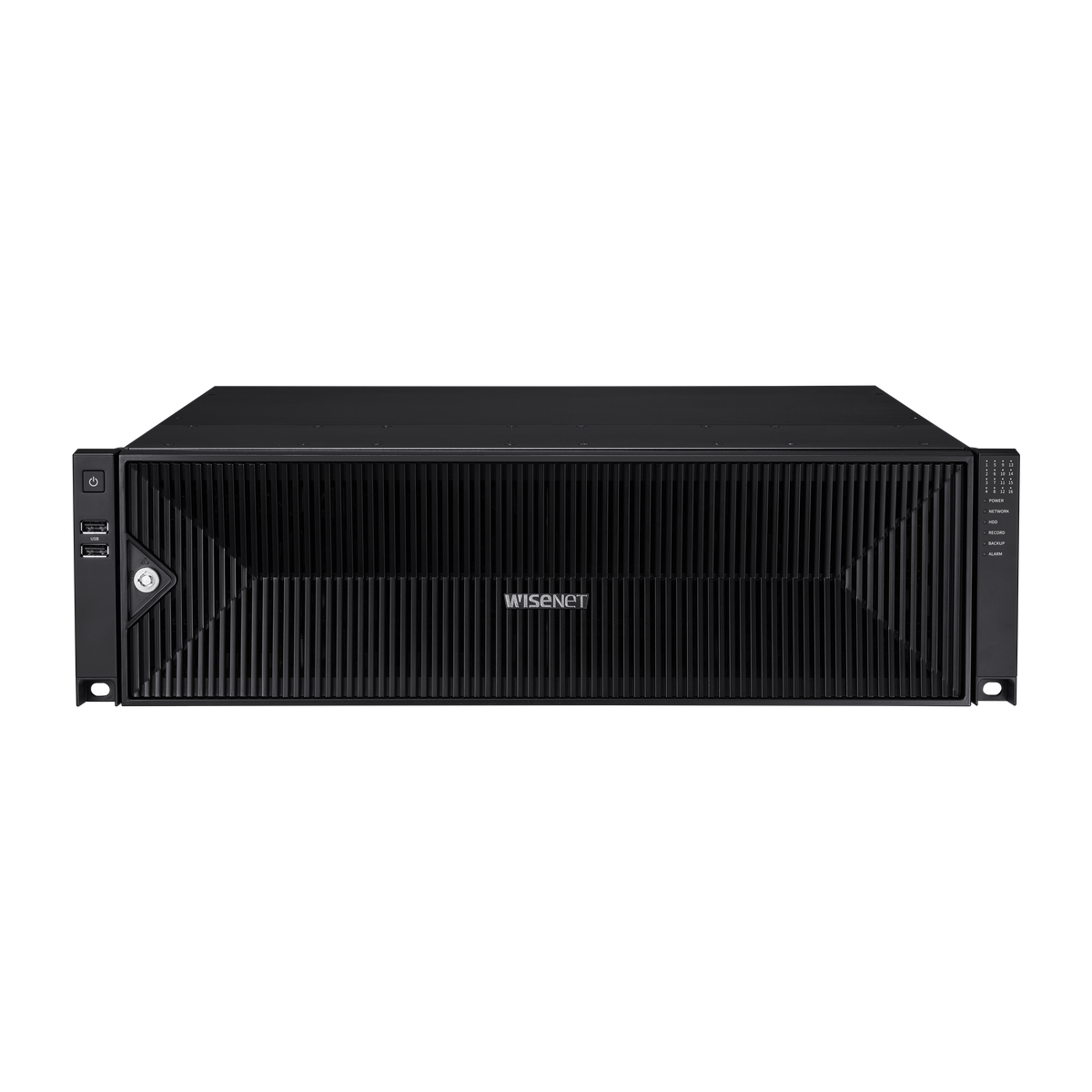

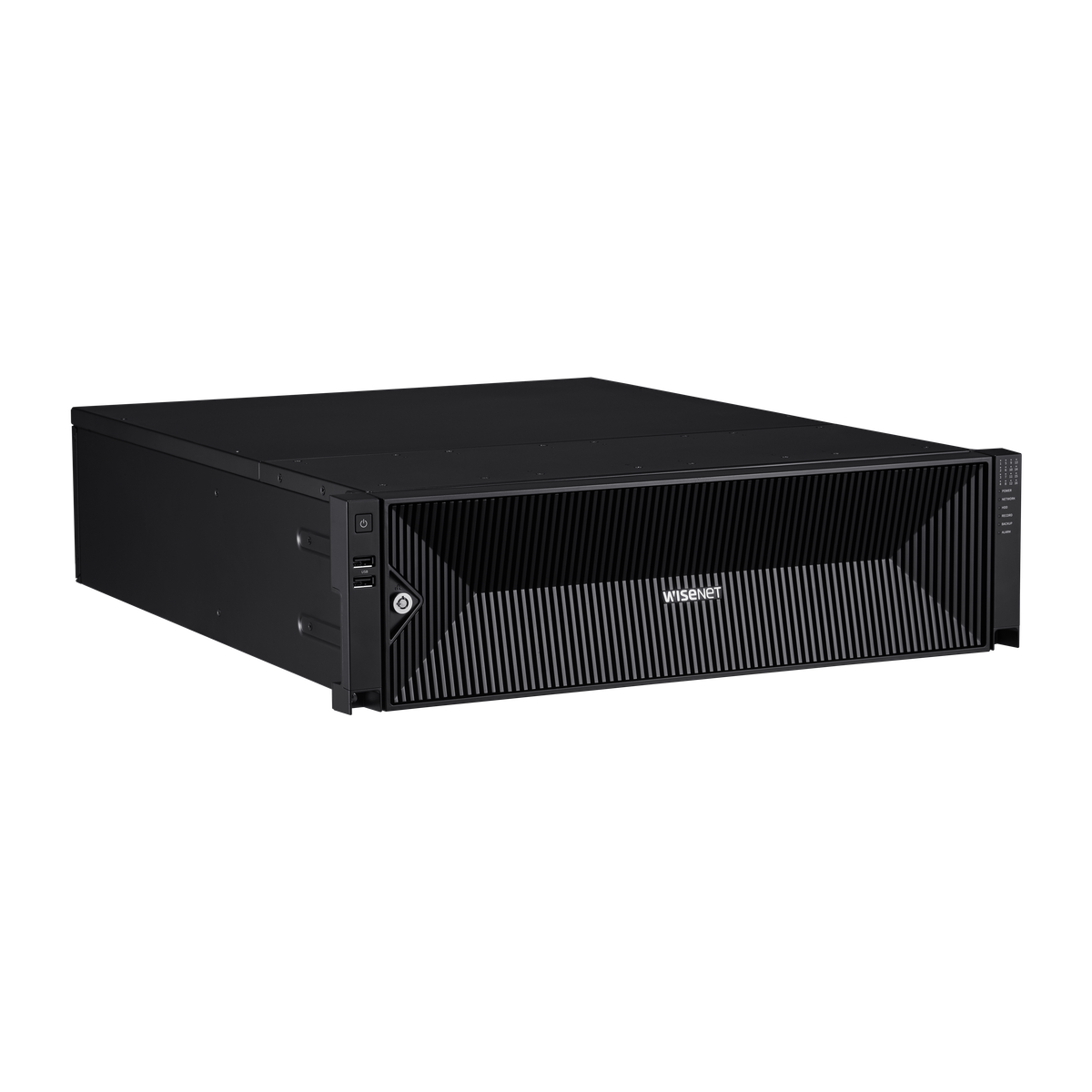

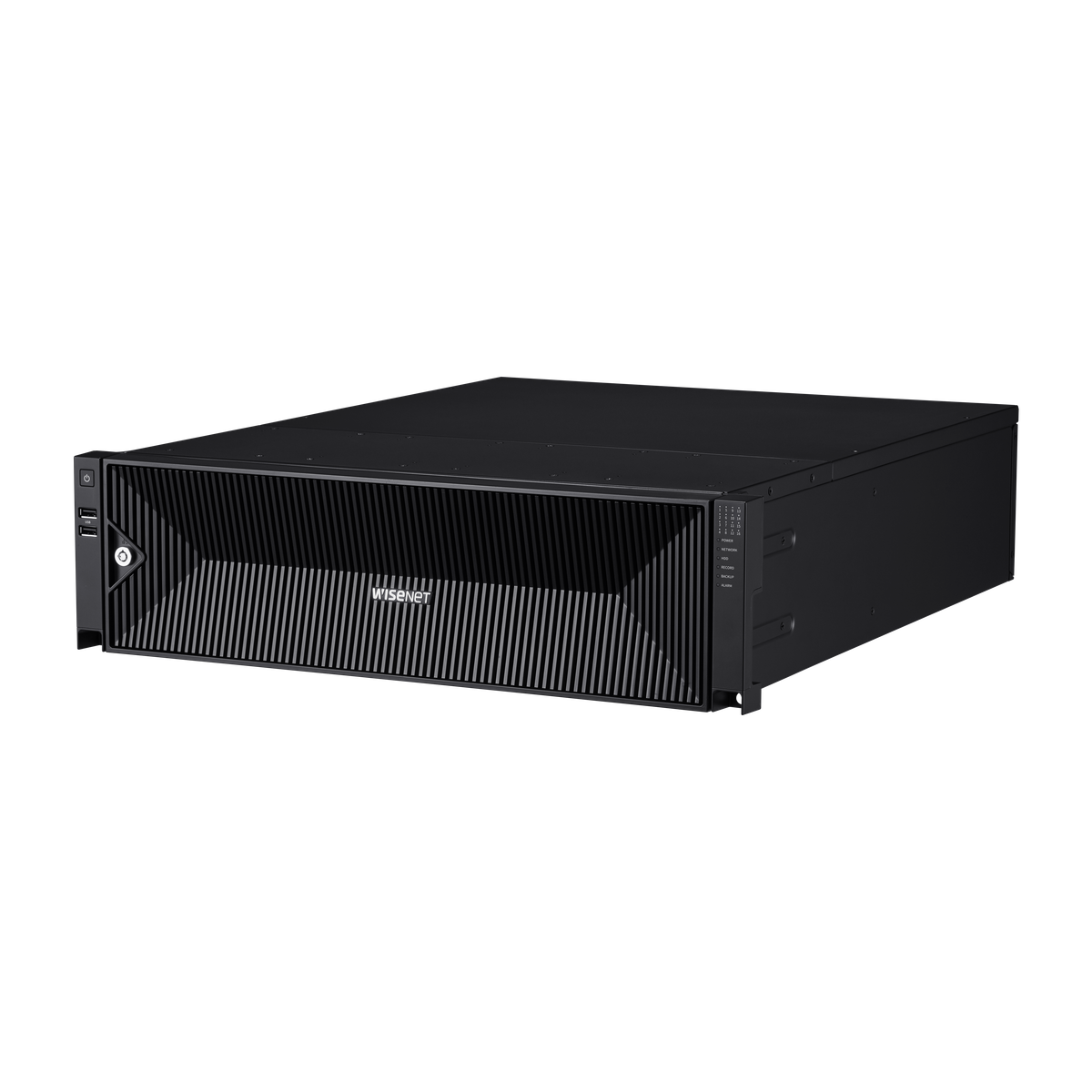

Hanwha - BRR-X3210A4E-32TB - 3U BLAZE Network Video Recorder Up To 32 Channels, 32TB Raw

Product Overview

The Hanwha BRR-X3210A4E-32TB is a 3U rackmount NVR pre-installed with BLAZE VMS and 32 Premium Licenses to support up to 32 channels. It features 32TB of raw storage across 16 SATA HDD bays and delivers a 520 Mbps recording bandwidth. Powered by a 12th Gen Intel Core-S Pentium processor with 16GB DDR4 RAM, the appliance runs a secure, hardened operating system on a 256GB SSD.

Key Configuration

• • Channels: up to 32 IP channels with 32 included BLAZE Premium licenses
• • Recording bandwidth: 520 Mbps
• • Storage: 16 SATA HDD bays with 32TB raw storage included
• • Network: 3 × 1GbE NIC ports
• • Video outputs: 1 × HDMI (Full HD), 1 × HDMI (4K UHD)

Technical Context

This appliance features three 1GbE NICs for network segregation and provides approximately 32TB of usable storage without IPMI and RAID support. For monitoring and management, it includes dual HDMI outputs 4K and FHD, a keyboard and a mouse.
