Product Overview

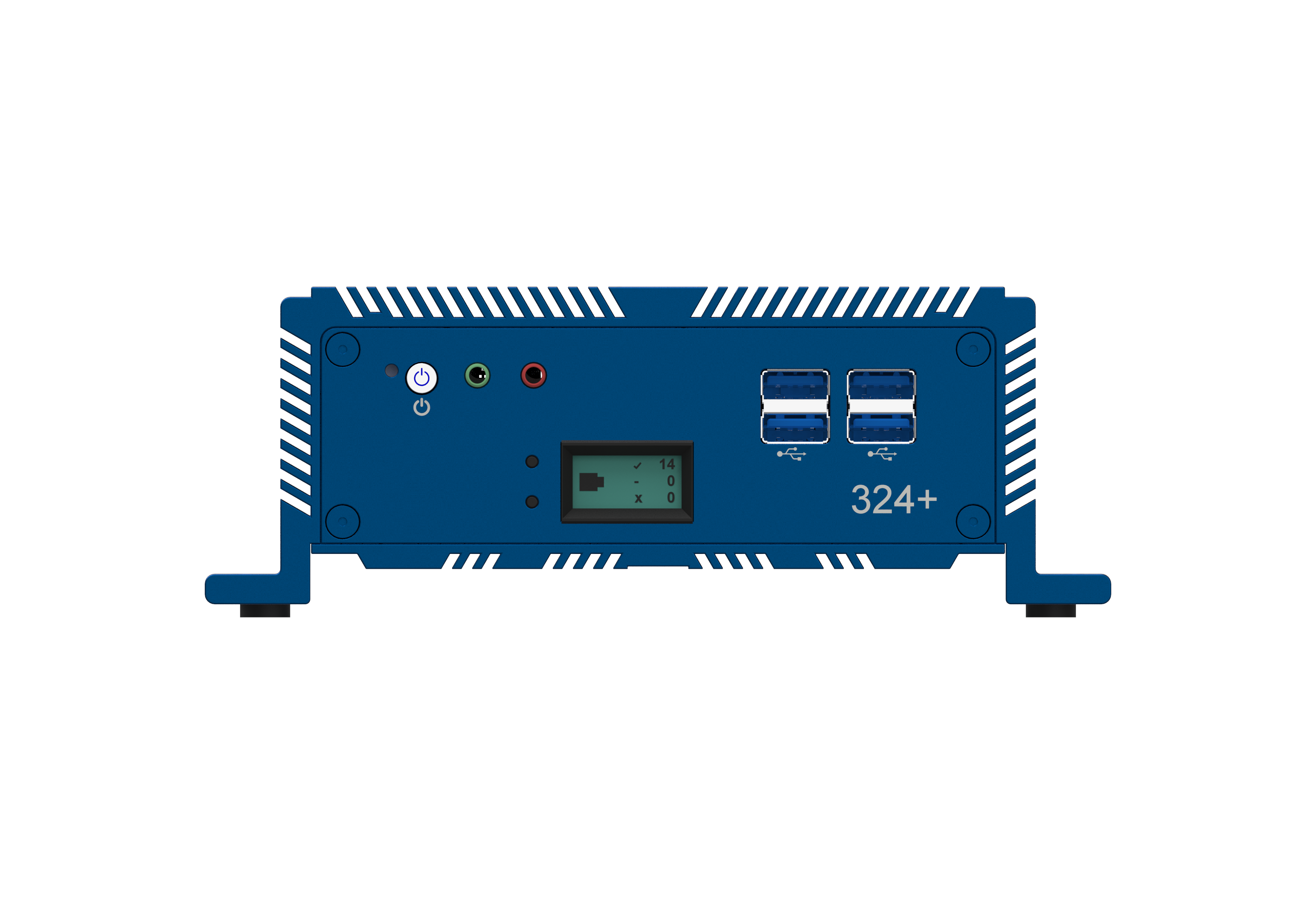

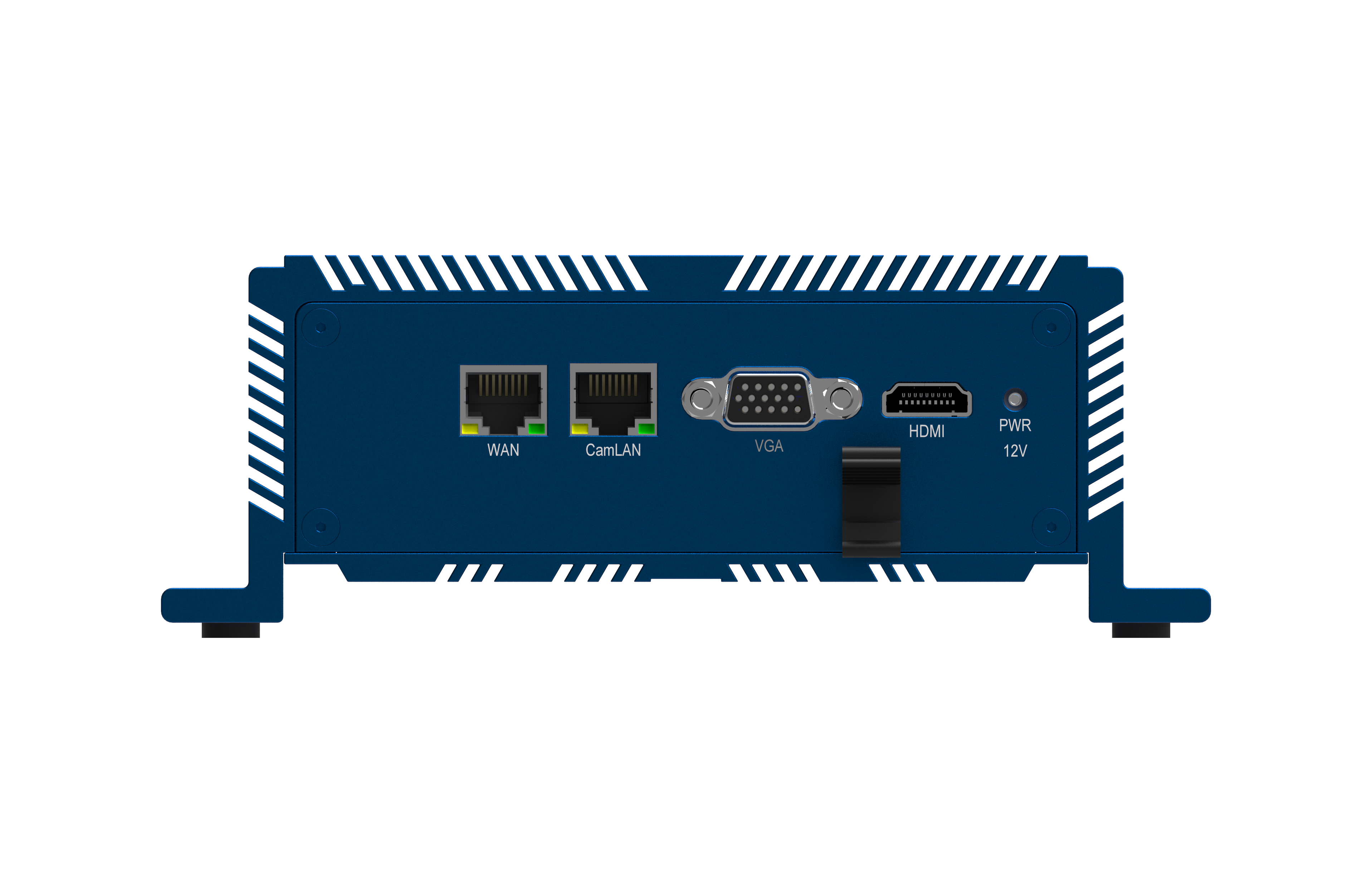

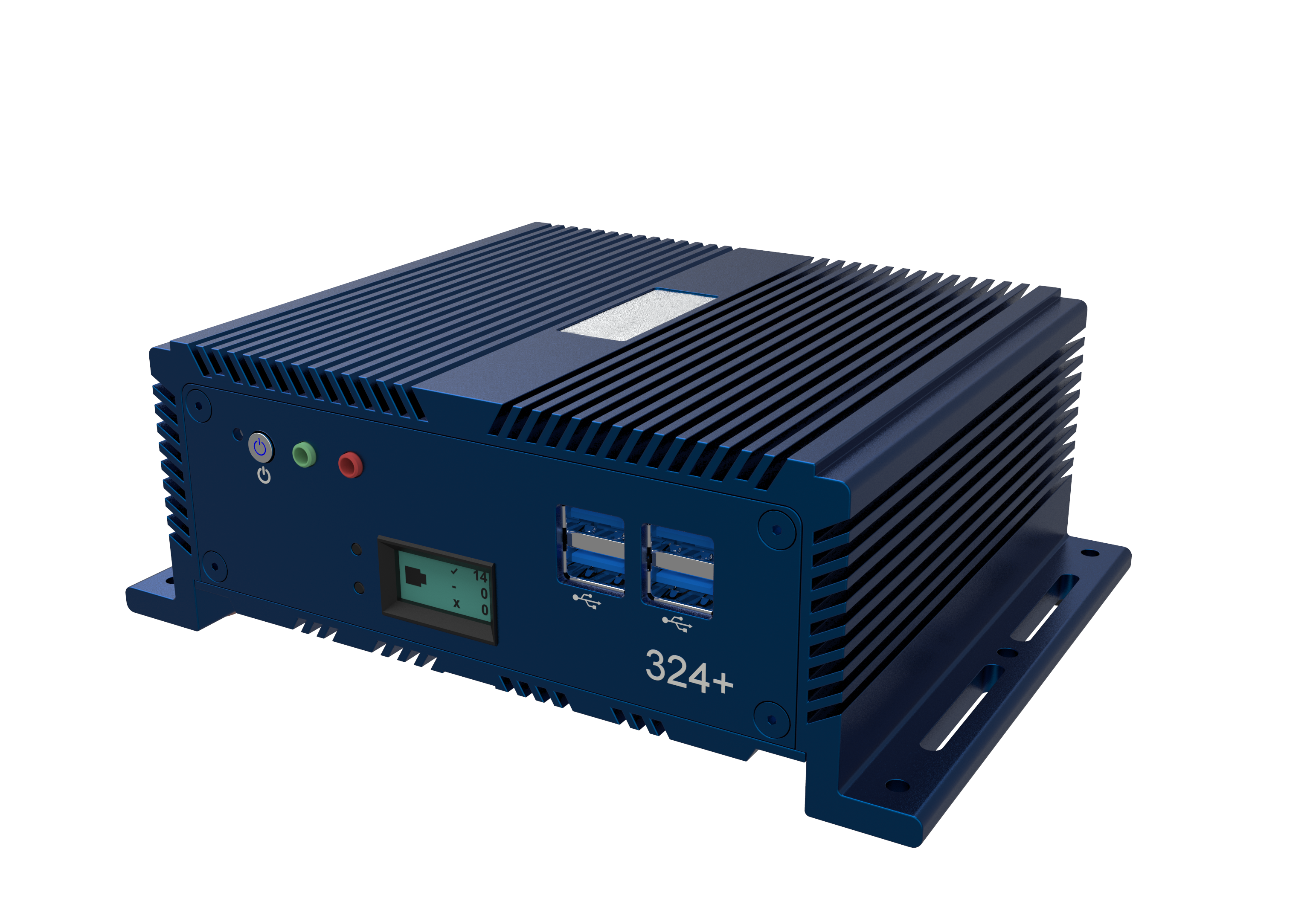

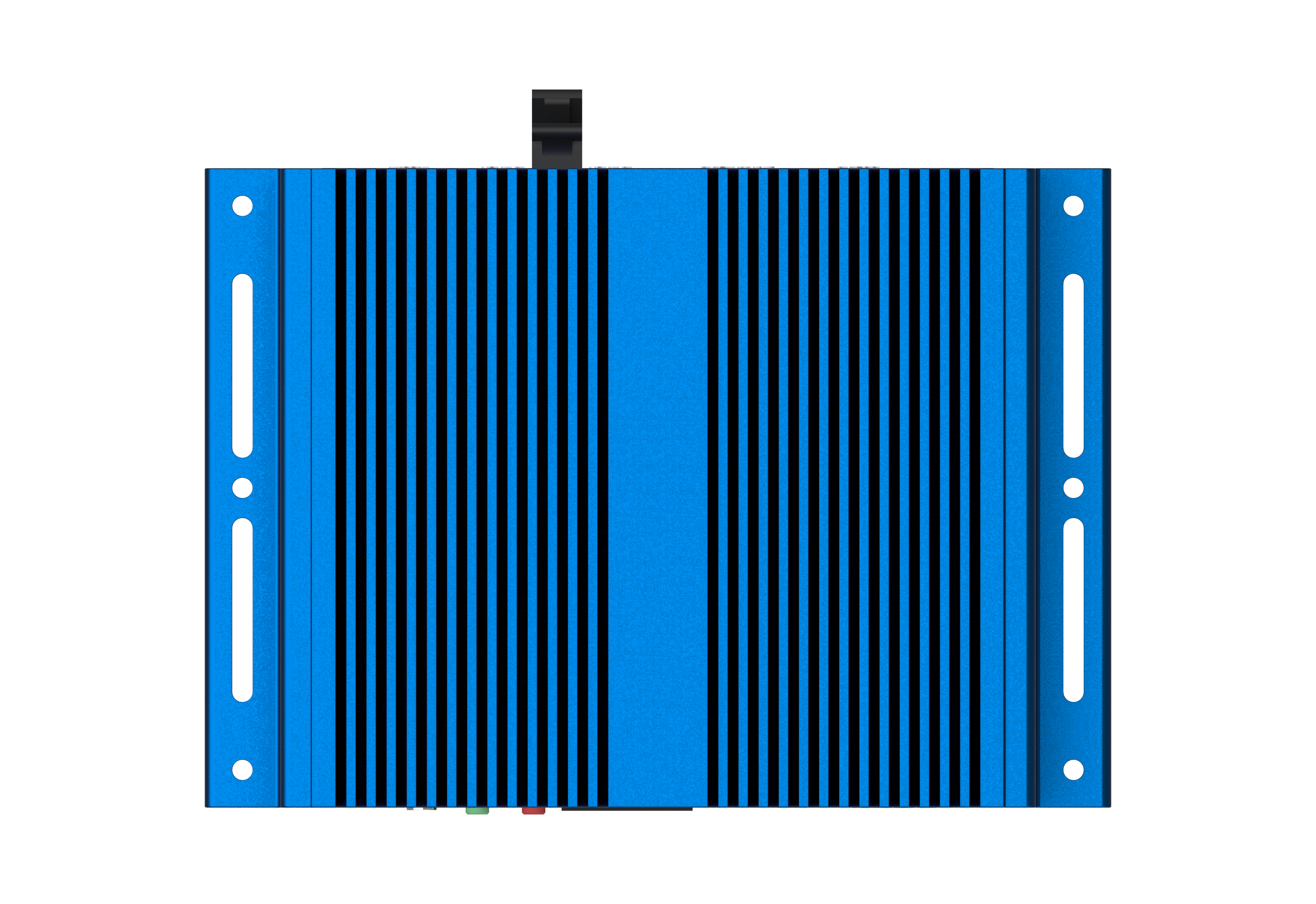

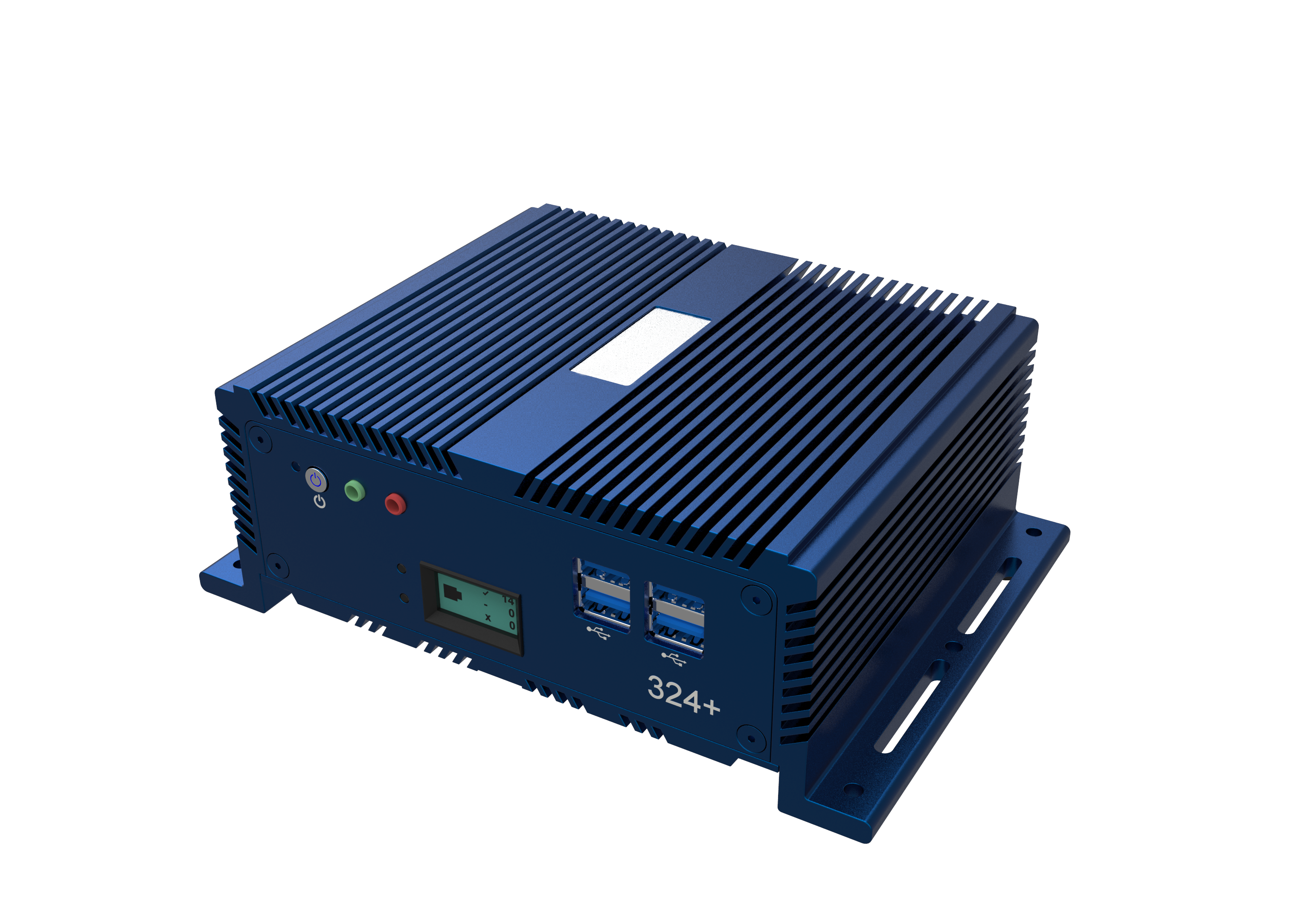

The Hanwha CMVR 324+ is a cloud video recorder that combines local recording with secure connectivity to the Wisenet SKY Cloud VMS. It supports up to 12 IP cameras at 4MP, includes 4TB of onboard storage (up to 60 days for 12 cameras at 1MP), and features dual Gigabit ports for network isolation. No inbound network connections are required.
Key Configuration
• Maximum cameras: Up to 12 IP cameras at 4MP resolution
• Storage: 4TB (up to 60 days for 12 cameras at 1MP)
• Analytics: Up to 5 supported analytics functions
• Network: Dual Gigabit Ethernet ports for secure segmentation
• Video outputs: 1 × HDMI, 1 × VGA
• Power: External 100–240 VAC, max 20W consumption
Key Features
Supports automatic network setup with secure dual-port camera isolation, no inbound access required, and network health monitoring with packet loss and disconnection alerts. Includes remote management, auto camera discovery/configuration, cloud-synced settings, motion detection, local buffering, and system status notifications. No LPR support or built-in PoE ports. Certifications include FCC, UL, CE, and RoHS.
Installation Notes
Measuring 180 × 127 × 64 mm and weighing 1.37 kg. Operates from -10°C to 50°C with up to 70% RH, powered by an external 100–240 VAC supply (20W max). Includes dual Gigabit ports for separate camera and cloud networks, HDMI/VGA outputs for local viewing, and 4TB internal storage. Subscription includes 2-year warranty with 24/7 email/web support and business-hours phone support, plus optional rapid replacement plans.
| Max Cameras | Up to 12 IP Cameras @4MP |
| Max Analytic Count | 5 |
| LPR Support | No |
| Storage Capacity | 4TB (60 days for 12 cameras @ 1MP) |
| POE Camera Ports | None |
| Network Ports | Dual Gigabit |
| Video Output | HDMI (1), VGA (1) |
| Dimension | 180 x 127 x 64mm (7.08 x 5.00 x 2.50in) |
| Weight | 1.37kg (3.03lbs) |
| Maximum Power Consumption | External 100-240 VAC, 20 W |
| Operating Temperature Range | -10-50° C (14-122°F) |
| Operating Humidity Range | 0-70% |
| Certifications | FCC, UL, CE, UKCA, PSE, NOM, ACM, RoHS, CTick, WEEE |
| Rapid Replacement Part Numbers | EN-RR324p-1 (Monthly) EN-RR324p-12 (Yearly) |
