Hanwha - HRX-1635-2TB - 16 Channel Pentabrid DVR, 2TB

Product Overview

Hanwha HRX-1635 is a 16-channel pentabrid hybrid recorder supporting AHD, HDTVI, HDCVI, CVBS, and IP inputs with up to 18 total channels (16 analog maximum + up to 18 network maximum, depending on analog channel usage). This recorder delivers up to 8MP resolution with H.265/H.264/MJPEG compression and a maximum recording bandwidth of 128Mbps. HDMI and VGA dual monitor outputs support up to 4K display resolution in expand mode.

Key Configuration

• Channels: 16 analog (AHD/HDTVI/HDCVI/CVBS) plus up to 2 IP (SUNAPI/ONVIF), for a maximum of 18 channels
• Recording bandwidth: up to 128 Mbps; playback bandwidth up to 32 Mbps with 18-channel simultaneous playback
• Analog recording rates: 8MP at 8 fps, 5MP at 12 fps, 4MP at 15 fps (NTSC) / 12 fps (PAL), and 2MP at 30/25 fps
• Storage: 8 fixed internal SATA HDD bays supporting up to 6TB per drive (48TB total maximum); HDDs not included

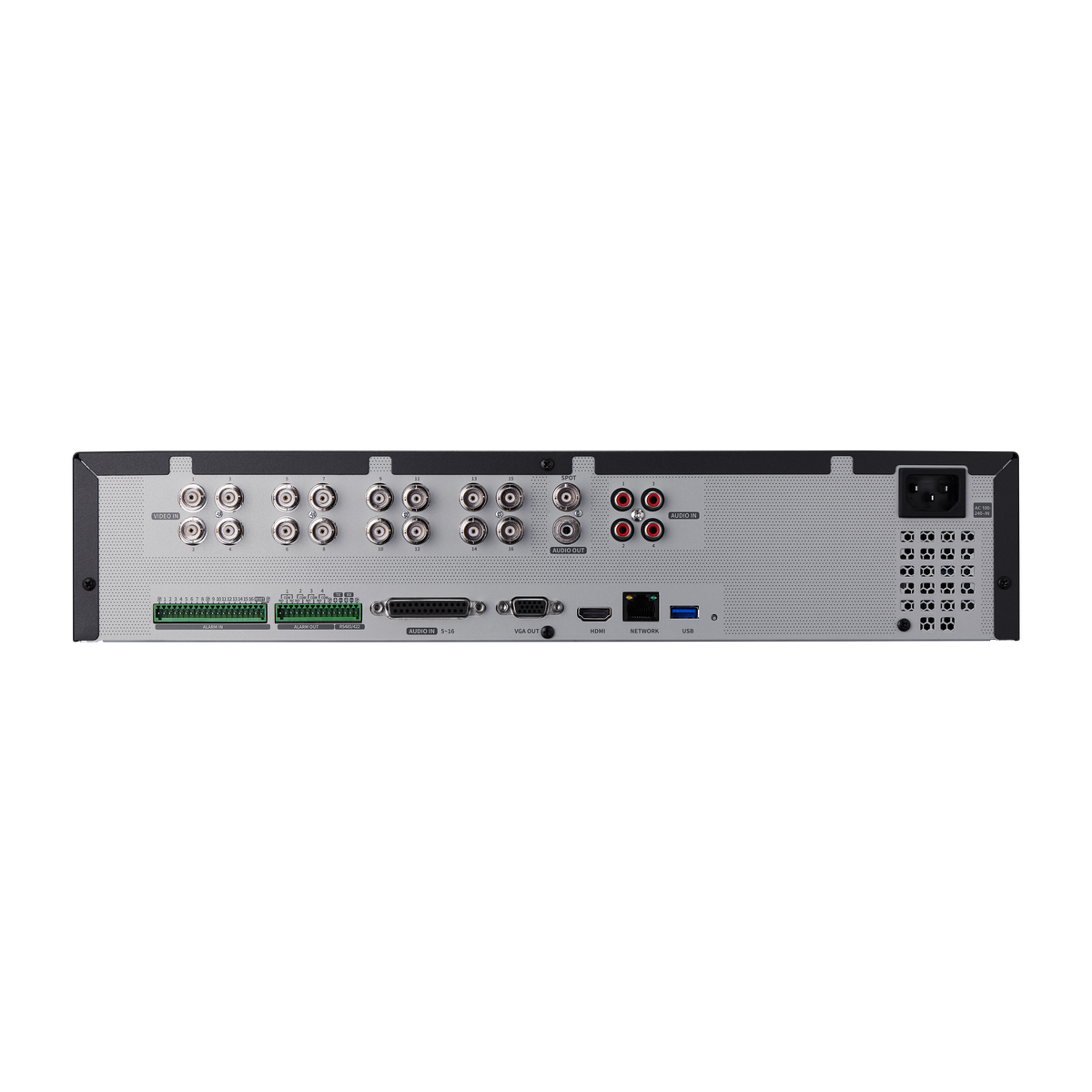

• Video outputs: HDMI (up to 3840 × 2160), VGA (up to 1920 × 1080), and 1× BNC spot monitor output
• Network: 1× RJ-45 Gigabit Ethernet (10/100/1000BASE-T)

Key Features

Embedded Linux DVR supporting AHD, TVI, CVI, CVBS, and network cameras with recording up to 8MP resolution. It provides flexible recording modes, alarm I/O, event-based actions, and smart search for network cameras. Features include up to 18-channel simultaneous playback, fisheye dewarping, 16-channel audio with two-way communication support, USB 2.0/3.0 connectivity, ARB recovery backup, PTZ and RS-485 control, coaxial camera control, P2P mobile access via QR code, and a setup wizard for easy deployment. Certified to UL, CE, FCC, KC, and UKCA standards.

Technical Context

Supports standard networking protocols including RTSP, HTTPS, SNMP, ONVIF Profile S, and SUNAPI for integration with surveillance systems. Security features include IP address filtering, user access logs, 802.1X authentication, encryption for credentials, recordings, transmission, and backups, plus device certificate support from Hanwha Vision Root CA. Web access is supported on Windows 10 using Chrome, Edge, or Safari, and sub-stream recording helps optimize storage and bandwidth while maintaining smooth video performance.

Installation Notes

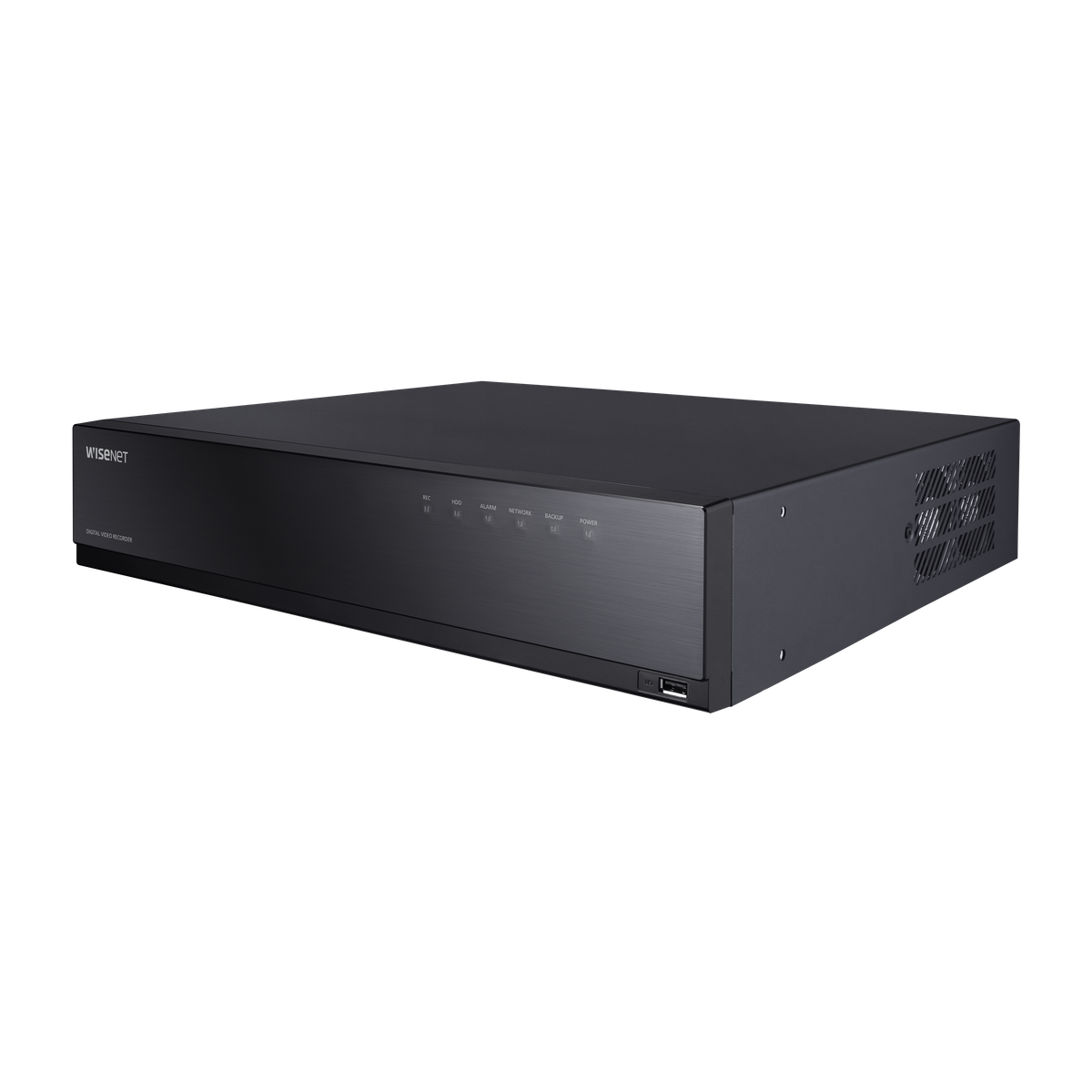

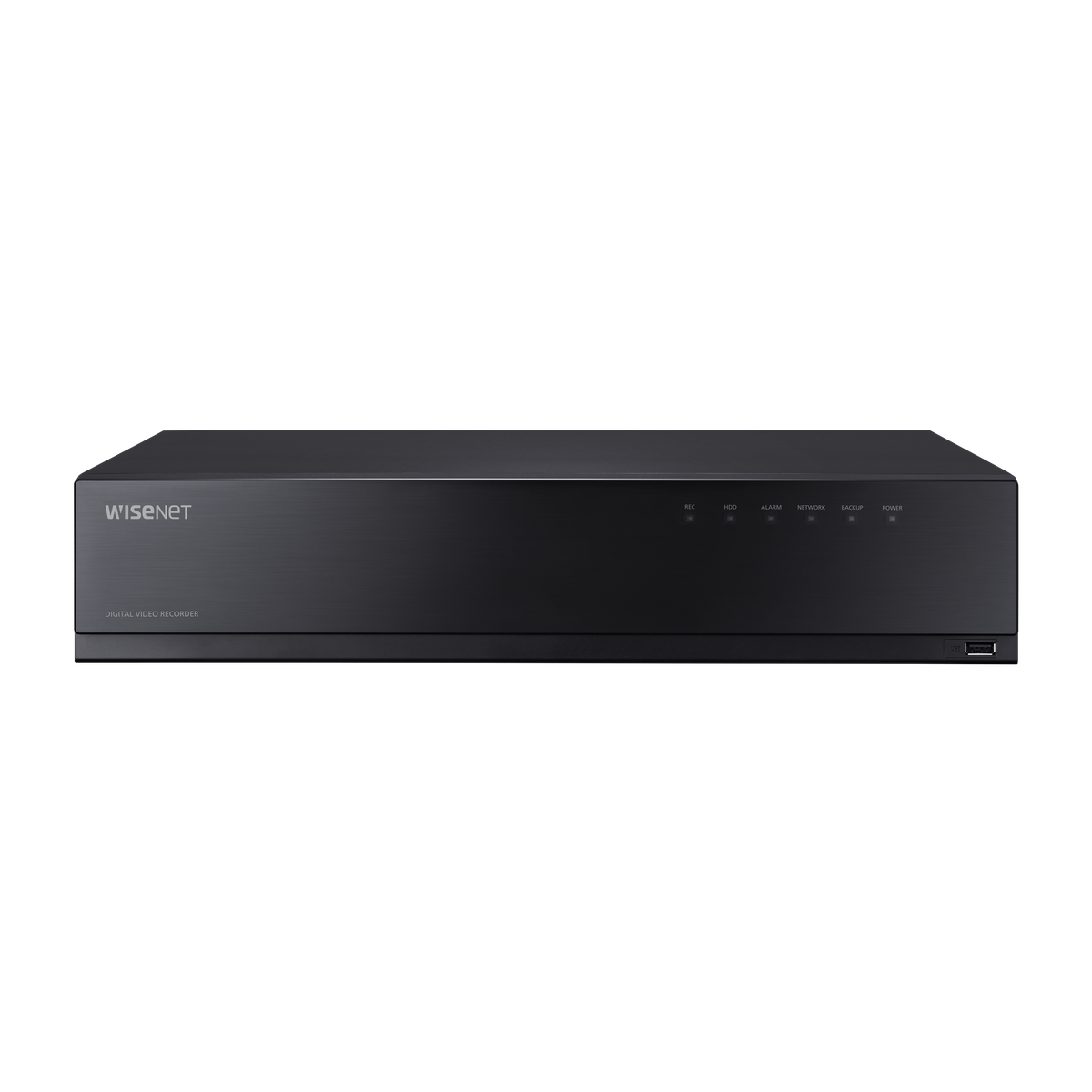

Black metal DVR (440.0 × 88 × 384.8 mm, approx. 6.10 kg with a 4TB HDD) designed for professional surveillance recording. It operates from 0°C to 40°C with 20–85% humidity tolerance and uses a 100–240 VAC power input with a maximum consumption of 200W (with 8×6TB HDDs installed). The unit does not include PoE ports, so IP cameras require external PoE switches for power and connectivity.
