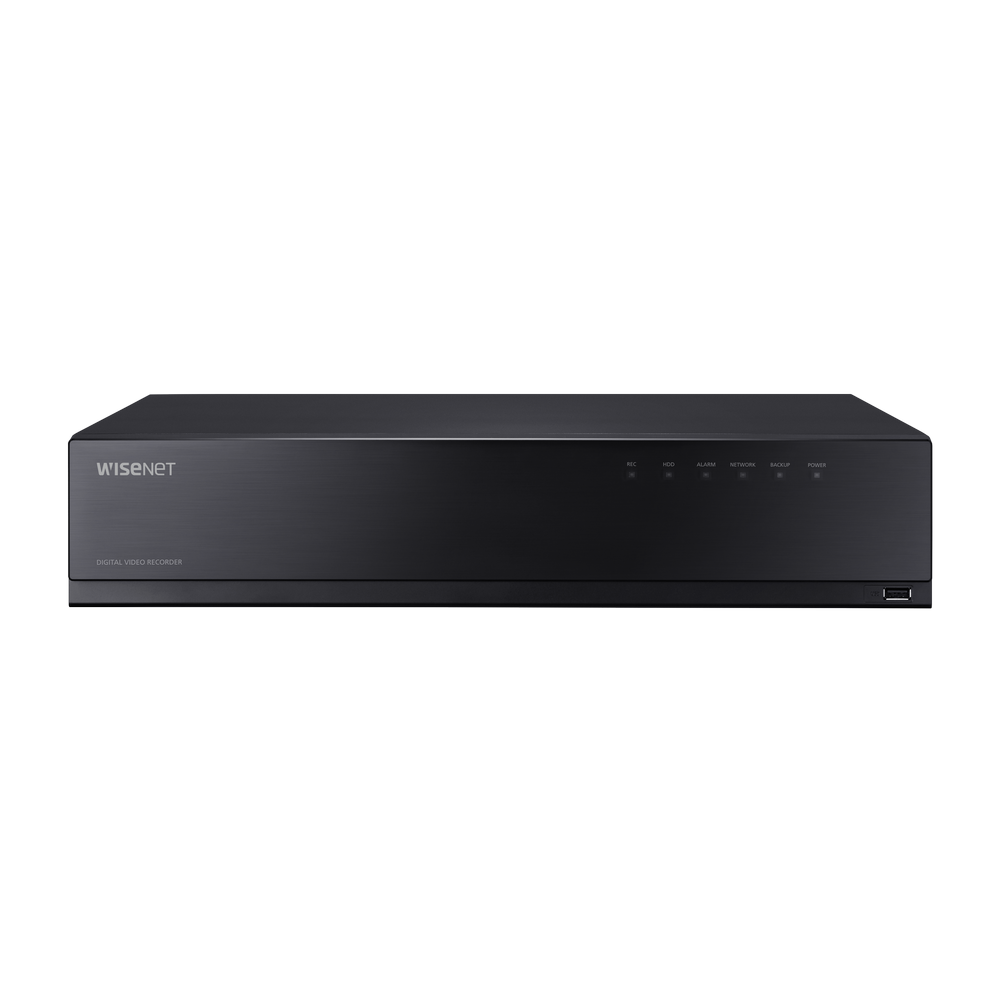

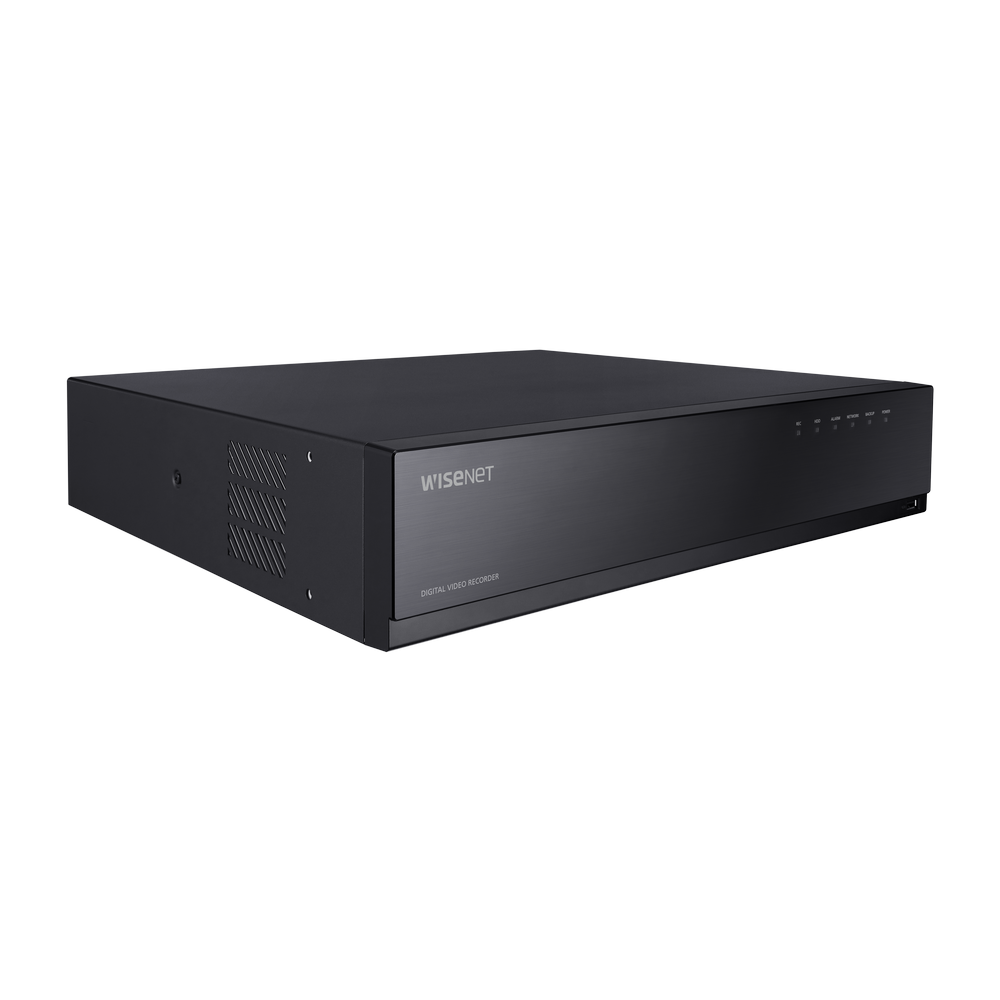

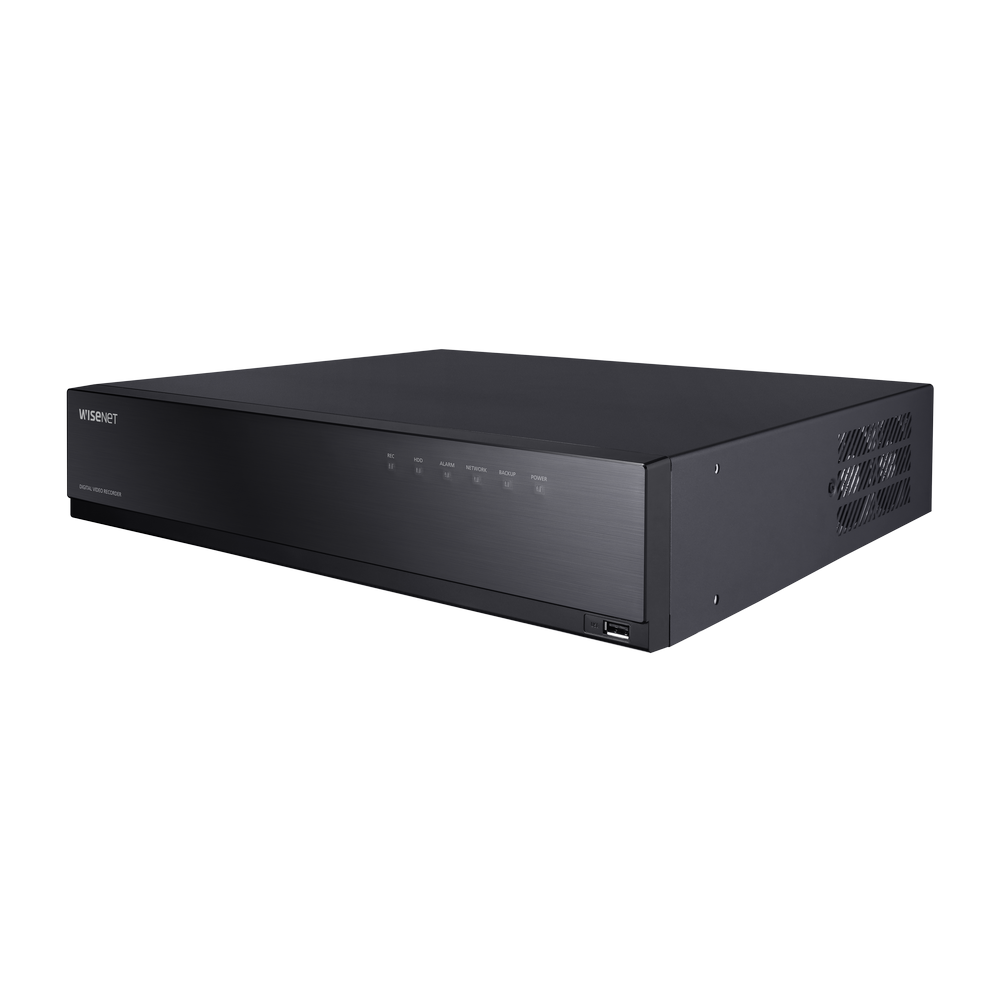

Hanwha - HRX-1635-4TB - 5-in-1 16 Channel Pentabrid DVR, 4TB Raw Storage, AHD, HDTVI, HDCVI

Product Overview

The Hanwha HRX-1635-4TB is a 16-channel Pentabrid DVR with 4TB raw storage, supporting AHD, HDTVI, HDCVI (up to 8MP), CVBS, and IP cameras with up to 18 total channels (16 analog + 2 IP). It supports recording up to 8MP resolution with H.265/H.264/MJPEG compression, 128 Mbps recording bandwidth, and 32 Mbps playback bandwidth. The system includes 4 audio inputs, 1 audio output, 16 alarm inputs, 4 relay outputs, and coaxial PTZ control for flexible surveillance integration.

Key Configuration

• Analog inputs: 16 × BNC supporting AHD, HDTVI, HDCVI (up to 8MP), and CVBS.
• Network inputs: up to 2 IP cameras (18CH total), supporting SUNAPI and ONVIF.
• Storage: 8 × SATA bays, up to 6TB per HDD (48TB max), 4TB pre-installed.
• Bandwidth: 128 Mbps recording, 32 Mbps playback (up to 18CH simultaneous).
• Dimensions: 440 × 88 × 384.8 mm; weight: approx. 7.7 kg with 4TB HDD.

Key Features

Supports HDMI 4K, VGA, and BNC spot outputs with continuous, scheduled, and event recording modes. Playback supports up to 18 channels, with event actions including email alerts, PTZ presets, FTP, and alarm outputs. Includes coaxial and RS-485/422 PTZ control, two-way audio, 16 alarm inputs with 4 relay outputs, USB 2.0/3.0 ports, and P2P QR connection for Wisenet Mobile.

Technical Context

Includes support for standard networking protocols such as TCP/IP, RTSP, HTTPS, SNMP, ONVIF Profile-S, and SUNAPI, along with security features like IP filtering, 802.1X authentication, encryption, access logs, and device certificates. Remote access supports up to 10 unicast and 20 multicast live users, with web viewer compatibility for Windows 10/macOS 11 using Chrome, Edge, or Safari. The unit features a black metal chassis, 100–240 VAC power input, and up to 200W power consumption with 8 × 6TB HDDs installed. Certified to UL, CE, FCC, KC, and UKCA standards.

Installation Notes

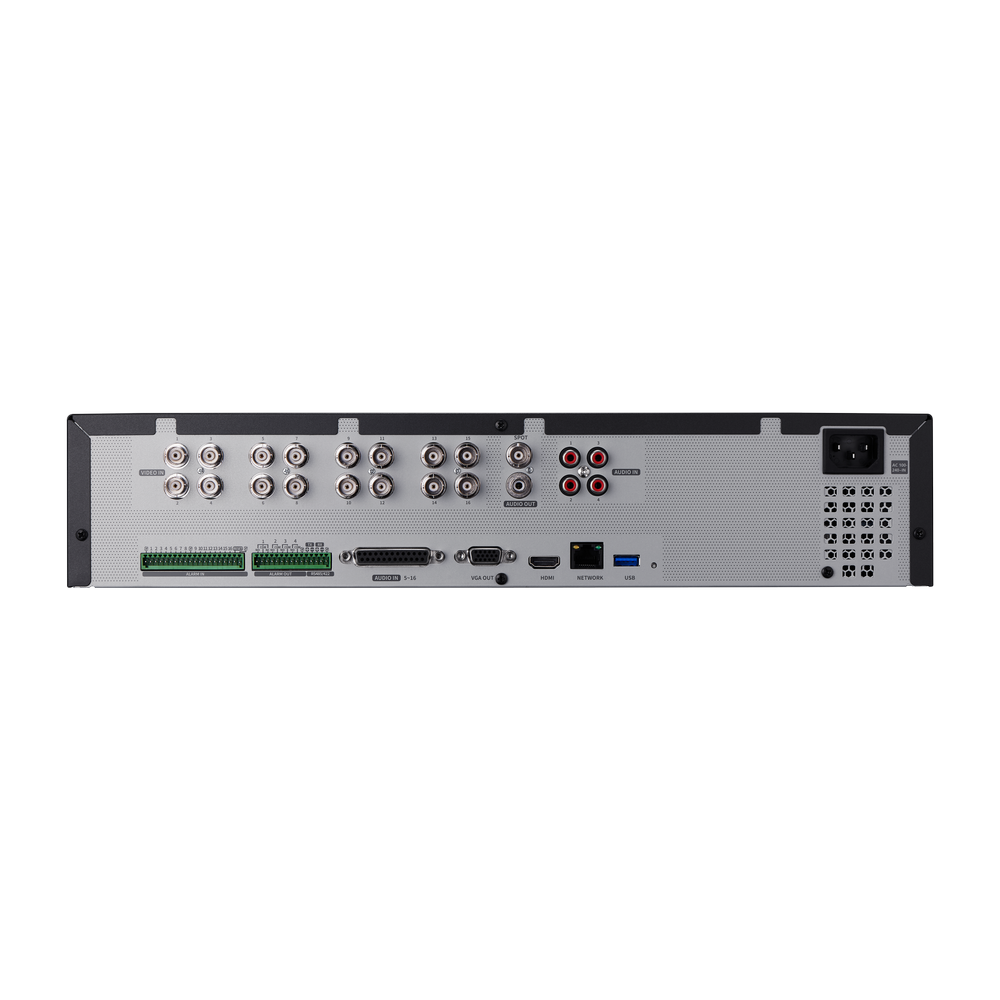

Rackmount DVR measuring 440 × 88 × 384.8 mm and weighing approximately 7.7 kg, designed for operation from 0°C to 40°C with 20–85% humidity. It includes 8 SATA HDD bays supporting up to 6TB per drive, with 4TB pre-installed. Features include HDMI and VGA dual display outputs, BNC spot monitor output, coaxial and RS-485/422 PTZ control, P2P QR mobile connection, AC power input, and USB mouse support for GUI operation.
