Hanwha - NOP-RI4S - Downstream Reader Interface for NOP Series
Product Overview

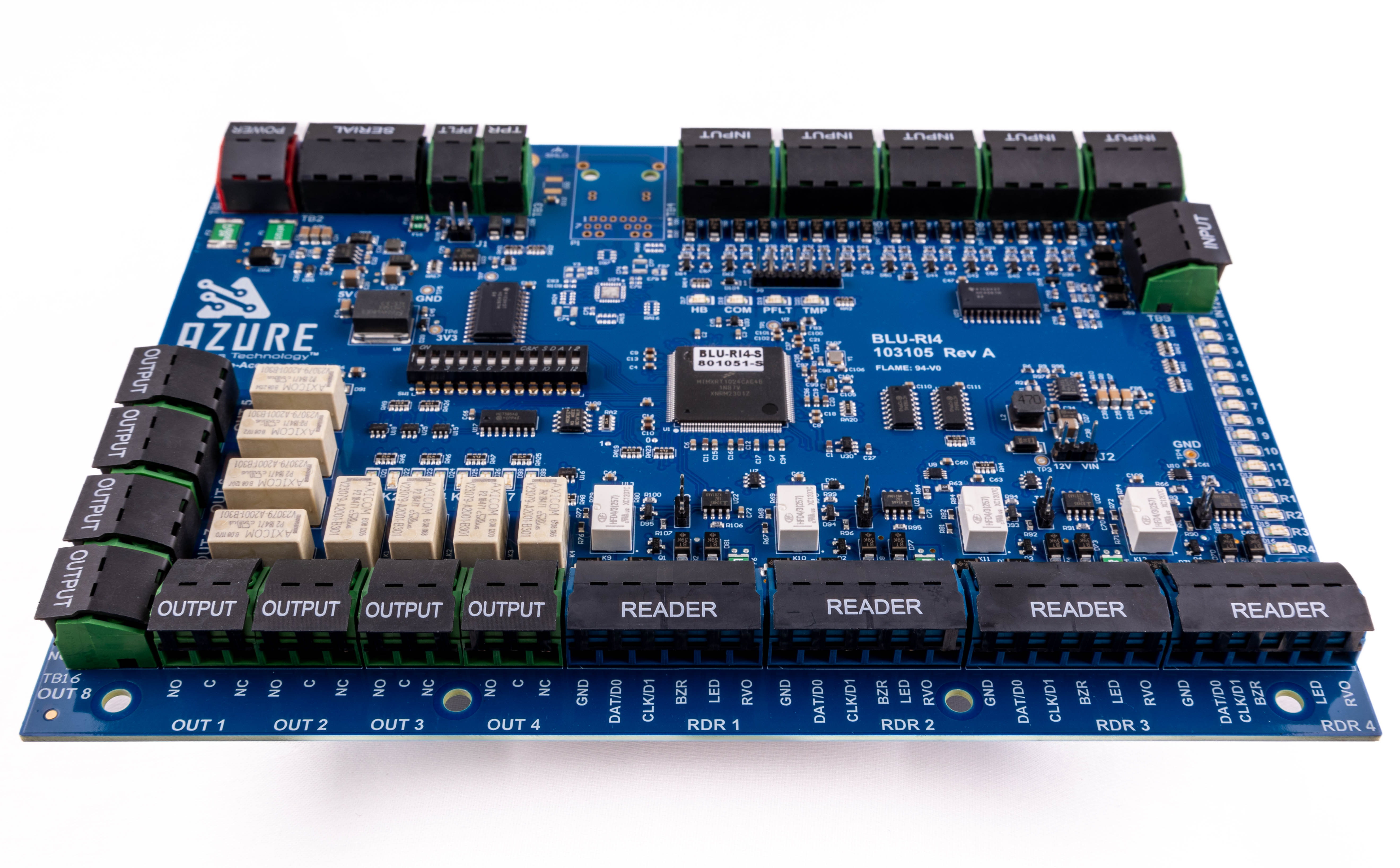

The Nortech Control NOP-RI4S is a downstream reader-interface panel for NOP series controllers, supporting 4 Wiegand/OSDP reader ports. This interface panel features 12 high-precision supervised alarm inputs, 2 unsupervised dedicated inputs, and 8 Form-C relay outputs. Encrypted data transfer via serial port communication with NOP series controllers provides offline event buffering and advanced access control capabilities.
Key Configuration
• Reader ports: 4 ports supporting Wiegand readers or up to 2 OSDP readers per port (up to 8 OSDP readers total)
• Supervised inputs: 12 configurable high-precision inputs with supervised or unsupervised modes and hardware/software filtering
• Outputs: 8 Form-C relay outputs, rated 2A @ 30VDC max
• Serial port: 1 upstream RS-485 port with multi-drop support for up to 16 I/O or reader interface boards; 9,600–115,200 baud
• Power input: 12–24VDC; typical 310mA, maximum full-load current 3.32A
Key Features
Features secure boot, encrypted firmware and data storage, OSDP secure channel support with custom keys, and AES 128/256 and SHA256 encryption. Offline mode maintains access control operation during controller communication loss, while dedicated inputs monitor cabinet tamper and power failure events. Additional capabilities include occupancy management, elevator control for up to 128 floors, host-controlled access requests, configurable keypad support, status LEDs, and protected auxiliary/reader power outputs. Compliant with CE, UL, FCC Part 15 Class A, and RoHS standards.
Technical Context
Designed as a downstream expansion module for NOP series access control controllers, supporting RS-485 multi-drop communication with up to 16 reader or I/O interface boards. It provides secure communications through encrypted data storage and OSDP secure channel support with custom keys. Supervised high-precision inputs use hardware and software filtering to reduce false alarms, while offline event buffering maintains access control functionality and event logging during controller communication interruptions.
Installation Notes
Measuring 8" × 6" × 0.75" (203.2 × 152.4 × 19.05 mm) and weighing 0.28 lbs (126 g). It operates in extreme temperatures from -40°C to +80°C and supports 12–24VDC power input. Typical current draw is 310mA, with a maximum full-load current of 3.32A. The unit includes fuse-protected power distribution, with auxiliary and reader port outputs provided via protected VIN passthrough for readers and locks.
| General | |
|---|---|
| Operating Temperature | -40°C ~ +80°C (-40°F ~ +176°F) |
| Weight | 0.28 lbs (126 Grams) |
| Dimensions | 8" x 6" x 0.75" (203.2mm x 152.4mm x 19.05mm) |
| Regulatory Compliance | CE Compliant, UL 294, 294B, 2610, 1076, ULC / ORD C1076 & 60839-11-1, FCC Part 15 Class A RoHS |
| Security | |
| Security Features | • Secure Boot • Firmware & Data Encrypted-at-rest • OSDP Secure Channel with custom keys • AES 128/256 - SHA256 |
| Onboard I/O | |
| Reader Ports | 4 - Reader Ports supporting Wiegand Readers or up to (2) OSDP Readers per port |
| Open-Collector Buzzer Output | (1) LED Control Signal • 2-wire LED support when re-purposing buzzer |
| Serial Port | 1 - Upstream, RS485 Serial Comm Ports • Multi-drop up to 16 IO and/or Reader Interface Boards • 9,600 to 115,200 baud • 2-Wire Interface |
| Outputs | 8 - Form-C Relay Outputs 2A @ 30VDC MAX rating |
| Dip Switches | 1 - Dip Switch Bank for configuring Hardware Interfaces / Serial Comm |
| Unsupervised Inputs | 2 - Unsupervised Inputs for Cabinet Tamper & Power Failure |
| Supervised Inputs | 12 - Supervised or Unsupervised Configurable Inputs Supervised high-precision inputs with hardware and software filtering to eliminate false alarms |
| Power | |
| Input Power (VIN) | 12-24VDC; 310mA typical MAX current Full Load Current (3.32A Max) |
| Aux Power Output (Fuse Protected) | VIN Passthrough: 2A Max Current |
| Reader Port Power (Fuse Protected) | VIN Passthrough with 2A, 500mA Max per port |
