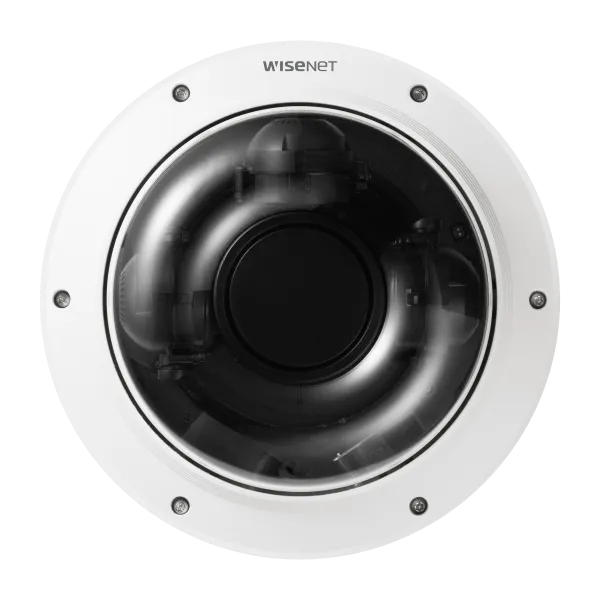

Hanwha - PNM-8082VT - 6MP (2MP x 3) Multi-Directional Camera, 3.0~6.0mm Motorized Varifocal Lens

Product Overview

The Hanwha PNM-8082VT is a 6MP multi-directional camera that utilizes a single IP address to deliver 2MP across three independent sensor channels at up to 30 frames per second. Each sensor is equipped with a 3~6mm (2x) motorized varifocal lens (F2.2–F3.1), providing a flexible 107° to 56.3° horizontal field of view. Designed with a distinct donut-shaped dome bubble, the unified system enables wide-angle coverage up to 321° while optimizing bandwidth via a triple H.265/H.264/MJPEG codec configuration with WiseStreamⅡ compression technology.

Key Configuration

• • Imaging device: 1/2.8" CMOS × 3CH; resolution per channel: 1920×1080 (2MP) at up to 30 fps
• • Lens: 3~6mm motorized varifocal (2x), F2.2(W)–F3.1(T), DC auto iris; horizontal FOV: 107°(W)–56.3°(T)
• • Minimum illumination: color 0.04 lux, B/W 0.004 lux (F2.2, 1/30 sec)
• • Video compression: H.265/H.264 (Main/Baseline/High), MJPEG; WiseStreamⅡ
• • Power: PoE+ (IEEE 802.3at); typical 8.2W, max 16.5W

Key Features

Equipped with extreme WDR (150dB), SSNRⅤ digital noise reduction, and Digital Image Stabilization (DIS), this multi-directional camera includes defog and Lens Distortion Correction (LDC) alongside independent Hallway View (90°/270° rotation) per channel. Onboard analytics track motion, defocus, tampering, directional movement, virtual line crossing, and area entry/exit. Local edge storage features dual microSD slots supporting up to 512GB total (256GB per slot), and a CVBS (720×480) video output is included for installation setup. The unit is ONVIF Profile S/G/T conformant, designed for easy gangbox mounting, and features multi-directional sensor alignment within its donut-shaped bubble.

Technical Context

Featuring a simple focus mechanism with a 0.5m (1.64 ft) minimum object distance, this multi-directional camera offers an electronic shutter speed of 2 to 1/12,000 sec. Each channel supports 32 polygonal privacy zones (with color or mosaic options) and 8 motion detection zones. The system streams up to 10 profiles to 20 concurrent unicast or multicast users. Enterprise cybersecurity controls include device certificates, HTTPS/SSL, and digest login authentication, 802.1X access control, IP address filtering, and user logs. The rugged hardware is certified IP66 weatherproof, NEMA4X corrosion-resistant, and IK10 vandal-proof.

Installation Notes

Measuring Ø251 × 116.5 mm and weighing 3 kg (6.6 lb), this multi-directional camera is constructed from white aluminum and features IP66 weatherproof, NEMA4X corrosion-resistant, and IK10 vandal-proof protection ratings. It handles an operating temperature range of -40°C to +55°C (-40°F to 131°F) with a start-up threshold above -35°C under 95% RH, and stores safely down to -50°C (-58°F). Power is supplied via PoE+ (IEEE 802.3at), and the physical design supports easy gangbox mounting, an installation CVBS video output, and dual microSD slots for edge storage. The donut-shaped dome bubble delivers up to 321° of coverage, allowing Hallway View configurations to apply across all sensors simultaneously.
